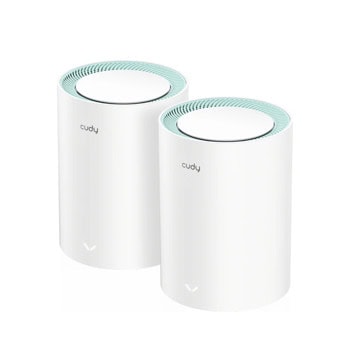

Cudy M1500-2-pack
Икона в кампания
Cudy M1500-2-packempty image 1empty image 2empty image 3

Мрежеста система Cudy M1500-2-pack, 1500 Mbps, 2.4GHz (300Mbps)/ 5GHz (1201Mbps), Wireless AX, 1x 10/100/1000Mbps WAN, 2x 10/100/1000Mbps LAN, 2 вътрешни антени

id 296859 Код: NTWRCUDYM15002PACK
  • Модел: M1500-2-pack
  • Марка: Cudy
  • Код на продукта: M1500-2-pack
  • Безжична скорост: 1500 Mbps
  • Wi-Fi Стандарт: Wi-Fi 6 (802.11ax)
  • Честота: 2.4 + 5 GHz
  • LAN портове: 2 x 1000 Mbps
  • Антени: 2 Вътрешни
  • USB портове: Няма
  • WAN портове: 1 x 1000 Mbps
  • Гаранция: 24 месеца
  • Наличност: Не е наличен
    ОписаниеХарактеристикиРевюта / Въпроси

    Always Connected to the Best Signal

    Move freely throughout your home. Cudy seamless roaming auto-switches your device to the strongest Wi-Fi signal in milliseconds – ensuring buffer-free streaming, smooth calls, and lagless gaming everywhere.



    Wired Power Meets Whole-Home Performance

    Experience low-latency gameplay, smooth 4K streaming, and reliable data transfers. With up to 1000 Mbps per port, M1500 delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.



    Parental Controls

    Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.





    Hardware Specs

    CPUCPU Details1 GHz Single-Core CPU
    Memory/StorageFlash/ROM16 MB (128 Mbit) NOR
     DDR/RAM128 MB (1 Gbit) DDR3
    Wireless5 GHz Wi-Fi Speed1201 Mbps
     2.4 GHz Wi-Fi Speed300 Mbps
     5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
     2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
     Wi-Fi Antennas2x Internal
     5 GHz Antenna Gain Max5.56 dBi
     2.4 GHz Antenna Gain Max4.41 dBi
     FEM or PA/LNA
    • 5 GHz: 2x Internal
    • 2.4 GHz: 2x Internal
     BeamformingTrue
     Range PerformanceMax: 170 m (558 ft)
    Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
     Wall PerformanceTwo wooden walls with thickness < 10 cm (4'')
    One concrete wall with thickness < 20 cm (7'')
     Indoor Coverage Reference2 Pack: 170 m² (1800 sq ft)
    3 Pack: 230 m² (2500 sq ft)
    Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.
    InterfacesGigabit RJ45 Ports3
     Ethernet Notes1× WAN port, the rest are LAN ports
     LEDSystem
     Physical Buttons
    • WPS Button
    • Reset Button
     Power InputDC Jack
    PowerPower MethodsDC
     DC Input12V 1A
     Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC
    Output: 12V 1A DC
     Max Power Consumption (W)10W
    ReliabilityEnvironment
    • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
    • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Humidity: 10% ~ 90% non-condensing
    • Storage Humidity: 5% ~ 95% non-condensing
    CertificationsFCC, CE
    MechanicalInstallationDesktop
     DimensionΦ110×154.5 mm
    Φ4.33×6.08 inches



    Software Specs

    WirelessWi-Fi StandardsWi-Fi 6
     Max Wi-Fi Modulation1024-QAM
     Wi-Fi EfficiencyBeamforming
     Max Capacity128
     Recommended Client Upper Limit60
     Max Wi-Fi Channel Width80 MHz
     Wi-Fi SecurityWPA/WPA2/WPA3
     Guest Network2.4 GHz, 5 GHz
     WPSTrue
    GeneralOperation Modes
    • Wi-Fi Router
    • Access Point
    • Range Extender
    • WISP
    • Client
     MeshCudy Mesh
     Mesh Backhaul
    • Wireless Backhaul
    • Wired Backhaul
     Multi-Band BackhaulTrue
     WAN Mode
    • DHCP
    • Static IP
    • PPPOE
    • PPTP
    • L2TP
    NetworkQoSPer-User Rate Limiting
     DHCP
    • Address Reservation
    • DHCP Client List
    • Server
     IP VersionsIPv4/IPv6
     IPv6 Protocols
    • Relay
    • Dynamic (SLAAC/DHCPv6)
    • Static (Fixed IP)
    • Passthrough
    • 464XLAT
    • MAP-E
    • DS-Lite
     IPTV/VLAN
    • Bridge
    • Tag VLAN
    • VoIP VLAN
    • IPTV VLAN
     IGMP
    • IGMP Proxy
    • IGMP Snooping
     Forwarding
    • Port Forwarding
    • UPnP
    • DMZ
     Firewall
    • SPI Firewall
    • Block PING
    UtilitiesVPN Client
    • PPTP
    • L2TP
    • Wireguard
     DNS Options
    • Manual DNS
    • Rebind Protection
    • Override Clients' DNS
     Wake on LANTrue
     Online DetectionTrue
    ManagementParental Controls
    • Profiles Settings
    • Offline Time
    • Online Time
    • Pause the Internet
    • Web Filter
     All Devices Management
    • Wi-Fi Time Schedule
    • MAC Filter
    • IP/MAC Binding
     Per-Devices Management
    • Internet On/Off
    • VPN On/Off
    • Online Time Schedule
    • Device Rename
     Content Management
    • Domain Filter
    • IP Filter
    SystemLED ControlTrue
     Local Control Method
    • Config Web Page
    • App Control
     Remote Control Method
    • Config Page via HTTPS
    • App Control
    • TR069/TR098/TR111/TR143/TR181
     Firmware Upgrade
    • Local Update
    • App (Over the Air)
    • Online Update
     Reliability
    • Timed Reboot
    • Backup and Restore
     Diagnostic Tools
    • Diagnosis
    • Ping
    • Traceroute
    • NSLookup
    • System Log
     Languages
    • English
    • Portuguese
    • Russian
    • Spanish
    • Ukrainian
    • French
    • Simplified Chinese
    DashboardPanel
    • Internet Status
    • Mesh Status
    • Devices Management
    • WAN Status
    • LAN Status
    • WISP Status
    • Wi-Fi Status
    • VPN Status
    • DHCP Server Status
    • System Version
     Charts
    • Mesh Topology
    • Internet Speed
    • WISP Speed
    • Wi-Fi Speed




    Виж още Рутери Безжични Cudy
    Виж всички Рутери Безжични в категорията
    Технически характеристики
    Безжична скорост:  1500 Mbps
    Wi-Fi Стандарт:  Wi-Fi 6 (802.11ax)
    Честота:  2.4 + 5 GHz
    LAN портове:  2 x 1000 Mbps
    WAN портове:  1 x 1000 Mbps
    Антени:  2 Вътрешни
    USB портове:  Няма
    3G/4G:  Не
    Преносим:  Не
    Други:  Няма
    Жична скорост:  10/100/1000 Mbps
