Cudy LT300
Икона нов продуктИкона изгоден продукт
Cudy LT300Cudy LT300Cudy LT300Cudy LT300

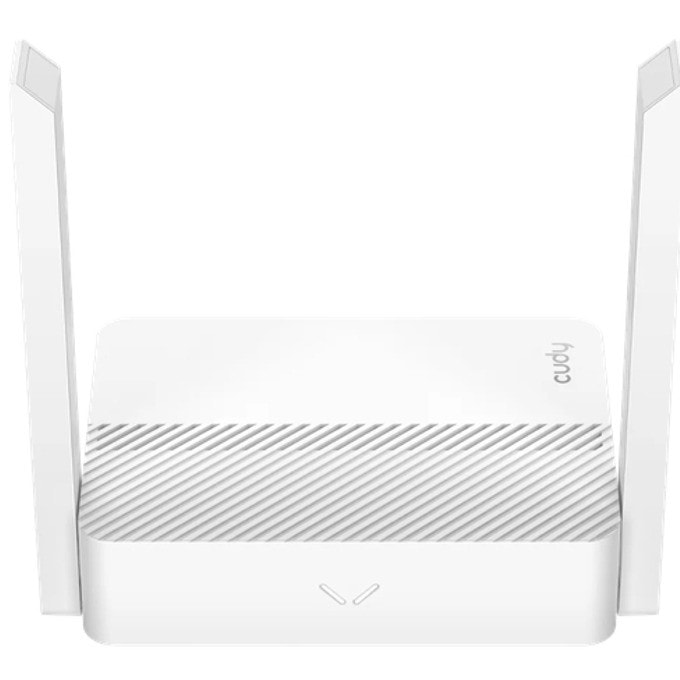

Рутер Cudy LT300, 4G, 300Mbps, 2.4GHz, Wireless N, 2x 10/100 LAN, 1x Nano SIM, 2x външни антени

id 312971 Код: NTWRCUDYLT300
  • Доставка приблизително от 16.09.26 до 24.09.26

40.75 €

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиДокументация

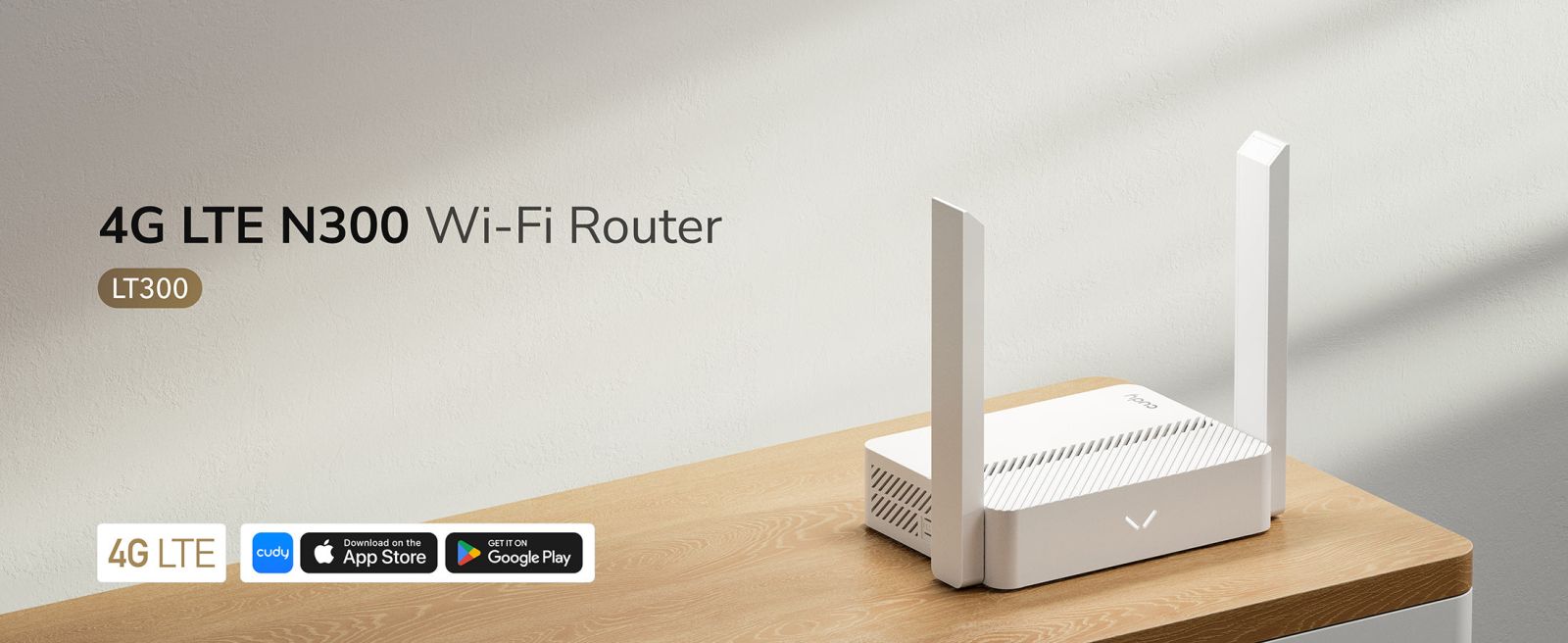

4G N300 Wi-Fi Router



A 4G WiFi router with one nano SIM slot and two Ethernet ports, providing easy-to-install flexible networks for home, office, surveillance, exhibitions, and RV scenarios.

  • 4G Cat. 4 with Max 150 Mbps DL 1
  • 300 Mbps Wi-Fi 2
  • 1× Nano SIM Slot
  • VPN Server and Client
  • Cudy App, Cloud Control



Hadware

SpecificationDetails
Model VersionLT300 2.0
CPU Details580 MHZ Single-Core, MIPS24KEC
Flash/ROM8 MB (64 Mbit ) NOR
DDR/RAM64 MB (512 Mbit) DDR2
Cellular Standards4G Cat. 4
Cellular Antennas2× Fixed
SIM Options1× Nano SIM Slot
Available VersionsEU, CN
Suitable RegionsEurope, Middle East, Africa
Max DL Speed150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
AdvancedDL 2×2 MIMO
Cellular BandsLTE-FDD: B1/3/5/7/8/20/28LTE-TDD: B38/40/41WCDMA: B1/5/8
Suitable RegionsChina, India
Max DL Speed150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
AdvancedDL 2×2 MIMO
Cellular BandsLTE-FDD: B1/3/5/8LTE-TDD: B34/38/39/40/41WCDMA: B1/5/8GSM: B3/8
2.4 GHz Wi-Fi Speed300 Mbps
2.4 GHz Wi-Fi Streams2 Spatial Streams
Wi-Fi Antennas2× Internal
FEM or PA/LNA2.4 GHz: 2× Internal
Range PerformanceMax: 50 m (164 ft)Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall PerformanceOne wooden walls with thickness < 10 cm (4'')
Physical ButtonsWPS ButtonReset Button
10/100 Mbps RJ45 Ports2
Ethernet Notes1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
LEDSystemCellular Signal Strength
Power Input TypeDC Jack
Power MethodsDC
Power Input12V⎓1A
Power Adapter In the BoxInput: 100-240V~, 50/60HzOutput: 12V⎓1A
Power Output3W
Max Power Consumption (W)8W
Idle Power Consumption (W)3W
EMCESD: Contact: 4kV; Air: 8kV
EnvironmentOperating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)Operating Humidity: 10% ~ 90% non-condensingStorage Humidity: 5% ~ 90% non-condensing
CertificationsFCC, CE
DimensionMain Part:118×80×27.5 mm4.65×3.15×1.08 inches
Product Weight172.2 g (6.07 oz.)
InstallationDesktop
Retail Package WeightEU: 366.5 g (12.93 oz.)
Retail Package Dimension176×140.5×56 mm6.93×5.53×2.2 inches
Carton Dimension60×30×37.5 cm23.62×11.81×14.76 inches



Software

SpecificationDetails
Model VersionLT300 2.0
CPU Details580 MHZ Single-Core, MIPS24KEC
Flash/ROM8 MB (64 Mbit ) NOR
DDR/RAM64 MB (512 Mbit) DDR2
Cellular Standards4G Cat. 4
Cellular Antennas2× Fixed
SIM Options1× Nano SIM Slot
Available VersionsEU, CN
Suitable RegionsEurope, Middle East, Africa
Max DL Speed150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
AdvancedDL 2×2 MIMO
Cellular BandsLTE-FDD: B1/3/5/7/8/20/28LTE-TDD: B38/40/41WCDMA: B1/5/8
Suitable RegionsChina, India
Max DL Speed150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
AdvancedDL 2×2 MIMO
Cellular BandsLTE-FDD: B1/3/5/8LTE-TDD: B34/38/39/40/41WCDMA: B1/5/8GSM: B3/8
2.4 GHz Wi-Fi Speed300 Mbps
2.4 GHz Wi-Fi Streams2 Spatial Streams
Wi-Fi Antennas2× Internal
FEM or PA/LNA2.4 GHz: 2× Internal
Range PerformanceMax: 50 m (164 ft)Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall PerformanceOne wooden walls with thickness < 10 cm (4'')
Physical ButtonsWPS ButtonReset Button
10/100 Mbps RJ45 Ports2
Ethernet Notes1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
LEDSystemCellular Signal Strength
Power Input TypeDC Jack
Power MethodsDC
Power Input12V⎓1A
Power Adapter In the BoxInput: 100-240V~, 50/60HzOutput: 12V⎓1A
Power Output3W
Max Power Consumption (W)8W
Idle Power Consumption (W)3W
EMCESD: Contact: 4kV; Air: 8kV
EnvironmentOperating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)Operating Humidity: 10% ~ 90% non-condensingStorage Humidity: 5% ~ 90% non-condensing
CertificationsFCC, CE
DimensionMain Part: 118×80×27.5 mm4.65×3.15×1.08 inches
Product Weight172.2 g (6.07 oz.)
InstallationDesktop
Package ContentLT300Power AdapterEthernet CableInstallation Guide
Retail Package WeightEU: 366.5 g (12.93 oz.)
Retail Package Dimension176×140.5×56 mm6.93×5.53×2.2 inches
Units per Carton40
Carton Net WeightEU: 14.62 kg (32.23 lbs)
Carton Gross WeightEU: 15.44 kg (34.04 lbs)
Carton Dimension60×30×37.5 cm23.62×11.81×14.76 inches
Model VersionLT300 2.0
Wi-Fi StandardsWi-Fi 4
Max Wi-Fi Modulation64-QAM
Max Capacity64
Recommended Client Upper Limit30
Wi-Fi Channel WidthAuto/20/40 MHz
Wi-Fi SecurityWPA/WPA2/WPA3
Guest Network2.4 GHz
WPSsvg
Operation ModesCellular RouterWi-Fi RouterWISP
Cellular APNBand Select (Band Lock)Cellular Mode SelectData RoamingAPN ProfileManual APN ProfileMBNMTU Value
Cellular Mode4G Only3G OnlyAuto
WAN ModeDHCPStatic IPPPPOEL2TPPPTP
Internet Failover SequenceWANWISPCellular
QoSPer-User Rate Limiting
DHCPAddress ReservationDHCP Client ListServer
IP VersionsIPv4/IPv6
IPv6 ProtocolsRelayDynamic (SLAAC/DHCPv6)Static (Fixed IP)Passthrough464XLATMAP-EDS-Lite
Multicastsvg
IPTV/VLANBridgeTag VLAN
TTL CustomizationExtendSpoofCustom
IGMPIGMP ProxyIGMP Snooping
ForwardingPort ForwardingPort TriggeringUPnPDMZ
FirewallSPI FirewallDoS ProtectionBlock PING
Application Layer GatewayIPSec PassthroughL2TP PassthroughPPTP PassthroughFTP PassthroughTFTP PassthroughH323 PassthroughSIP PassthroughRTSP Passthrough
VPN ServerWireGuardOpenVPNPPTPL2TP
VPN ClientWireGuardOpenVPNPPTPL2TP
DNS OptionsManual DNSRebind ProtectionOverride Clients' DNS
Online Detectionsvg
Parental ControlsProfiles SettingsOffline TimeOnline TimePause the InternetWeb Filter
All Devices ManagementWi-Fi Time ScheduleMAC FilterIP/MAC Binding
Per-Devices ManagementInternet On/OffVPN On/OffOnline Time ScheduleDevice Rename
Content ManagementDomain FilterIP Filter
Local Control MethodConfig Web PageApp Control
Remote Control MethodApp ControlConfig Page via HTTP
Firmware UpgradeLocal UpdateApp (Over the Air)Online Update
Diagnostic ToolsDiagnosisPingTracerouteNSLookupSystem Log
LanguagesEnglishGermanSpanishFrenchHebrewItalianPortugueseKorean
ReliabilityTimed RebootBackup and Restore
PanelInternet StatusDevices ManagementCellular StatusWAN StatusLAN StatusWISP StatusWi-Fi StatusVPN StatusDHCP Server StatusSystem Version
ChartsCellular SpeedInternet SpeedWISP SpeedWi-Fi Speed




    Виж още Рутери Безжични Cudy
    Виж всички Рутери Безжични в категорията
    Документация
    Технически характеристики
    Безжична скорост:  300 Mbps
    Wi-Fi Стандарт:  Wi-Fi 4 (802.11n)
    LAN портове:  2x 100 Mbps
    WAN портове:  Няма Mbps
    Честота:  2.4 GHz
    Антени:  2 Външни
    USB портове:  Няма
    3G/4G:  4G
    Преносим:  Не
    Други:  Слот за SIM карта
    Жична скорост:  10/100 Mbps
