Кутия Cooler Master MasterFrame 600, EATX / ATX / microATX / Mini-ITX, 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C, 3x 140mm & 1x 120mm вентилатора, сребриста, без захранване

CoolerMaster MasterFrame 600 Silver

Premium open-frame ATX case designed for modular builds, extreme cooling, and total customization through the FreeForm 2.0 platform.



MasterFrame 600

The MasterFrame 600 is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization. Designed with FreeForm 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits.

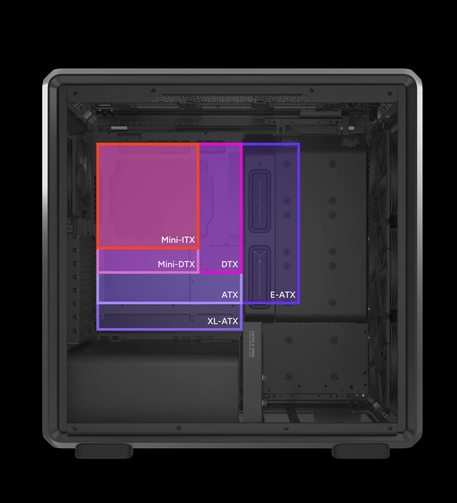

Flexible Motherboard Support

Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.

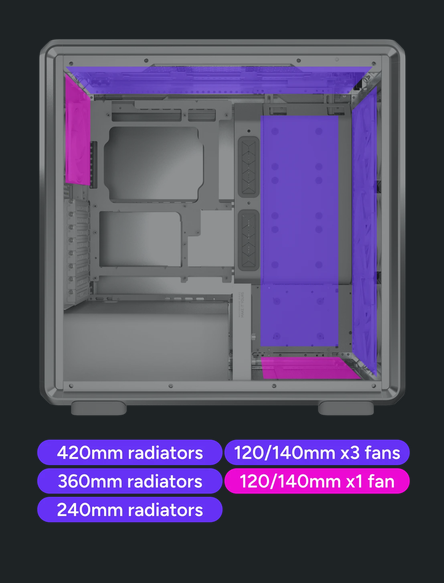

Extensive Cooling Support

Can house up to eleven fans and multiple radiator sizes (up to 420mm), ensuring superior thermal performance.

Materials - Exterior SGCC Steel, Aluminum

Materials - Side panel (Right / Left) Tempered Glass / Aluminum

Dimensions (L x W x H) 531 x 261 x 544mm (Incl. Protrusions), 514 x 244 x 514 mm (Excl. Protrusions)

Volume 73.6 L (Liters Incl. Protrusions)

Motherboard Support Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* ​(*Conditional Support)

Power Supply Support ATX

PCI Expansion Slots 8

5.25" Drive Bays 0

3.5" Drive Bays 0

2.5" / 3.5" Drive Bays (Combo) 2

2.5" Drive Bays 3

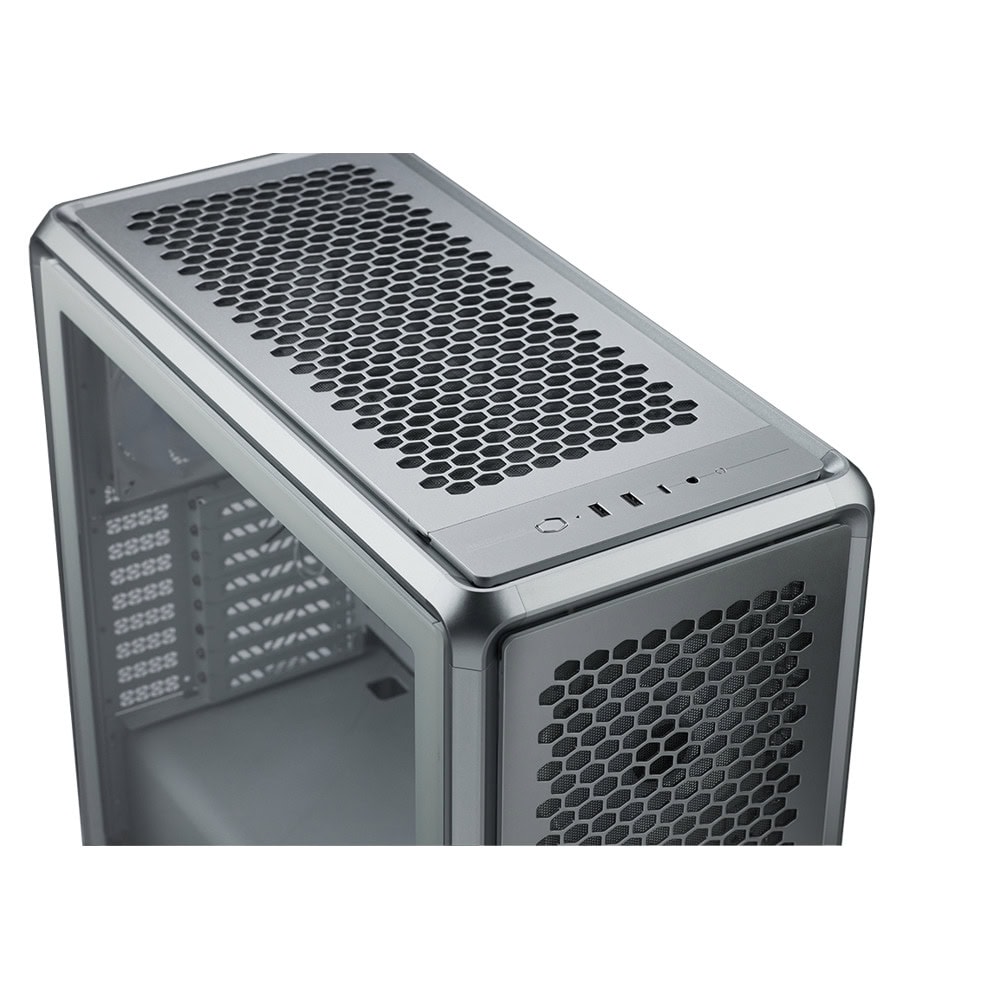

I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C

I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)

Pre-installed Fans - Front Mobius 140 mm x 3 (non-ARGB) - Available for Black Model Only, SickleFlow ARGB 140 mm x 3 - Available for Silver Model Only

Pre-installed Fans - Top N/A

Pre-installed Fans - Rear Mobius 120 mm x 1 (non-ARGB) - Available for Black Model Only, SickleFlow ARGB 120 mm x 1 - Available for Silver Model Only

Fan Support - Front 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm

Fan Support - Top 3x 120mm, 2x 140mm, 2x 180mm, 1x 200mm

Fan Support - Rear 1x 120mm

Fan Support - Side 3x 120mm, 3x 140mm

Radiator Support - Front 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 458 mm)

Radiator Support - Top 120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420mm if I/O module is moved to the front panel)

Radiator Support - Rear 120 mm

Radiator Support - Side 240 / 280 / 360 / 420 mm

Dust Filters Top, Front, Bottom, Right side panel

Clearance - CPU Cooler 190 mm

Clearance - PSU 235 mm

Clearance - Graphics Card L: 485 mm (incl. power connector), H: 190 mm (incl. power connector)

Cable Routing - Behind Motherboard Tray 43 mm

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
