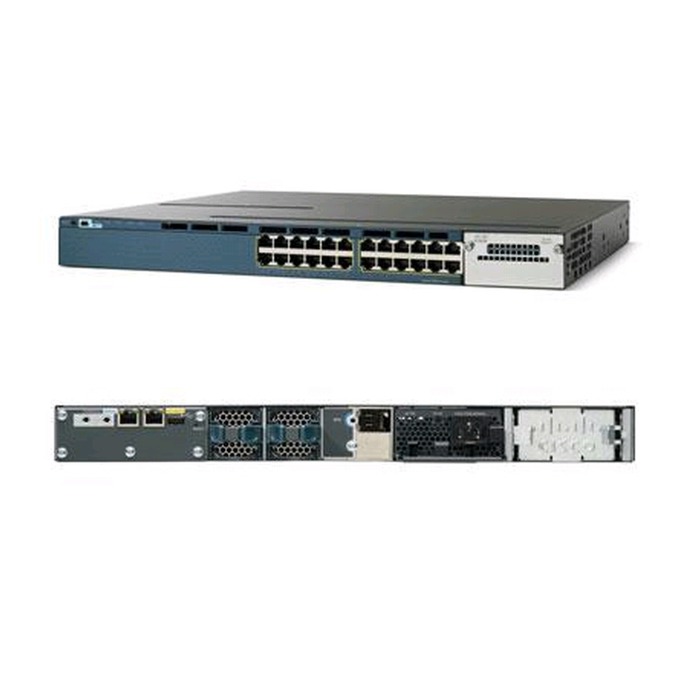

Суич Cisco Catalyst WS-C3560X-24T-L, 24 Port 1000Mbps

Cisco Catalyst WS-C3560X-24T-L

Сигурност: Port Security; DHCP Snooping; Dynamic ARP Inspection (DAI); IP source guard; IEEE 802.1AE MACsec; Flexible authentication; RADIUS Change of Authorization and downloadable Calls; 802.1X Supplicant with Network Edge Access Transport (NEAT)

Други: System Software: Cisco IOS LAN Base

Захранване: Redundant power supply: 1 (installed), 2 (max)

MAC адреси: 4K MAC address table size

Управление: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI

Памет (Flash, RAM): Flash Memory: 128 MB; RAM: 256 MB DRAM

VLAN (брой, стандарти): Total VLANs: 255

Размери, mm: 445 x 460 x 45 mm, 1U Height

Stackable: Cisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughput; Max units in a stack: 9;

Суич, тип: Fixed Port

Общ брой портове: 24

Основни портове, тип: 24x10/100/1000Base-T

Power Over Ethernet (PoE): No

Uplink портове: 0

Свободни (10GB) слотове: 1 open module slot: 4x1G SFP, 2x10G SFP+, or 2x10GBase-T uplink ports.

Fans: yes

Routing Layer 2 only

Капацитет за маршрутизиране/превключване, Gbps: 160 Gbps

Пропускателна способност, Mpps: 65.5 Mpps

QoS: Cross-stack QoS allows QoS to be configured across the entire stack. 802.1p class of service (CoS) and differentiated services code point (DSCP) field classification are provided; 8 egress queues per port

L2 мреживи стандарти: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae

L3 мрежови стандарти: -

IPv6 functionality: -
