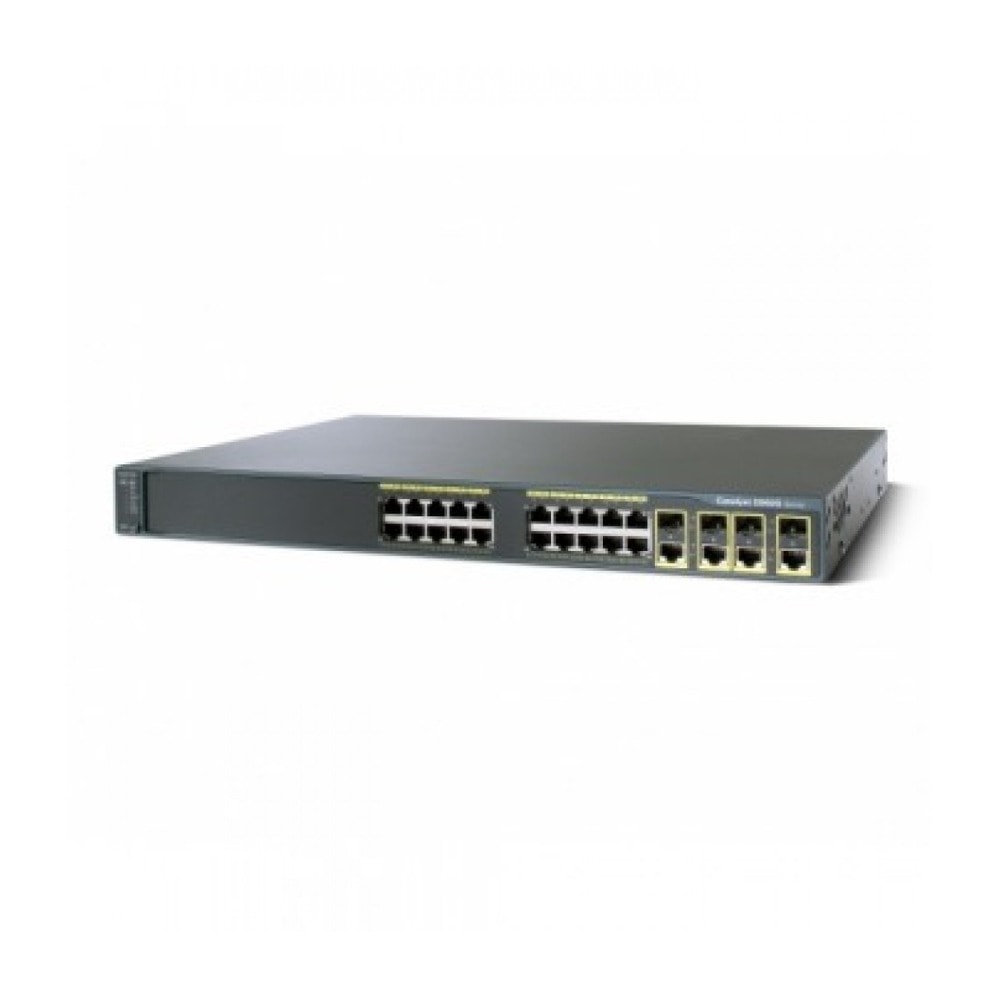

Cisco Catalyst 2960 20 10/100/1000 4 T/SFP LAN Base Image

Primary LAN port type 1000Base-T, RJ-45
Primary LAN ports number 20
Secondary LAN port type Dual Personality (1000Base-T or SFP)
Secondary LAN ports number 4
Type Managed
Managed Port Yes
Ports 24
PoE No
Network type Gigabit Ethernet
Stacking No
Layer 3 switching No
Uplink Dual Personality Yes
Vendor Cisco Systems
Part No. WS-C2960G-24TC-L
Operating System Cisco IOS
Warranty Limited Life time
Web Page http://www.cisco.com/en/US/products/ps6406/index.html
Dimensions H, cm 4.4
Dimensions W, cm 44.5
Weight, kg 3.6
IsFT Yes
Configuration Fixed
DRAM Memory (MB) 64
DRAM Memory Max (MB) 64
Flash Memory (MB) 32
Flash Memory Max (MB) 32
Rackmountable Yes
Indicators/LED System, RPS, link status, link duplex, link speed
Configuration and Management Remote management, RMON, SSH, Browser-based, SSL, Telnet, Browser-based, CLI
SNMP Management SNMPv3
PoE powered No
PoE source No
Power Consumption (maximum), W 75
Dimensions D, cm 23.6
Environmental req. -5ºC to +45ºC
Power supply AC + RPS
Console Port (none)
Rack Height , RU 1
DHCP Client Yes
DHCP Server Yes
Logging capabilities Syslog
Heat dissipation, Btus/hour 256
SFP slots 4
Uplink 4x Dual personality
OSI Layer suppor Layer 2
Switching capacity, Gbps 32
MAC address table entries 8000
Stackable No
Acoustic Noise (ISO7779) 41
Reliability (MTBF), hours 313828
IEEE standarts supported IEEE 802.1X, IEEE 802.1w, IEEE 802.1s, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1p, IEEE 802.3u, IEEE 802.3, IEEE 802.3x, IEEE 802.3ah, IEEE 802.3ad, IEEE 802.1AB
VLAN's supported 255
VLAN ID's 4096
