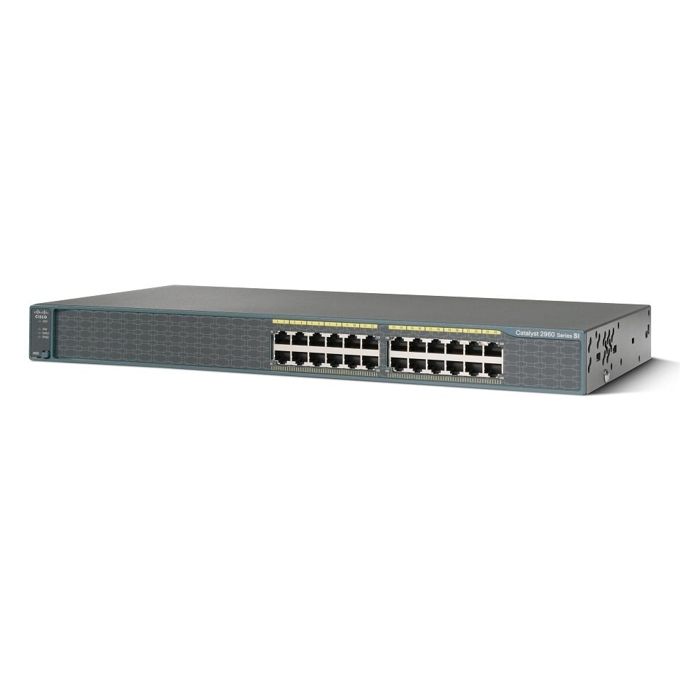

Суич Cisco Catalyst 2960, 100Mbps, 24Port

Primary LAN port type 100Base-T, RJ-45
Primary LAN ports number 24
Type Managed
Managed Port Yes
Ports 24
PoE No
Network type Fast Ethernet
Stacking No
Layer 3 switching No
Vendor Cisco
Part No. WS-C2960-24-S
Operating System Cisco IOS
Warranty Limited Life time
Web Page http://www.cisco.com/en/US/products/ps6406/index.html
Dimensions H, cm 4.4
Dimensions W, cm 44.5
Weight, kg 3.6
IsFT Yes
Configuration Fixed
DRAM Memory (MB) 64
DRAM Memory Max (MB) 64
Flash Memory (MB) 32
Flash Memory Max (MB) 32
Rackmountable Yes
Indicators/LED System, link status, link duplex, link speed
Configuration and Management Browser-based, SSL, Browser-based, CLI, Remote management, RMON, SSH, Telnet
SNMP Management SNMPv3
PoE powered No
PoE source No
Power Consumption (maximum), W 30
Dimensions D, cm 23.6
Environmental req. 0 to 45°C
Power supply AC
Console Port RJ-45
Rack Height , RU 1
DHCP Client Yes
DHCP Server Yes
Logging capabilities Syslog
Heat dissipation, Btus/hour 103
OSI Layer suppor Layer 2
Switching capacity, Gbps 16
Forwarding rate, Mpps 3.6
MAC address table entries 8000
Stackable No
Acoustic Noise (ISO7779) 40
Reliability (MTBF), hours 429847
IEEE standarts supported IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1AB, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
VLAN's supported 64
VLAN ID's 4096
