Интерактивен дисплей BenQ RP6504, 65" (165.1 cm) 4K/UHD IPS 450 nits сензорен дисплей, DisplayPort, HDMI, VGA, USB, Jack 3.5mm, Bluetooth, Wi-Fi, LAN, RS232

BenQ RP6504

Protect indoor air quality Poor indoor air quality negatively affects student health and performance. The BenQ Board Pro helps monitor CO₂, PM₂.₅, and TVOC levels in the classroom so you can regulate air flow accordingly.

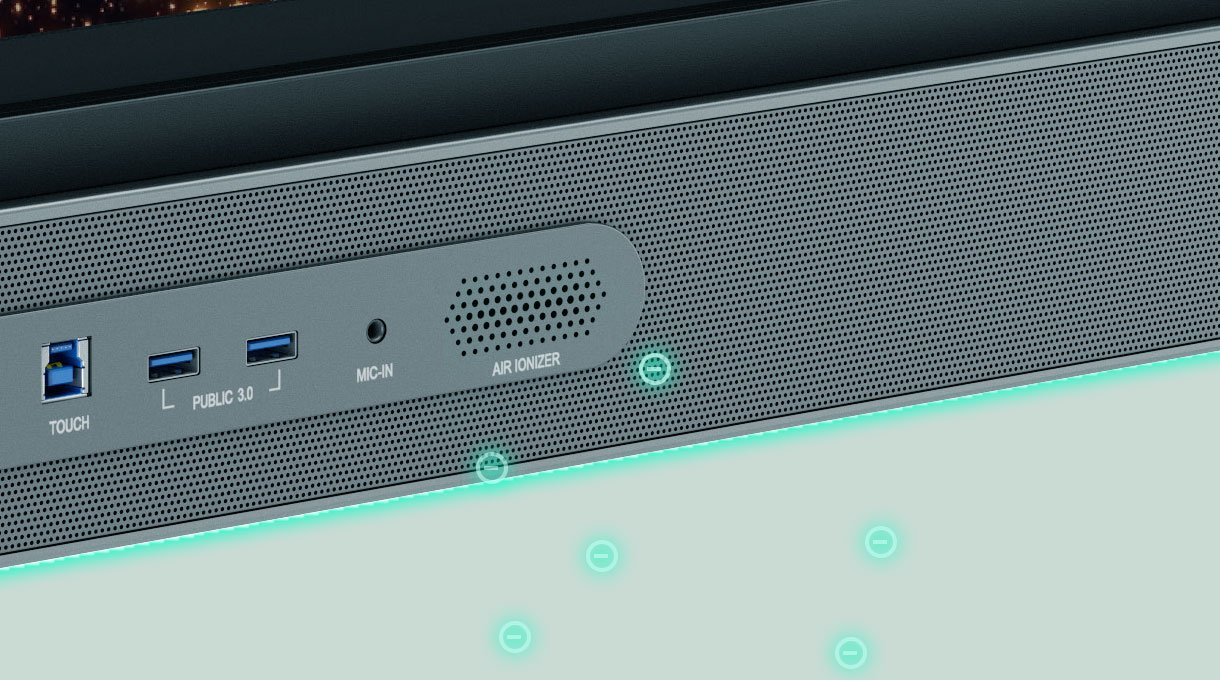

Air ionizer The BenQ Board Pro is the only smart board with an air ionizer that helps regulate impurities when pollutant levels rise.

Specifications

Panel

Screen size

65''

Panel type

IPS

Active area

1428.5 × 803.5 mm

Aspect ratio

16:9

Resolution

UHD 3840 × 2160 pixels

Response time

8 ms

Color depth

10-bit

Orientation

Landscape

Operation hours

18 hours / 7 days

Panel brightness (typical)

450 nits

Contrast ratio (typical)

1200:1

Dynamic contrast ratio

50,000:1

Color gamut

72% NTSC

Light life (typical)

50,000 hrs

Glass

Germ-resistant coating

Nano-ionic silver

Anti-glare coating

Yes

Hardness

9H tempered

Touch screen

Touch technology

Ultra Precision IR

Touch points

up to 50

Response time

< 2.5 ms

System

Memory | Storage

8GB I 64GB

OS

Android 13 (EDLA)

GPU

Arm Mali-G57 MC5

CPU

Arm Cortex-A78 × 4 + A55 × 4

Connectivity

Video Graphics Array (VGA)

1

HDMI (in | out)

4 × HDMI 2.0 | 1 × HDMI 2.0

Display Port

1 × 1.2a

USB-A

7 × 3.0, 1 × 2.0

USB-C

1 × 3.0 (PD 100 W), 2 × 3.0, 1 × 2.0 (PD 65 W)

USB-B (for touch)

3 × 3.0

3.5 mm Line in (1)

Mic × 1

3.5 mm Line out

Earphone × 1

Slot-in PC (OPS)

1

Wi-Fi

Wi-Fi 6

Bluetooth®

Bluetooth 5.2

SPDIF (in | out)

1 (optical)

Ethernet LAN

2

3.5 mm Line in (2)

PC Audio × 1

RS-232

1

Built-in peripherals

NFC sensor

Yes

Ambient light sensor

Yes

IR sensor

Yes

Motion sensor

Yes

Microphone

8-microphone array (range: up to 8 m | 26ft)

Speaker

2 × 20 W (max)

Air sensor

CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O, temperature, humidity

Subwoofer

1 × 16 W

Air Ionizer

Yes

Power

ENERGY STAR

Yes

Power

AC 100-240V 50/60Hz

Standby power consumption

<0.5 W

Typical power consumption

95.0 W

Physical

Dimensions (W x H x D)

1488.4 × 937.6 × 117.7 mm (58.6 × 36.9 × 4.6 inch)

Weight

40.6 kg

Mount (screws)

VESA 600 × 400 mm (4 × M8 × 25L)

Pen Tray

Yes

Environment

Operating temperature

0°C ~ 40°C | 32°F ~ 104°F

Storage temperature

-20°C ~ 60°C | -4°F ~ 140°F

Storage humidity

10% ~ 90% RH Non-Condensing

Operating humidity

10% ~ 90% RH non-condensing

Software

Whiteboarding

EZWrite 6.0

Wireless screen sharing

InstaShare 2

Device management

DMS

Account management

AMS

Quick access tool

Floating Tool

Broadcast system

X-Sign Broadcast

Flicker Free

Yes

Low Blue Light

Yes
