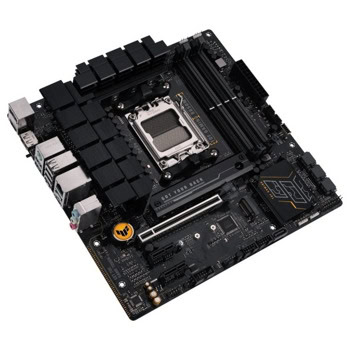

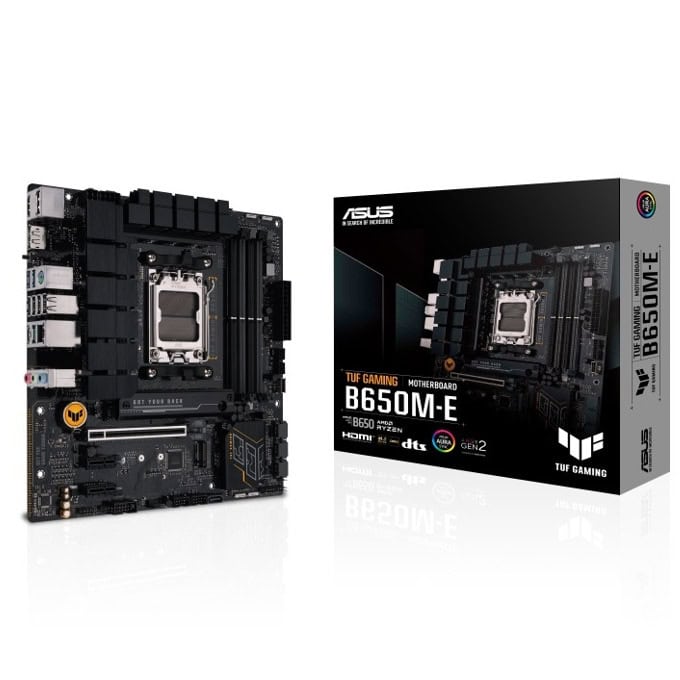

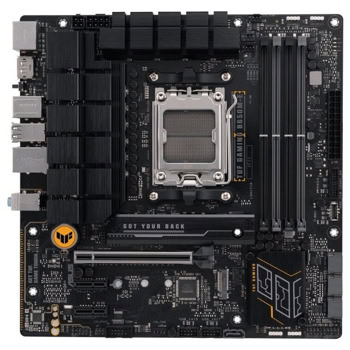

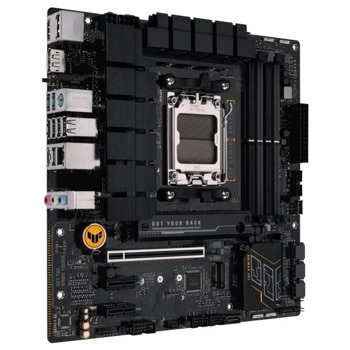

TUF GAMING
B650M-E
ASUS TUF GAMING B650M-E takes all the essential elements of the latest AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.
2.5 Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
| Category | Specification |
|---|---|
| CPU | AMD Socket AM5 for Ryzen™ 9000/8000/7000 Series |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC) to 4800, ECC/Non-ECC, un-buffered, Dual Channel, AMD EXPO™, OptiMem II |
| Graphics | 2 x DisplayPort (max 8K@60Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 for 9000/7000, x8/x4 for 8000), 2 x PCIe 4.0 x1 |
| Storage | 2 x M.2 (PCIe 5.0/4.0, depending on CPU), 4 x SATA 6Gb/s, AMD RAIDXpert2 (RAID 0/1/10) |
| Ethernet | Realtek 2.5Gb Ethernet, TUF LANGuard |
| Rear USB | 2 x USB 3.2 Gen 2 (1x Type-A, 1x Type-C), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) |
| Front USB | 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 HD Audio CODEC, supports 24-bit/192kHz playback, Audio shielding, Premium capacitors, Dedicated PCB layers |

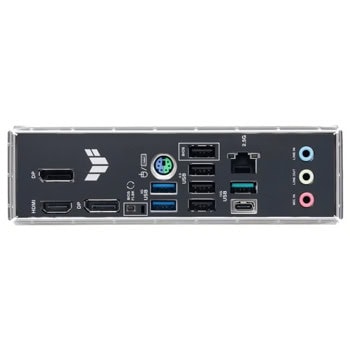

| Back Panel I/O | 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 2 x DisplayPort, 1 x HDMI, 1 x 2.5Gb LAN, 3 x Audio jacks, 1 x BIOS FlashBack™, 1 x PS/2 |
| Internal I/O | 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 2 x Chassis Fans, 1 x 24-pin, 1 x 8-pin +12V, 1 x 4-pin +12V, 2 x M.2, 4 x SATA, USB headers (as above), 3 x ARGB Gen 2, 1 x Aura RGB, Clear CMOS, COM port, Audio header, Front panel header |
| Special Features | TUF Protection, ASUS Q-Design (Q-LED, Q-DIMM, Q-Slot, etc.), M.2 & VRM heatsinks, EZ DIY features, Aura Sync |
| Software | Armoury Crate (Aura Sync, Fan Xpert 2+), AI Suite 3, TUF CPU-Z, DTS, Norton 360 (60-day), WinRAR |
| BIOS | 256 Mb UEFI AMI BIOS, EZ Flash 3, CrashFree BIOS 3 |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA cables, I/O shield, TUF sticker, M.2 rubber & screw kits, Cert card, User guide |
| OS Support | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX, 9.6 x 9.6 inches (24.4 x 24.4 cm) |
Виж още Дънни платки за AMD процесори Asus
Виж всички Дънни платки за AMD процесори в категорията
Пълно ръкoводство на потребителя за Asus TUF Gaming B650M-E.pdf| Процесор сокет: | AM5 |
|---|---|
| Чипсет: | B650 |
| Поддържана памет: | DDR5 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DP HDMI |
| Форм фактор: | Micro ATX |
| Видеокарта: | Вградена |
