ASUS ROG STRIX Z690-F GAMING WIFI
Икона в кампания
НазадASUS ROG STRIX Z690-F GAMING WIFIASUS ROG STRIX Z690-F GAMING WIFIASUS ROG STRIX Z690-F GAMING WIFIASUS ROG STRIX Z690-F GAMING WIFIНапред

Дънна платка Asus ROG Strix Z690-F Gaming WIFI (90MB18M0-M0EAY0), Z690, LGA1700, DDR5, PCI-E 5.0, 6x SATA 6Gb/s, 4x M.2, 1x USB 3.2 Gen 2x2, Wi-Fi, Bluetooth, ATX

id 220778 Код: MBIASUS90MB18M0M0EAY0
  • Модел: STRIX Z690-F GAMING WIFI
  • Марка: Asus
  • Код на продукта: 90MB18M0-M0EAY0
  • Поддържана памет: DDR5
  • RAID: Да
  • Безжични мрежи: Wi-Fi 6 (802.11ax)
  • Bluetooth: Да
  • Видео слот: PCI-E
  • Multi-Graphics технология: Няма
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

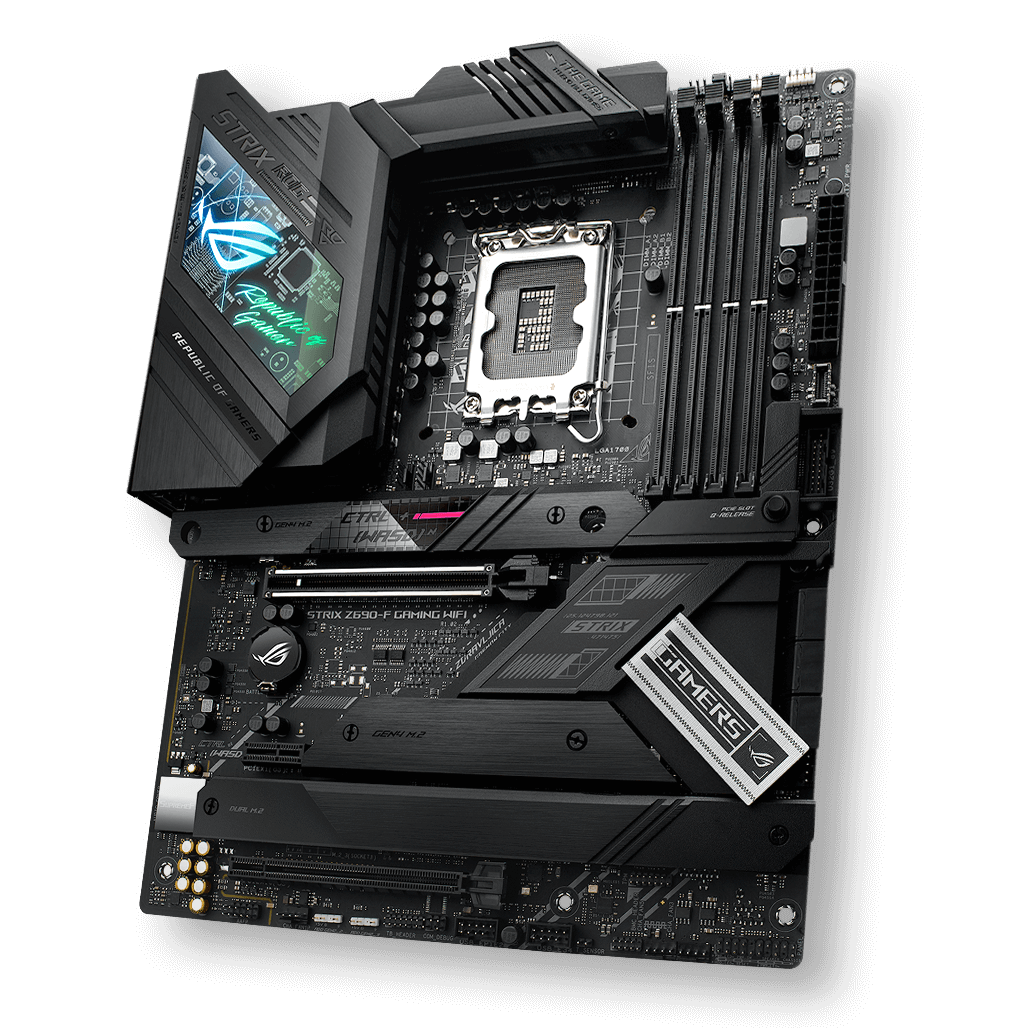

    ASUS ROG Strix Z690-F Gaming WIFI

    ROG STRIX Z690-F GAMING WiFi

    ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.

    Undeniably ROG Strix

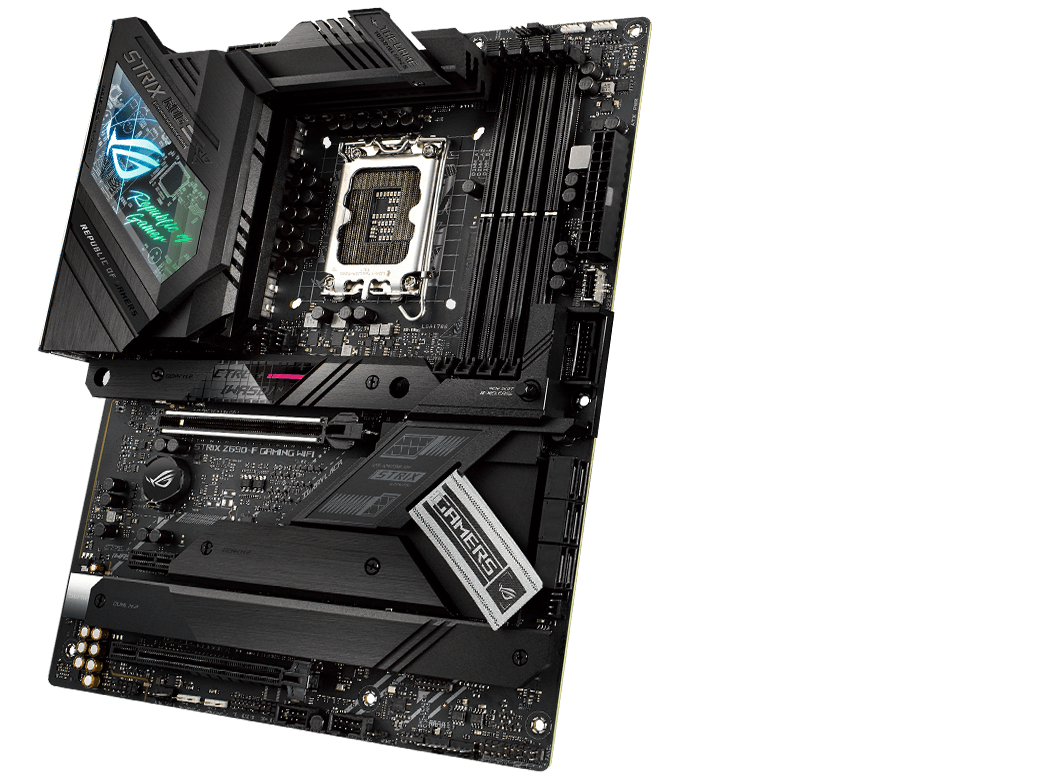

    A specially illuminated acrylic display on the I/O cover gives the illusion that the circuit board is visible beneath an RGB ROG logo. Meanwhile, touches of brushed metal throughout the motherboard, plus the stitched fabric of the ROG Strix Cable organizer, deliver a variety of carefully crafted surface textures. Last but not least, a special lighting pattern built into the motherboard finishes off a colorful tour of the ROG worldview.

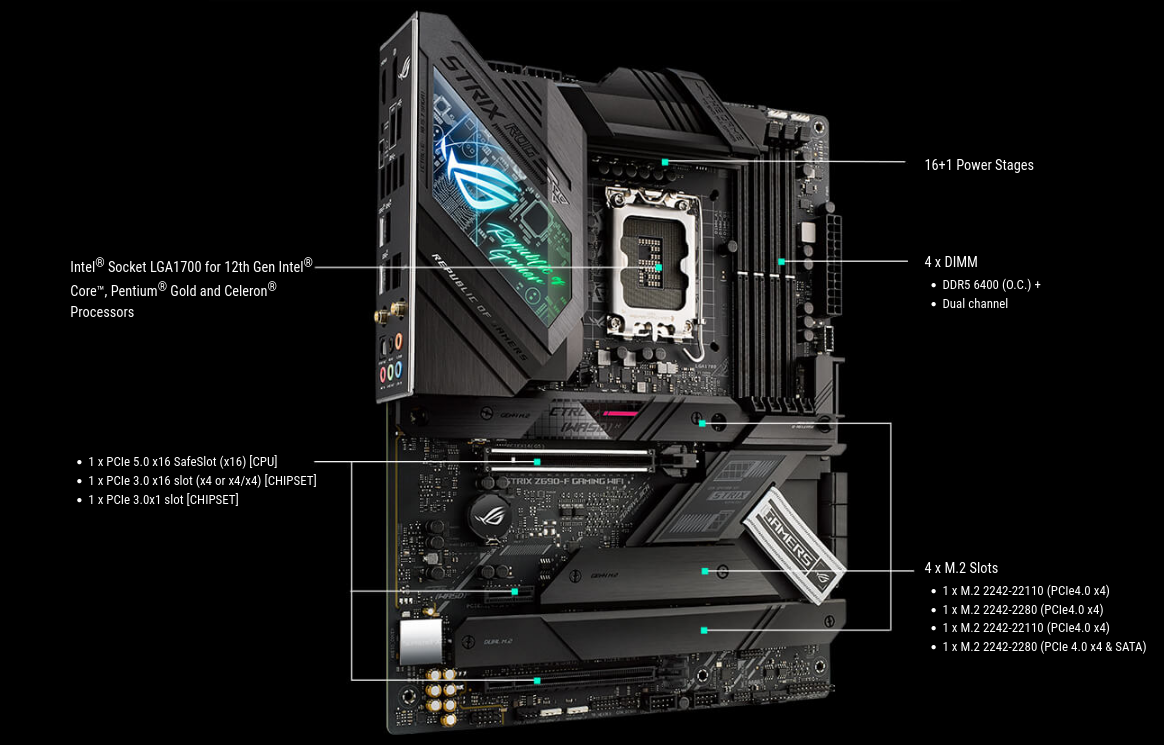

    Specifications:

    CPU

    Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

    Chipset

    Intel® Z690 Chipset

    Memory

    4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*

    Dual Channel Memory Architecture

    Supports Intel® Extreme Memory Profile (XMP)

    OptiMem II

    Graphics

    1 x DisplayPort

    1 x HDMI

    Expansion Slots

    Intel® 12th Gen Processors*

    1 x PCIe 5.0 x16 slot

    - Intel® 12th support PCIe 5.0 x16 mode

    Intel® Z690 Chipset

    1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode)

    1 x PCIe 3.0 x1 slot



    Storage

    Intel®12th Gen Processors*

    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    Intel® Z690 Chipset**

    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)***

    6 x SATA 6Gb/s ports****

    * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

    ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

    *** When M.2_4 is operating in SATA device, SATA6G_2 will be disabled.

    **** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.

    Ethernet

    1 x Intel® 2.5Gb Ethernet

    Wireless & Bluetooth

    2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2

    Wi-Fi 6E

    2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

    Supports 2.4/5/6GHz frequency band*

    Bluetooth v5.2 hardware ready**

    * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

    ** Bluetooth v5.2 function will be ready in Windows 11 or later.

    USB

    Rear USB: Total 10 ports

    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

    3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)

    4 x USB 3.2 Gen 1 ports (4 x Type-A)

    2 x USB 2.0 ports (2 x Type-A)

    Front USB: Total 7 ports

    Front USB (Total 7 ports)

    1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

    - Impedance sense for front and rear headphone outputs

    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

    - Supports up to 32-Bit/384 kHz playback"

    Audio Features

    - SupremeFX Shielding Technology

    - ALC4080 + Savitech SV3H712 AMP

    - Gold-plated audio jacks

    - Rear optical S/PDIF out port

    - Premium audio capacitors

    - Audio cover

    Intrernal I/O Connectors

    Fan and Cooling related

    1 x 4-pin CPU Fan header

    1 x 4-pin CPU OPT Fan header

    1 x 4-pin AIO Pump header

    5 x 4-pin Chassis Fan headers

    Power related

    1 x 24-pin Main Power connector

    2 x 8-pin +12V Power connector

    Storage related

    4 x M.2 slots (Key M)

    6 x SATA 6Gb/s ports

    USB

    1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Miscellaneous

    3 x Addressable Gen 2 headers

    1 x AURA RGB header

    1 x BMC header

    1 x CPU Over Voltage jumper

    1 x Front Panel Audio header (AAFP)

    1 x SPI TPM header (14-1pin)

    1 x 20-3 pin System Panel header with Chassis intrude function

    1 x Thermal Sensor header

    1 x Thunderbolt header

    Special Features

    Extreme Engine Digi+

    - 5K Black Metallic Capacitors

    ASUS Q-Design

    - M.2 Q-Latch

    - PCIe Slot Q-Release

    - Q-DIMM

    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

    - Q-Slot

    ASUS Thermal Solution

    - M.2 heatsink backplate

    - M.2 heatsink

    ASUS EZ DIY

    - BIOS FlashBack™ button

    - BIOS FlashBack™ LED

    - Clear CMOS button

    -CPU Socket lever protector

    - ProCool II

    - Pre-mounted I/O shield

    - SafeSlot

    - SafeDIMM

    AURA Sync

    - AURA RGB header

    - Addressable Gen 2 RGB headers

    ASUS HYDRANODE

    - 1 x Chassis fan support* (CHA_FAN1P)

    TPM header

    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE




    Виж още Дънни платки за Intel процесори Asus
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  LGA 1700
    Чипсет:  Z690
    Поддържана памет:  DDR5
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Wi-Fi 6 (802.11ax)
    Bluetooth:  Да
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  DP HDMI
    Форм фактор:  ATX
