Дънна платка ASUS ROG Strix B660-F Gaming WIFI, B660, LGA1700, DDR5, PCI-E 5.0(DP&HDMI), 4x SATA 6Gb/s, 3x M.2 slots, 1x USB 3.2 Gen 2x2 Type-C, Wi-Fi 6, Bluetooth 5.2, ATX

id 237524 Код: MBIASUS90MB18R0M0EAY0
  • Модел: ROG STRIX B660-F GAMING WIFI
  • Марка: Asus
  • Код на продукта: 90MB18R0-M0EAY0
  • Поддържана памет: DDR5
  • RAID: Да
  • Безжични мрежи: Wi-Fi 6 (802.11ax)
  • Bluetooth: Да
  • Видео слот: PCI-E
  • Multi-Graphics технология: Няма
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

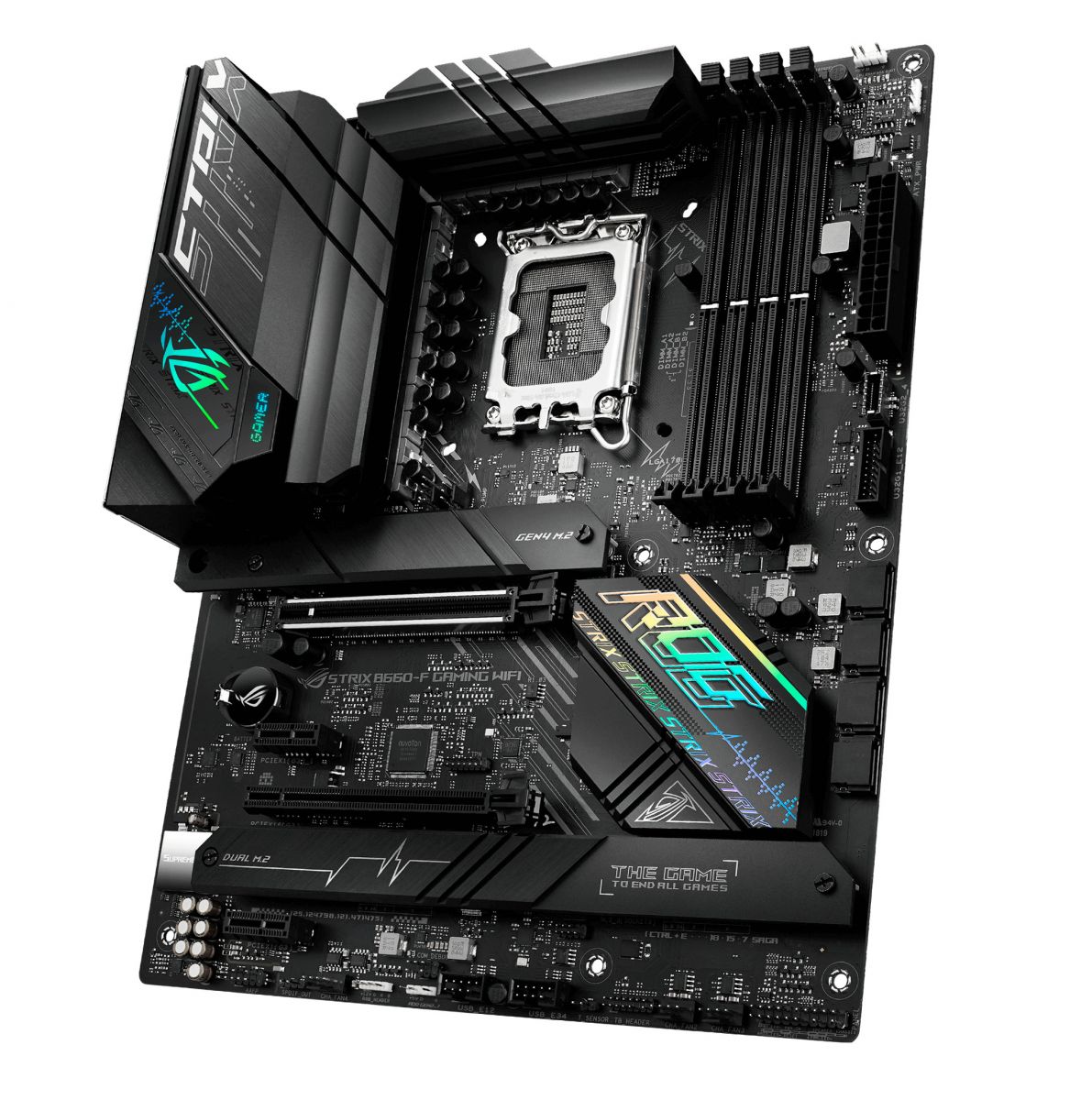

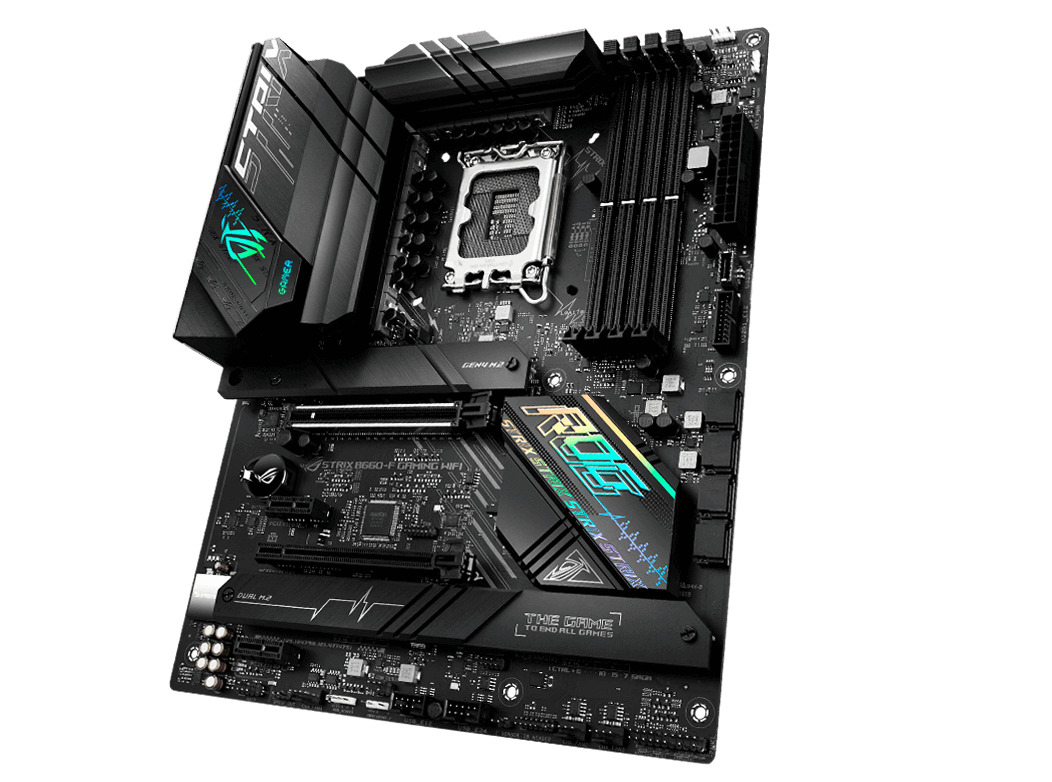

    ASUS ROG Strix B660-F Gaming WIFI

    90MB18R0-M0EAY0

    Intel® B660 LGA 1700 ATX motherboard with PCIe® 5.0, 16+1 power stages, DDR5 memory support, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, three M.2 slots with heatsinks, PCIe 4.0 NVMe® SSD support, M.2 backplates, USB 3.2 Gen 2x2 Type-C®, SATA and Aura Sync RGB lighting

    • Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
    • Optimal Power Solution: 16+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
    • Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, three onboard M.2 heatsinks, and M.2 backplates
    • High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
    • Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
    • Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
    • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button and Clr CMOS button
    • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 RGB headers
    • Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III
    • Renowned Software: Bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86

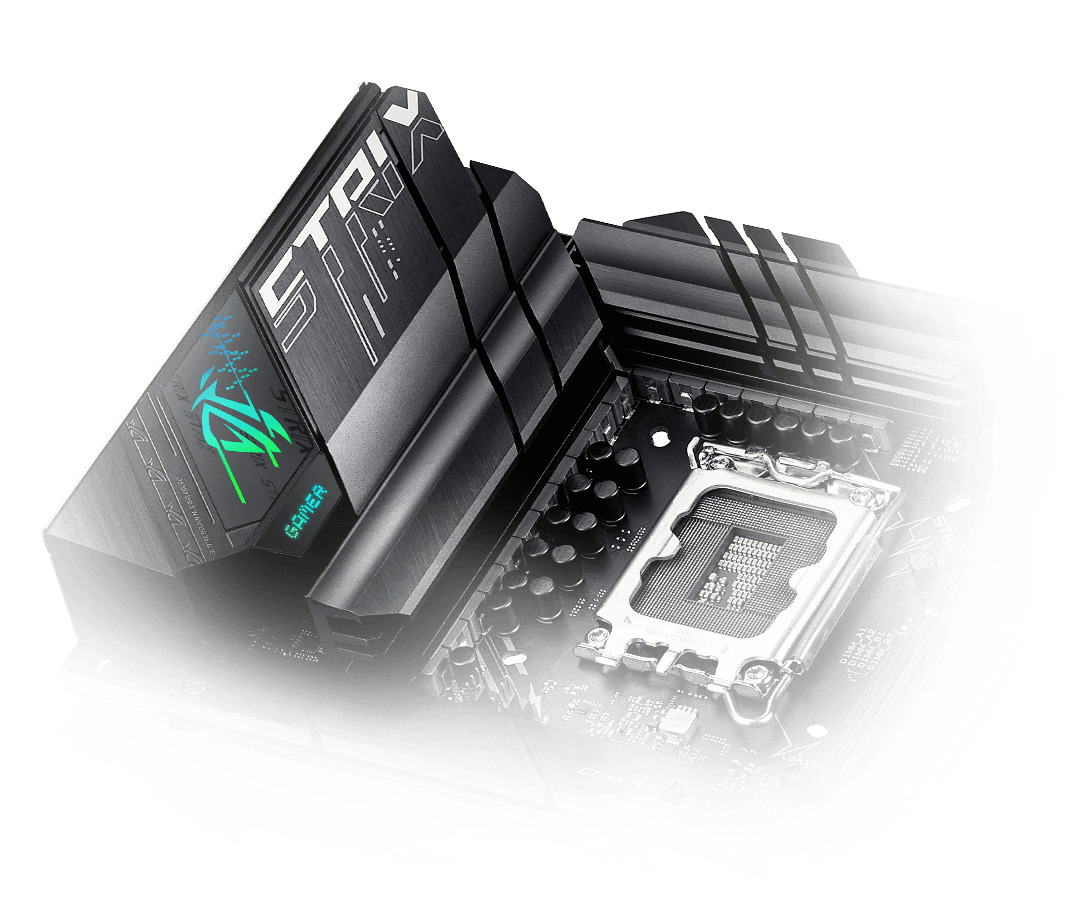

    ROG Strix B660-F Gaming WiFi offers high-grade power delivery and optimized cooling to unleash the latest 12th Gen Intel® Core™ processors. Onboard PCIe® 5.0 and a spread of PCIe 4.0 M.2 slots provide lightning-fast data transfers for an endless variety of scenarios, while DDR5 gets propelled beyond all limits by ASUS AEMP. On top of all that, DIY-friendly innovations and an arsenal of system utilities help simplify the PC building process and get to you up and running smoothly.



    Built for Performance Gaming



    Teamed power stages

    16+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors can take full advantage of.

    Alloy chokes and durable capacitors

    High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

    ProCool power connector

    The ASUS ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

    Digi+ power control

    The Digi+ voltage regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.

    Six-layer PCB

    A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.



    Undeniably ROG Strix

    The ROG Strix B660-F Gaming WiFi will turn heads with a striking matte black finish that contrasts with a bold Aura RGB-illuminated glitch-effect logo. Meanwhile, parallel strakes and dotted text on the precision-cut metal I/O shroud, M.2 and PCH heatsinks tie the whole aesthetic together and underline the ROG Strix fundamentals of speed, diversity and attitude.

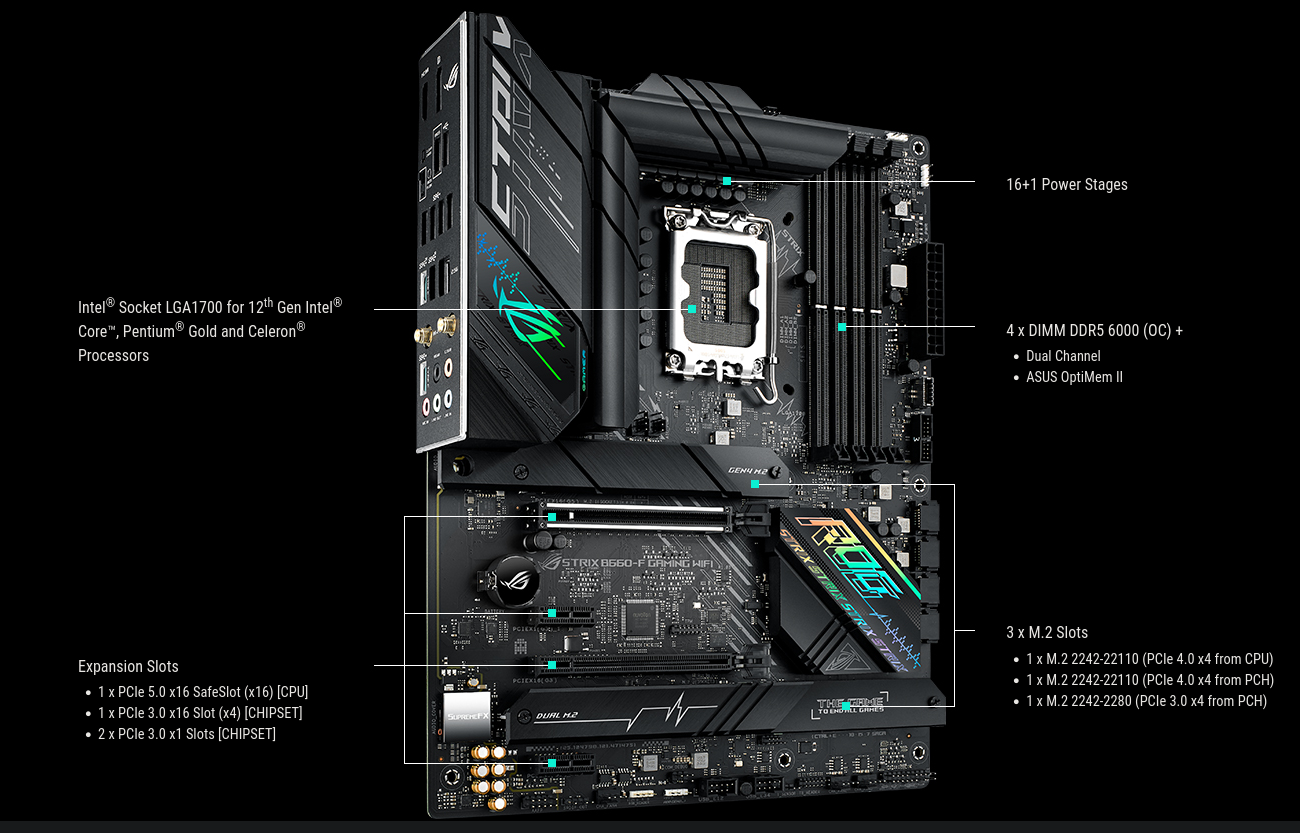

    SPECIFICATIONS:

    CPU

    Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

    Supports Intel® 10 nm CPU

    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

    * Refer to www.asus.com for CPU support list.

    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Intel® B660 Chipset

    Memory

    4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800, Un-buffered Memory*

    Dual Channel Memory Architecture

    Supports Intel® Extreme Memory Profile (XMP)

    OptiMem II

    *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

    Graphics

    1 x DisplayPort**

    1 x HDMI® port***

    *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

    ** Support 8K@60Hz as specified in DisplayPort 1.4.

    *** Support 4K@60Hz as specified in HDMI 2.1.

    Expansion Slots

    Intel® 12th Gen Processors*

    1 x PCIe 5.0 x16 slot (supports x16 mode)

    Intel® B660 Chipset**

    1 x PCIe 3.0 x16 slot (supports x4 mode)***

    2 x PCIe 3.0 x1 slots

    * Please check PCIe bifurcation table in support site.

    ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

    *** The PCIEX16(G3) shares bandwidth with the PCIEX1(G3)_1 and PCIEX1(G3)_2. When either PCIEX1(G3) slot enables, PCIEX16(G3) will run x2 mode.

    Storage

    Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

    Intel® 12th Gen Processors

    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    Intel® B660 Chipset**

    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)

    4 x SATA 6Gb/s ports

    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

    ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

    Ethernet

    1 x Intel® 2.5Gb Ethernet

    ASUS LANGuard

    Wireless & Bluetooth

    Wi-Fi 6

    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

    Supports 2.4/5GHz frequency band

    Bluetooth v5.2

    USB

    Rear USB (Total 9 ports)

    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

    1 x USB 3.2 Gen 2 ports (1 x Type-A)

    5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®)

    2 x USB 2.0 ports (2 x Type-A)

    Front USB (Total 7 ports)

    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

    - Impedance sense for front and rear headphone outputs

    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

    - Supports up to 32-Bit/384 kHz playback

    Audio Features

    - SupremeFX Shielding Technology

    - Savitech SV3H712 AMP

    - Premium audio capacitors

    - Audio cover

    Back Panel I/O Ports

    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

    1 x USB 3.2 Gen 2 ports (1 x Type-A)

    5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®)

    2 x USB 2.0 ports (2 x Type-A)

    1 x DisplayPort

    1 x HDMI® port

    1 x Wi-Fi Module

    1 x Intel® I225-V 2.5Gb Ethernet

    5 x Audio jacks

    1 x BIOS FlashBack™ button

    1 x Clear CMOS button

    Internal I/O Connectors

    Fan and Cooling related

    1 x 4-pin CPU Fan header

    1 x 4-pin CPU OPT Fan header

    1 x 4-pin AIO Pump header

    4 x 4-pin Chassis Fan headers

    Power related

    1 x 24-pin Main Power connector

    1 x 8-pin +12V Power connector

    1 x 4-pin +12V Power connector

    Storage related

    3 x M.2 slots (Key M)

    4 x SATA 6Gb/s ports

    USB

    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Miscellaneous

    3 x Addressable Gen 2 headers

    1 x AURA RGB header

    1 x S/PDIF Out header

    1 x Front Panel Audio header (AAFP)

    1 x SPI TPM header (14-1pin)

    1 x 20-3 pin System Panel header with Chassis intrude function

    1 x Thermal Sensor header

    1 x Thunderbolt™ header

    Special Features

    Extreme Engine Digi+

    - 5K Black Metallic Capacitors

    ASUS Q-Design

    - M.2 Q-Latch

    - Q-DIMM

    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

    - Q-Slot

    ASUS Thermal Solution

    - M.2 heatsink backplate

    - M.2 heatsink

    ASUS EZ DIY

    - BIOS FlashBack™ button

    - BIOS FlashBack™ LED

    - CPU Socket lever protector

    - Clear CMOS button

    - ProCool

    - Pre-mounted I/O shield

    - SafeSlot

    - SafeDIMM

    AURA Sync

    - AURA RGB header

    - Addressable Gen 2 RGB headers

    Software Features

    ROG Exclusive Software

    - GameFirst VI

    - ROG CPU-Z

    - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

    - Sonic Radar III

    - DTS® Sound Unbound

    - Anti-virus software

    ASUS Exclusive Software

    Armoury Crate

    - AIDA64 Extreme (60 days free trial)

    - AURA Creator

    - AURA Sync

    - Fan Xpert 4

    - Two-Way AI Noise Cancelation

    AI Suite 3

    - Performance And Power Saving Utility

    TurboV EVO

    EPU

    DIGI+ VRM

    MyAsus

    WinRAR

    UEFI BIOS

    ASUS EZ DIY

    - ASUS CrashFree BIOS 3

    - ASUS EZ Flash 3

    - ASUS UEFI BIOS EZ Mode

    MemTest86

    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables

    4 x SATA 6Gb/s cables

    Miscellaneous

    1 x ASUS Wi-Fi moving antennas

    1 x Cable ties pack

    1 x M.2 Rubber Package

    1 x M.2 Q-Latch package

    1 x M.2 Q-Latch package for M.2 backplate

    1 x ROG key chain

    1 x ROG Strix stickers

    1 x ROG Strix thank you card

    Installation Media

    1 x Support DVD

    Documentation

    1 x User manual

    Operating System

    Windows® 10 64-bit, Windows® 11 64-bit

    Form Factor

    ATX Form Factor

    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )





    Виж още Дънни платки за Intel процесори Asus
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  FCBGA 1170
    Чипсет:  B660
    Поддържана памет:  DDR5
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Wi-Fi 6 (802.11ax)
    Bluetooth:  Да
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  DP HDMI
    Форм фактор:  ATX
