Asus ProArt B650-Creator 90MB1C40-M0EAY0
Икона в кампания
НазадAsus ProArt B650-Creator 90MB1C40-M0EAY0Asus ProArt B650-Creator 90MB1C40-M0EAY0Asus ProArt B650-Creator 90MB1C40-M0EAY0Asus ProArt B650-Creator 90MB1C40-M0EAY0Напред

Дънна платка Asus ProArt B650-Creator, B650, AM5, DDR5, PCI-E 4.0 (HDMI&USB-C), 3x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen 2 Type-C, 3x USB 3.2 Gen 2 Type-A, ATX

id 269000 Код: MBAASUS90MB1C40M0EAY0
  • Модел: ProArt B650-Creator
  • Марка: Asus
  • Код на продукта: 90MB1C40-M0EAY0
  • Поддържана памет: DDR5
  • RAID: Да
  • Безжични мрежи: Не
  • Bluetooth: Не
  • Видео слот: PCI-E
  • Multi-Graphics технология: Няма
  • Видеокарта: Вградена
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

    Asus ProArt B650-Creator









    ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen Desktop Processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort via USB-C.















    USB-C DisplayPort (DP Alt Mode)

    This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display.







    USB 3.2 Gen 2x2 Type-C front-panel connector with Quick Charge 4+

    USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

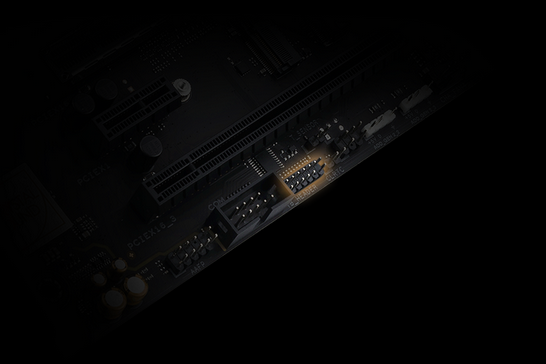

    USB4 Support

    ProArt B650-Creator features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card, ProArt motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.







    Multi-card support

    The ProArt B650-Creator supports multi-card configurations for expandability and flexibility in various professional workload scenarios such as 3D animation, video editing, audio production and SSD storage capacity upgrades.









    Specs:

    CPU

    AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors*
    AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*


    Chipset

    AMD B650



    Memory

    4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports AMD Extended Profiles for Overclocking (EXPO)
    OptiMem II
    ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.
    4 x DIMM, Max. 128GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports AMD Extended Profiles for Overclocking (EXPO)
    OptiMem II
    ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.



    Graphics

    1 x HDMI port**
    1 x USB Type-C port supports DisplayPort output***
    * Graphics specifications may vary between CPU types.
    ** Supports 4K@60Hz as specified in HDMI 2.1.
    *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.
    1 x HDMI port**
    1 x USB Type-C port supports DisplayPort output***
    * Graphics specifications may vary between CPU types.
    ** Supports 4K@60Hz as specified in HDMI 2.1.
    *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.

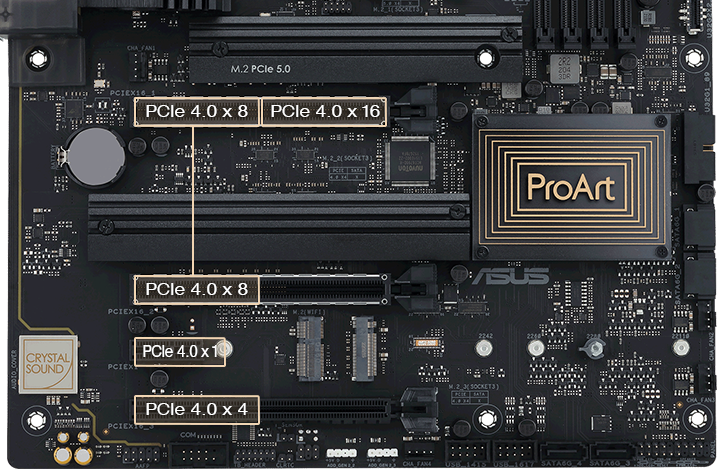

    Expansion Slots

    AMD Ryzen 7000 Series/ 8000 Series Desktop Processors*
    2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)**
    AMD B650 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)***
    1 x PCIe 4.0 x1 slot
    ** Specifications vary by CPU types.
    *** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled.
    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    AMD Ryzen 7000 Series Desktop Processors*
    2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
    AMD B650 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)**
    1 x PCIe 4.0 x1 slot
    ** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled.



    Storage

    Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    AMD Ryzen 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
    AMD B650 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
    4 x SATA 6Gb/s ports
    *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
    ** Specifications vary by CPU types.
    *** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.
    Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    AMD B650 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
    4 x SATA 6Gb/s ports
    *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
    ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.



    Ethernet

    1 x Realtek 2.5Gb Ethernet
    1 x Realtek 1Gb Ethernet
    ASUS LANGuard



    Wireless & Bluetooth

    M.2 slot only (Key E, PCIe)*



    USB

    Rear USB (Total 7 ports)
    1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output )
    4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
    2 x USB 2.0 ports (2 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports



    Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback"
    Audio Features
    - Power pre-regulator reduces power input noise to ensure consistent performance
    - Rear optical S/PDIF out port
    - Premium audio capacitors
    - Dedicated audio PCB layers
    - Audio cover
    - Unique de-pop circuit

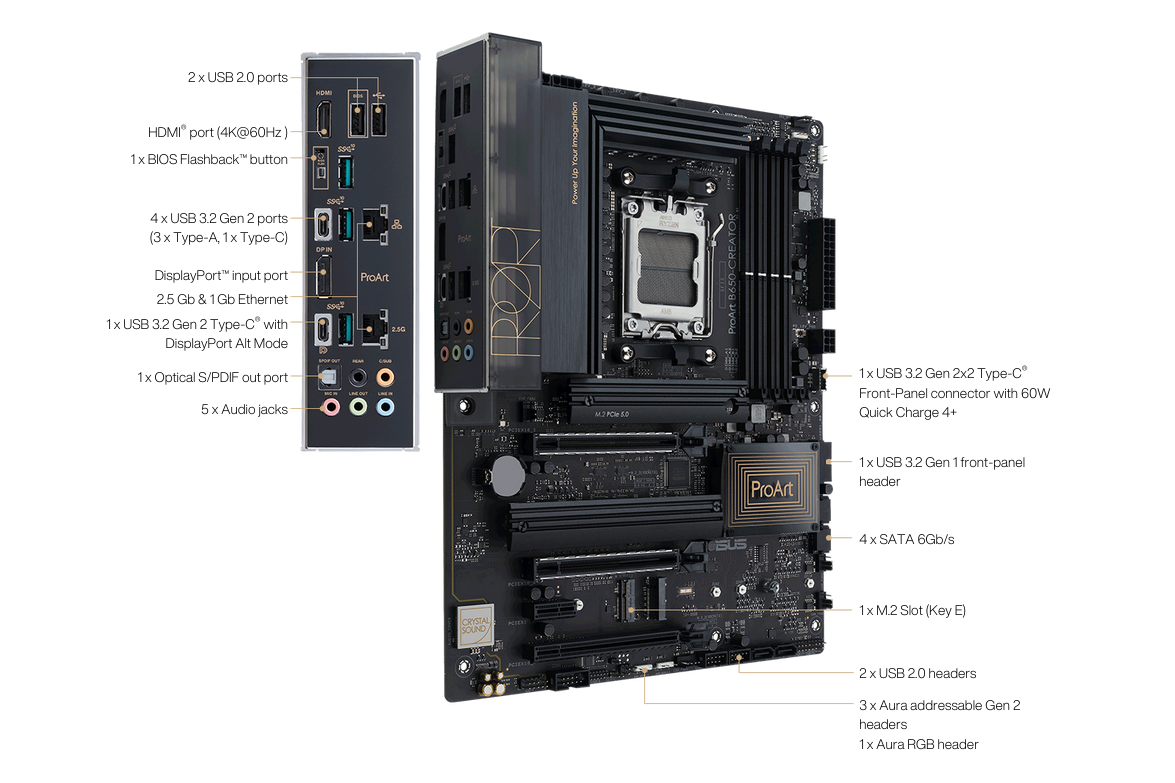

    Back Panel I/O Ports

    1 x USB 3.2 Gen 2 port (1 x USB Type-C®, shared with DisplayPort graphic output )
    4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
    2 x USB 2.0 ports (2 x Type-A)
    1 x DisplayPort (Input only)
    1 x HDMI port
    1 x Realtek 2.5Gb Ethernet
    1 x Realtek 1Gb Ethernet
    5 x Audio jacks
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack  button



    Internal I/O Connectors

    I/O ConnectorsFan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    1 x 6-pin PCIe Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports


    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x M.2 slot (Key E)
    1 x 20-5 pin System Panel header
    1 x Thermal Sensor header
    1 x Thunderbolt (USB4) header



    Special Features

    ASUS 5X PROTECTION III
    - DIGI+ VRM (- Digital power design with DrMOS)
    - Enhanced DRAM Overcurrent Protection
    - ESD Guards
    - LANGuard
    - Overvoltage Protection
    - Safeslot
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - M.2 Q-Latch
    - Q-Connector
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - M.2 heatsinks
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack LED
    - ProCool
    - Pre-mounted I/O shield
    - SafeSlot
    - SafeDIMM
    AURA Sync
    - Aura RGB header
    - Addressable Gen 2 headers
    Bespoke Motherboard Design & Business Focused Features
    - 24/7 Reliability
    - Overcurrent Protection
    Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
    - Support: up to 60W charging*
    - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
    - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
    * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.



    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS



    Operating System

    Windows 11 64-bit, Windows 10 64-bit



    Form Factor

    ATX Form Factor
    30.5 cm x 24.4 cm





    Виж още Дънни платки за AMD процесори Asus
    Виж всички Дънни платки за AMD процесори в категорията
    Технически характеристики
    Процесор сокет:  AM5
    Чипсет:  B650
    Поддържана памет:  DDR5
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Не
    Bluetooth:  Не
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  HDMI
    Форм фактор:  ATX
    Видеокарта:  Вградена
