Asus PRIME Z790-P WIFI D4 90MB1DB0-M0EAY0
Икона в кампания
НазадAsus PRIME Z790-P WIFI D4 90MB1DB0-M0EAY0Asus PRIME Z790-P WIFI D4 90MB1DB0-M0EAY0Asus PRIME Z790-P WIFI D4 90MB1DB0-M0EAY0Asus PRIME Z790-P WIFI D4 90MB1DB0-M0EAY0Напред

Дънна платка Asus PRIME Z790-P WIFI D4, Z790, LGA1700, DDR4, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 3x M.2, 1x USB Type-C, ATX

id 244121 Код: MBIASUS90MB1DB0M0EAY0
  • Модел: PRIME Z790-P WIFI D4
  • Марка: Asus
  • Код на продукта: 90MB1DB0-M0EAY0
  • Поддържана памет: DDR4
  • RAID: Да
  • Безжични мрежи: Wi-Fi 6 (802.11ax)
  • Bluetooth: Да
  • Видео слот: PCI-E
  • Multi-Graphics технология: Няма
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

    Asus PRIME Z790-P WIFI D4

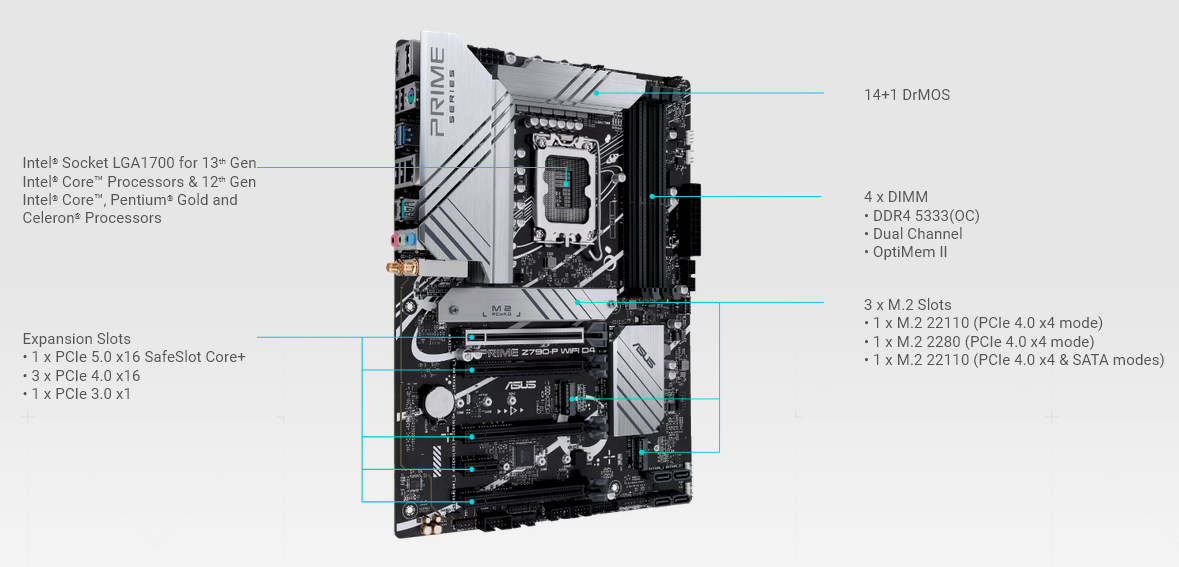

    Дънна платка Asus PRIME Z790-P WIFI D4, Z790, LGA1700, DDR4, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 3x M.2, 1x USB Type-C, ATX - характеристика 1

     ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

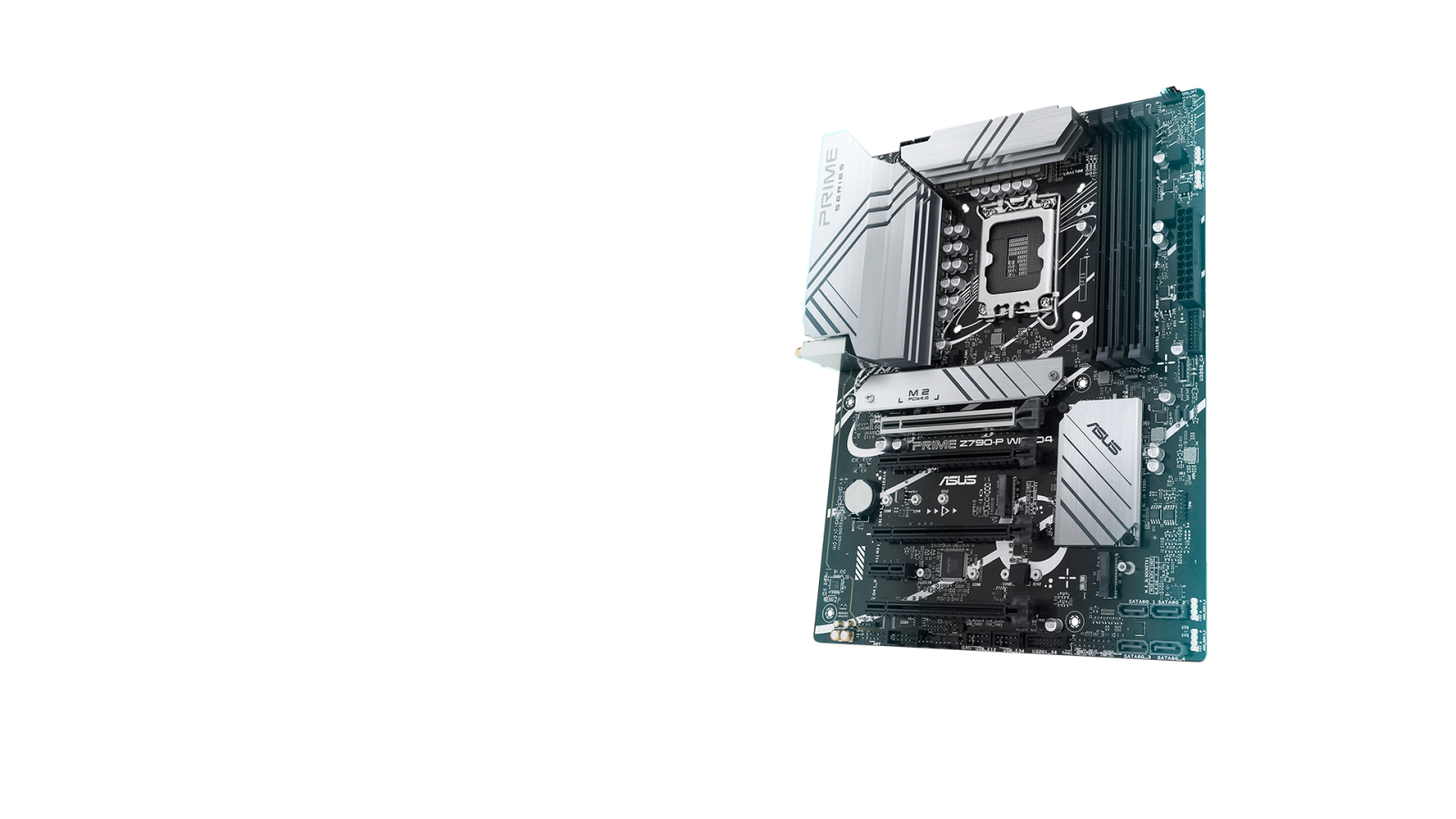

    Дънна платка Asus PRIME Z790-P WIFI D4, Z790, LGA1700, DDR4, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 3x M.2, 1x USB Type-C, ATX - характеристика 2

    FLEXIBILITY


    Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P WIFI D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.



    Specifications:

    CPU

    Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Intel® Z790 Chipset

    Memory

    4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II

    Graphics

    1 x DisplayPort**
    1 x HDMI® port***
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.

    Expansion Slots

    Intel® 13th & 12th Gen Processors*
    1 x PCIe 5.0 x16 slot
    Intel® Z790 Chipset
    3 x PCIe 4.0 x16 slots (support x4 mode)
    1 x PCIe 3.0 x1 slot


    Storage

    Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    Intel® Z790 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

    Ethernet

    1 x Realtek 2.5Gb Ethernet

    Wireless & Bluetooth

    Wi-Fi 6
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth® v5.2

    USB

    Rear USB (Total 8 ports)
    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    2 x USB 3.2 Gen 1 ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 9 ports)
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
    * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

    Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

    Back Panel I/O Ports

    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    2 x USB 3.2 Gen 1 ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port

    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    2 x USB 3.2 Gen 1 headers support  4 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1pin)
    1 x 20-5pin System Panel header
    1 x Thunderbolt™ (USB4®) Header





    Виж още Дънни платки за Intel процесори Asus
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  LGA 1700
    Чипсет:  Z790
    Поддържана памет:  DDR4
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Wi-Fi 6 (802.11ax)
    Bluetooth:  Да
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  DP HDMI
    Форм фактор:  ATX
