Монитор Acer HA2741A (90LM08Z0-B01M70), 27" (68.58 cm) IPS панел, 75Hz, QHD, 5ms, 900:1, 350cd/m2, DisplayPort, HDMI, USB, USB-C

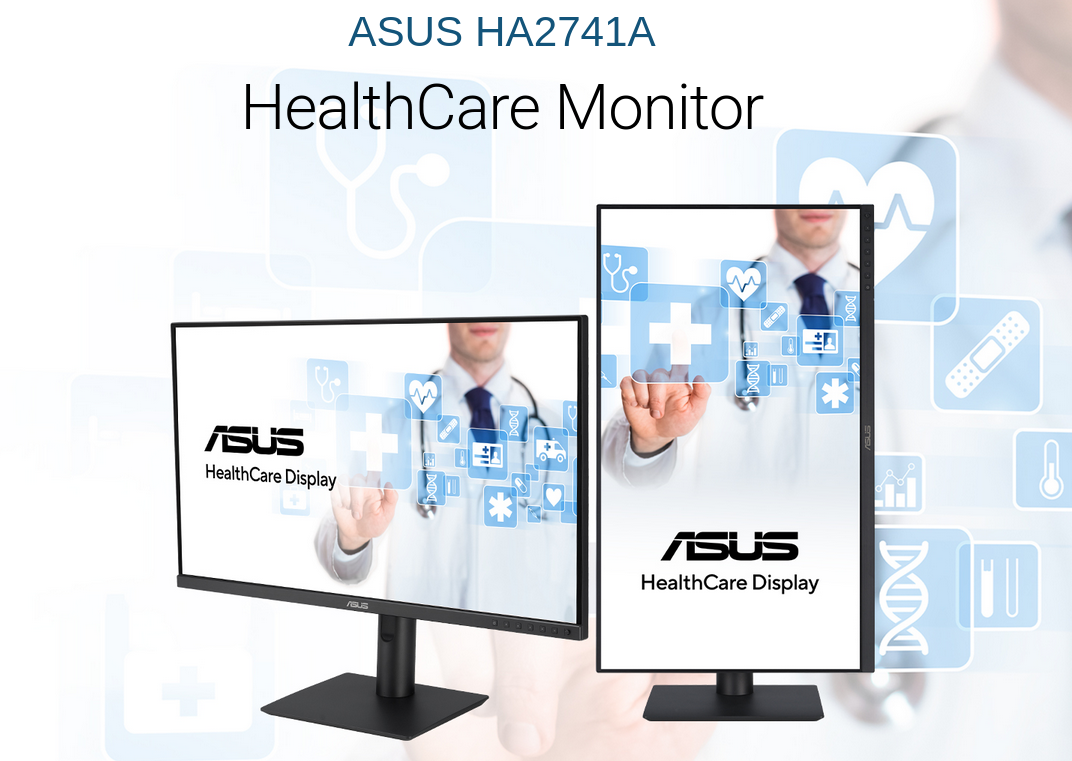

ASUS HA2741A HealthCare Monitor – 27-inch, 3.6MP (2560 x 1440), AGLR, DICOM Part 14 GSDF, DICOM Preset, Auto Calibration, JND < 10%, Antibacterial Treatment, USB-C, HDMI, DisplayPort Daisy-chain, Ergonomic Stand

• 27-inch 3.6MP (2560 x 1440) frameless design with IPS 178° wide viewing angle panel
• Anti-Glare, Low-Reflection (AGLR) with Eye Care+ to protect eyes from long time use
• Compliant with DICOM Part 14 GSDF standard
• DICOM Preset and auto compensation of DICOM curve for ambient light changing
• ASUS exclusive Auto calibration to ensures DICOM accuracy
• Factory calibrated to ensures JND < 10%
• Multiple I/O for flexibility: DisplayPort with Daisy-chain, HDMI, USB-C and USB hub
• Ergonomic design with tilt, swivel, pivot and height adjustments for a comfortable viewing experience
• Proprietary long-lasting antibacterial treatment inhibits the growth of bacteria and fungi on the monitor head

Factory-Precise for DICOM Excellence

To provides reliable images and stable grayscale, ASUS HealthCare Displays compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 GSDF standard, and also pass AAPM TG270 and IEC62563-1 compliance test.

Each ASUS HealthCare display is factory calibrated to guarantee DICOM color accuracy. The display then undergoes stringent testingto ensure smoother color gradations, better uniformity with Just-Noticeable Difference (JND) < 10%.

Long-term DICOM Accuracy

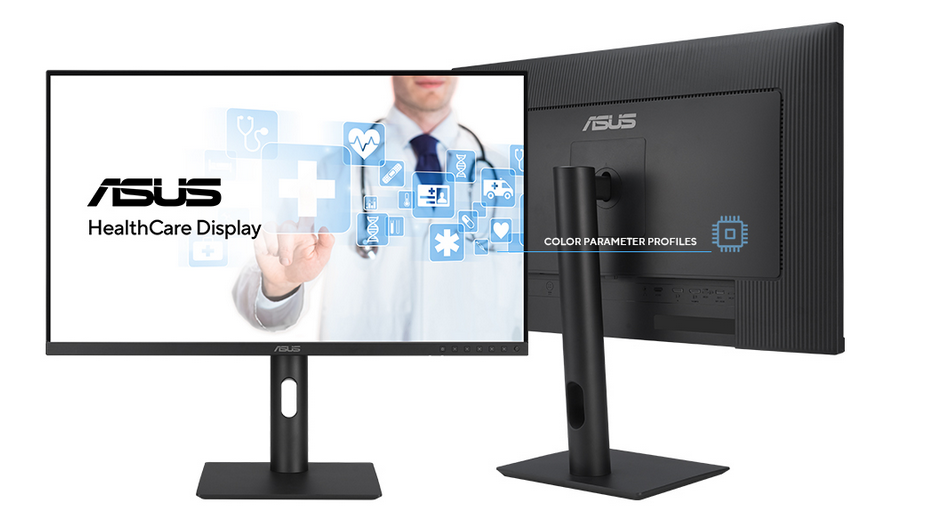

Auto Calibration

ASUS Calibration technology saves all color parameter profiles on the monitor’s internal scaler IC chip, instead of on the PC. The monitor can be calibrated and the look-up table subsequently rewritten, allowing users to connect it to devices with different operating systems or applications without needing to adjust settings.

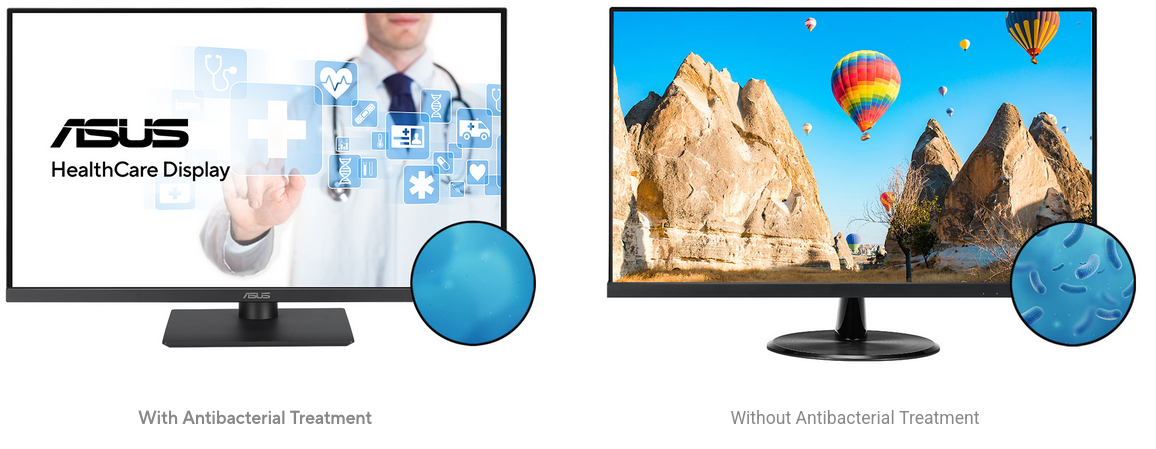

Long-lasting Antibacterial Treatment

The monitor head and hotkeys on HA2741A feature an antibacterial ionic silver treatment*. By preventing bacteria adhesion by up to 99.9%, it keeps key areas of the monitor clean and hygienic, potentially reducing the spread of harmful bacteria. ASUS HA2741A has been subjected to the ISO 22196 Antimicrobial Activity and Efficacy tests conducted by independent testing lab SGS.

Display

Panel Size (inch) : 27
Aspect Ratio : 16:9
Resolution : 2560x1440
Pixel Pitch : 0.233mm
Display Viewing Area (H x V) : 596.74 x 335.66 mm
Display Surface : AGLR (Anti-Glare, Low-Reflection)
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Brightness (Typ.) : 350cd/㎡
Contrast Ratio (Typ.) : 900:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
Flicker-free : Yes

Video Inputs

USB-C x 1 (DP Alt Mode)
HDMI(v2.0) x 1
DisplayPort 1.4 x 2 (Daisy Chain)
USB-C Power Delivery : 15W
USB Hub : 3x USB 3.2 Gen 1 Type-A
USB Hub : 1x USB 3.2 Gen 1 Type-C
Earphone Jack : Yes

Features

Preset Mode : Native
Preset Mode : sRGB
Preset Mode : DICOM_0 lux
Preset Mode : DICOM_50 lux
Preset Mode : DICOM_100 lux
Preset Mode : DICOM_Auto
Preset Mode : User Mode 1
Color Temp. Selection : Yes (5000K, 5500K, 6500K, 7500K, 9300K, 12000K)
Monochrome : Off / Positive / Negative
Gamma adjustment : Yes (Support Gamma 2.0/2.2/2.4)
Aspect Control : Full / Dot to Dot / 1:1 Ratio
Pixel : 4MP / 3MP
PIP(PbP) Technology : Yes
ASUS Hardware Calibration : Yes
HDCP : Yes, 2.2
Low Blue Light : Yes
Eye Care+ Technology : Yes

Audio

Speaker : No

Sensor

Ambient Light Sensor : Yes

Power Consumption

Power Consumption : < 13W
Power Saving Mode : < 0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz

Mechanical Design

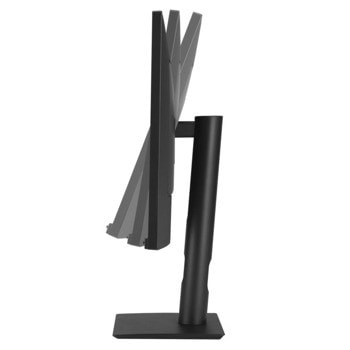

Tilt : Yes (+23° ~ -5°)
Height Adjustment : 0~130mm

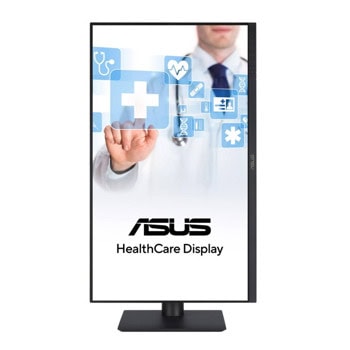

Pivot : Yes (+90° ~ -90°)
Swivel : Yes (+30° ~ -30°)
Antibacterial treatment : Yes
VESA Wall Mount : 100x100mm
Kensington Lock : Yes

Dimensions (Esti.)

Phys. Dimension with Stand (W x H x D) : 61.33 x 53.67 x 19.72 cm (24.15" x 21.13" x 7.76")
Phys. Dimension without Stand (W x H x D) : 61.33 x 36.34 x 4.49 cm (24.15" x 14.31" x 1.77")
Box Dimension (W x H x D) : 69.5 x 42.1 x 13.3 cm (27.36" x 16.57" x 5.24")

Weight (Esti.)

Net Weight : 6.7 kg (14.77 lbs)
Net Weight without Stand : 5.0 kg (11.02 lbs)
Gross Weight : 9.3 kg (20.50 lbs)

Reliability

Operation Temperature : 0°C ~ 40°C
Operation Humidity : 5% ~ 90%
