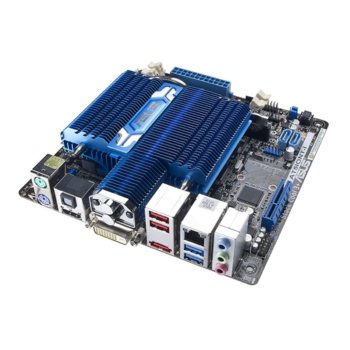

AT5IONT-I
Mini Size, Maximum Enjoyment!
* Intel® Atom D525 Dual-Core CPU
* Intel® NM10 chipset
* Next-generation NVIDIA® ION™ graphics
* USB 3.0
CPU
Intel® CPU on Board
Integrated dual-core Intel® Atom™ processor D525
Chipset
Intel® NM10
Memory
2 x DIMM, Max. 4 GB, DDR3 800 Non-ECC,Un-buffered Memory
Single Channel memory architecture
Please refer to www.asus.com or user manual for Memory QVL.
Expansion Slots
1 x PCIe x4
VGA
Integrated Next Generation NVIDIA ION graphics processor
Support CUDA technology
Supports DVI with max. resolution up to 1920x1200x32Bppx60Hz
Supports HDMI with max. resolution up to 1920x1080x32Bppx60Hz
Dual Display support
DVI & HDMI
Dedicated video memory 512 MB
Storage Southbridge
2 xSATA 3.0 Gb/s ports support AHCI mode
LAN
PCIe Gb LAN
Audio
ALC887 8-Channel support DTS Surround Sensation UltraPC
USB
Chipset built-in
- 2 x USB 3.0/2.0 ports (back panel)
Chipset built-in
- 4 x USB 2.0/1.1 ports (2 ports at mid-board, 2 ports at back panel)
ASUS Unique Features
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS MyLogo 2
AI NET 2
Stack Cool3+
Home Theater Gate
Express Gate
* The actual boot time is subject to hardware configurations and product models.
Back Panel I/O Ports
1 x DVI
1 x PS/2 Keyboard
1 x HDMI
1 x PS/2 Mouse
1 x External SATA
1 x S/PDIF Out (Optical)
1 x LAN(RJ45) port
6 -Channel Audio I/O
2 x USB 2.0
2 x USB 3.0 (compatible with USB 2.0 device)
Internal I/O Connectors
1 x USB connectors support additional 2 USB ports
1 x Chassis Fan connector & controller
1 x CPU Fan connector
1 x PWR Fan connector
1 x Front Panel connector
1 x High Definition front panel audio connector
1 x 4-pin ATX 12V Power connector
1 x 24-pin ATX Power connector
BIOS
8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5
Accessories
User's manual
1 x I/O Shield
2 x SATA cable(s)
Support Disc
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update
Form Factor
Mini ITX Form Factor
6.75 inch x 6.75 inch ( 17 cm x 17 cm )
