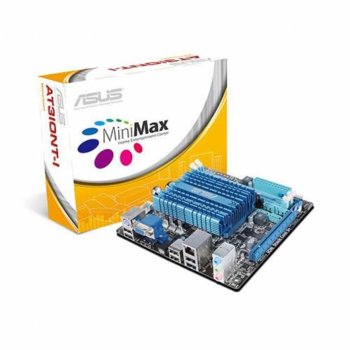

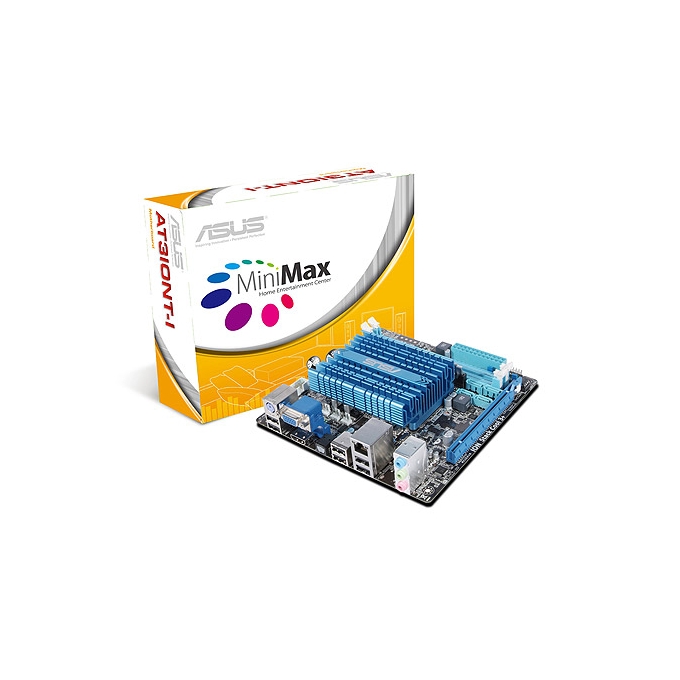

Дънна платка Asus AT3IONT-I, NVidia ION, Dual-core Intel® Atom™ 330 1.6GHz, DDR3, VGA+PCI-E (HDMI), SB5.1 (S/PDIF optical out), Lan1000, SATA RAID 0,1, miniITX

AT3IONT-I
Mini Size, Maximum Enjoyment

* Intel® Atom 330 on board
* Nvidia ION Graphics Processors
* Home Theater Gate
* HDMI Interface

CPU

Intel® CPU on Board
Integrated Dual-core Intel® Atom™ processor 330

Chipset

NVIDIA ION™ Graphics Processors

Front Side Bus

533 MHz

Memory

2 x DIMM, Max. 4 GB, DDR3 1066/800 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Please refer to www.asus.com or user manual for Memory QVL.

Expansion Slots

1 x PCIe x16

VGA

Integrated NVIDIA ION graphics processor
Support CUDA technology
Support PhysX technology
Supports RGB with max. resolution up to 1920x1440x32Bppx75Hz
Supports HDMI with max. resolution up to 1920x1200x32Bppx60Hz
Dual VGA output support: RGB & HDMI
Storage Southbridge
4 xSATA 3 Gb/s ports support RAID 0, 1, AHCI mode


LAN

Gb LAN

Audio

ALC887 6-Channel (for 6 Channels+2 channel)

USB

10 USB 2.0/1.1 ports (4 ports at mid-board,6 ports at back panel)

ASUS Unique Features

ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS MyLogo 3
ASUS Express Gate
Home Theater Gate
ASUS Q-FAN
Stack Cool3+
AI NET2

Back Panel I/O Ports

1 x D-Sub
1 x PS/2 Keyboard
1 x HDMI
1 x S/PDIF Out (optical)
1 x LAN(RJ45) port
6 x USB 2.0/1.1
6 -Channel Audio I/O

Internal I/O Connectors

2 x USB connectors support additional 4 USB ports
1 x CPU Fan Connector & controller
1 x Chassis Fan connector & controller
1 x Front Panel connector
1 x High Definition front panel audio connector
1 x Power Fan connector
24pin Power connector
1 x COM header

BIOS

8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI v2.0a

Accessories

User's manual
1 x I/O Shield
2 x SATA cable(s)

Support Disc

Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update
User's Manual

Form Factor

Mini ITX Form Factor
6.75 inch x 6.75 inch ( 17.1 cm x 17.1 cm )
