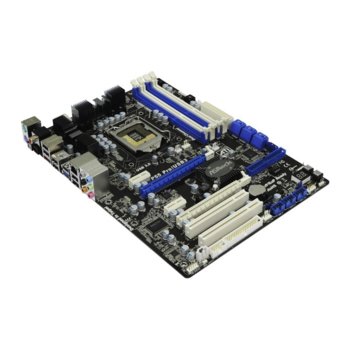

Дънна платка ASRock P55 Pro/USB3, P55, LGA1156, DDR3, 2xPCI-E (CF), SB7.1, Lan1000, SATA RAID 0,1,5,10, eSATA, USB3.0, ATX

ASRock P55 Pro/USB3

CPU

- Supports Intel® Core™ i7 / i5 / i3 and Pentium® G6950 Processors in LGA1156 Package
- Advanced V8 + 2 Power Phase Design
- Supports Intel® Turbo Boost Technology
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

Chipset

- Intel® P55

Memory

- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Supports Intel® Extreme Memory Profile (XMP)
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 16Mb AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, VTT, PCH, CPU PLL Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)

Audio, Video and Networking

Graphics

- n/a

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection

Expansion / Connectivity

Slots

- 2 x PCI Express 2.0 x16 slots (blue @ x16 mode; white @ x4 mode)
- 2 x PCI Express 2.0 x1 slots (2.5GT/s)
- 2 x PCI slots
- Supports ATI™ CrossFireX™ and Quad CrossFireX™

USB 3.0

- 1 x USB 3.0 port by Fresco FL1000G, supports USB 3.0 up to 5Gb/s

Connector

- 7 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, JBOD and Intel® Rapid Storage), NCQ, AHCI and Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x Dr. Debug with LED

Rear Panel I/O

I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 7 x Ready-to-Use USB 2.0 Ports
- 1 x eSATAII Connector
- 1 x Ready-to-Use USB 3.0 Port
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature

- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- Turbo 40 / Turbo 50 CPU Overclocking

Smart Switch

- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)

Accessories

- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables (optional)

Hardware Monitor

- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)

OS

- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Certifications

- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
