Дънна платка ASRock P45TurboTwins2000, P45, S775, DDR2 & DDR3, 2xPCI-E, SB7.1, Lan1000, SATA, ATX

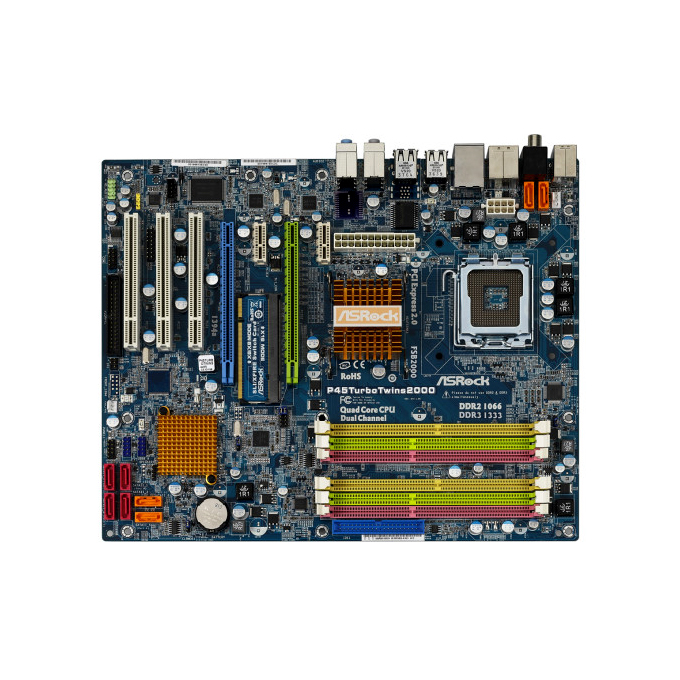

Asrock P45TurboTwins2000

CPU
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Compatible with FSB2000*/1600/1333/1066/800 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

*In overclocking mode.

Chipset
- Northbridge: Intel® P45
- Southbridge: Intel® ICH10

Memory
- Dual Channel DDR3/DDR2 memory technology*
- 4 x DDR3 DIMM slots
- Supports DDR3 1333/1066 non-ECC, un-buffered memory
- Max. capacity: 8GB**
- 2 x DDR2 DIMM slots
- Supports DDR2 1066/800/667 non-ECC, un-buffered memory
- Max. capacity: 4GB**

*DDR3 and DDR2 are supported separately.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

BIOS
- 8Mb AMI BIOS
- AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, NB, SB,VTT Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)

Audio, Video and Networking

Graphics
- n/a

Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B/RTL8111C
- Supports Wake-On-LAN

Expansion / Connectivity

Slots
- Supports ATI™ CrossFire™
- 2 x PCI Express 2.0 x16 slots (green @ x16 mode, blue @ x8 mode)
- 2 x PCI Express x1 slots
- 3 x PCI slots

Connector
- 6 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 2 x eSATAII 3.0 Gb/s connectors (shared with 2 SATAII ports)
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x WiFi/E header

Rear Panel I/O
ASRock SPDIF I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 2 x eSATAII Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature
- ASRock OC Tuner
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories
- 1 x ASRock SLI/XFire Switch Card
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 4 x SATA Data Cables (Optional)
- 1 x SATA 1 to 1 Power Cable (Optional)
- 1 x HDMI_SPDIF Cable (Optional)

Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)

OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant

Certifications
- FCC, CE, WHQL
