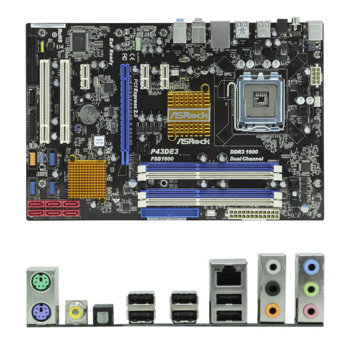

Дънна платка ASRock P43DE3, P43, S775, DDR3, PCI-E, SB7.1, Lan1000, SATA, ATX

ASRock P43DE3

CPU
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Compatible with all FSB1600/1333/1066/800MHz CPUs
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

Chipset
- Northbridge: Intel® P43
- Southbridge: Intel® ICH10

Memory
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Supports Intel® Extreme Memory Profile (XMP)
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

BIOS
- 8Mb AMI BIOS
- AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, GTL REF, NB, NB GTL REF, SB Core, SB 1.1V, VTT, PLL Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Supports Smart BIOS

Audio, Video and Networking

Graphics
- n/a

Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (VIA® VT1708S Audio Codec)

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN

Expansion / Connectivity

Slots
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
- 3 x PCI Express x1 slots
- 2 x PCI slots

Connector
- 6 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x TPM header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories
- Quick Installation Guide, Support CD, I/O Shield
- ATA 133 Cable
- 2 x SATA Data Cables (optional)

Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
- ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm

OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit / 2000 compliant

Certifications

- FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
