Дънна платка ASRock 775I65G, Intel LGA775, 2x DDR4, 3 x PCI slots, PCI LAN 8101L, 2x SATA 1.5 Gb/s, 2x USB 2.0

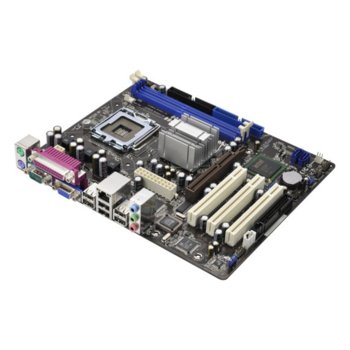

ASROCK 775i65G R3.0

CPU
LGA 775 for Intel® Dual-Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® 4 / Celeron® D
FSB 1066 MHz for external graphics
FSB 800/533 MHz for internal graphics
Supports Hyper-Threading Technology
Supports Untied Overclocking Technology
Supports EM64T CPU

Chipset
Northbridge: Intel® 865G
Southbridge: Intel® ICH5

Memory
Dual Channel DDR memory technology
2 x DDR DIMM slots
Supports DDR400/333/266
Max. capacity: 2GB
VGA
Integrated Intel® Extreme Graphics 2
DirectX 8.0
Max. shared memory 96MB
Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz

Expansion Slots
3 x PCI slots
1 x AGP slot for 1.5V 8X/4X AGP card

Connectors
2 x SATA 1.5 Gb/s connectors (No Support for RAID and "Hot Plug" functions )
2 x ATA100 IDE connectors (support 4 x IDE devices)
1 x Floppy connector
1 x IR header
1 x Power LED header
1 x CPU Fan connector (4-pin)
1 x Chassis Fan connector (3-pin)
20 pin ATX power connector
4 pin 12V power connector
CD in header
AUX in header
Front panel audio connector
2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB45)

Audio
5.1 CH Audio (C-Media 9761A Audio Codec)

LAN
Realtek PCI LAN 8101L
Speed: 10/100 Ethernet
Supports Wake-On-LAN
Supports PXE

Rear Panel I/O Ports
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x Serial Port: COM1
1 x VGA Port
1 x Parallel Port (ECP/EPP Support)
6 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port with LED (SPEED LED)
Audio Jack: Line in / Front Speaker / Microphone

BIOS
4Mb AMI Legal BIOS
Supports "Plug and Play"
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support

• Form Factor
micro ATX

• Dimensions
24.4 cm x 20.3 cm

• Package
Box
