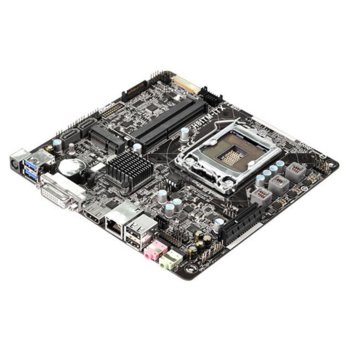

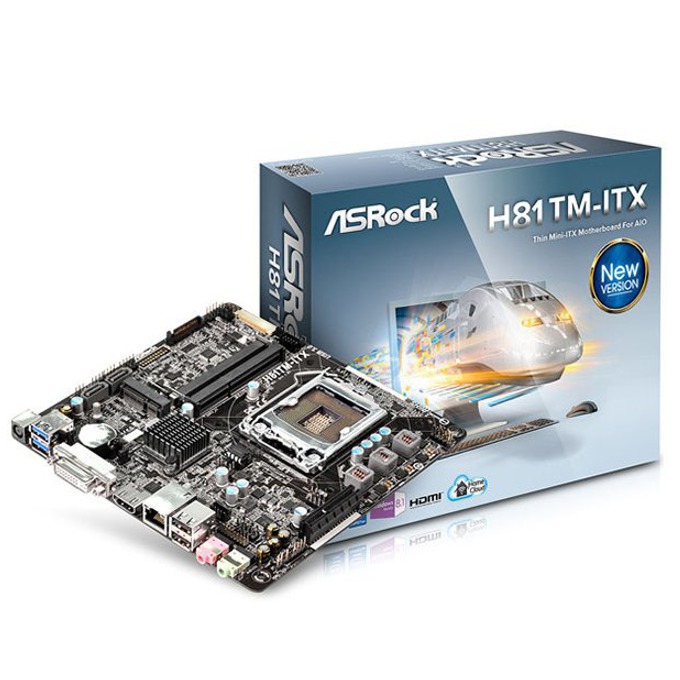

H81TM-ITX R2.0
The best H81 motherboard for AIO and mini PC!
- Supports New 4th and 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors (Socket 1150)
- Solid Capacitor for CPU power
- Supports Dual Channel DDR3 1600 memory, 2 SO-DIMM slots
- 1 PCIe 2.0 x4, 1 Half mini-PCIe
- Graphics Output Options : HDMI, DVI-I, LVDS
- Intel® HD Graphics with Built-in Visuals
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- 2 SATA3, 2 USB 3.0, 7 USB 2.0 (5 Front, 2 Rear)
- 1 x COM Port Header, 1 x DC-In Jack (Compatible with 19V power adapter)
- Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop
CPU
- Supports New 4th and 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors with up to 65W TDP in an LGA 1150 package
- Supports Intel® Turbo Boost 2.0 Technology
BIOS
- 32Mb AMI UEFI Legal BIOS with Multilingual GUI support
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 support
- CPU, DRAM Voltage multi-adjustment
Graphics
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 1792MB
- Three graphics output options: HDMI, DVI-I and LVDS
- Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
- Supports DVI-I with max. resolution up to 1920x1200 @ 60Hz
- Supports LVDS with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP function with HDMI
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I218V
- Supports Intel® Remote Wake Technology
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 1 x PCI Express 2.0 x4 Slot
- 1 x Half mini-PCI Express Slot
Storage
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
- 1 x CIR Header
- 1 x COM Port Header
- 1 x SPDIF Out Connector
- 1 x Monitor Switch Header
- 1 x Backlight Power Jumper
- 1 x Panel Power Jumper
- 1 x Backlight & Amp Volume Control Header
- 1 x LVDS Connector
- 1 x LPC Debug Header
- 1 x Home Theater PC Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Front Panel Audio Connector
- 1 x Analog Surround Audio Header
- 1 x Digital MIC Header
- 1 x 3W Audio AMP Output Wafer Header
- 1 x Internal Power Header
- 1 x SATA Power Connector
- 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Rear Panel I/O
- 1 x DC Jack (Compatible with the 19V power adapter)
- 1 x DVI-I Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Front Speaker / Microphone
Form Factor
- Thin Mini-ITX Form Factor (Compatible with Mini-ITX)
- Solid Capacitor for CPU power
Виж още Дънни платки за Intel процесори ASRock
Виж всички Дънни платки за Intel процесори в категорията
The best H81 motherboard for AIO and mini PC!
- Supports New 4th and 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors (Socket 1150)
- Solid Capacitor for CPU power
- Supports Dual Channel DDR3 1600 memory, 2 SO-DIMM slots
- 1 PCIe 2.0 x4, 1 Half mini-PCIe
- Graphics Output Options : HDMI, DVI-I, LVDS
- Intel® HD Graphics with Built-in Visuals
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- 2 SATA3, 2 USB 3.0, 7 USB 2.0 (5 Front, 2 Rear)
- 1 x COM Port Header, 1 x DC-In Jack (Compatible with 19V power adapter)
- Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop
CPU
- Supports New 4th and 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors with up to 65W TDP in an LGA 1150 package
- Supports Intel® Turbo Boost 2.0 Technology
BIOS
- 32Mb AMI UEFI Legal BIOS with Multilingual GUI support
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 support
- CPU, DRAM Voltage multi-adjustment
Graphics
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 1792MB
- Three graphics output options: HDMI, DVI-I and LVDS
- Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
- Supports DVI-I with max. resolution up to 1920x1200 @ 60Hz
- Supports LVDS with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP function with HDMI
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I218V
- Supports Intel® Remote Wake Technology
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 1 x PCI Express 2.0 x4 Slot
- 1 x Half mini-PCI Express Slot
Storage
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
- 1 x CIR Header
- 1 x COM Port Header
- 1 x SPDIF Out Connector
- 1 x Monitor Switch Header
- 1 x Backlight Power Jumper
- 1 x Panel Power Jumper
- 1 x Backlight & Amp Volume Control Header
- 1 x LVDS Connector
- 1 x LPC Debug Header
- 1 x Home Theater PC Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Front Panel Audio Connector
- 1 x Analog Surround Audio Header
- 1 x Digital MIC Header
- 1 x 3W Audio AMP Output Wafer Header
- 1 x Internal Power Header
- 1 x SATA Power Connector
- 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Rear Panel I/O
- 1 x DC Jack (Compatible with the 19V power adapter)
- 1 x DVI-I Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Front Speaker / Microphone
Form Factor
- Thin Mini-ITX Form Factor (Compatible with Mini-ITX)
- Solid Capacitor for CPU power
Виж още Дънни платки за Intel процесори ASRock
Виж всички Дънни платки за Intel процесори в категорията
Документация
Технически характеристики
| Процесор сокет: | LGA 1150 |
|---|---|
| Чипсет: | H81 |
| Поддържана памет: | DDR3 & DDR3L |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | HDMI DVI |
| Форм фактор: | Mini-ITX |
