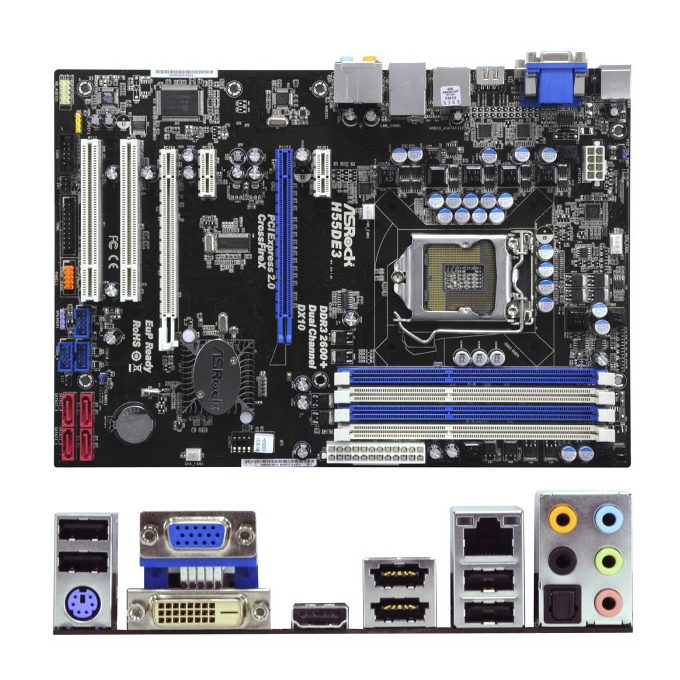

ASRock H55DE3
CPU
- Supports Intel® Core™ i7 / i5 / i3 and Pentium® G6950 Processors in LGA1156 Package
- 4 + 1 Power Phase Design
- Supports Intel® Turbo Boost Technology
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Intel® H55
Memory
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Supports Intel® Extreme Memory Profile (XMP)
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 16Mb AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, SB, VTT, PCH_PLL Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Supports Turbo 50
Audio, Video and Networking
Graphics
* Requires Processor with Intel® HD Graphics Technology
- Intel® HD Graphics
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.3a Technology with max. resolution up to 1920x1200
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.3a (Compliant HDMI monitor is required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
Audio
- 7.1 CH HD Audio (VIA® VT1718S Audio Codec)
- Supports HDMI Audio with Dolby True HD and DTS HD Master Audio (when Intel® Core™ i5 600 series / i3 500 series / Pentium® G6950 CPU is installed)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- 1 x PCI Express 2.0 x16 slot (at x16 mode)
- 1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s)
- 2 x PCI Express 2.0 x1 slots (2.5GT/s)
- 2 x PCI slot
- Supports ATI™ CrossFireX™ and Quad CrossFireX™
Connector
- 4 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x TPM header
- 1 x Chassis Intrusion header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/O
I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Powered eSATAII/USB Connectors
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (optional)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- ATX Form Factor: 12.0-in x 8.3-in, 30.5 cm x 21.1 cm
- Solid Capacitor for CPU power
OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
Виж още Дънни платки за Intel процесори ASRock
Виж всички Дънни платки за Intel процесори в категорията
CPU
- Supports Intel® Core™ i7 / i5 / i3 and Pentium® G6950 Processors in LGA1156 Package
- 4 + 1 Power Phase Design
- Supports Intel® Turbo Boost Technology
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Intel® H55
Memory
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Supports Intel® Extreme Memory Profile (XMP)
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 16Mb AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, SB, VTT, PCH_PLL Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Supports Turbo 50
Audio, Video and Networking
Graphics
* Requires Processor with Intel® HD Graphics Technology
- Intel® HD Graphics
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.3a Technology with max. resolution up to 1920x1200
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.3a (Compliant HDMI monitor is required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
Audio
- 7.1 CH HD Audio (VIA® VT1718S Audio Codec)
- Supports HDMI Audio with Dolby True HD and DTS HD Master Audio (when Intel® Core™ i5 600 series / i3 500 series / Pentium® G6950 CPU is installed)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- 1 x PCI Express 2.0 x16 slot (at x16 mode)
- 1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s)
- 2 x PCI Express 2.0 x1 slots (2.5GT/s)
- 2 x PCI slot
- Supports ATI™ CrossFireX™ and Quad CrossFireX™
Connector
- 4 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x TPM header
- 1 x Chassis Intrusion header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/O
I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Powered eSATAII/USB Connectors
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (optional)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- ATX Form Factor: 12.0-in x 8.3-in, 30.5 cm x 21.1 cm
- Solid Capacitor for CPU power
OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
Виж още Дънни платки за Intel процесори ASRock
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1156 |
|---|
