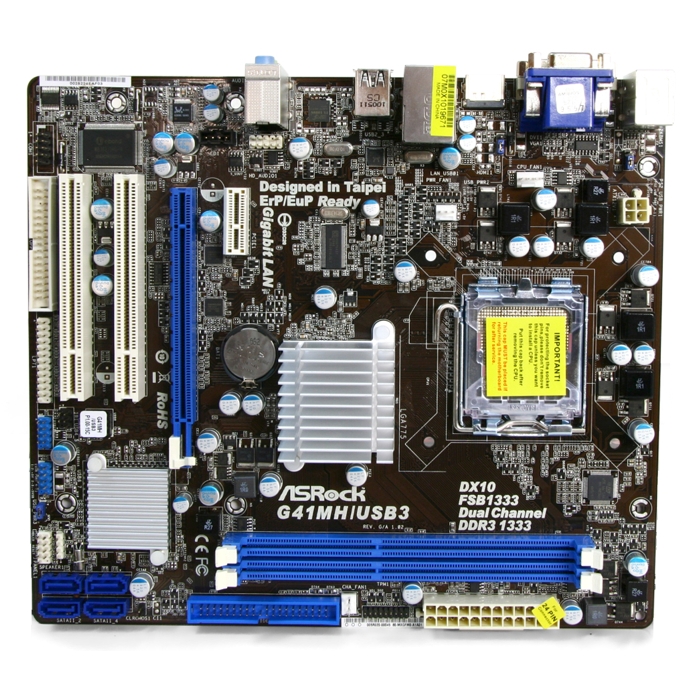

Дънна платка ASRock G41MH/USB3, G41, S775, DDR3, VGA+PCI-E (HDMI & DVI), SB5.1, Lan1000, SATA, USB3.0, mATX

ASRock G41MH/USB3

CPU
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Supports FSB1333/1066/800 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

Chipset
- Northbridge: Intel® G41
- Southbridge: Intel® ICH7

Memory
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
- 8Mb AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- Supports I. O. T. (Intelligent Overclocking Technology)

Audio, Video and Networking

Graphics
- Intel® Graphics Media Accelerator X4500
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200 (1080P)
- Supports DVI with max. resolution up to 1920x1200 @ 75Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection

Expansion / Connectivity

Slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots

USB 3.0
- 1 x USB 3.0 port by Fresco FL1000G, supports USB 3.0 up to 5Gb/s

Connector
- 4 x SATAII 3.0 Gb/s connectors (No support for RAID and ""Hot Plug"" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Print port header
- 1 x COM port header
- 1 x TPM header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 3 x Ready-to-Use USB 2.0 Ports
- 1 x Ready-to-Use USB 3.0 Port
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)

Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (optional)

Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
- Micro ATX Form Factor: 9.6-in x 8.4-in, 24.4 cm x 21.3 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)

OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
