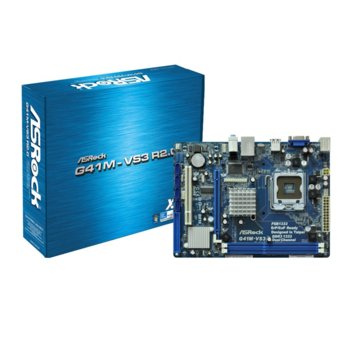

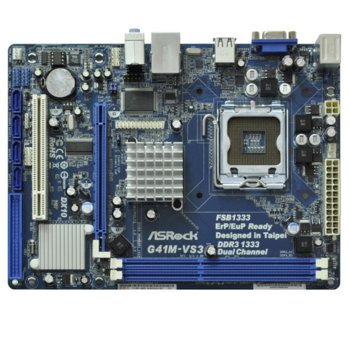

ASRock G41M-VS3 R2.0 (rev. 2.0)
Supports FSB1333/1066/800/533 MHz CPUs
Supports Dual Channel DDR3 1333(OC)
Intel® Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10, Max. shared memory 1759MB
Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies
Supports Instant Boot, Instant Flash, OC DNA, OC Tuner, IES, APP Charger
Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
General
CPU
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Supports FSB1333/1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Northbridge: Intel® G41
- Southbridge: Intel® ICH7
Memory
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**In order to maximize the system memory, please install 4GB memory module with 16 cells or 2GB memory modules with at least 8 cells.
BIOS
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- VCCM, NB, VTT, GTLRef Voltage Multi-adjustment
Audio, Video and Networking
Graphics
- Intel® Graphics Media Accelerator X4500
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
Audio
- 5.1 CH HD Audio (Realtek ALC662 / VIA® VT1705 Audio Codec)
LAN
- Atheros® PCIEx1 LAN AR8152
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- 1 x PCI Express x16 slot
- 1 x PCI slot
Connector
- 4 x SATAII 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

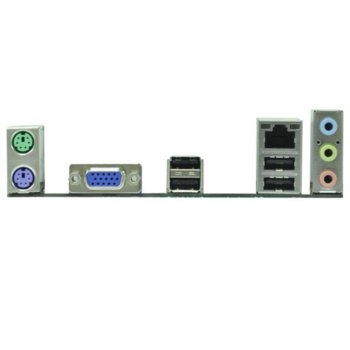

Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature - ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock APP Charger
- SmartView
- ASRock XFast USB
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm
OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
