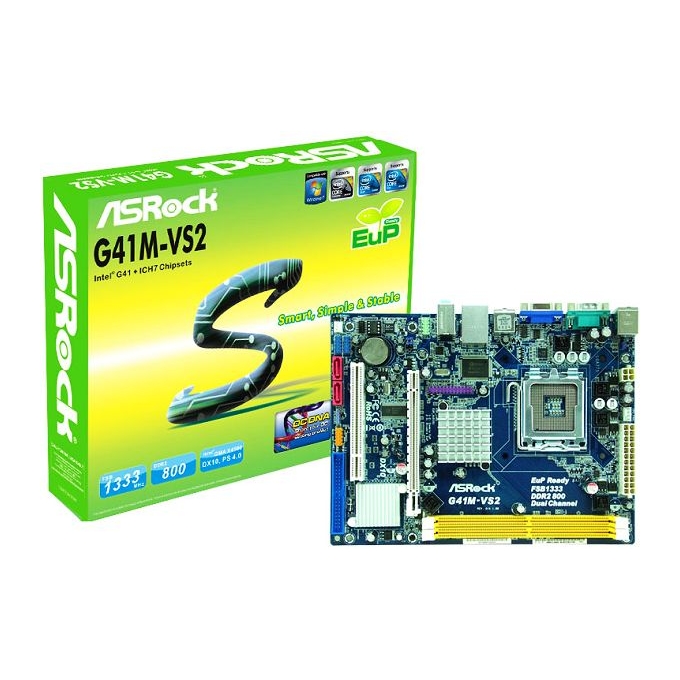

ASRock G41M-VS2
CPU
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Supports FSB1333/1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Northbridge: Intel® G41
- Southbridge: Intel® ICH7
Memory
- Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 800/667/533* non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB**
*DDR2 533 is supported with FSB 533 CPU.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 8Mb AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- VCCM, NB, VTT Voltage Multi-adjustment
- Supports Smart BIOS
Audio, Video and Networking
Graphics
- Intel® Graphics Media Accelerator X4500
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB*
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
*The shared memory size is dynamically controlled by VGA driver, and the Max. shared memory size will be available only when more than 4GB memory is installed under 64-bit OS.
Audio
- 5.1 CH Windows® Vista™ Premium Level HD Audio (Realtek ALC662 Audio Codec)
LAN
- Atheros® PCIEx1 LAN AR8132L
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE
Expansion / Connectivity
Slots
- 1 x PCI Express x16 slot
- 1 x PCI slot
Connector
- 2 x SATAII 3.0 Gb/s connectors (No support for RAID and ""Hot Plug"" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Print port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- ATA 100 Cable (optional)
- 1 x SATA Data Cable (optional)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Micro ATX Form Factor: 8.8-in x 6.7-in, 22.4 cm x 17.0 cm
OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications
- FCC, CE
- EuP Ready (EuP ready power supply is required)
