Дънна платка ASRock G31M-VS, G31, S775 (up to 65W), DDR2, VGA&PCI-E, SB5.1, Lan, SATA, mATX

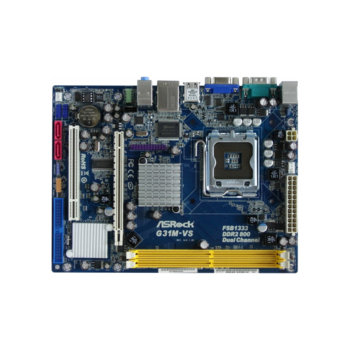

ASRock G31M-VS

CPU

- LGA 775 for Intel® Dual Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron®, supporting Dual Core Wolfdale processors
- Supports CPU power up to 65W
- Supports FSB1333/1066/800 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

Chipset

- Northbridge: Intel® G31
- Southbridge: Intel® ICH7

Memory

- Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 800/667 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

BIOS

- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- VCCM Voltage Multi-adjustment
- Supports Smart BIOS

Audio, Video and Networking

Graphics

- Intel® Graphics Media Accelerator 3100
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 384MB

Audio

- 5.1 CH Windows® Vista™ Premium Level HD Audio (Realtek ALC662 / VIA® VT1708S / VT1705 Audio Codec)

LAN

- Realtek PCIEx1 LAN 8103EL / 8102EL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN

Expansion / Connectivity

Slots
- 1 x PCI Express x16 slot
- 1 x PCI slot

Connector
- 2 x SATAII 3.0 Gb/s connectors (No support for RAID and ""Hot Plug"" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Print port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories
- Quick Installation Guide, Support CD, I/O Shield
- ATA 100 Cable (optional)
- 1 x SATA Data Cable (optional)
- 1 x SATA 1 to 1 Power Cable (optional)

Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
- Micro ATX Form Factor: 8.8-in x 6.7-in, 22.4 cm x 17.0 cm

OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant

Certifications
- FCC, CE
