Водно охлаждане за процесор ASRock Challenger 360 Digital, съвместимост със сокети Intel LGA 1851/1700 & AMD AM5/AM4

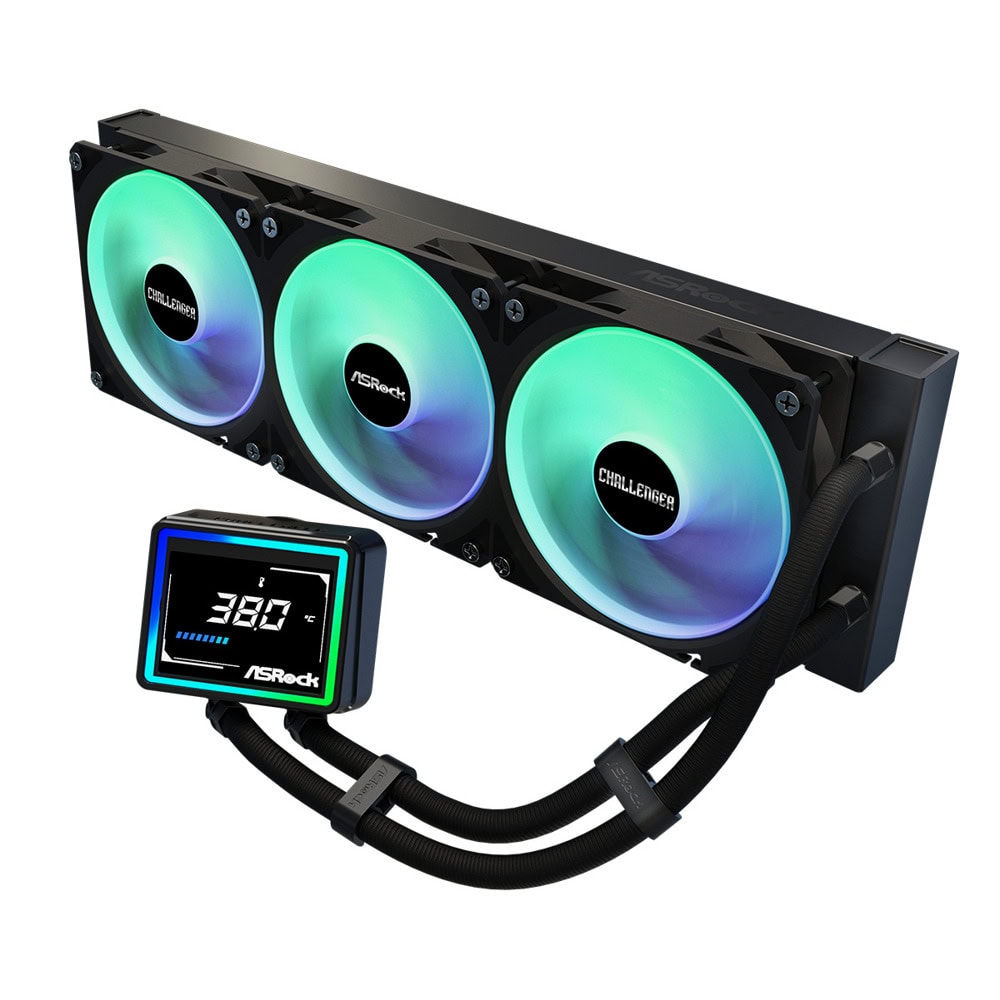

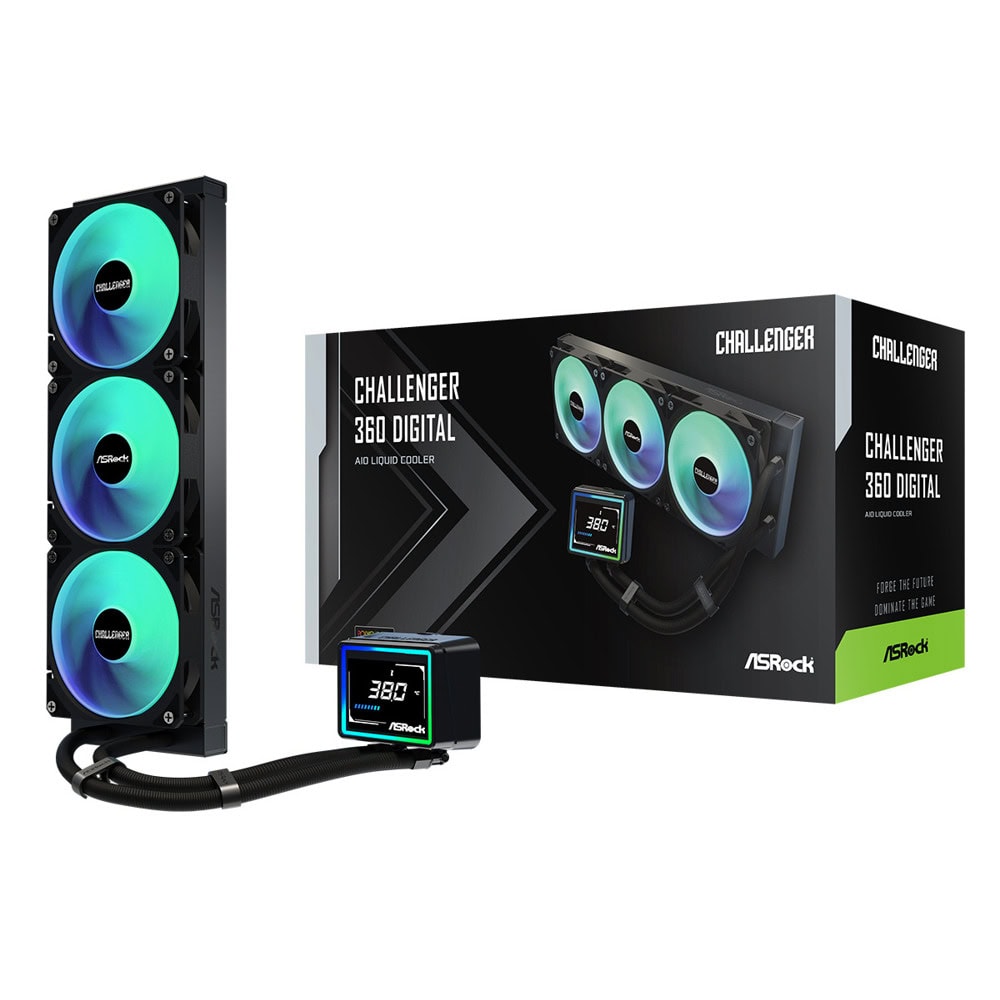

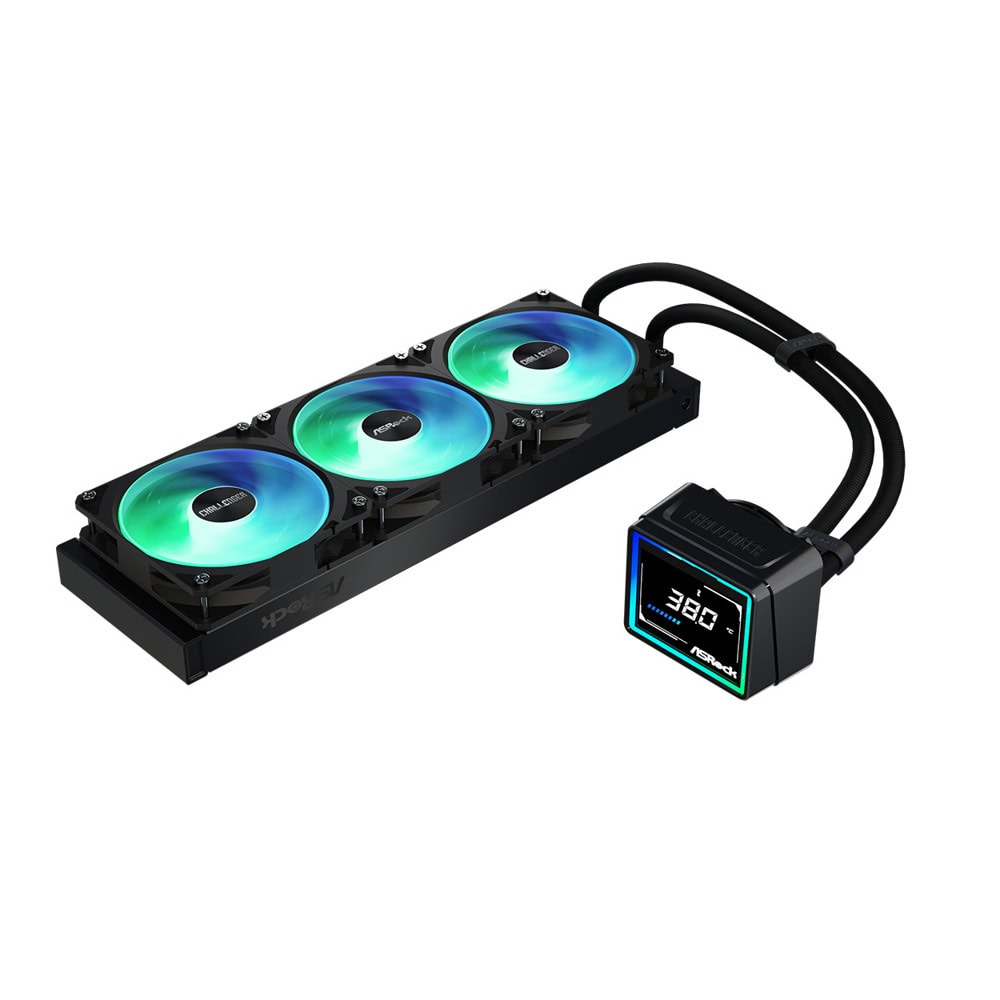

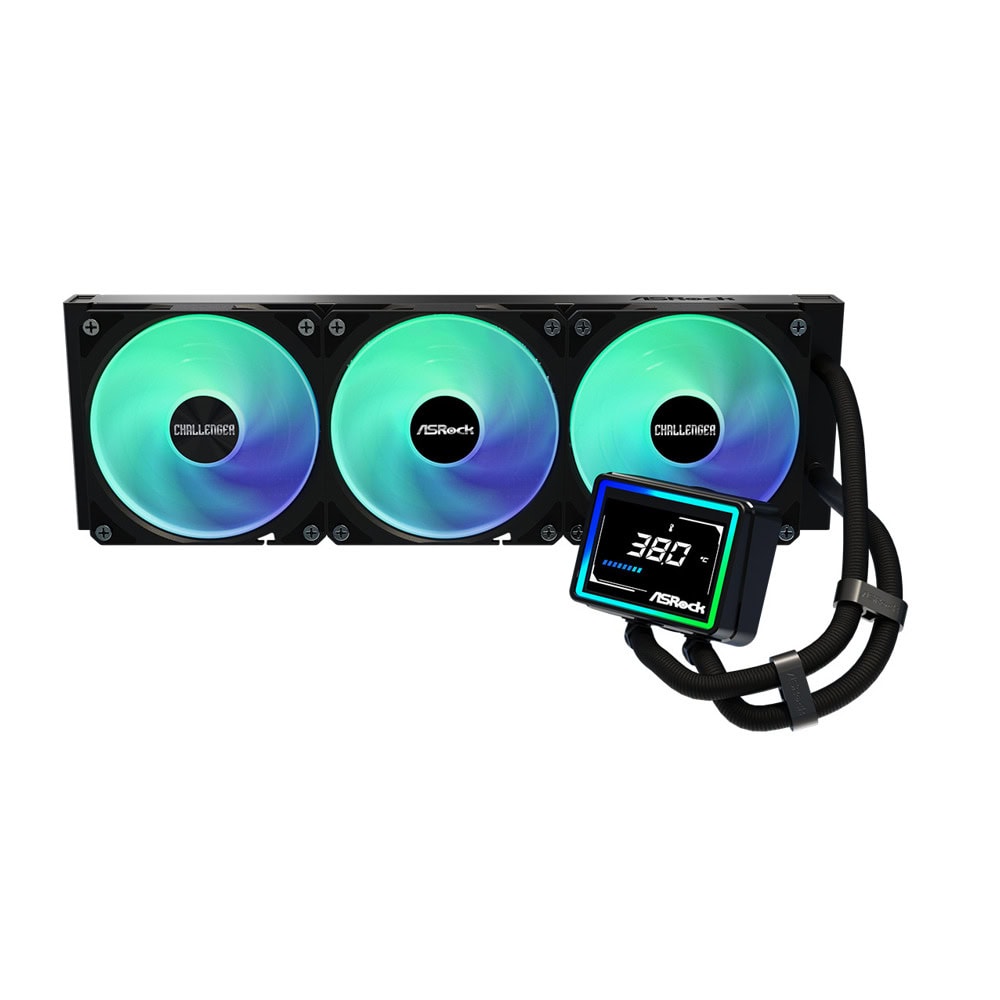

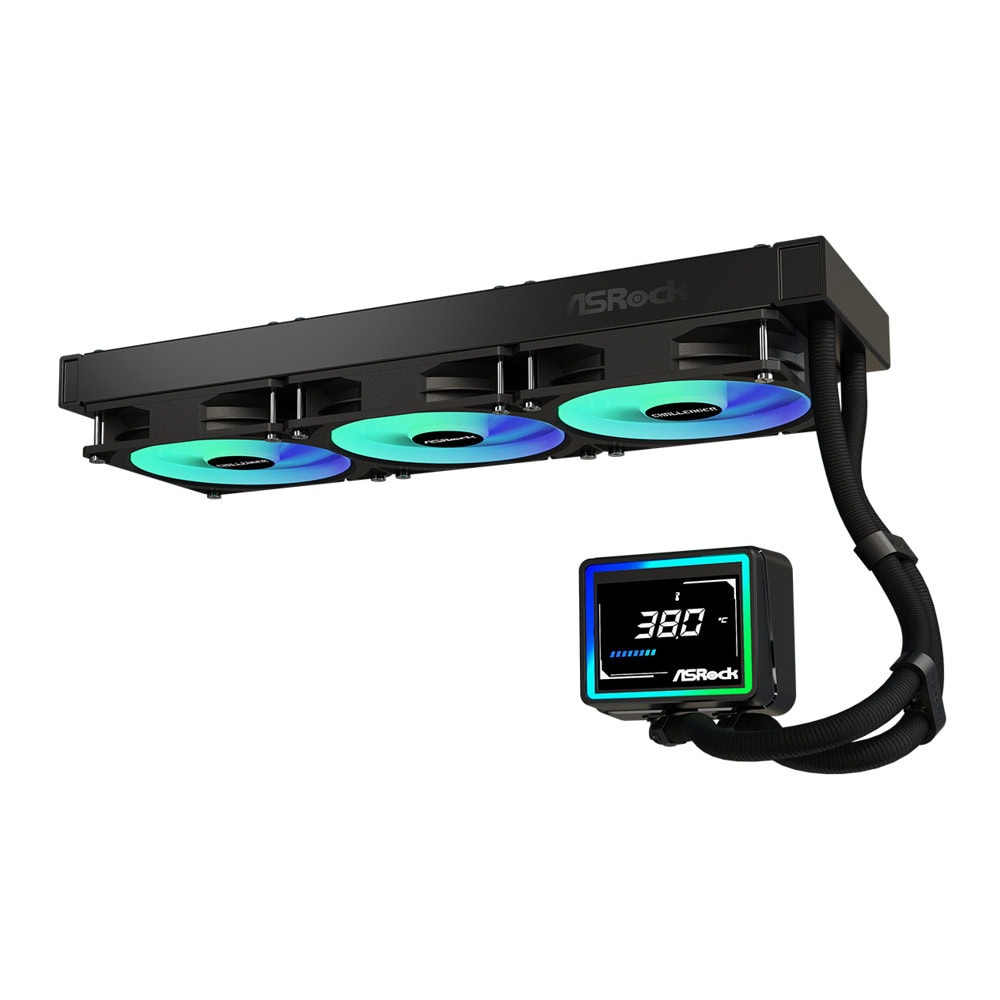

ASRock Challenger 360 Digital

Forge the Future Dominate the Game

Challenger Series is all about fearless play, bold breakthroughs, and relentless evolution. Packed with solid specs at a gamer-friendly price, it’s the ultimate option for gamers.

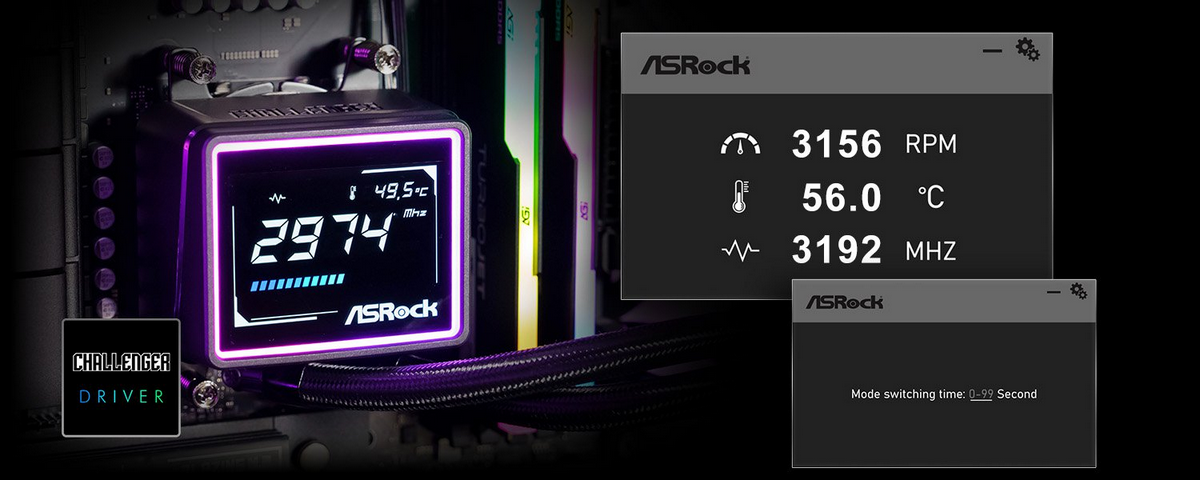

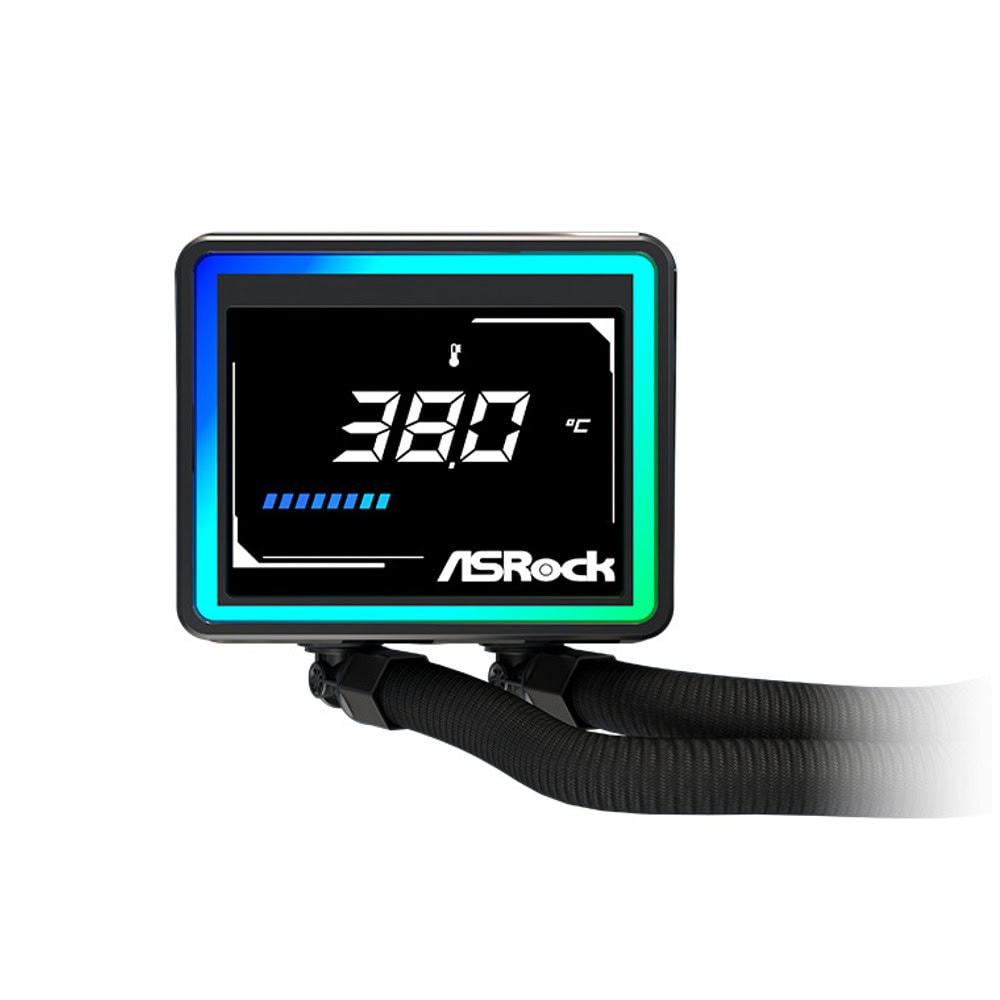

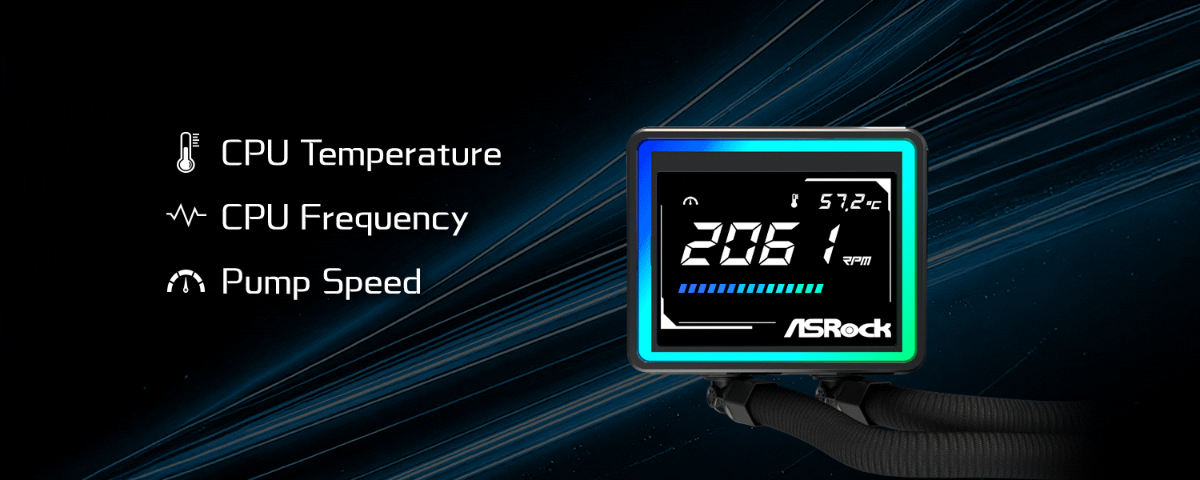

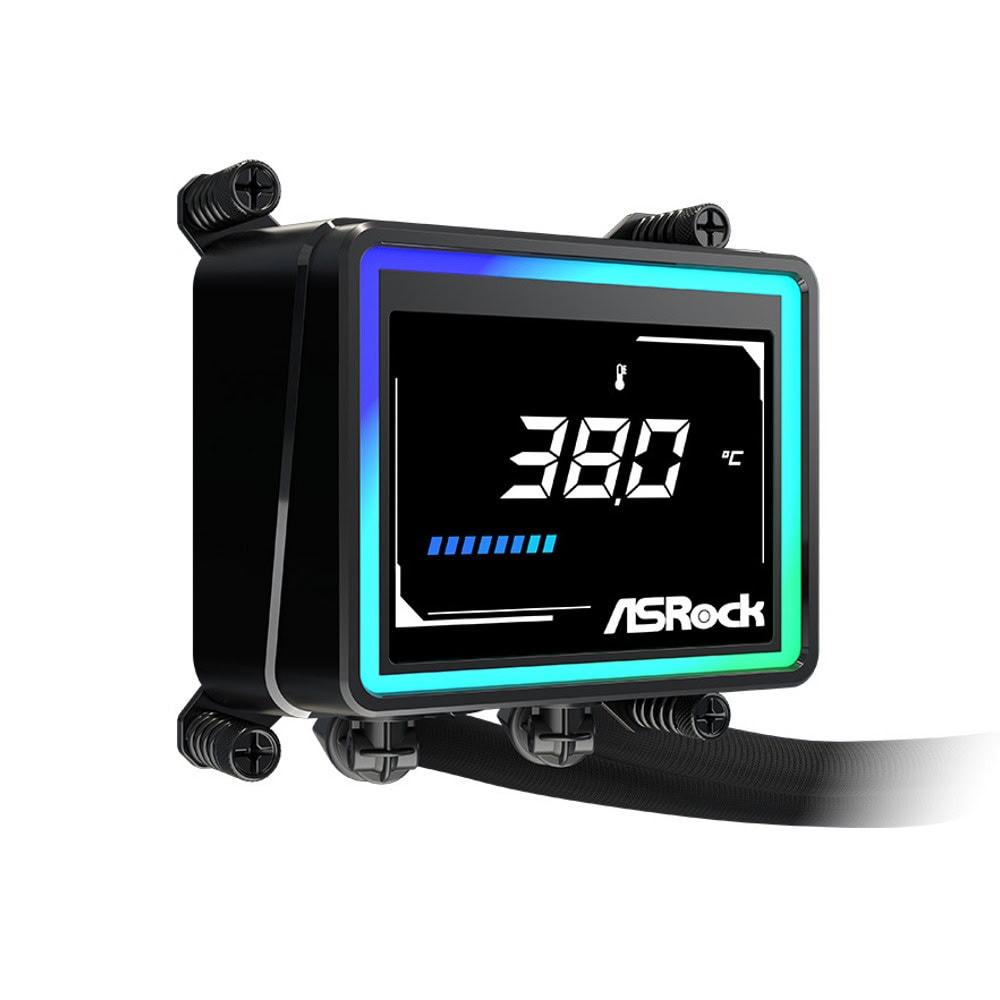

3" Smart Digital Display

The water block integrates a vivid digital display with dazzling ARGB lighting, showing real-time CPU temperature, frequency and pump speed for effortless system monitoring.

Challenger Driver Installation

Install the Challenger Driver to display system information and adjust mode switching time.

Next-Gen Cooling System

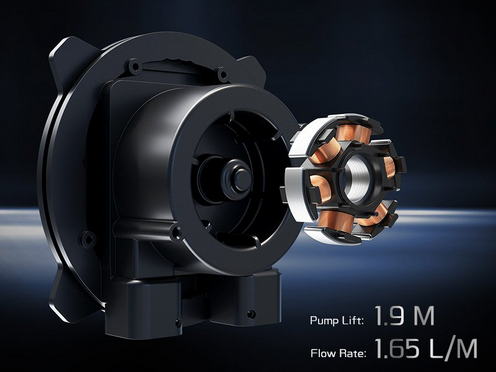

Next-Gen Cooling Pump Precision-engineered structure and automotive-grade components, powered by a 3-phase, 6-slot, 4-pole motor for stronger flow, extended durability, and peak cooling performance for unwavering CPU stability.   Continuous Magnetic Field Continuous rotating magnetic field for higher energy conversion efficiency.   Low Torque Ripple Low torque ripple ensures smooth and stable operation.   Balanced Current Load Balanced current distribution minimizes copper loss.   Reduced Core Loss Reduced core loss improves overall operating efficiency.   Lower Thermal Output Lower thermal output maintains efficiency during prolonged operation.   Simplified Motor Architecture No starting capacitors or coils required, improving reliability.

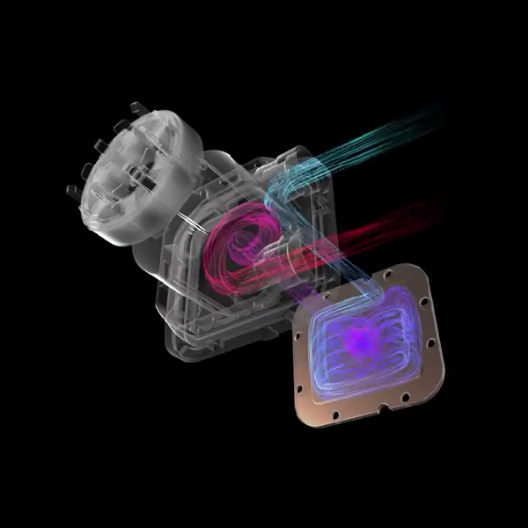

Dual-Side Inlet Cooling Path The dual-side inlet cooling path design shortens coolant flow distance while ensuring balanced distribution across the high-density micro-fin array. By delivering coolant directly to the CPU hot spot from multiple directions, the design helps keep temperatures more even and improves overall thermal efficiency.

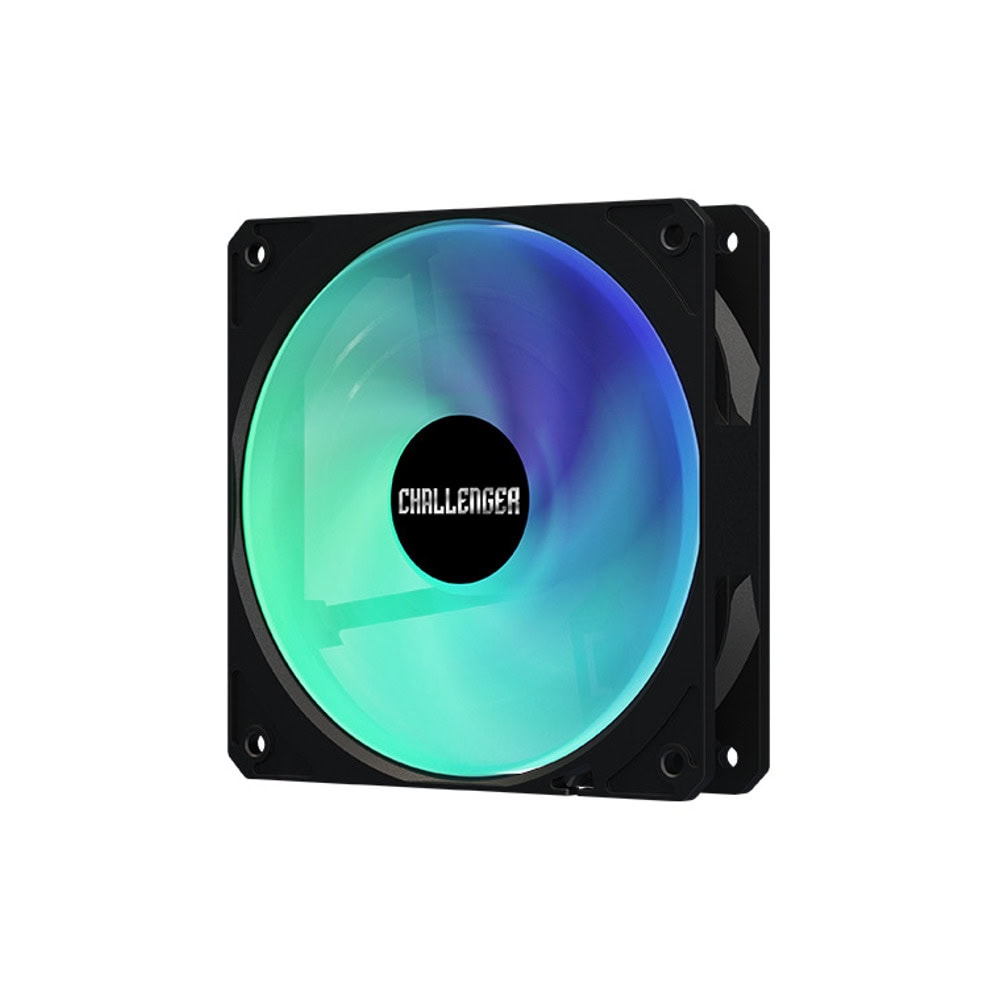

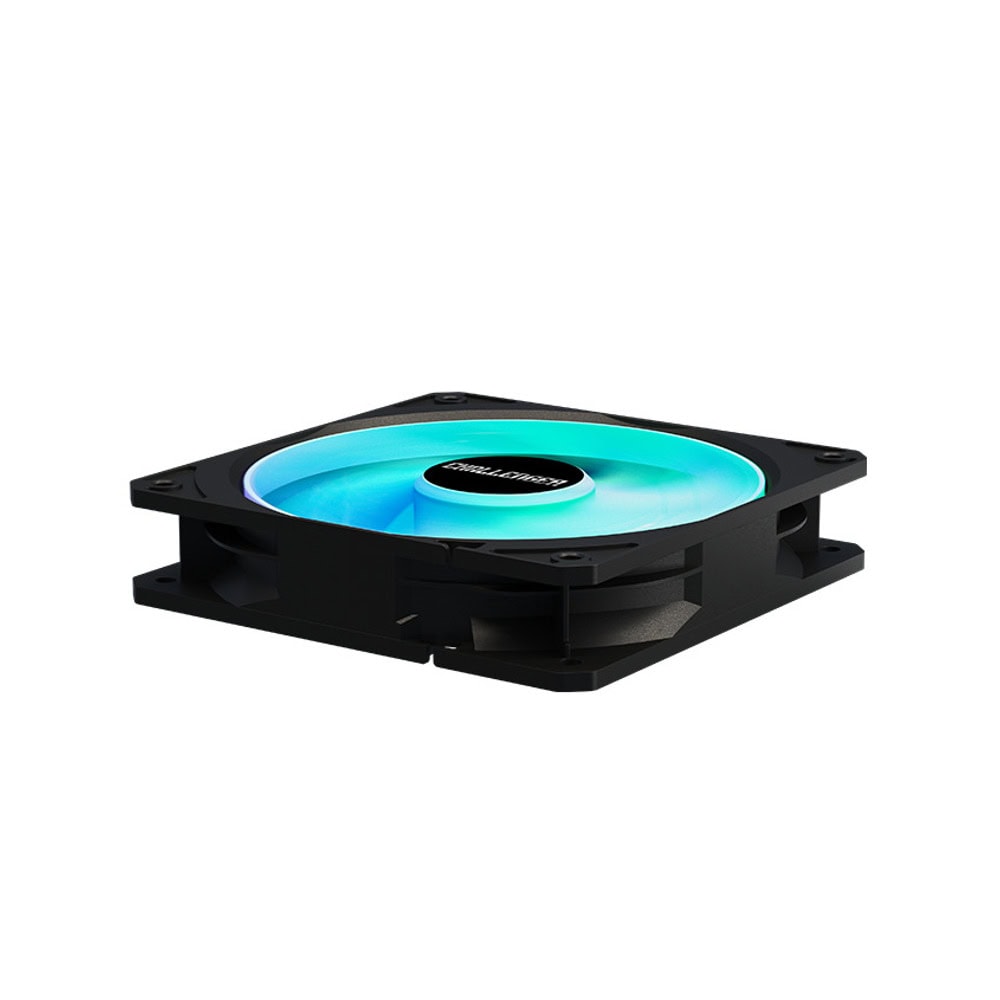

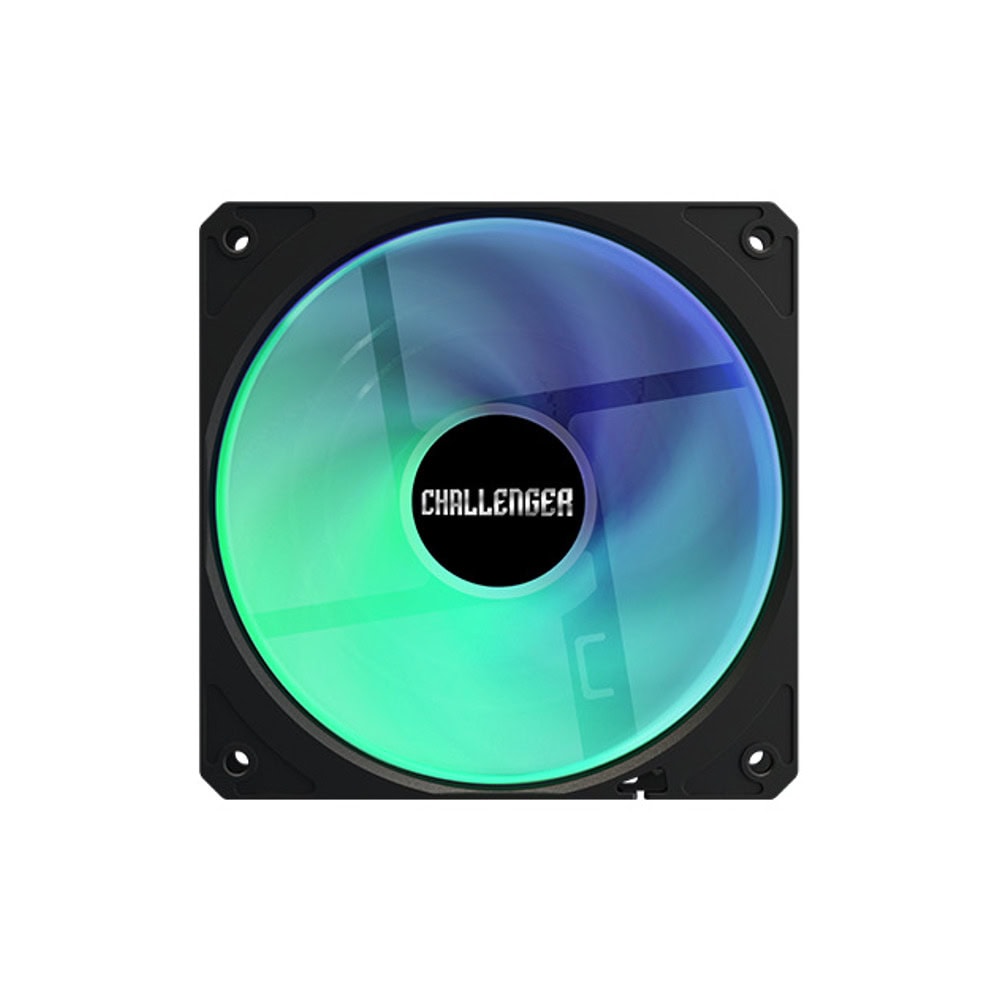

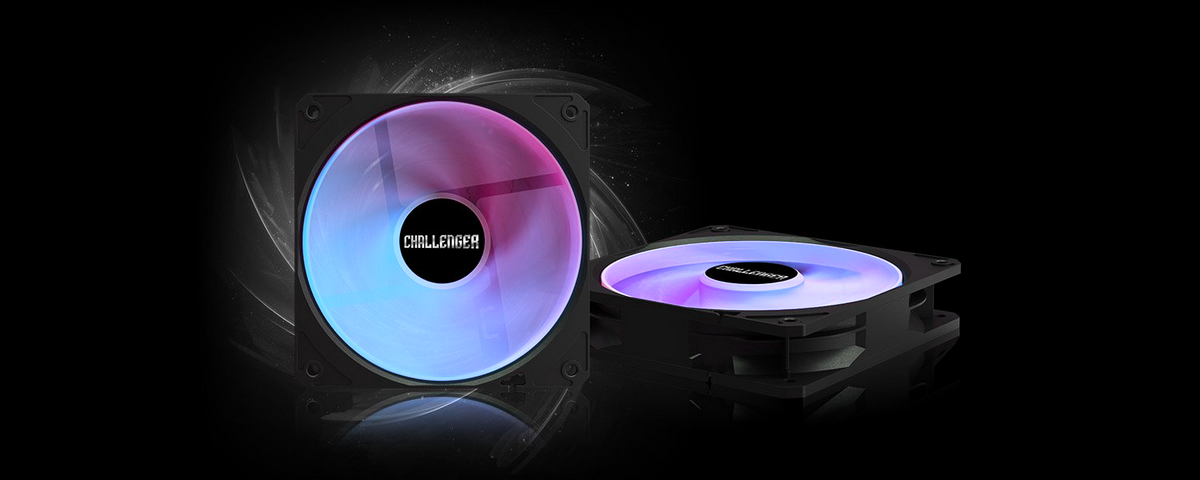

Ring-Frame Blade Design

The Ring-Frame Blade design features reinforced structure to optimize airflow concentration, generating stronger static pressure and deeper radiator penetration.

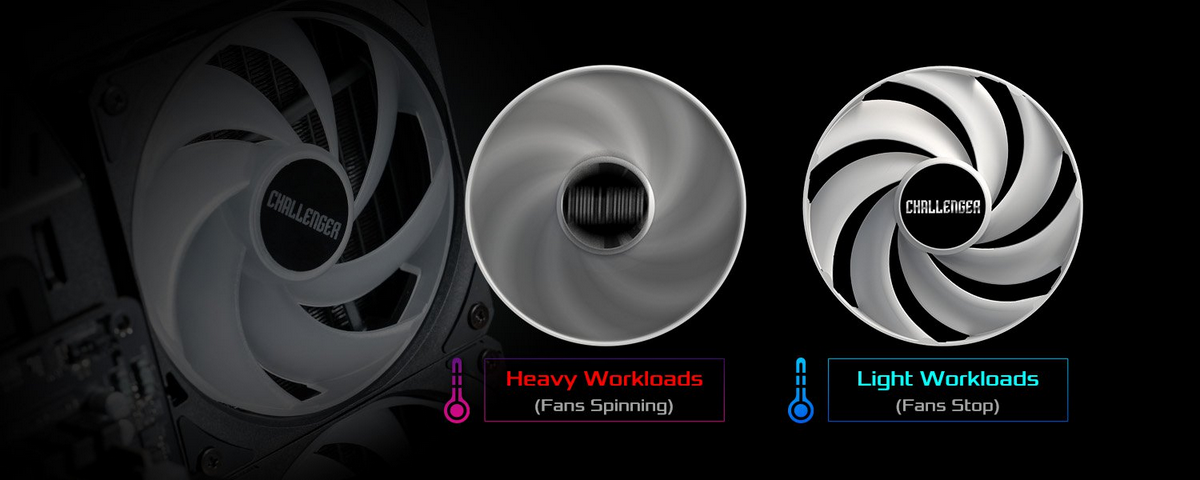

0dB Silent Cooling Technology

Fan stops completely under low load for absolute silence and extended lifespan.

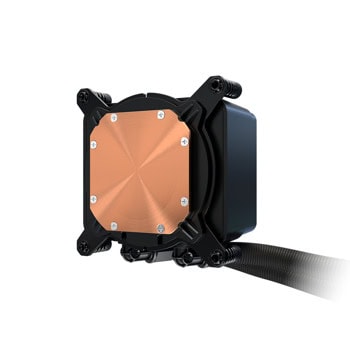

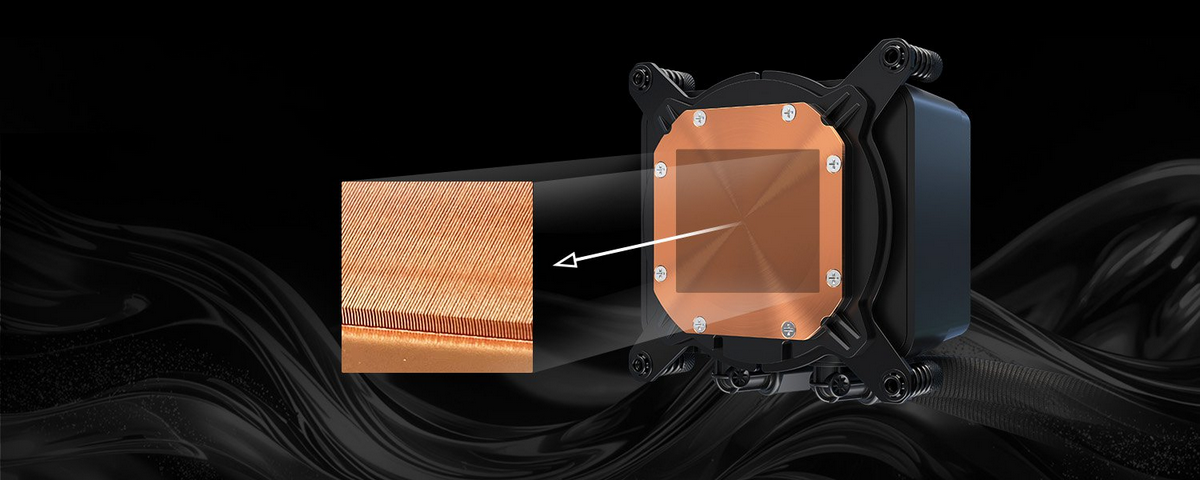

Precision-Machined Copper Cold Plate

Finely crafted for flawless surface contact, delivering superior heat conductivity and long-lasting cooling performance.

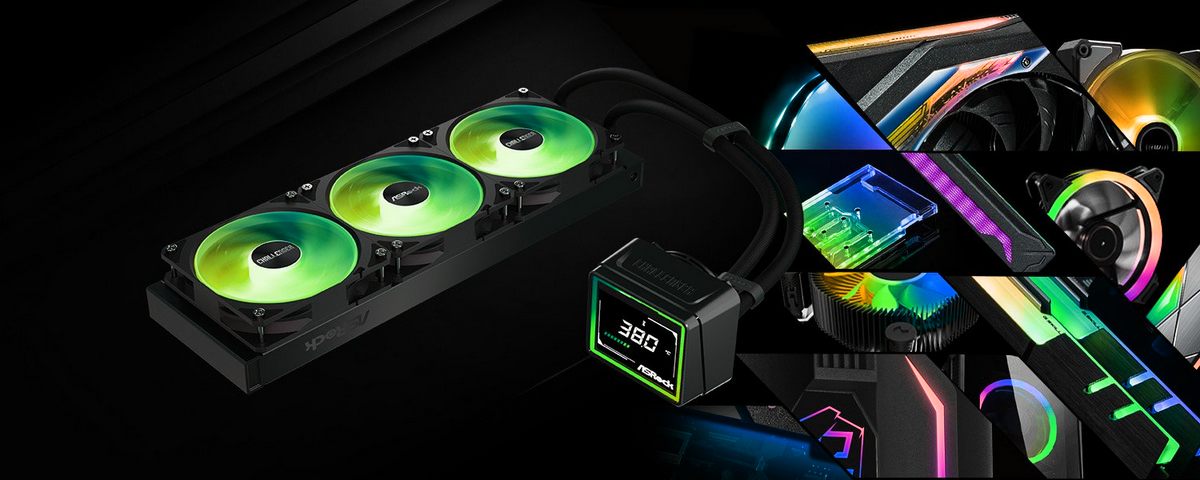

Brilliant ARGB Lighting Effect

Delivers vivid, customizable lighting for a dynamic and immersive build.

Polychrome RGB

Simply connect the 3-pin ARGB header to an ASRock motherboard to unlock Polychrome SYNC support, experience perfectly synchronized, full-system RGB illumination with seamless control.

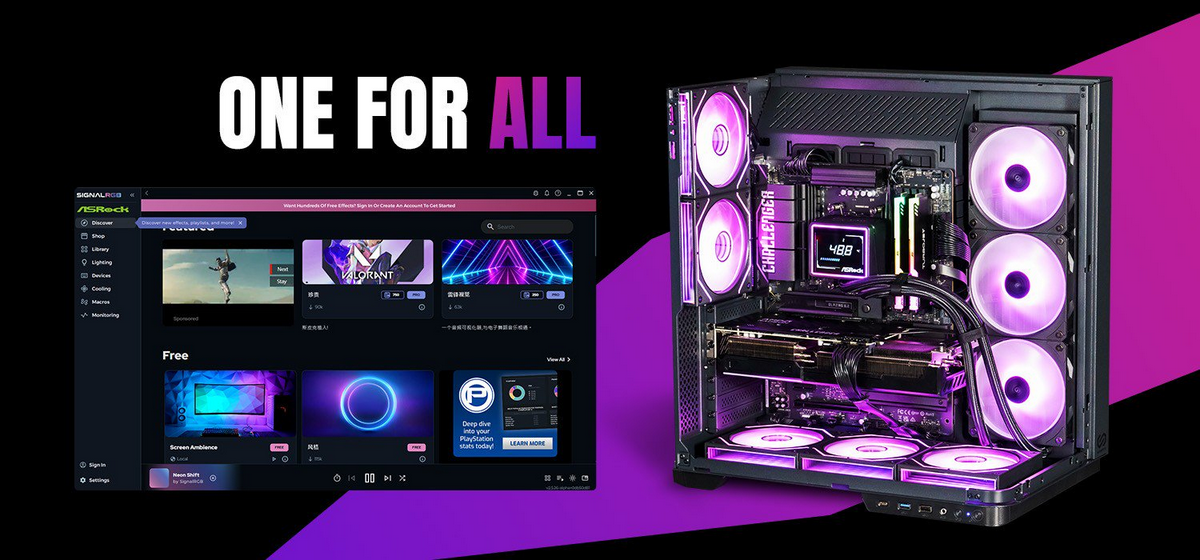

SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. ASRock AIO Liquid Coolers have passed comprehensive SignalRGB compatibility testing, ensuring reliable control of the LCD display and lighting effects through the SignalRGB software.

Specifications

• Compatibility

  AMD：AM5, AM4
  Intel：LGA1851, 1700

• Water Block

  Dimension：(L)85 x (W)84.1 x (H)53.5 mm
  Material (Cold Plate)：Copper
  LEDs：ARGB

• Radiator

  Dimension：(L)394 x (W)119.6 x (H)27 mm
  Material：Aluminum

• Pump

  Speed：1200 - 3200 ± 10% RPM
  Current/ Voltage：0.72A/ 12V
  Connector：PWM (4-Pin)

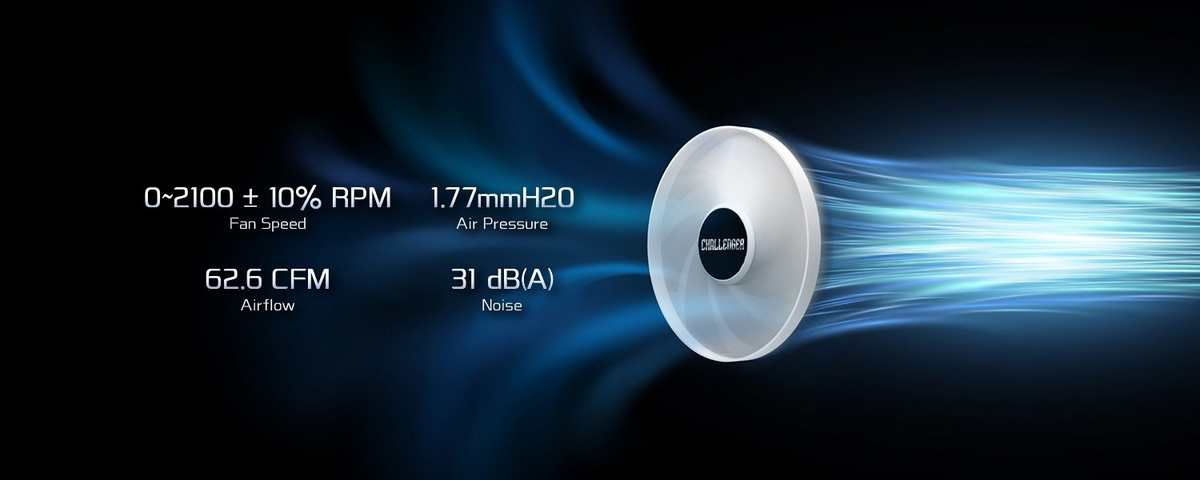

• Radiator Fan

  Dimension：(L)120 x (W)120 x (H)25.4 mm
  Speed：0 - 2100 ± 10% RPM
  Air Flow：(Max.) 62.6 CFM
  Air Pressure：(Max.) 1.77 mmH20
  Noise：(Max.) 31 dB(A)
  Connector：PWM (4-Pin)
  Current/ Voltage：0.18A/ 12V
  Bearing：Rifle Bearing
  LEDs ：ARGB Gen1

• Screen

  Type：Segment LED
  Size：3"
  Resolution：480 x 480
  Connector：USB (9-Pin)

• Tubing

  Material：IIR + EPDM
  Length：450mm
