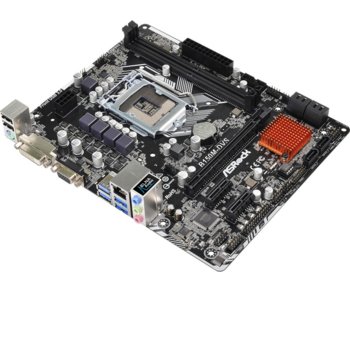

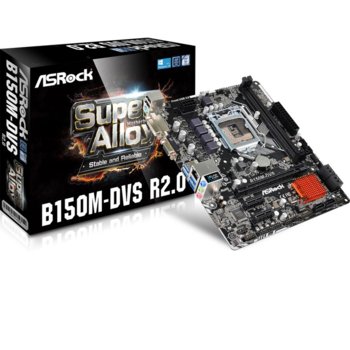

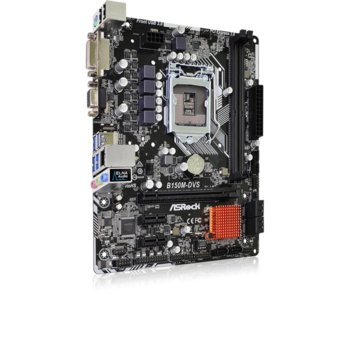

Дънна платка ASRock B150M-DVS R2.0, B150, LGA1151, DDR4, PCI-E(DVI), 6x SATA 6Gb/s, 4x USB 3.0, micro ATX

ASRock B150M-DVS R2.0

Уникални функции

ASRock Super Alloy
- Matte Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop

Процесор

- Supports 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)
- Supports CPU up to 91W
- Digi Power design
- 5 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology

Чипсет

- Intel® B150
- Supports Intel® Small Business Basics

Памет

- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 64Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.0V, VCCIO Voltage Multi-adjustment

Аудио, Видео и Мрежа

Графика

- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530
- Pixel Shader 5.0, DirectX 12
- Max. shared memory 1024MB*
- Dual graphics output: Support DVI-D and D-Sub ports by independent display controllers
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Accelerated Media Codecs: HEVC, VP8, VP9
- Supports HDCP with DVI-D Port
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals и VGA изходите могат да бъдат поддържани само с процесори, които имат интегриран GPU.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Аудио

- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps

*За да конфигурирате 7.1 канално HD аудио е необходимо да ползвате Преден HD аудио модул панел и да разрешите мултиканалното аудио чрез аудио драйвера.

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR / RTL8111C
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports PXE

Разширение / Свързване

Слотове

- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)**
- 2 x PCI Express 3.0 x1 Slots

*Supports NVMe SSD as boot disks

Съхранение

- 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Конектор

- 1 x Print Port Header
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)
- 2 x Chassis Fan Connectors (4-pin)*
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))


*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

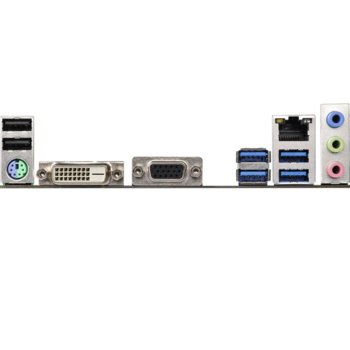

Заден панел с входове и изходи

- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))*
- 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))*
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

*ACPI wake-up function is supported on the rear USB ports only.

Други функции / Разни

Software и BIOS

Software
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Fast Boot (Fast Boot, Restart to UEFI)*

UEFI
- ASRock EZ Mode
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI Tech Service
- ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

CD с поддръжка

- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Хардуерен монитор

- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCIO

Форм фактор

- Micro ATX Form Factor: 8.9-in x 7.2-in, 22.6 cm x 18.3 cm
- Solid Capacitor design

OC

- Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

*To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock's website for details.

Сертификати
- FCC, CE, WHQL

Внимание:
Моля, имайте в предвид, че съществува определен риск при овърклок, включително при промяна на настройки в BIOS или ползването на софтуер за овърклок. Овърклокът може да повлияе на стабилността на вашата система или дори да причини повреда на компоненти или устройства в компютъра ви. Той трява да бъде правен на ваш риск и за сметка на ваши разходи. Не сме отговорни за повреди, причинени от овърклок.
