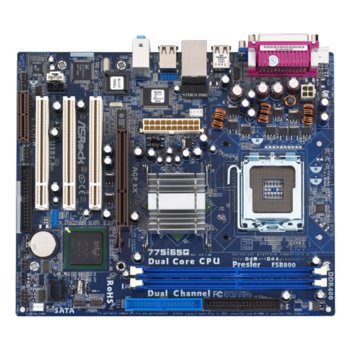

Дънна платка ASRock 775i65G, 865G & ICH5, LGA775, DDR400, PCI (VGA), 2x SATA 1.5Gb/s, Micro ATX

ASRock 775i65G


- LGA 775 for Intel® Pentium® XE / Pentium® D / Pentium® 4 / Celeron® D
- Intel® 865G Chipset
- Supports FSB 1066MHz for external graphics (by overclocking) and FSB 800/533 MHz for Internal graphics, EM64T CPU and H-T Technology
- Supports Dual Channel DDR400 (DDR x 2 DIMMs)
- Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed AGP/ PCI Buses
- 1 x AGP 8X slot
- Supports Integrated Intel® Extreme Graphics 2 and DirectX 8.0
- Hybrid Booster - Safe Overclocking Technology
- 2 ports of SATA 1.5Gb/s, 2 ATA100 IDE ports
- 5.1 Channel Audio, 10/100 Ethernet LAN
- ASRock I/O Plus: 6 ready-to-use USB 2.0 ports

CPU

- LGA 775 for Intel® Pentium® XE / Pentium® D / Pentium® 4 / Celeron® D
- FSB 1066* MHz for external graphics (by overclocking)
- FSB 800/533 MHz for internal graphics
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

*FSB1066-CPU is supported by overclocking only when you adopt an external VGA card and DDR400 CL2.5 memory modules.

Chipset

- Northbridge: Intel® 865G
- Southbridge: Intel® ICH5

Memory
- Dual Channel DDR memory technology
- 2 x DDR DIMM slots
- Supports DDR400/333/266 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB

BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support

Graphics
- Integrated Intel® Extreme Graphics 2
- DirectX 8.0
- Max. shared memory 96MB

Audio
- Cmedia 9761A 5.1 channel audio CODEC

LAN
- Realtek PCI LAN 8101L
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE

Slots
- 3 x PCI slots
- 1 x AGP 8X slot
- 1 x AMR slot

Connector
- 2 x SATA 1.5 Gb/s connectors
(No Support for "RAID" and Hot Plug functions )

- 2 x ATA100 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM header
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- AUX in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB4_5)

Rear Panel I/O

ASRock I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP support)
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- Audio Jack: Line in / Front Speaker / Microphone

Unique Feature
Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Overheat Shutdown to Protect CPU Life
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor
- Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

OS
- Microsoft® Windows® 98SE / ME / 2000 / XP compliant

Certifications
- FCC, CE, MS WHQL
