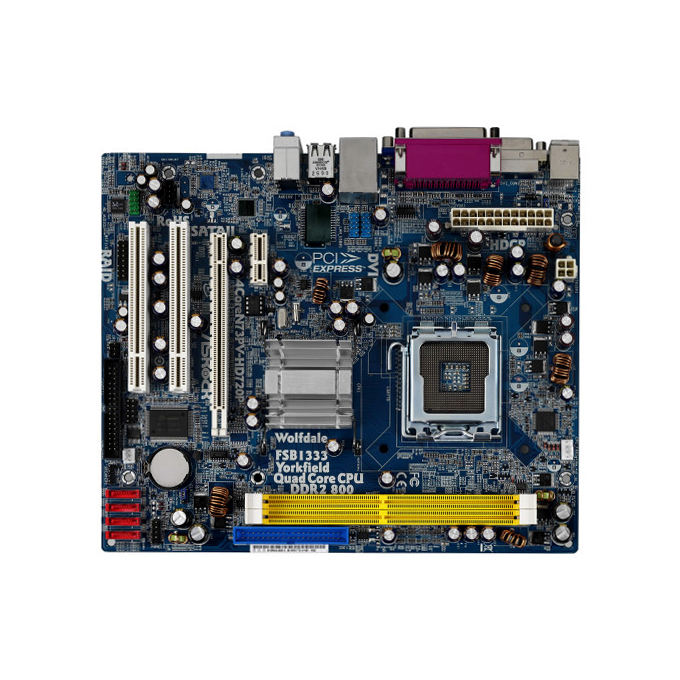

AsRock 4CoreN73PV-HD720p
CPU
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Quad Core Yorkfield and Dual Core Wolfdale processors
- Supports FSB1333/1066/800/533MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- NVIDIA® GeForce 7100 / nForce 630i
Memory
- 2 x DDR2 DIMM slots
- Supports DDR2 800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics
- Integrated NVIDIA® GeForce 7100
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers
- Supports HDCP function with DVI-D port
- Supports 720p Blu-ray (BD) / HD-DVD playback
Audio
- 5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211B
- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector
- 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and ""Hot Plug"" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x COM port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x WiFi/E header
Rear Panel I/O
ASRock 6CH_DVI I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Hybrid Booster
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 1 x SATA Data Cable (optional)
- 1 x SATA 1 to 1 Power Cable (optional)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm
OS
- Microsoft® Windows® XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
Виж още Дънни платки за Intel процесори ASRock
Виж всички Дънни платки за Intel процесори в категорията
CPU
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Quad Core Yorkfield and Dual Core Wolfdale processors
- Supports FSB1333/1066/800/533MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- NVIDIA® GeForce 7100 / nForce 630i
Memory
- 2 x DDR2 DIMM slots
- Supports DDR2 800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics
- Integrated NVIDIA® GeForce 7100
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers
- Supports HDCP function with DVI-D port
- Supports 720p Blu-ray (BD) / HD-DVD playback
Audio
- 5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211B
- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector
- 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and ""Hot Plug"" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x COM port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x WiFi/E header
Rear Panel I/O
ASRock 6CH_DVI I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Hybrid Booster
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 1 x SATA Data Cable (optional)
- 1 x SATA 1 to 1 Power Cable (optional)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm
OS
- Microsoft® Windows® XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
Виж още Дънни платки за Intel процесори ASRock
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 775 |
|---|---|
| Брой слотове за RAM памет: | 2 |
| RAID: | Да |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DVI VGA (D-Sub) |
| Форм фактор: | Micro ATX |
