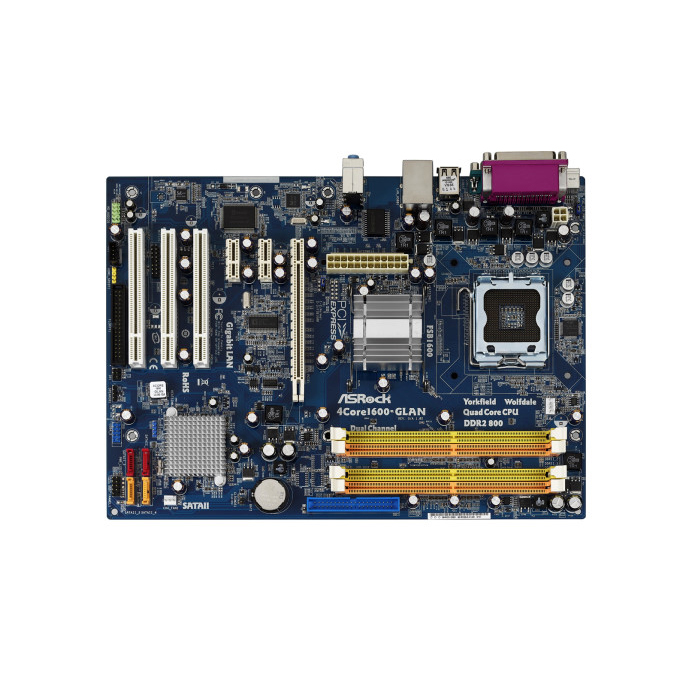

Asrock 4Core1600-GLAN
CPU
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Compatible with all FSB1600*/1333/1066/800MHz CPUs
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
*In overclocking mode.
Chipset
- Northbridge: Intel® P31/G31
- Southbridge: Intel® ICH7
Memory
- Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 800/667 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB**
*Before you install memory module on this motherboard, please read below message to avoid any improper installation:
» Due to chipset limitation, if you plan to install three or four memory modules on this motherboard, please install only single-sided memory modules.
» To install two memory modules on this motherboard, please install them on DDRII_1 and DDRII_3 DIMM sockets.
For the detailed installation information, please refer to the user manual or quick installation guide.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics
- n/a
Audio
- 5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B/RTL8111C
- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- 1 x PCI Express x16 slot
- 2 x PCI Express x1 slots
- 3 x PCI slots
Connector
- 4 x SATAII 3.0 Gb/s connectors (No support for RAID and ""Hot Plug"" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 3 USB 2.0 ports)
- 1 x WiFi/E header
Rear Panel I/O
ASRock 6CH I/O Pro
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- Instant Boot
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 100 Cables
- 1 x SATA Data Cable (optional)
- 1 x SATA 1 to 1 Power Cable (optional)
- 1 x HDMI_SPDIF Cable (optional)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
Виж още Дънни платки за Intel процесори ASRock
Виж всички Дънни платки за Intel процесори в категорията
CPU
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Compatible with all FSB1600*/1333/1066/800MHz CPUs
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
*In overclocking mode.
Chipset
- Northbridge: Intel® P31/G31
- Southbridge: Intel® ICH7
Memory
- Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 800/667 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB**
*Before you install memory module on this motherboard, please read below message to avoid any improper installation:
» Due to chipset limitation, if you plan to install three or four memory modules on this motherboard, please install only single-sided memory modules.
» To install two memory modules on this motherboard, please install them on DDRII_1 and DDRII_3 DIMM sockets.
For the detailed installation information, please refer to the user manual or quick installation guide.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics
- n/a
Audio
- 5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B/RTL8111C
- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- 1 x PCI Express x16 slot
- 2 x PCI Express x1 slots
- 3 x PCI slots
Connector
- 4 x SATAII 3.0 Gb/s connectors (No support for RAID and ""Hot Plug"" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 3 USB 2.0 ports)
- 1 x WiFi/E header
Rear Panel I/O
ASRock 6CH I/O Pro
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- Instant Boot
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 100 Cables
- 1 x SATA Data Cable (optional)
- 1 x SATA 1 to 1 Power Cable (optional)
- 1 x HDMI_SPDIF Cable (optional)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
Виж още Дънни платки за Intel процесори ASRock
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 775 |
|---|---|
| Брой слотове за RAM памет: | 4 |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | Няма |
| Форм фактор: | ATX |
