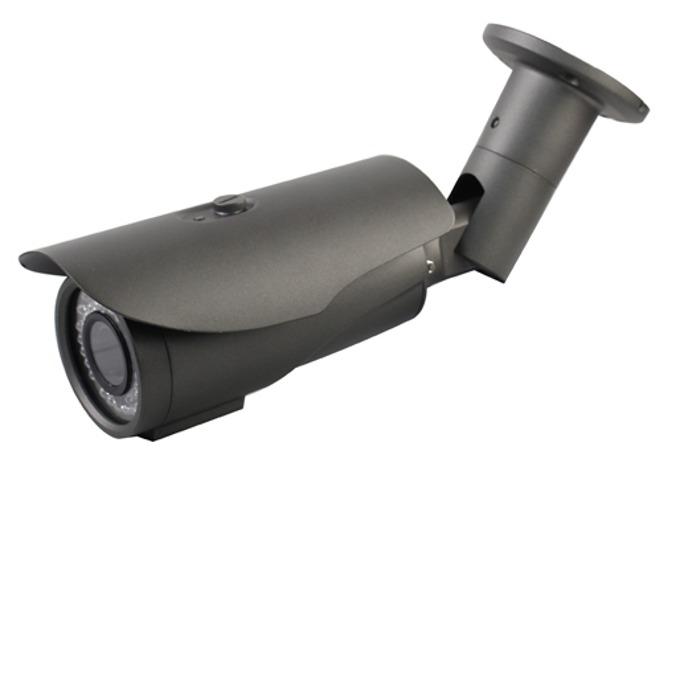

Model NO. |
LIG40AD200S |
|
|
Video Output Mode |
AHD/CVBS |
|
|
Camera |
||
|
Image Sensor |
IMX322 |
|
|
DSP |
NVP2441H |
|
|
Image Resolution |
1080P/960H |
|
|
Effective Pixels |
2.4MP, 1920x1080 |
|
|
TV System |
PAL/NTSC |
|
|
Electronic Shutter |
1/25s~1/50,000s , 1/30s~1/60,000s |
|
|
S/N Ratio |
≥50dB |
|
|
Scanning System |
Progressive Scan |
|
|
Lens |
||
|
Focus Length |
2.8-12mm |
|
|
Focus Control |
Manual |
|
|
Lens Type |
Manual |
|
|
Pixels |
2M Pixels |
|
|
Auto Iris Support |
NO |
|
|
PTZ |
||
|
Interface |
|
|
|
Protocol |
|
|
|
Baud Rate |
|
|
|
Address |
|
|
|
Night Vision |
||
|
Infrared LED |
14µ x 30PCS, ￠5 (12µ) x 42PCS (Optional) |
|
|
Infrared Distance |
40M |
|
|
IR Status |
Under 10 Lux by CDS |
|
|
IR Power On |
CDS Auto Control |
|
|
Camera Features |
||
|
Day/Night |
Auto (ICR) / Color / B&W |
|
|
OSD Menu Language |
YES |
|
|
White Balance |
Auto/Manual |
|
|
Gain Control |
Auto |
|
|
Noise Reduction |
3D NR |
|
|
Picture Adjustment |
YES |
|
|
WDR |
DWDR |
|
|
OSD Support |
YES |
|
|
UTC |
Optional |
|
|
General |
||
|
Housing |
Metal,IP66 |
|
|
Bracket |
YES, Anti-Cut Bracket |
|
|
Dual Voltage |
NO |
|
|
IR Cut Filter |
YES |
|
|
Heater |
NO |
|
|
Operation Temperature |
-10℃ ~ +50℃ RH95% Max |
|
|
Storage Temperature |
-20℃ ~ +60℃ RH95% Max |
|
|
Power Source |
DC12V±10%, 700mA |
|
|
Dimension |
291W) x 90(H) x 93(D)mm |
|
|
Weight |
1.6kg |
|
Виж още Аналогови и хибридни Longse
Виж всички Аналогови и хибридни в категорията
| Вид: | Насочени /Булет/ камери |
|---|---|
| Резолюция: | 2.0 - 3.9MP |
| Безжична: | Не |
| Външен монтаж: | Да |
| IR Осветление: | Да |
