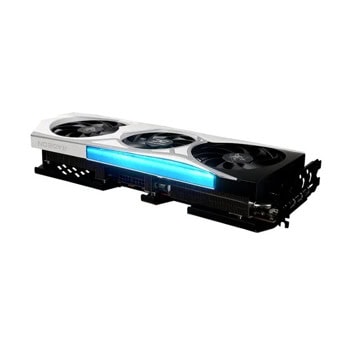

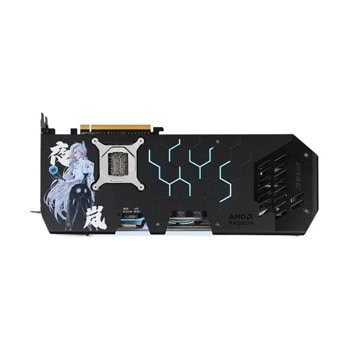

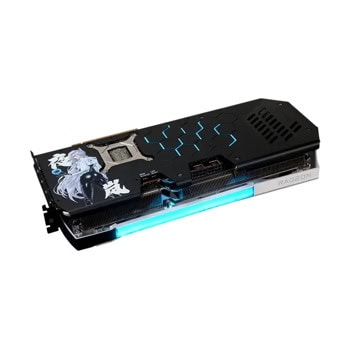

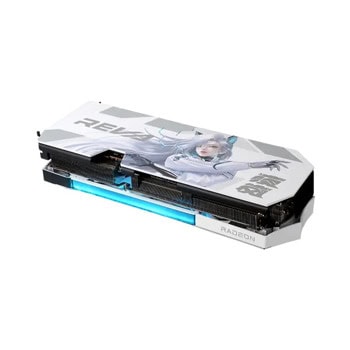

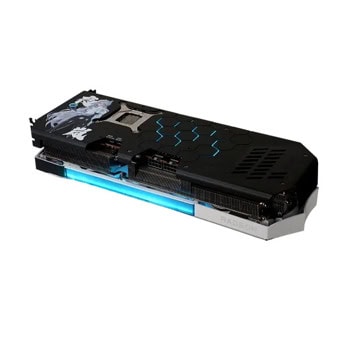

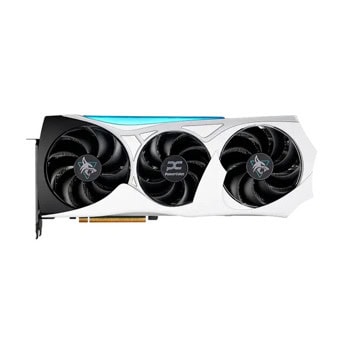

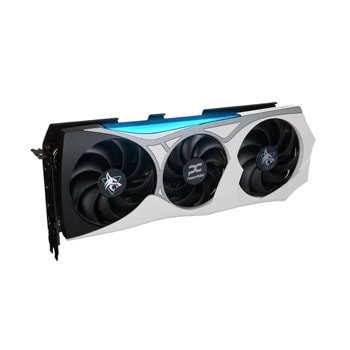

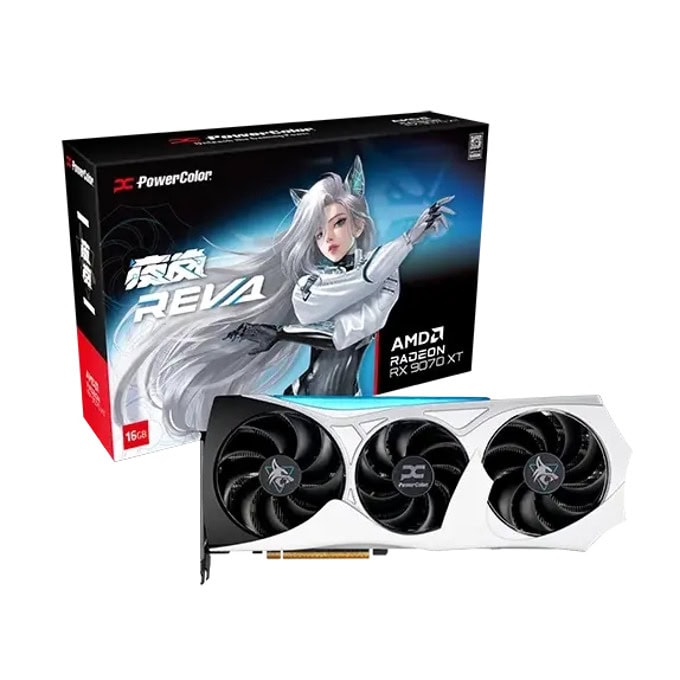

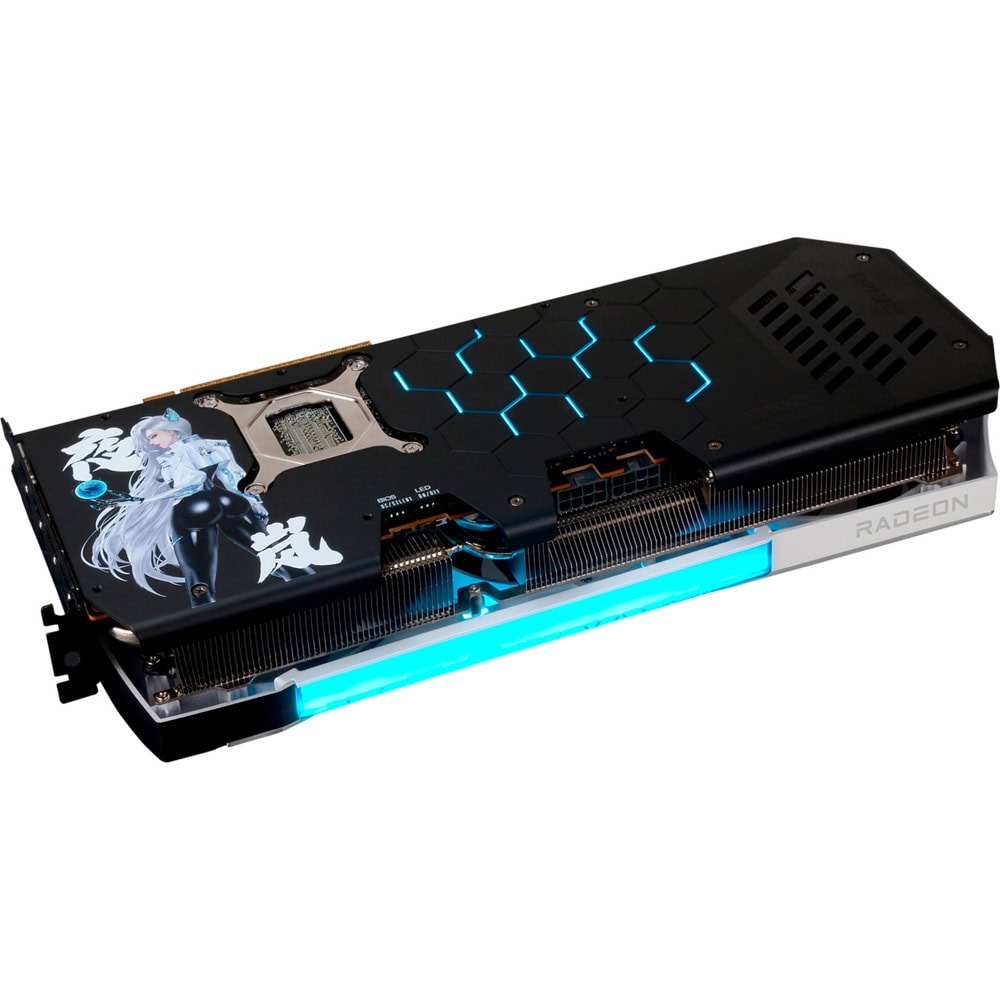

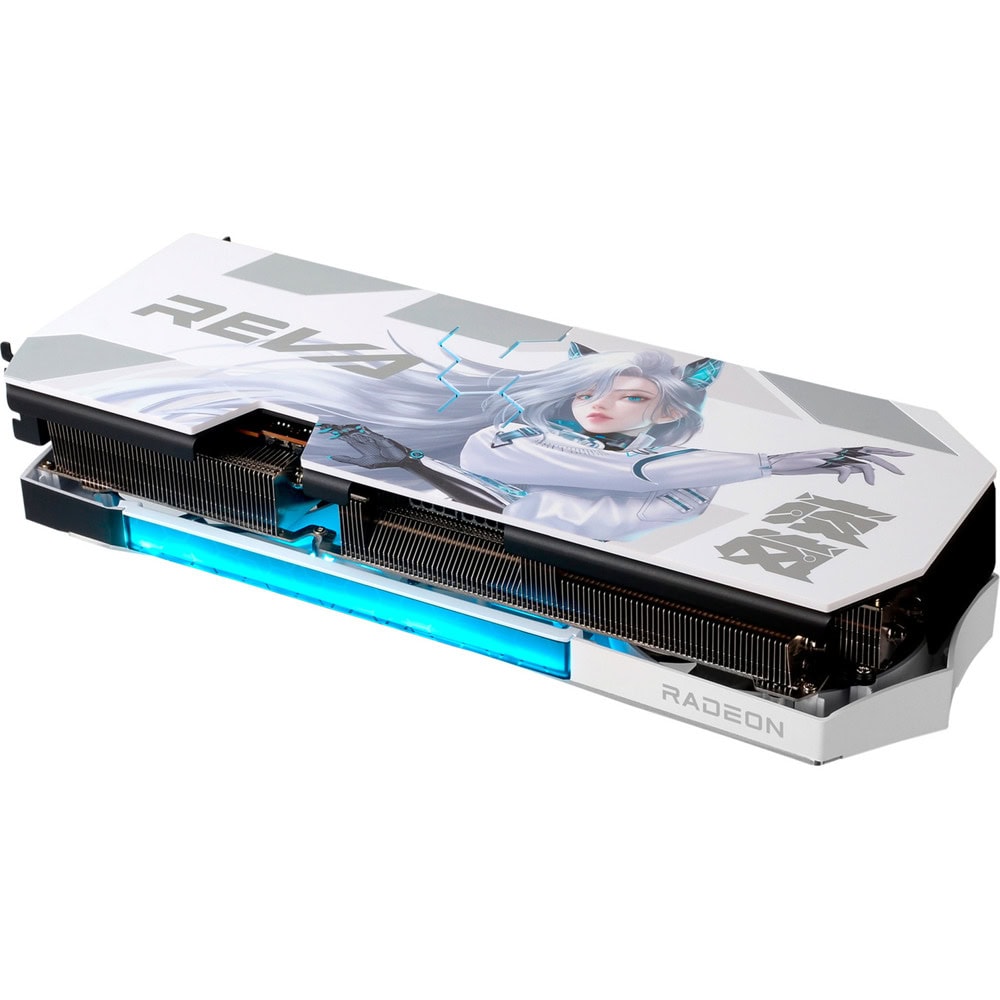

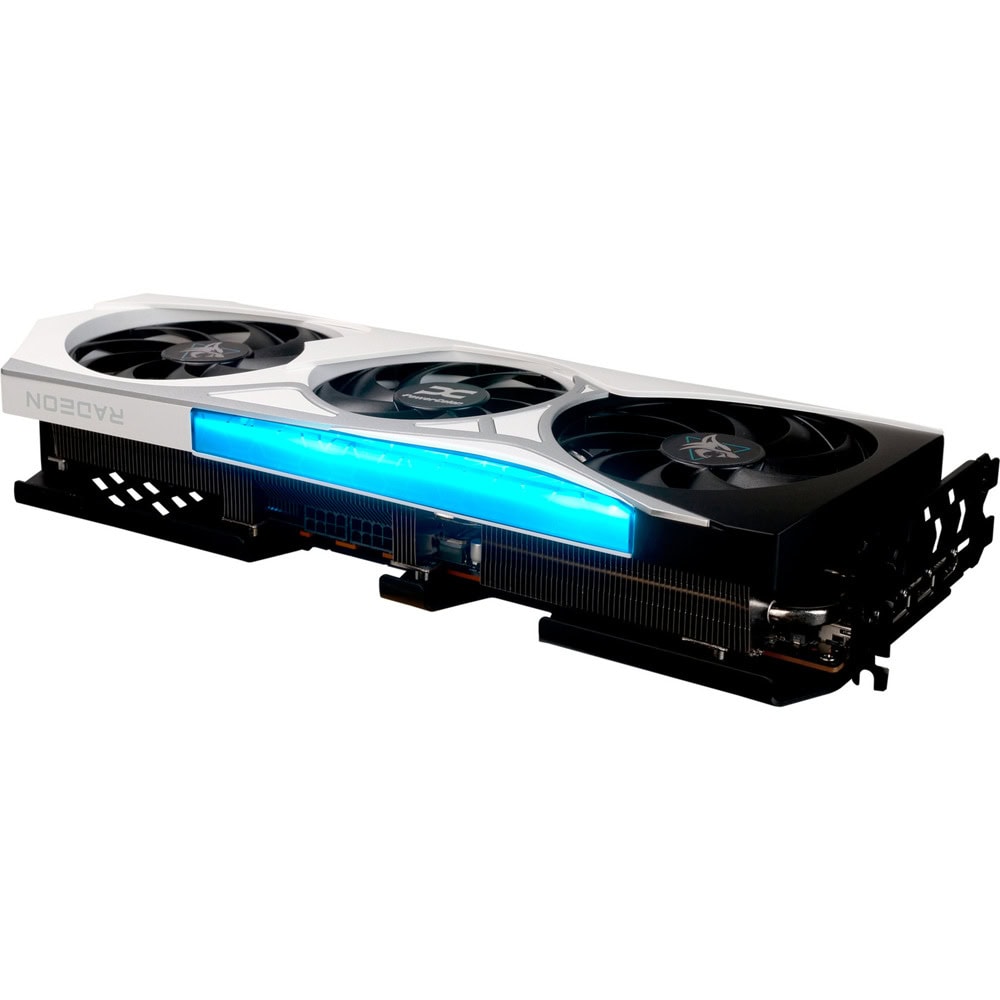

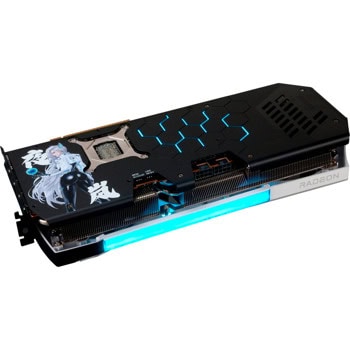

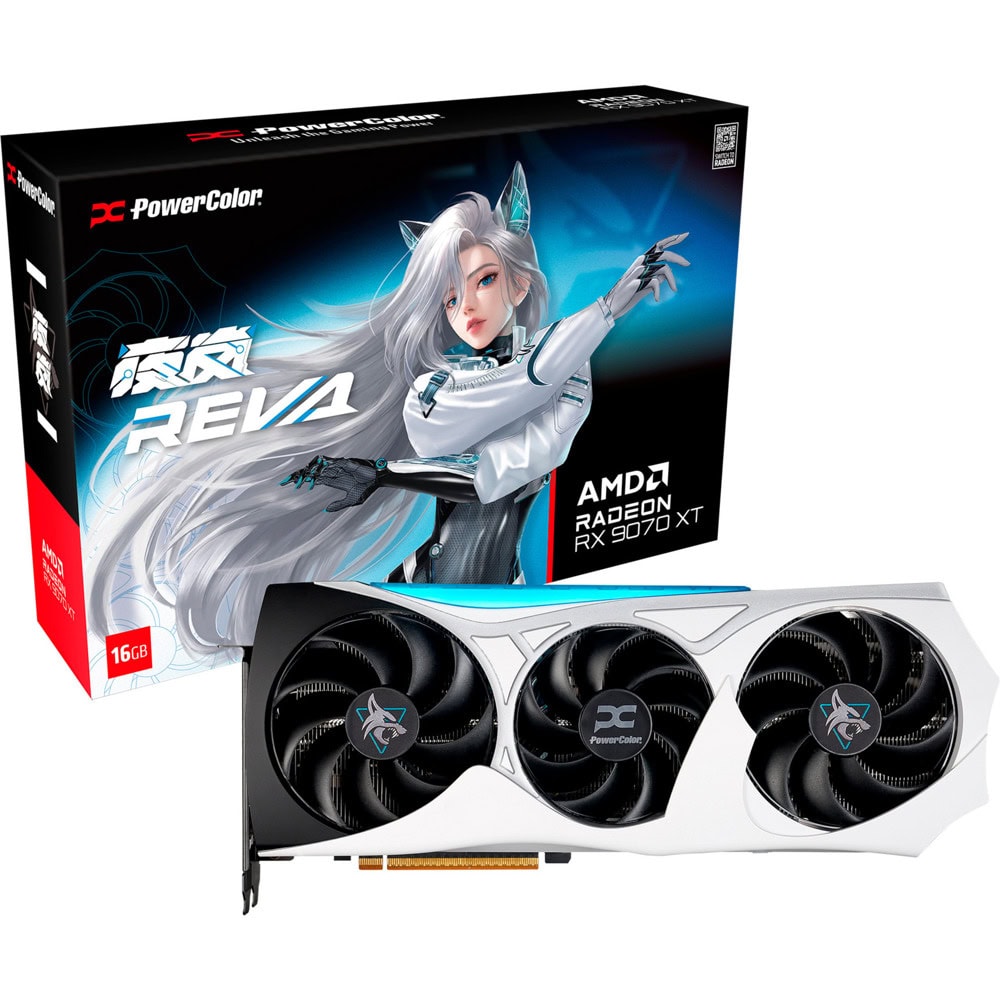

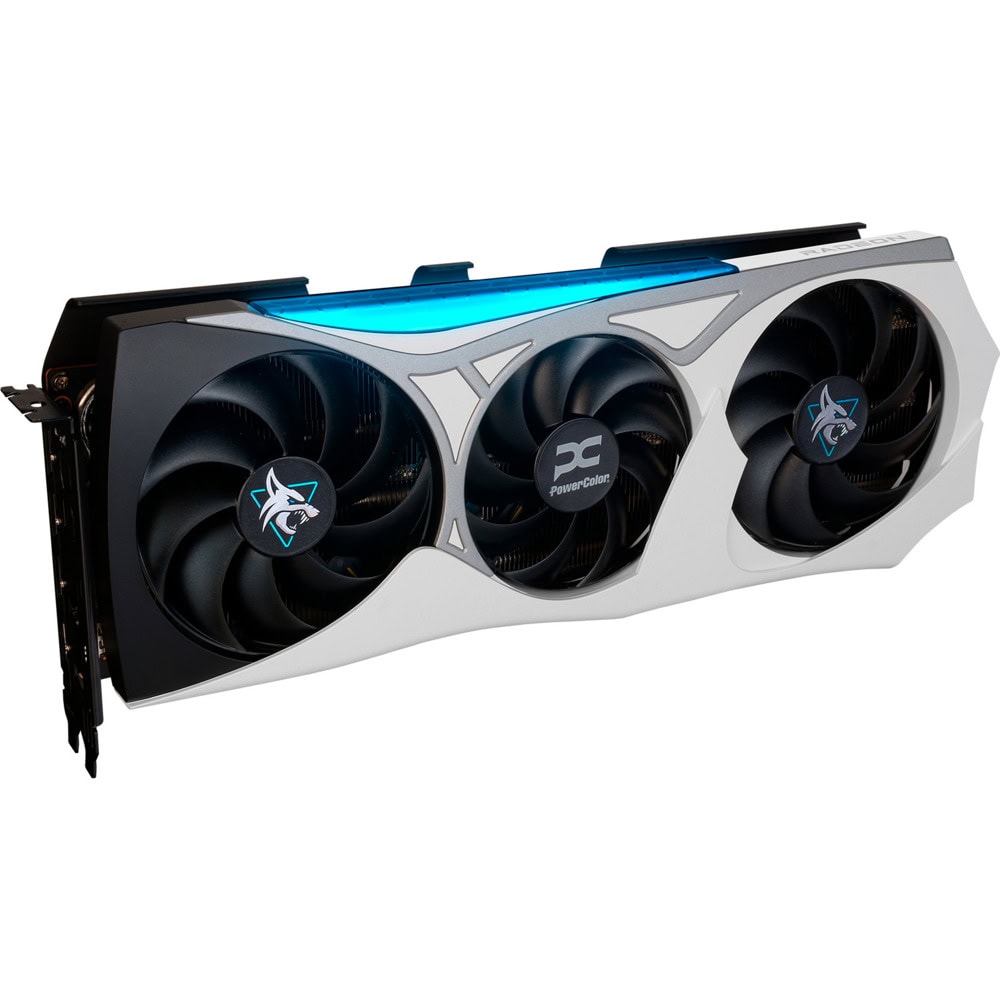

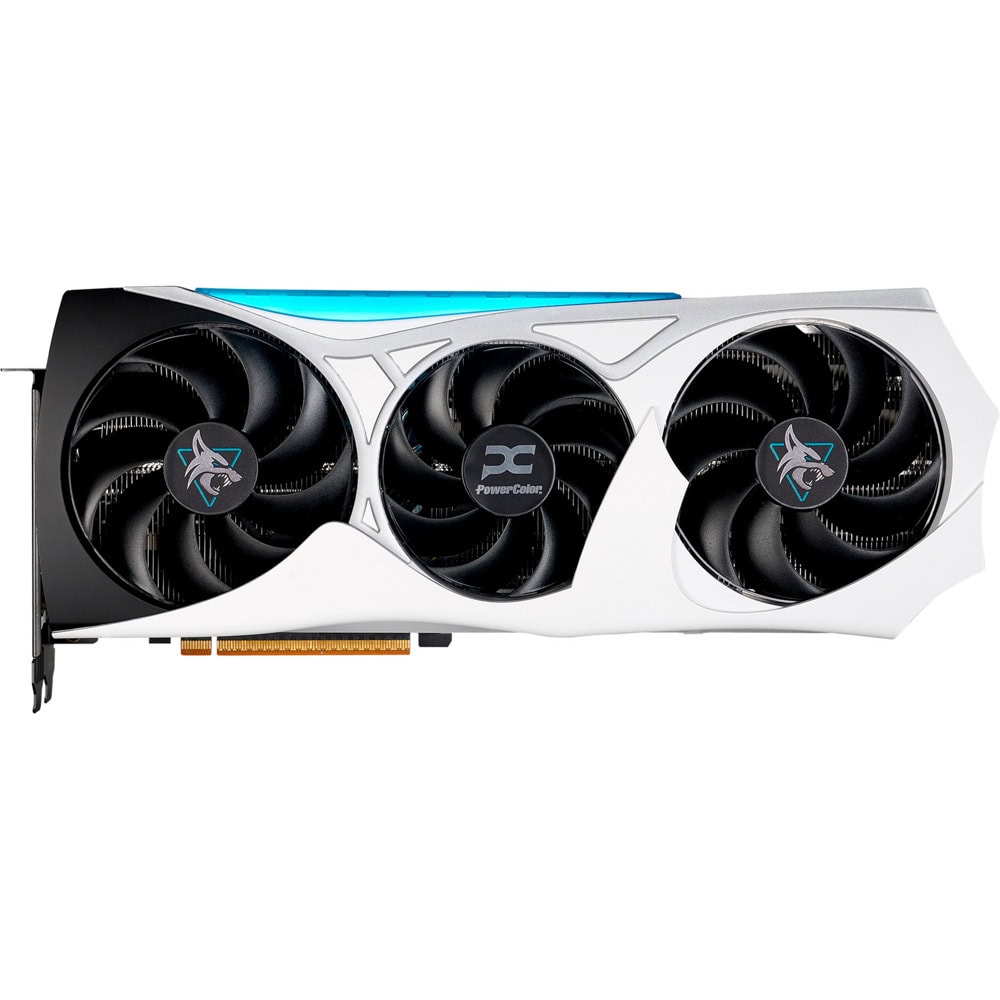

Видео карта AMD Radeon RX 9070 XT, 16GB, PowerColor Hellhound Reva Edition, OC, PCI-E 5.0, GDDR6, 256-bit, DisplayPort, HDMI

Dual BIOS
Switch between OC (Performance) and Silent modes
Adjustable fan speed to suit your needs while maintaining peak performance.

Intelligent Fan Control
Precise Temperature Sensor
Seamless phase-change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.

Optimum Heatpipe Arrangement
Rapid & Efficient Heat Transfer
Six 6φ nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.

Vertical Heatsink:
Designed with larger heat sink and precisely spaced fins for better heat spread and dispersion.


Specifications

Stream Processor
4096 Units

Video Memory
16GB GDDR6

Memory Speed
20.0 Gbps

Memory Interface
256-bit

Engine Clock(OC)
up to 2460MHz(Game)
up to 3010MHz(Boost)

Engine Clock(STD/Silent)
up to 2400MHz(Game)
up to 2970MHz(Boost)

Bus Standard
PCIE 5.0 x16

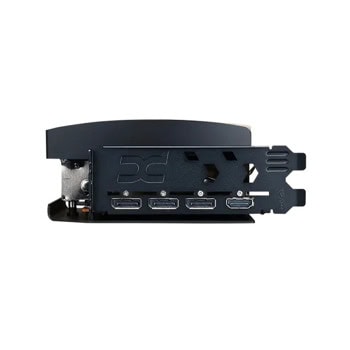

Standard Display Connectors
1 x HDMI 2.1b
3 x DisplayPort 2.1a

Feature Support:
DirectX Support
12

OpenGL
4.6

AMD Eyefinity Technology
Support

AMD Stream Technology
Support

AMD Smart Access Memory
Support

Maximum Resolution
DisplayPort
7680×4320
HDMI
7680×4320

Power Specs + Board Dimensions:
Board Dimensions
332mm*122mm*57mm
346mm*151mm*57mm(with bracket)

Slot
2.5

Minimum System Power requirement (W)
800W

Extension Power Connector
Two 8-pin PCI Express Power connectors


Remark:
- Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
- Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
