Name: Докинг станция Dell Pro Smart Dock SD25, от USB-C към 2x USB-C, 4x USB-A, 2x DisplayPort, 1x HDMI, 1x RJ45, черна
Brand: Dell
SKU: DSMDELL210BRFM
Price: 249.99 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

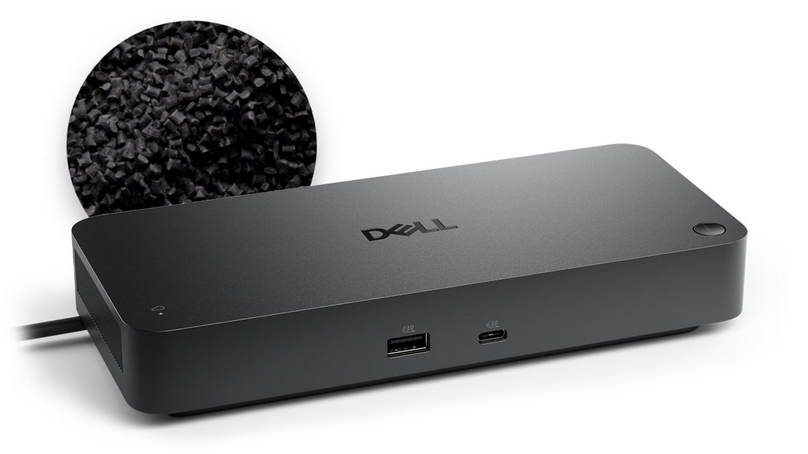

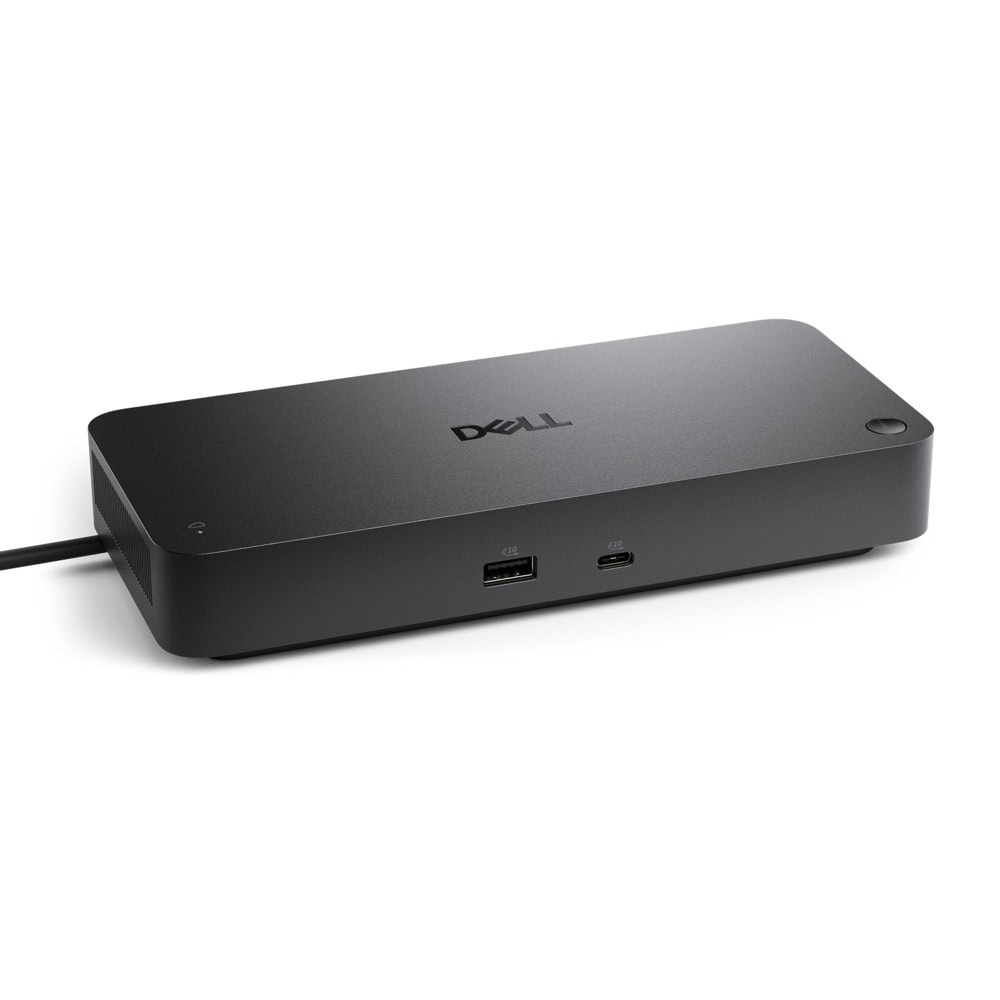

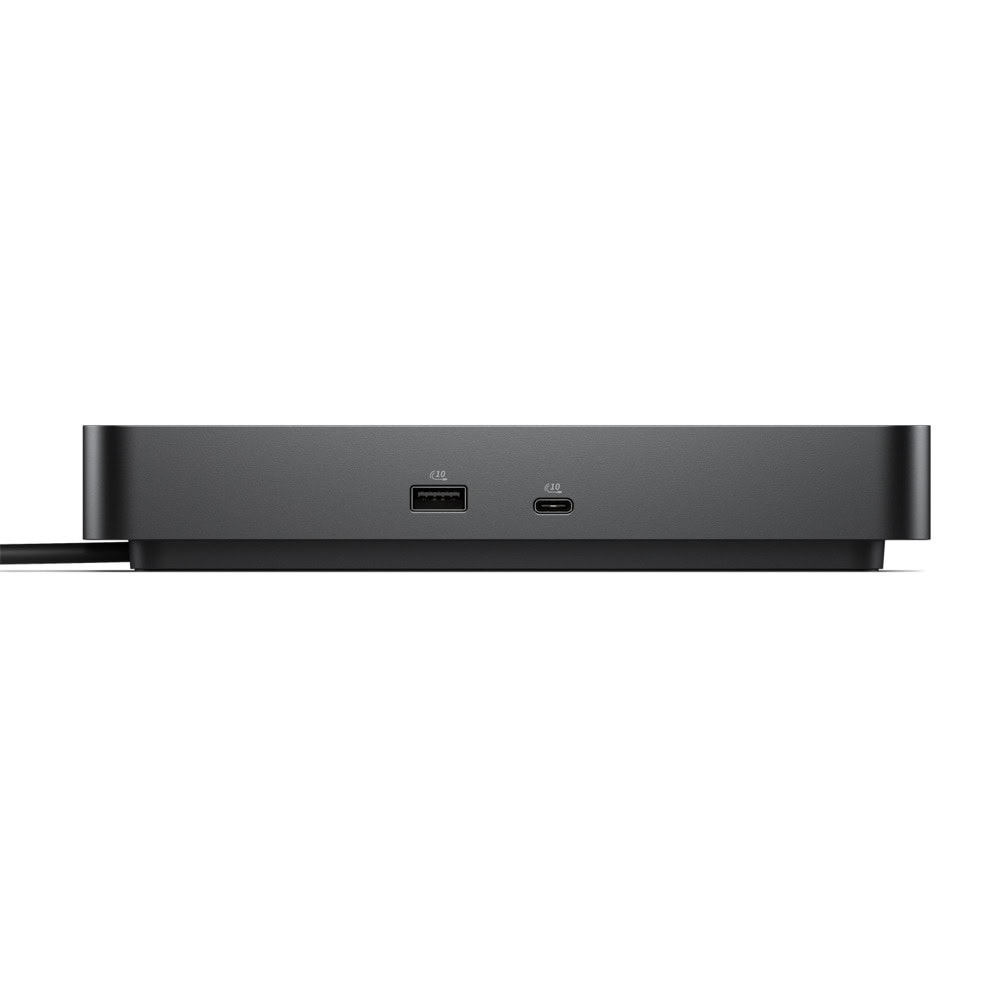

Dell Pro Smart Dock SD25

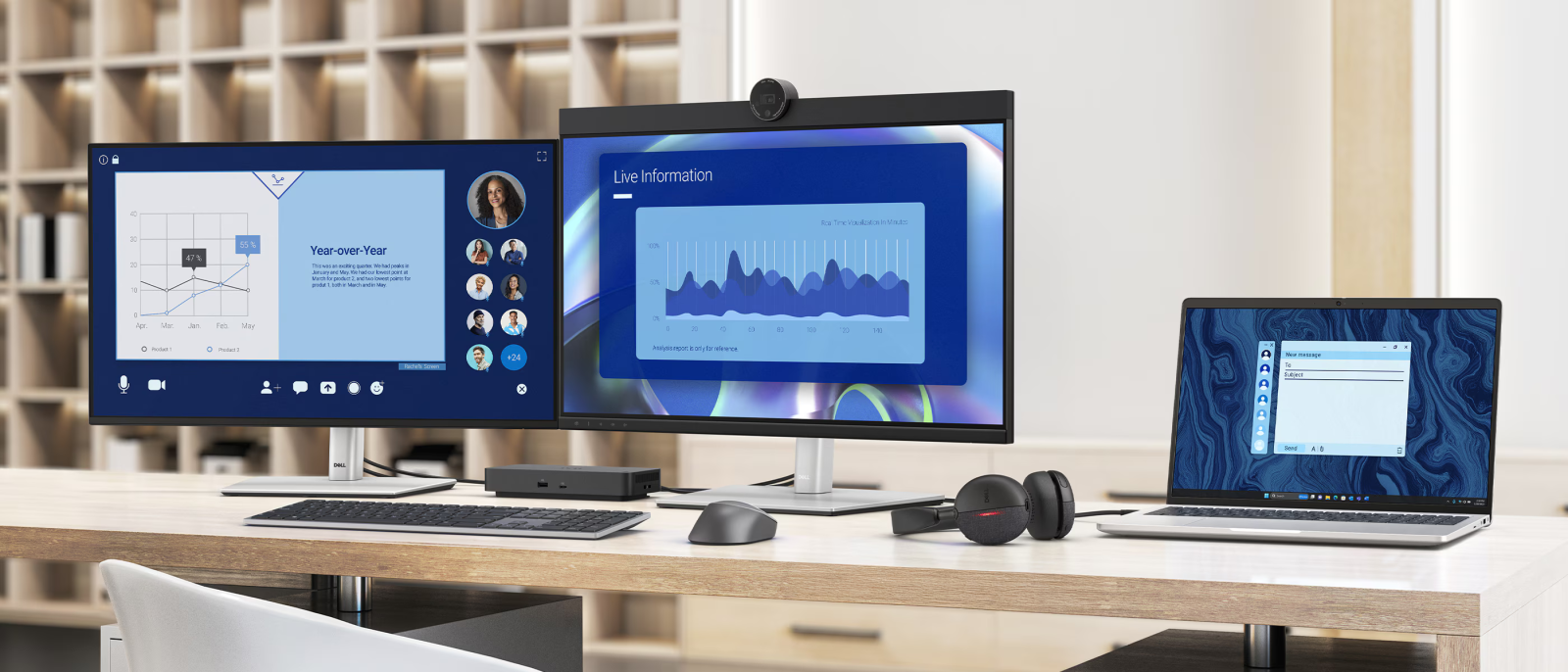

A smarter workspace

Gain the versatility to create your ideal workspace and boost your AI PC productivity with support for up to 4 displays, up to 130W power delivery, and multiple ports to connect all your peripherals.

Most manageable

Remotely manage your smart docks without end-user presence from the Dell Device Management Console - the industry's first holistic peripheral management solution that configures, deploys, and updates smart docks over Wi-Fi.

Work securely

Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock.

Effortless maintenance

Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.

Tech Specs

Technical Information

Connectivity Technology

Wired

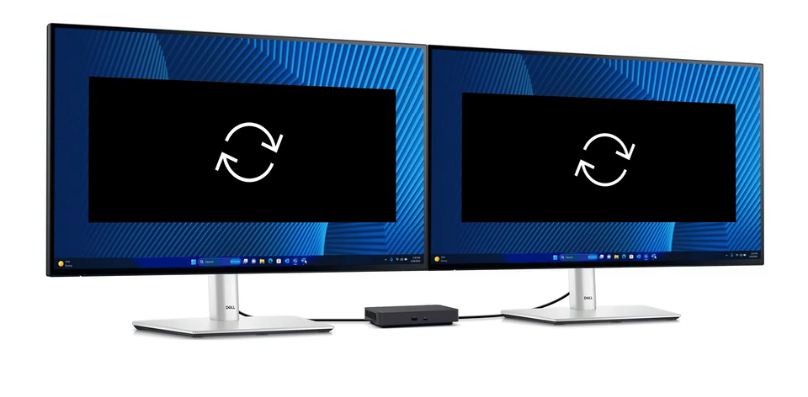

Number of Displays Supported

Management Features

Host PC Management

MAC address pass-through
PXE Boot
Dock Power Button Sync
Wake-On-LAN
WLAN to LAN switch
Kernel Direct Memory Access (DMA) protection

Dock Management Features

Remote firmware updates without a PC
Host PC based firmware updates
Firmware update on disconnect
Port Disablement independent of PC

Device Supported

Notebook

Video Resolution

DP1.4 with Display Stream Compression

4 x WQHD (3440 x 1440) @ 60Hz
3 x WQHD (3440 x 1440) @ 60Hz
2 x 5K (5120 x 2160) @ 60Hz
1 x 6K (6144 x 3456) @ 60Hz

DP1.4 without Display Stream Compression

Up to:

4 x HD (1280x720) @ 60Hz
3 x FHD (1920x1080) @ 60Hz
2 x QHD (2560x1440) @ 60Hz
1 x 4K (3840 x 2160) @ 60Hz

Network & Communication

Ethernet Technology

RJ45 Ethernet port, 2.5GbE

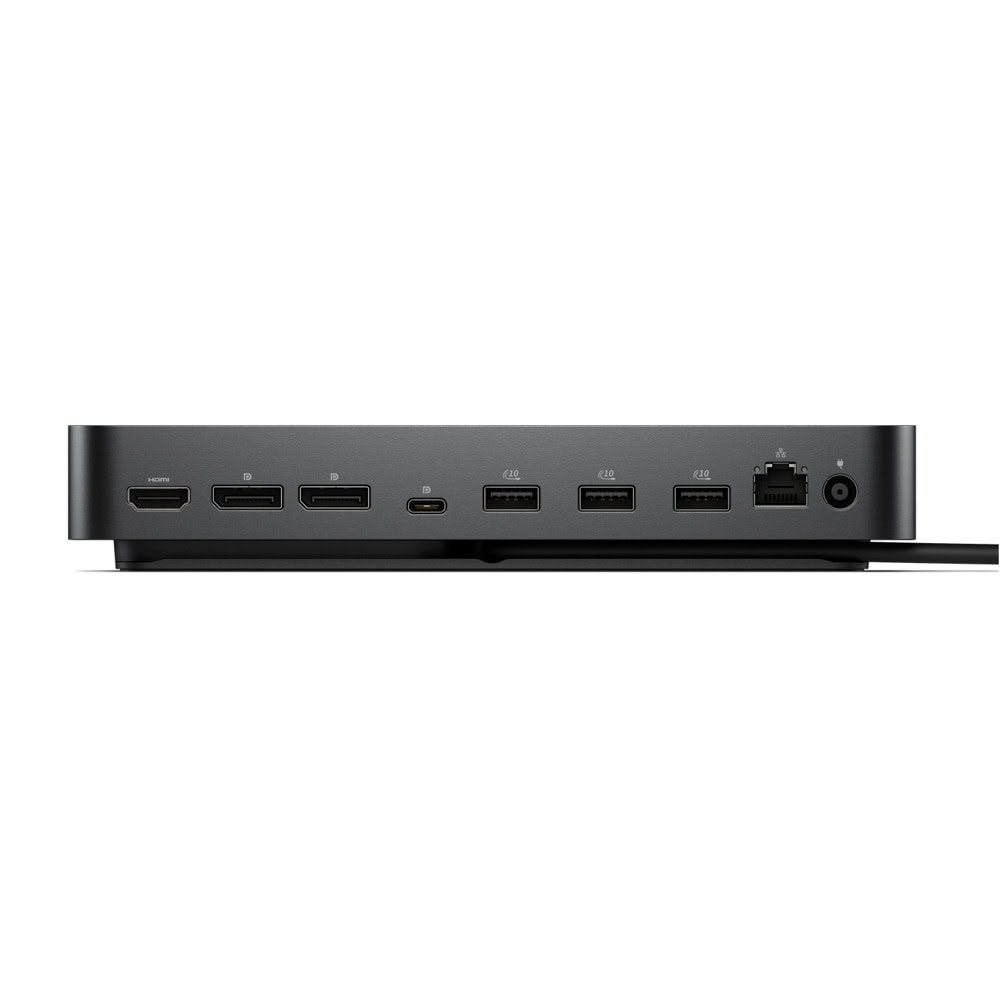

Interfaces/Ports

Interfaces

Video interfaces

2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Ports (Power)

4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
All deliver power with or without PC

USB Power Delivery

130W (Dell systems)
96W (non-Dell systems)

Software

Operating System Supported

Windows 10
Windows 11
Ubuntu
Red Hat Enterprise Linux
ChromeOS

Power Description

Maximum Power Supply Wattage

180W

Physical Characteristics

Height

205mm

Width

90mm

Depth

35.25mm

Weight (Approximate)

562 g

Miscellaneous

Kensington Security Slot

Yes

Виж още Докинг станции Dell
Виж всички Докинг станции в категорията

Документация

Технически характеристики

Изход
USB Type-А:	Да
USB Type-C:	Да
USB 2.0:	Не
Lightning:	Не
USB 3.X:	Да
USB 4.X:	Не
Thunderbolt:	Не
DisplayPort:	Да
Mini DisplayPort:	Не
HDMI:	Да
DVI:	Не
VGA (D-Sub):	Не
RJ45:	Да
Аудио изход:	Не
Четец на карти:	Не
