Докинг станция Asus DC300, от USB-C към 2x USB-C, 3x USB-A, 1x DisplayPort, 1x HDMI, 1x AUX, 1x RJ45, 1x SD четец, черна

Asus DC300

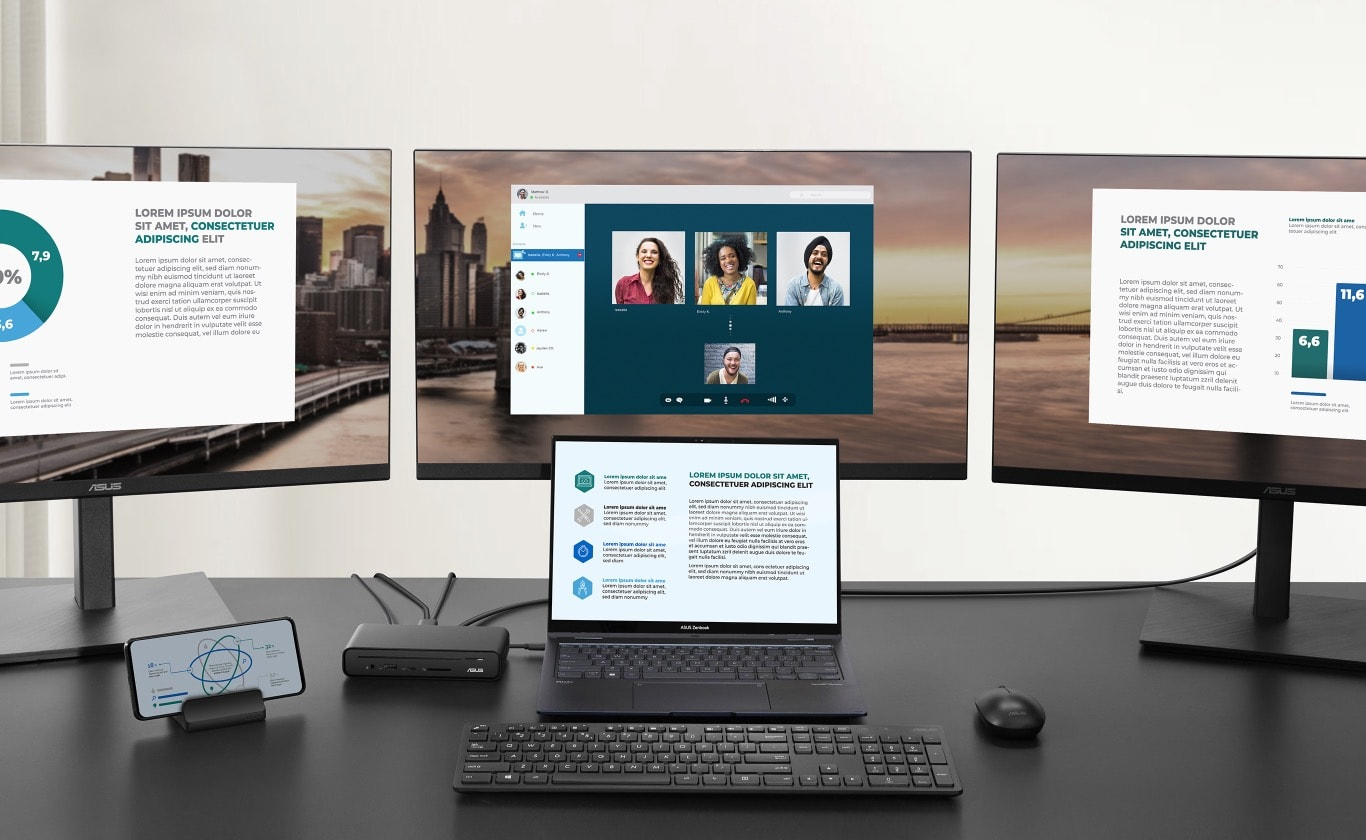

Triple-display Support

Ready for triple 4K displays

Connect up to three displays via HDMI, DisplayPort and USB-C for expanded productivity and comfortable multitasking. ASUS Triple Display USB-C Dock even supports up to three 4K displays for exceptional visuals.

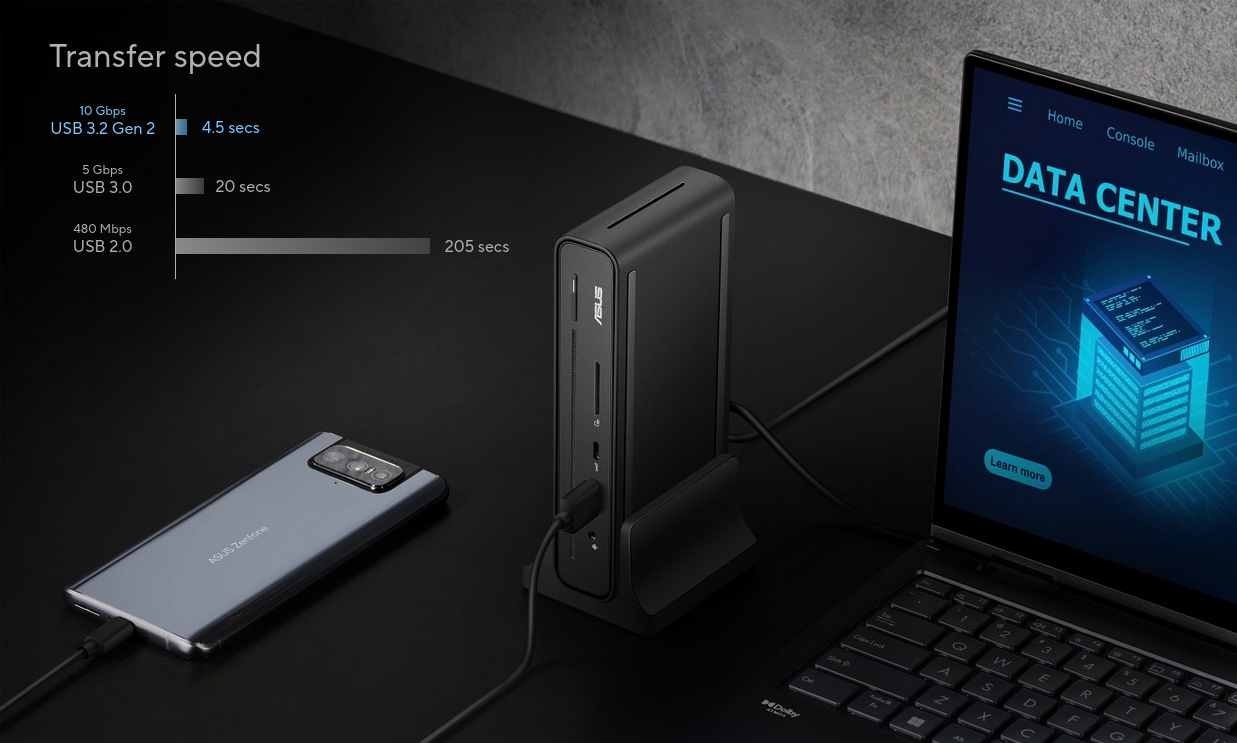

Fast Transfers

Connect at super speeds

Enjoy 10 Gbps data-transfer speeds via convenient USB-C and USB-A ports — up to 4x faster than USB 3.0 — so large files and folders can be moved or copied in moments.

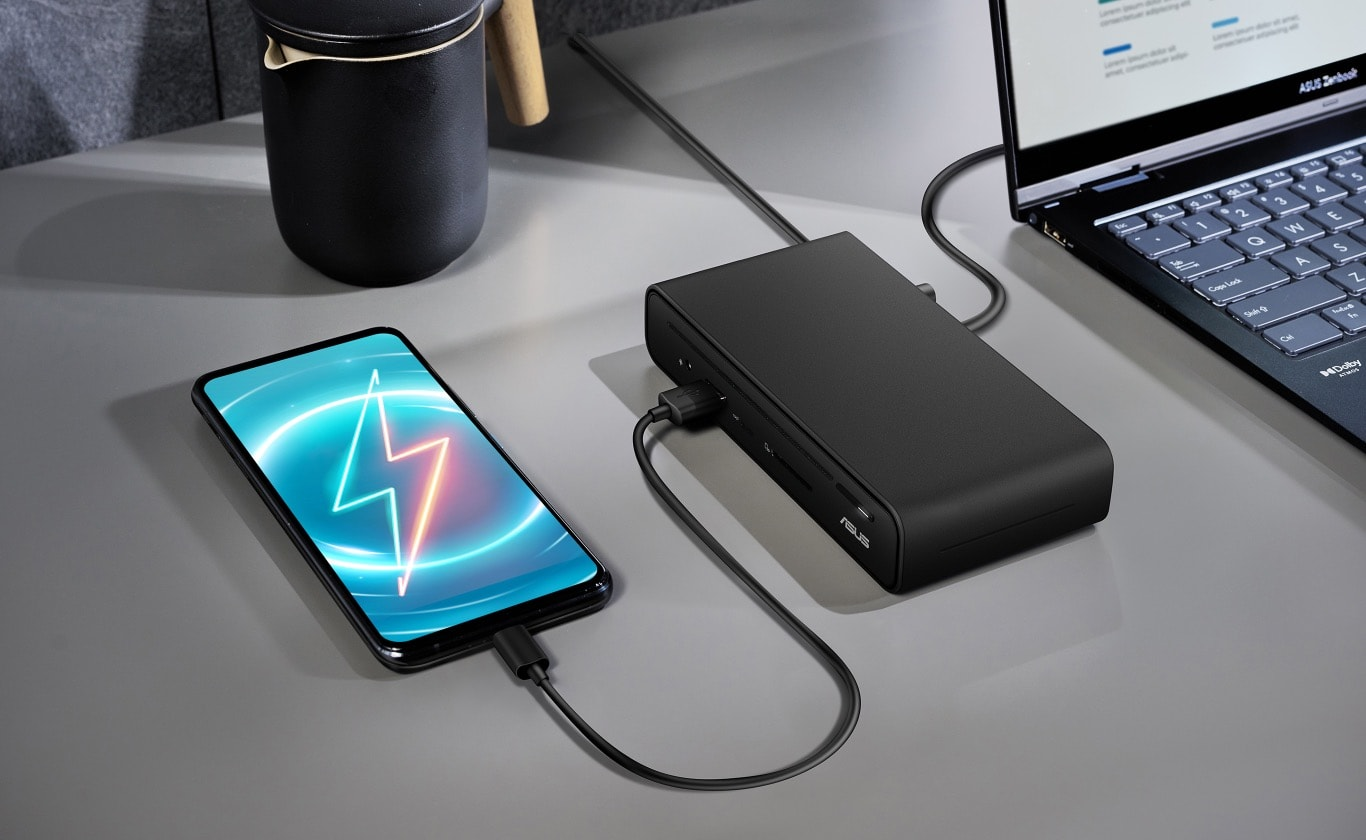

High-speed Charging

Charge fast, charge in tandem

ASUS Triple Display USB-C Dock supports USB Power Delivery, providing up to 90 watts to rapidly charge almost any modern USB-C device, including the latest ultraportable notebooks. It also features a traditional USB Type-A port that delivers up to 12 watts, and a USB-C® port that delivers up to 15 watts.

Remote IT management Enable IT management to update software with Wake-on-LAN (WoL) and PXE.

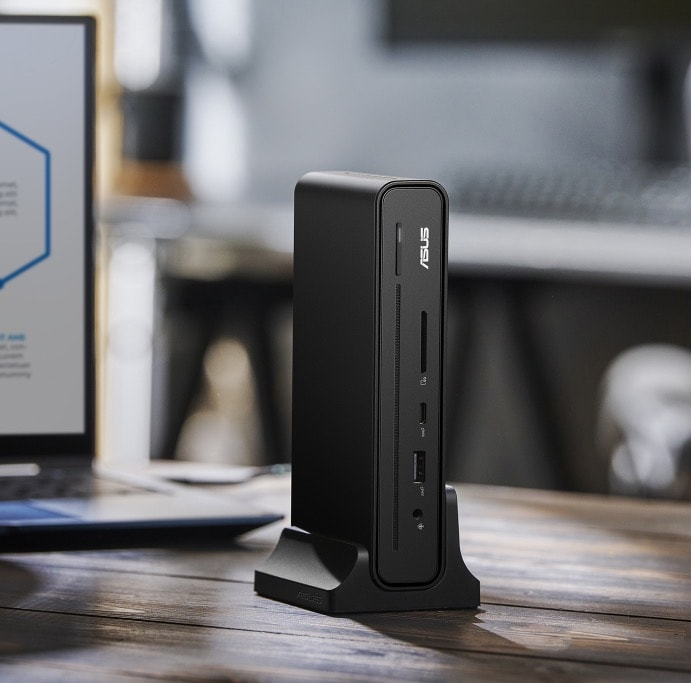

Clean and Tidy Reduce desk clutter ASUS Triple Display USB-C Dock’s compact design and multi-modal stand empower you to reduce desktop clutter by corralling multiple cables and connections through one little package — empowering you to get to work in moments.

Tech Specs

I/O Ports

1 x RJ-45 (Gigabit) port
2 x USB 3.2 Gen1 Type-A ports (5Gbps)
1 x 3.5mm audio combo jack
1 x USB 3.2 Gen2 Type-A port (10Gbps/5.0V2.4A)
1 x USB 3.2 Gen2 Type-C port (10Gbps/5.0V 3.0A)
1 x SD card reader
1 x USB 3.2 Gen2 Type-C port (DP1.4 only)
1 x HDMI™ 2.0 port
1 x DisplayPort 1.4 port
1 x Kensington lock
1 x Power button with indicator LED
1 x DC jack(4.5 phi)

Video Resolution

HDMI Single Ext. Output: 3840×2160@60Hz
Display Port Single Ext. Output: 3840×2160@60Hz
USB-C Single Ext. Output: 3840×2160@60Hz

OS Support

Windows 10 or above
Mac OS 13 or later

Power Adapter

150W DC20.0V / 7.5A

Security

Kensington lock

Cable Length

65cm

Color

Black

Weight

Dock:514g±5g
Stand:95g±5g

Dimensions

160 x 80 x 32 mm

Material

Plastic, Metal

Power button

For ExperBook B series,
One key operation (Press the power-button to wake up your laptop with multiple monitors during standby mode).
For Other Windows Notebook (ASUS and Non-ASUS),
Press the power-button can turn on/off LED open/shot down DC300’sdisplay signal.
For ExperBook B series,
One key operation (Press the power-button to wake up your laptop with multiple monitors during standby mode).
For Other Windows Notebook (ASUS and Non-ASUS),
Press the power-button can turn on/off LED and open/shot down DC300’sdisplay signal.

Indicator LEDs

For ExperBook B series,
Please refer manual for "Indicator LEDs" actions.
