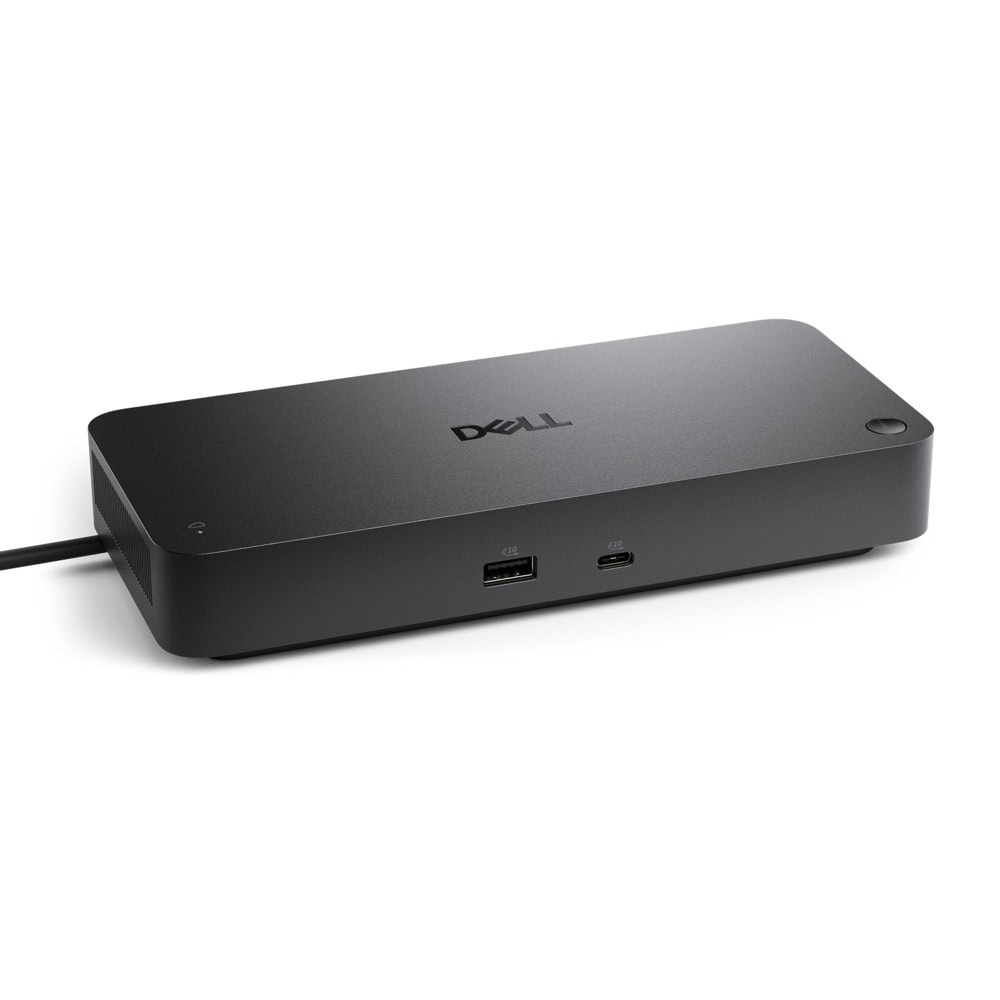

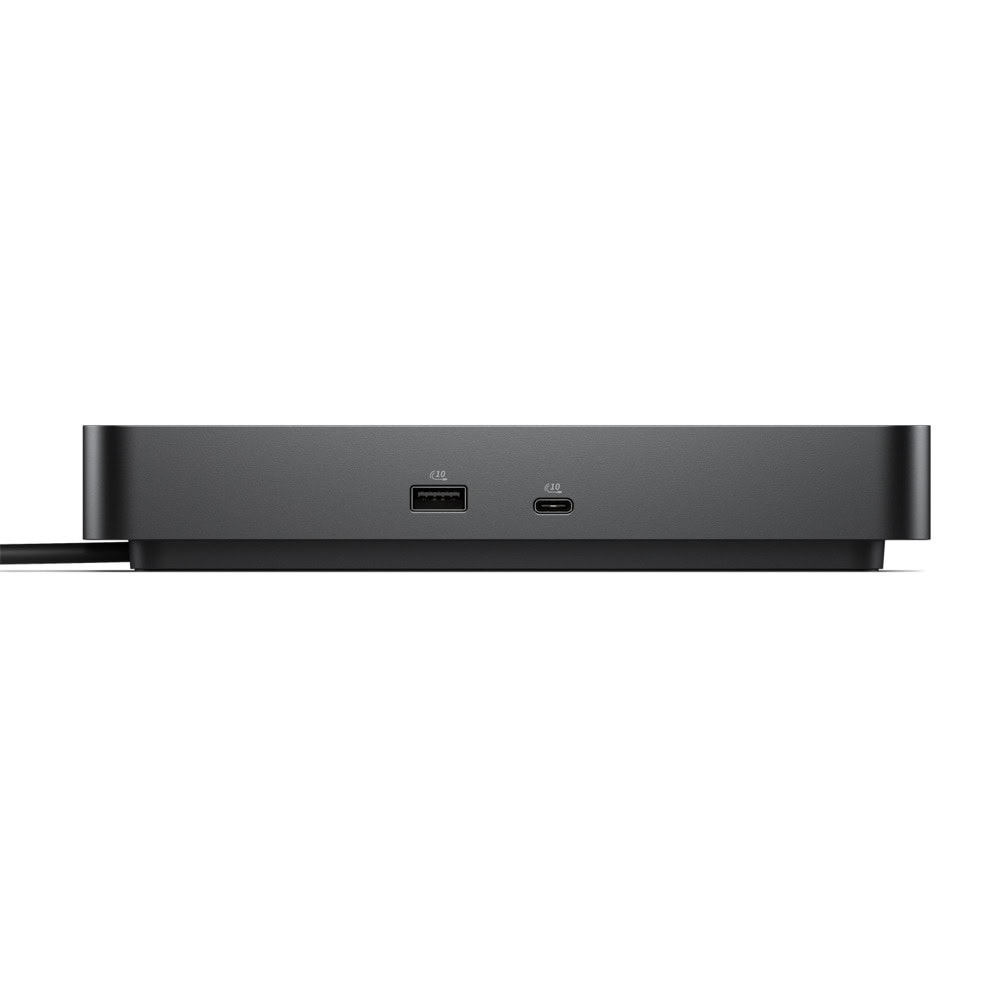

Dell Pro Smart Dock SD25

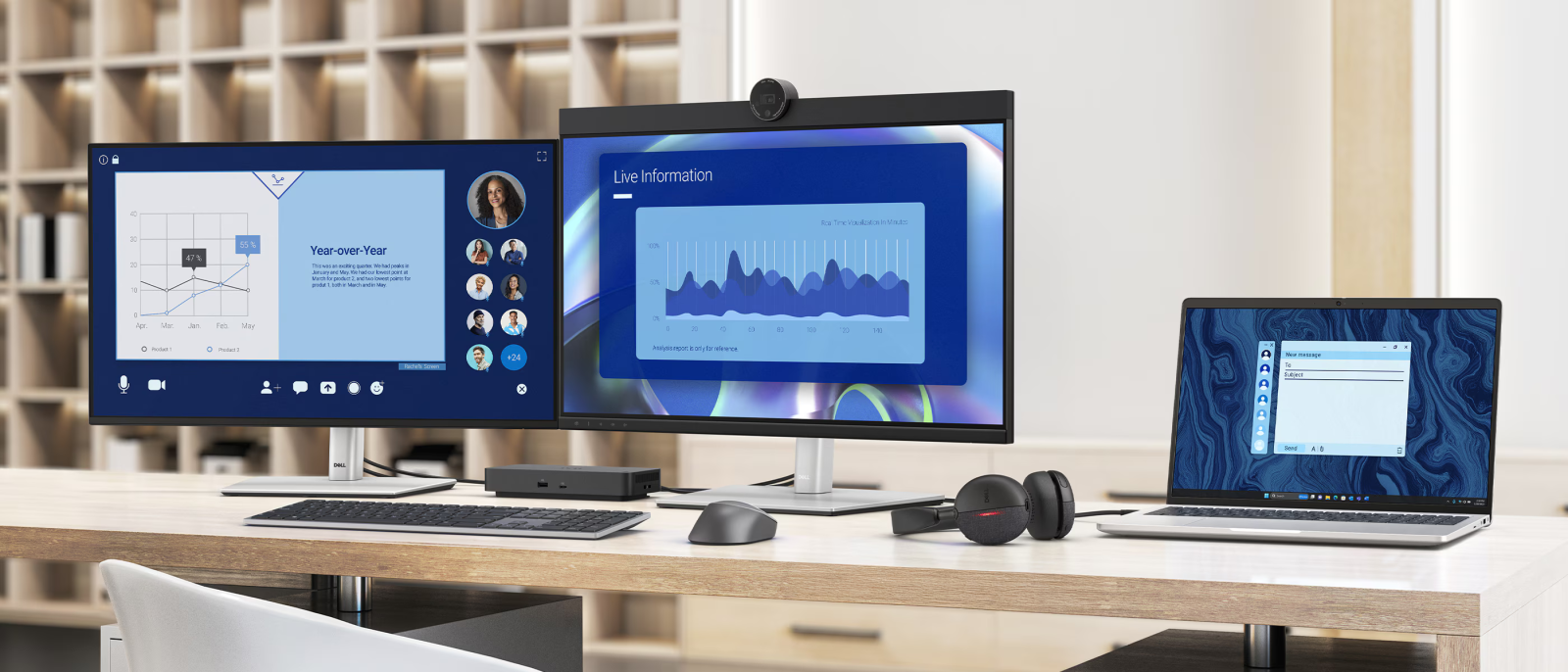

A smarter workspace
Gain the versatility to create your ideal workspace and boost your AI PC productivity with support for up to 4 displays, up to 130W power delivery, and multiple ports to connect all your peripherals.
Most manageable Remotely manage your smart docks without end-user presence from the Dell Device Management Console - the industry's first holistic peripheral management solution that configures, deploys, and updates smart docks over Wi-Fi. | Work securely Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock. | Effortless maintenance Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions. |

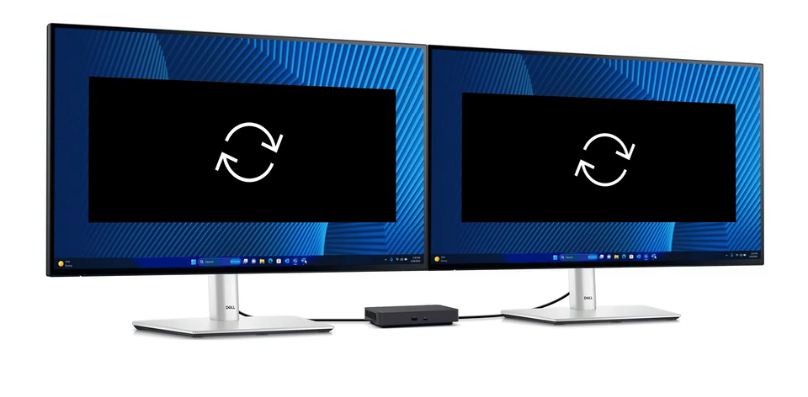

%20-%20Laptop%20USB-C%20Docking%20Station%20Dell%20UK.png) | Most manageable Elevate the IT management experience with no software or PC connection required, allowing you to remotely manage all your Dell Pro Smart Docks. |

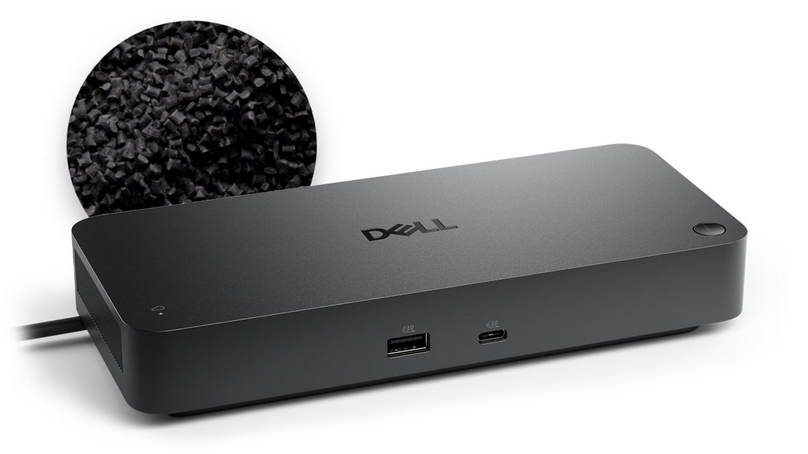

%20-%20Laptop%20USB-C%20Docking%20Station%20Dell%20UK.png) | Designed for sustainability The Dell Pro Smart Dock is built with at least 65% post-consumer recycled materials and packaged with 100% recycled or renewable packaging. |
Tech Specs
Technical Information
Connectivity Technology
Wired
Number of Displays Supported
4
Management Features
Host PC Management
- MAC address pass-through
- PXE Boot
- Dock Power Button Sync
- Wake-On-LAN
- WLAN to LAN switch
- Kernel Direct Memory Access (DMA) protection
Dock Management Features
- Remote firmware updates without a PC
- Host PC based firmware updates
- Firmware update on disconnect
- Port Disablement independent of PC
Device Supported
Notebook
Video Resolution
DP1.4 with Display Stream Compression
- 4 x WQHD (3440 x 1440) @ 60Hz
- 3 x WQHD (3440 x 1440) @ 60Hz
- 2 x 5K (5120 x 2160) @ 60Hz
- 1 x 6K (6144 x 3456) @ 60Hz
DP1.4 without Display Stream Compression
Up to:
- 4 x HD (1280x720) @ 60Hz
- 3 x FHD (1920x1080) @ 60Hz
- 2 x QHD (2560x1440) @ 60Hz
- 1 x 4K (3840 x 2160) @ 60Hz
Network & Communication
Ethernet Technology
RJ45 Ethernet port, 2.5GbE
Interfaces/Ports

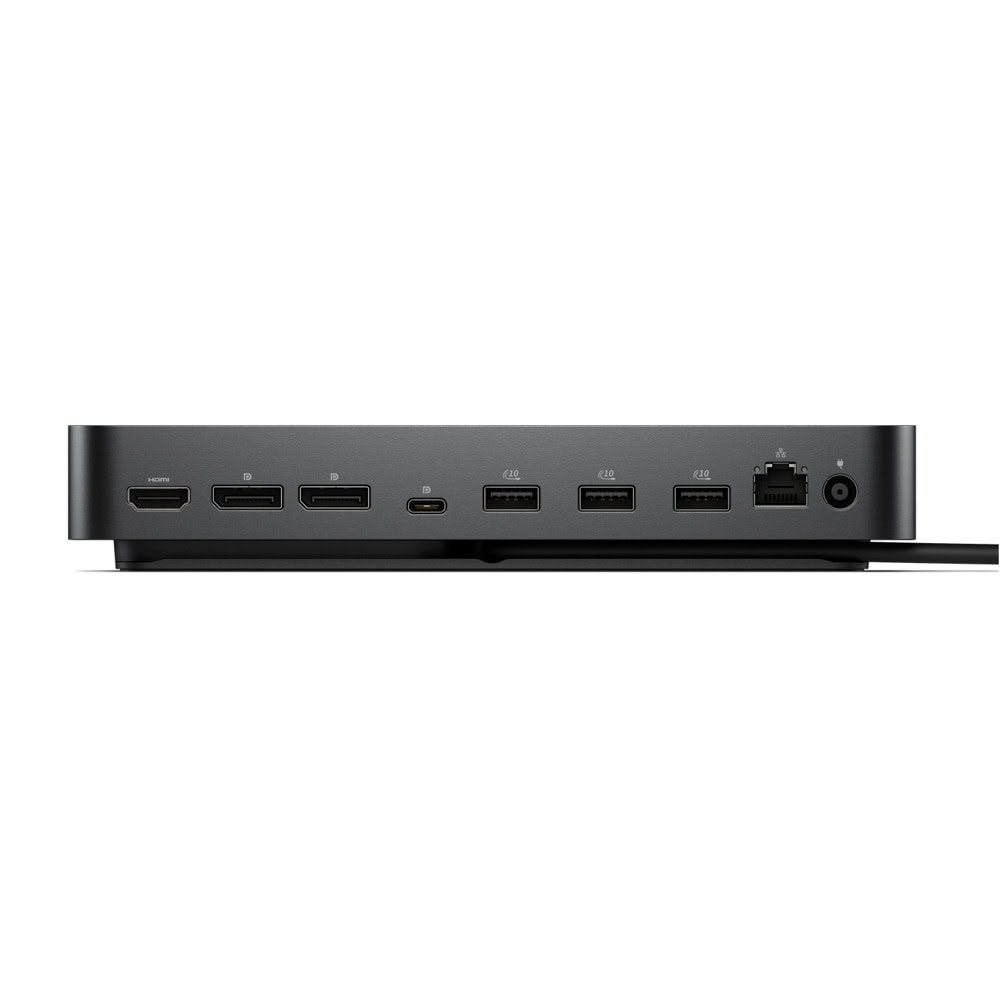

Interfaces
Video interfaces
- 2 x DP1.4
- 1 x HDMI 2.1
- 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
USB Ports (Data Only)
- 4 x USB-A 3.2 Gen 2 (10 Gbps)
- 1 x USB-C 3.2 Gen 2 (10 Gbps)
USB Ports (Power)
- 4 x USB-A 3.2 Gen 2 (4.5W each)
- 1 x USB-C 3.2 Gen 2 (15W)
- 1 x USB-C Multi-function DisplayPort (7.5W)
- All deliver power with or without PC
USB Power Delivery
- 130W (Dell systems)
- 96W (non-Dell systems)
Software
Operating System Supported
- Windows 10
- Windows 11
- Ubuntu
- Red Hat Enterprise Linux
- ChromeOS
Power Description
Maximum Power Supply Wattage
180W
Physical Characteristics
Height
205mm
Width
90mm
Depth
35.25mm
Weight (Approximate)
562 g
Miscellaneous
Kensington Security Slot
Yes
Виж още Докинг станции Dell
Виж всички Докинг станции в категорията
Декларация за съответствие_Dell Pro Smart Dock SD25.pdf| USB Type-А: | Да |
|---|---|
| USB Type-C: | Да |
| USB 2.0: | Не |
| Lightning: | Не |
| USB 3.X: | Да |
| USB 4.X: | Не |
| Thunderbolt: | Не |
| DisplayPort: | Да |
| Mini DisplayPort: | Не |
| HDMI: | Да |
| DVI: | Не |
| VGA (D-Sub): | Не |
| RJ45: | Да |
| Аудио изход: | Не |
| Четец на карти: | Не |
| Тип: | Laptop |
|---|---|
| Съвместимост: | Dell |
| От какъв интерфейс: | USB C |
