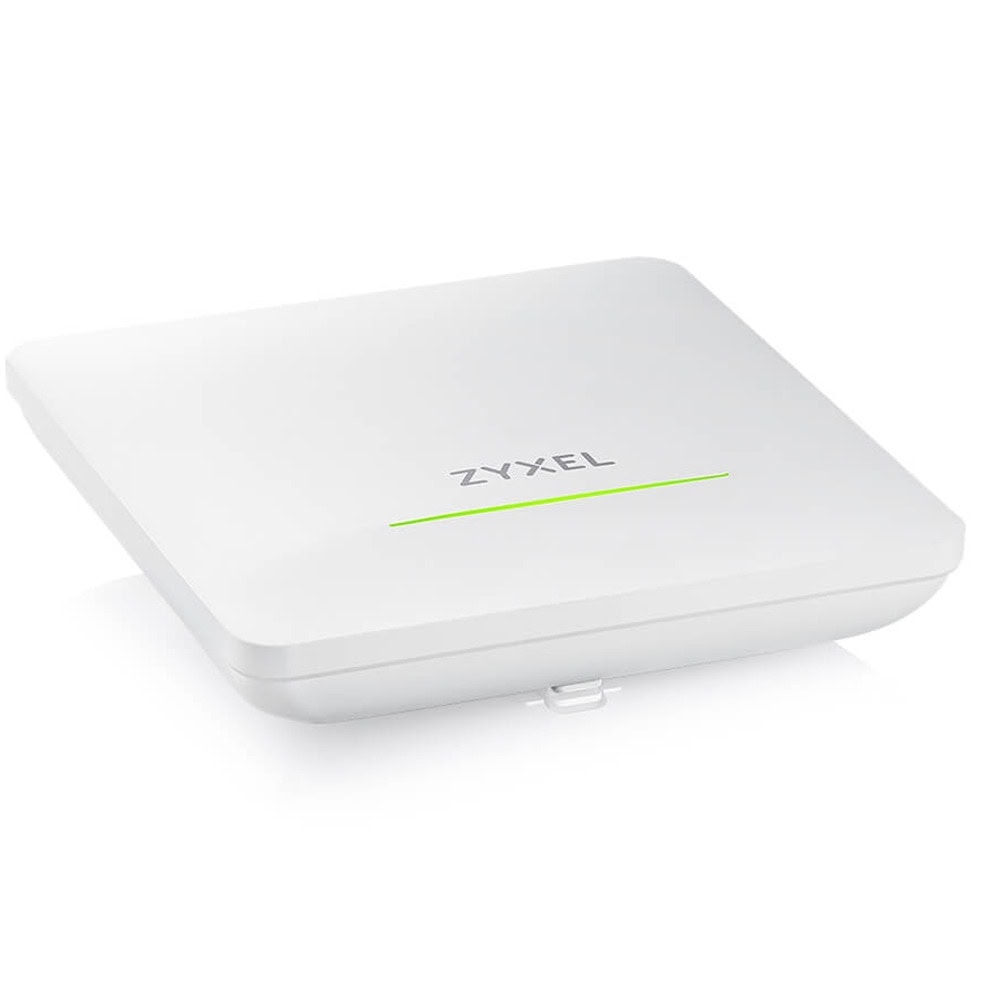

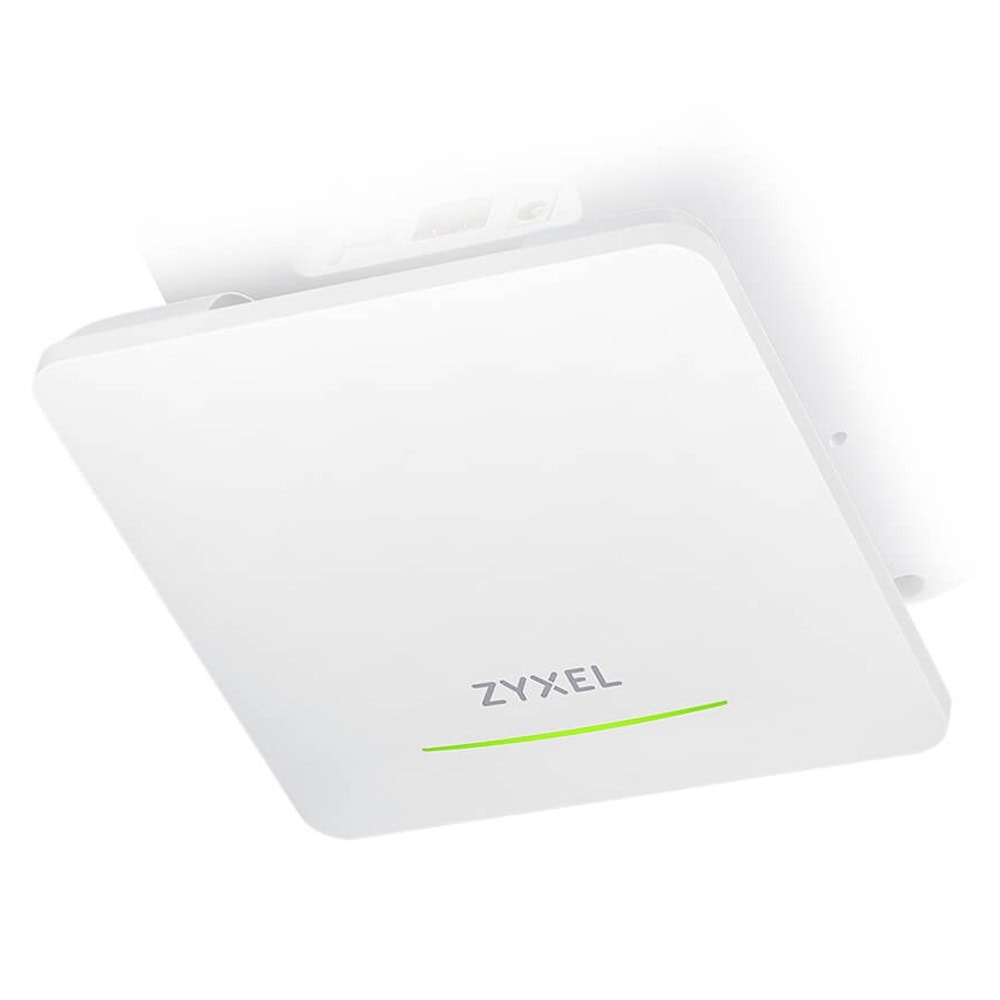

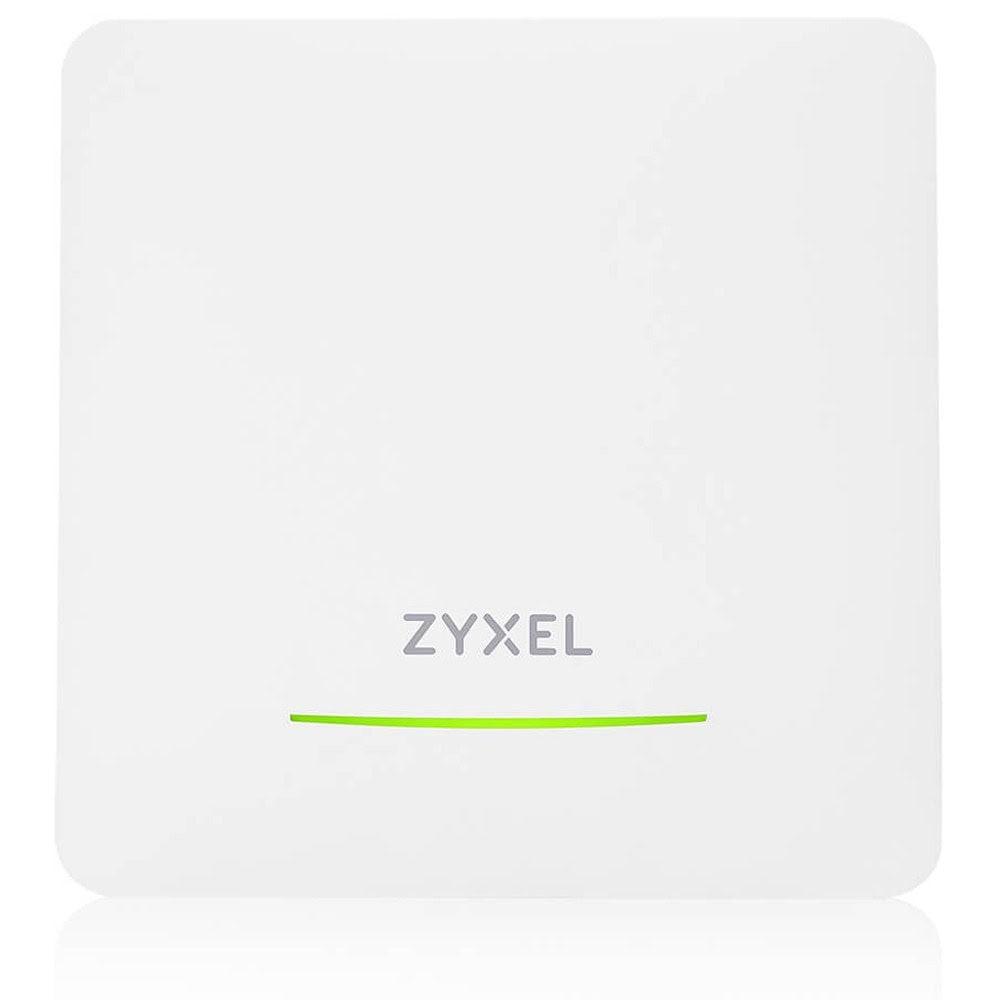

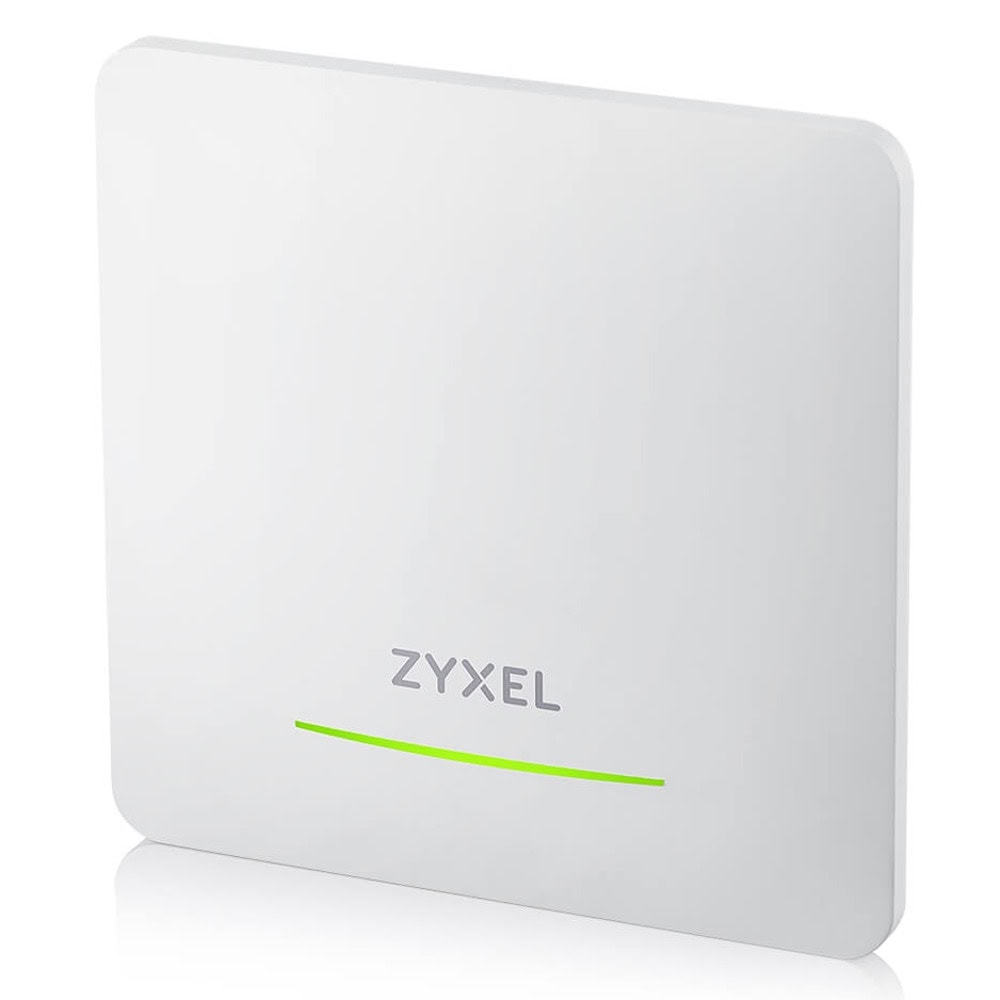

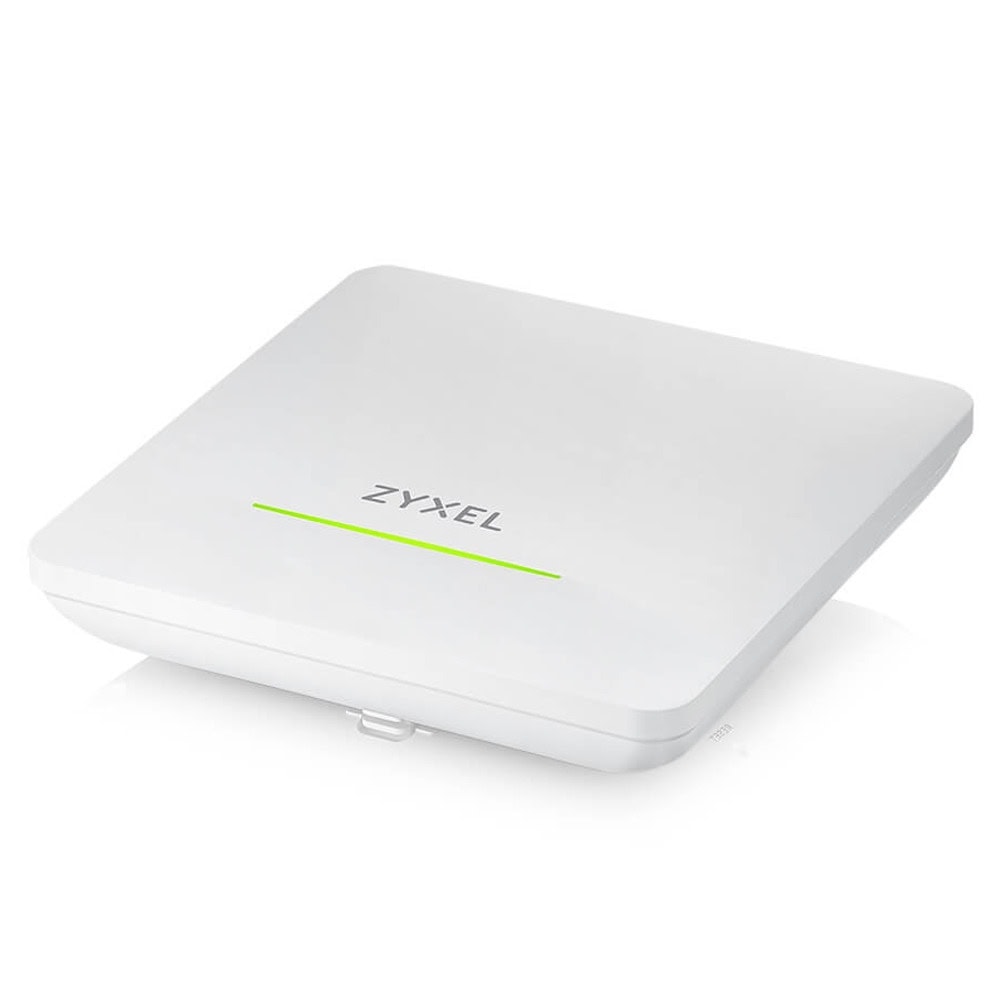

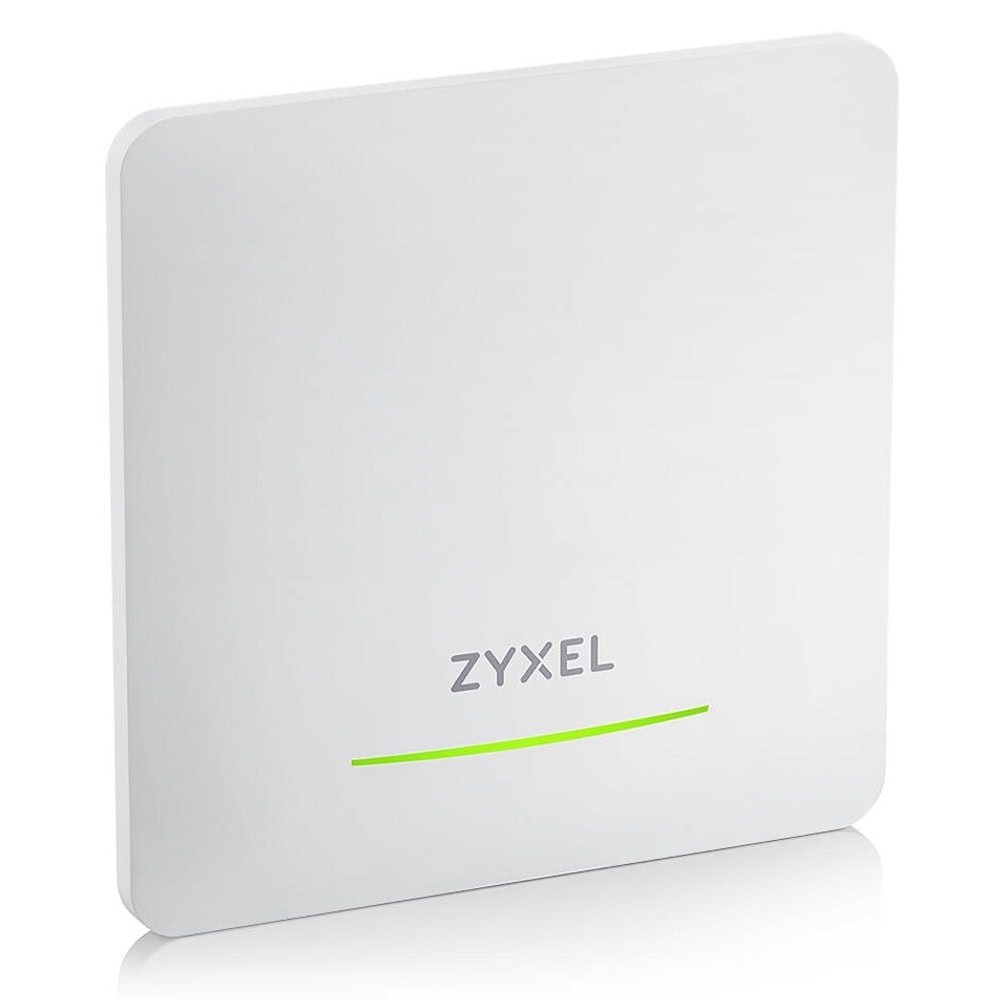

Точка за достъп ZyXEL NWA50BE, 5100Mbps, 2.4GHz (688Mbps)/ 5GHz (4324Mbps), 1x 10/100/1000/2500 LAN, PoE, 2x вътрешни антени

Powerful. Secure. Wireless.

Smart WiFi 7 for Small Spaces– Easy Setup, Big Performance.

NWA50BE – Easy Setup, Big Performance

Powered by a Qualcomm quad-core CPU, the BE5100 (2.4GHz: 2x2:2, 5GHz: 2x2:2) dual-radio access point delivers ultra-fast WiFi 7 speeds of up to 5.1Gbps, ensuring enterprise-grade performance in a compact design. Its 2.5GbE uplink unlocks the full potential of WiFi 7 for high-speed connectivity.

With a straightforward setup via Nebula Cloud Networking, you can quickly configure the access point, set up separate networks for work and family use, and start enjoying ultra-fast WiFi 7 speeds.

Wireless

Standard

IEEE802.11 be/ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4GHz: 688Mbps

5GHz: 4324Mbps

Frequency band

2.4GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz

5GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth

20-, 40- ,80-, 160- and 240-MHz

Conducted typical transmit output power*1

US (2.4GHz/5GHz):

26/25dBm

EU (2.4GHz/5GHz):

20/25dBm

RF Design

Antenna type

Internal Antenna

Antenna gain

2.4GHz:

2 dBi, 2x2:2SS

5GHz:

3 dBi, 2x2:2SS

Minimum receive sensitivity

Min. Rx sensitivity up to -99 dBm

WLAN Features

Band steering

Yes

WDS/Mesh*2

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

No

Advanced cellular coexistence

Yes

Security

Encryption

WPA personal

WPA2 personal

WPA3 personal

Authentication

No

Access management

L2-isolation

MAC filtering

Rogue AP detection

Networking

IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Management

Operating mode

Cloud managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Web UI/CLI

Yes

SNMP

No

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.)
150 x 150 x 35 / 5.91 x 5.91 x 1.38

Weight (g/lb.)
412 / 0.91

Packing

Dimensions (WxDxH)(mm/in.)
244 x 168 x 60 / 9.61 x 6.61 x 2.36

Weight (g/lb.)
785 / 1.73

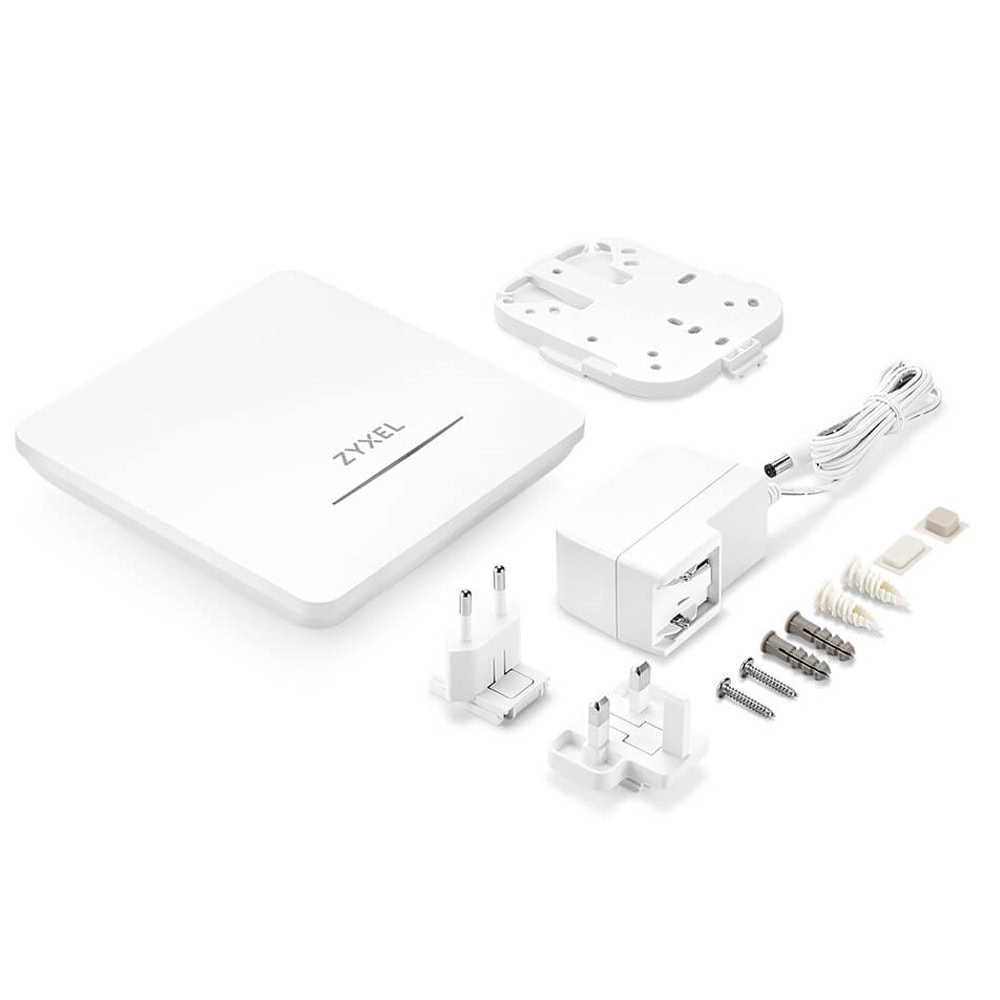

Included accessories

Power adapter

Mount plate

Mounting screws

MTBF (hr)

870,551

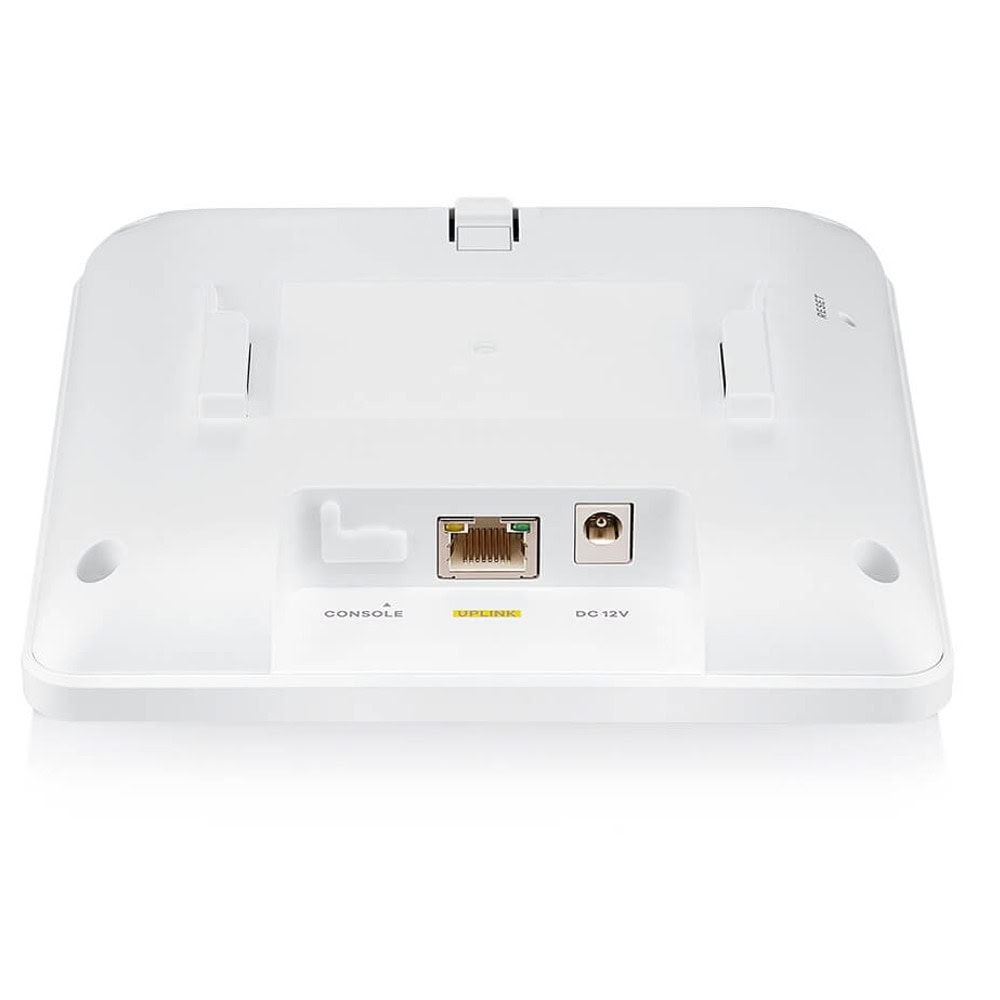

Physical Interfaces

Ethernet port

1 x 1/2.5GbE LAN

Power

Power Adapter:
AC100 - 240V - 50/60Hz 0.3A
Output: DC +12V 1.5A

PoE (802.3at): power draw 16W

PoE modes

IEEE 802.3af: Not supported

IEEE 802.3at: Unrestricted

IEEE 802.3bt: Unrestricted

Environmental Specifications

Operating

Temperature
0°C to 50°C / 32°F to 122°F

Humidity
10% to 95% (non-condensing)

Storage

Temperature
-40°C to 70°C / -40°F to 158°F

Humidity
10% to 90% (non-condensing)
