Zebra ZD23042-30EC00EZ
Икона в кампания
Zebra ZD23042-30EC00EZZebra ZD23042-30EC00EZZebra ZD23042-30EC00EZZebra ZD23042-30EC00EZ

Етикетен принтер Zebra ZD23042-30EC00EZ, 203 dpi, 128MB Flash памет, ширина на етикета до 109.2mm, USB, Wi-Fi, Bluetooth, RJ45

id 297782 Код: PRSPZEBRAZD2304230EC00EZ
  • Модел: ZD23042-30EC00EZ
  • Марка: Zebra
  • Код на продукта: ZD23042-30EC00EZ
  • Тип: Етикетен Принтер
  • Метод на печат: Термотрансферен
  • Гаранция: 12 месеца
  • Наличност: Не е наличен
    ОписаниеХарактеристикиРевюта / ВъпросиДокументация

    Zebra ZD23042-30EC00EZ



    Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components and fewer features. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle. Zebra does it differently. Meet the exception. The ZD230 desktop printer gives you extra features and reliable operation at an affordable price—both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction. And, it offers wireless connectivity for networked, remote printing. Built to last for years, the ZD230 provides an outstanding return on your investment.







    Get Printing Quickly

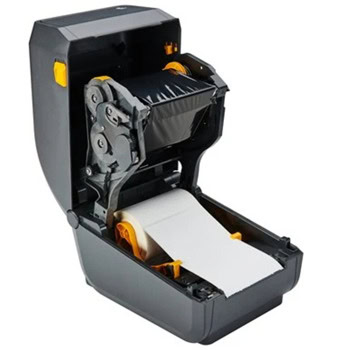

    The ZD230 is simple to install and begin printing—right out of the box. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. USB, Ethernet, Wi-FiTM and Bluetooth® connectivity options enable universal interoperability. The ZD230 can accommodate a 300 meter ribbon roll to lengthen the time between media changes. And, Zebra’s OpenACCESS™ clamshell design expedites media replacement. It’s also ENERGY STAR® qualified to reduce your operational expenses.



    Just the Features You Need

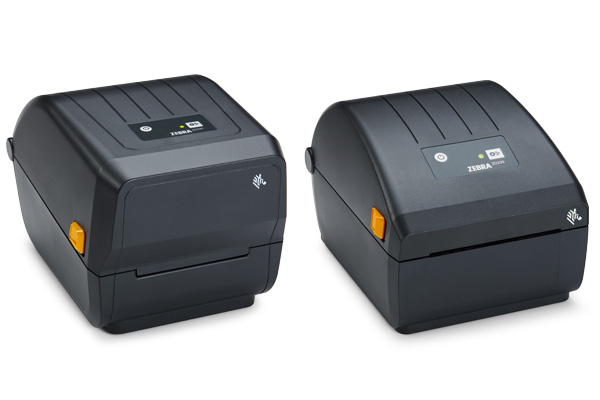

    This 4-inch printer produces labels quickly, up to 6” per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler or cutter. The ZD230 features Print DNATM Basic, a core set of software applications and capabilities to deliver a cost-effective and dependable print experience. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.



    Backed by Zebra’s Worldwide Service and Support

    Access repair support services, live-agent technical support and software support quickly anywhere around the globe through Zebra and its trusted network of more than 10,000 partners. Zebra OneCare™ provides enhanced coverage that exceeds standard warranty for normal wear and tear, priority repair turnaround times at the depot and more—all for a tiny fraction of the cost of a single repair.



    Consistently Exceptional Zebra Certified Supplies

    Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design, produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer—and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.





    CategorySpecificationDetails
    Standard FeaturesPrint MethodsThermal Transfer or Direct Thermal
     Programming LanguagesZPL and EPL
     IndicatorsSingle LED status indicator
     ControlsSingle button for feed/pause
     ConnectivityUSB
     Media LoadingOpenACCESS™ for easy media loading
     ConstructionDual-wall frame construction
     EnergyENERGY STAR qualified
     SoftwareZebraDesigner Essentials – free label design tool
    Physical CharacteristicsDimensions – Thermal Transfer10.5 in. L x 7.75 in. W x 7.5 in. H (267 mm L x 197 mm W x 191 mm H)
     Dimensions – Direct Thermal8.6 in. L x 6.9 in. W x 5.9 in. H (220 mm L x 176 mm W x 151 mm H)
     Weight – Thermal Transfer3.7 lbs / 1.7 kg
     Weight – Direct Thermal2.5 lbs / 1.1 kg
    Printer SpecificationsResolution203 dpi / 8 dots per mm
     Memory128 MB Flash; 128 MB SDRAM
     Maximum Print Width4.09 in. / 104 mm
     Programmable Print Speed6 in. / 152 mm per second or 4 in. / 102 mm per second
     Media SensorsMovable black mark sensor (limited range center to left) Fixed off-center gap sensor
     FirmwareZPL II; EPL 2; XML
    Media and Ribbon CharacteristicsMaximum Label Length39.0 in. / 991 mm
     Media Width1.00 in. / 25.4 mm to 4.4 in. / 112 mm
     Media Roll Size5.00 in. / 127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) optional
     Media Thickness0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max. (tear-off mode only)
     Media TypesRoll-fed or fan-fold, die cut or continuous with/without black mark, tag stock, continuous receipt paper, wristbands
     Ribbon Outside Diameter2.6 in. / 66 mm (300 m); 1.34 in. / 34 mm (74 m)
     Maximum Ribbon Length984 ft. (300 m)
     Ribbon Ratio1:4 ribbon to media (300 m); 1:1 ribbon to media (74 m)
     Ribbon Width1.33 in. / 33.8 mm – 4.3 in. / 109.2 mm
     Ribbon Core I.D.300 m ribbon: 1 in. / 25.4 mm; 74 m ribbon: 0.5 in. / 12.7 mm
    Operating CharacteristicsOperating Temperature40° to 105° F / 4.4° to 41° C
     Storage Temperature-40° to 140° F / -40° to 60° C
     Operating Humidity10% to 90% non-condensing
     Storage Humidity5% to 95% non-condensing
     ElectricalAuto-detectable (PFC Compliant) 100–240 VAC, 50–60 Hz; ENERGY STAR qualified
    Options and AccessoriesMedia HandlingFactory-installed peeler or cutter
     CommunicationsUSB and Ethernet; USB and Bluetooth 4.1; USB 802.11ac Wi-Fi and Bluetooth 4.1
     Real Time ClockNone
    Fonts / Graphics / SymbologiesBar Code Ratios2:1 and 3:1
     1D Bar CodesCode 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
     2D Bar CodesCodablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
     Fonts and Graphics16 resident expandable ZPL II bitmap fonts Two resident scalable ZPL fonts Five resident expandable EPL2 fonts Native open-type font support Unicode compliant for multi-language, on-demand thermal printing 50 MB user available non-volatile memory 8 MB user available SDRAM
    Printer SuppliesRecommendedZebra Certified Supplies for consistent, optimized performance
    RegulatoryComplianceIEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
    Recommended ServicesZebra OneCare™Maintenance plans with defined service levels
    Zebra OneCare EssentialCoverageComprehensive (printheads, normal wear, accidental breakage), priority 8x5 support, 3-day depot repair turnaround plus free return shipping, Online RMA support
    Operating SystemLink-OS®Basic printer operating system


    JAR Computers може да предложи консумативи за "Специализирани Принтери".



    Виж още Специализирани Принтери Zebra
    Виж всички Специализирани Принтери в категорията
    Документация
    Технически характеристики
    Тип:  Етикетен Принтер
    Метод на печат:  Термотрансферен
