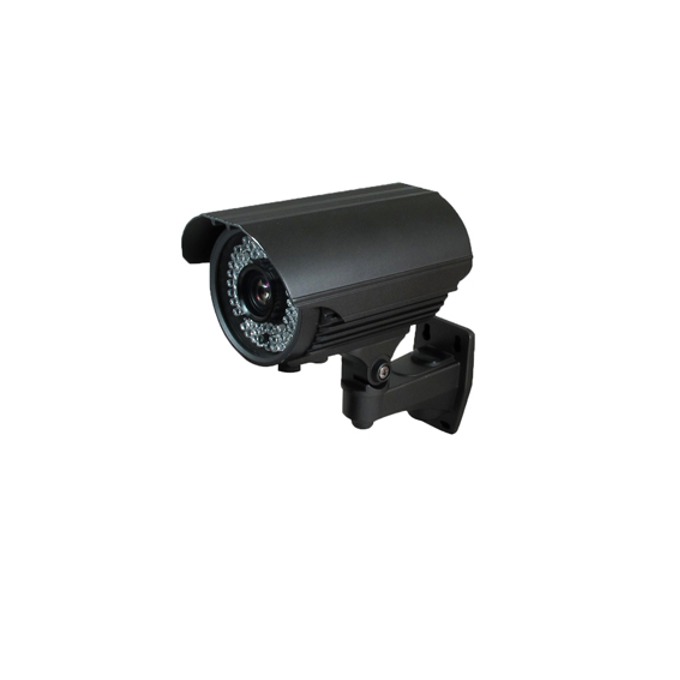

Vgsion VG-ACM80IR70M-V
800 TVL Waterproof IR camera
IP66 Metal waterproof
1/3" HDIS 800 TVL
CMOS 1099 chipset With IR CUT
72 pcs IR LEDs, IR distance around 70 m
2.8-12 mm lens
View angle 86.3°-22.1°
White color
Grey color is optional
Image Sensor 1/3" HDIS 800 TVL
Scanning system Progressive
Resolution 800 TVL
System PAL/NTSC
Effective pixels 976*496
Min. illumination 0.01Lux
IR LEDs 72 pcs ( IR distance around 70 meters)
Lens 2.8-12 mm lens
SHUTTER SPEED PAL: 1/50 ～1/100,000s NTSC：1/60 ～ 1/100,000s
Brightness Auto
Sharpness Auto
DNR NO
S/N Ratio 48dB(min)(AGC closed)
WHITE BALANCE Auto
DAY&NIGHT Auto / Color / Night / Ext
Zoom NO
MIRROR/FLIP NO
MOTION NO
PRIVACY NO
OSD language NO OSD
Video Output 1.0Vp-p CVBS,75Ω
Power Source DC12V±10%
Operating .-20degrees ~ +50degrees (Humidity : 0%RH ~ 80%RH)
Storage .-20degrees ~ +60degrees (Humidity : 0%RH ~ 90%RH)
Виж още Аналогови и хибридни Vgsion
Виж всички Аналогови и хибридни в категорията
800 TVL Waterproof IR camera
IP66 Metal waterproof
1/3" HDIS 800 TVL
CMOS 1099 chipset With IR CUT
72 pcs IR LEDs, IR distance around 70 m
2.8-12 mm lens
View angle 86.3°-22.1°
White color
Grey color is optional
Image Sensor 1/3" HDIS 800 TVL
Scanning system Progressive
Resolution 800 TVL
System PAL/NTSC
Effective pixels 976*496
Min. illumination 0.01Lux
IR LEDs 72 pcs ( IR distance around 70 meters)
Lens 2.8-12 mm lens
SHUTTER SPEED PAL: 1/50 ～1/100,000s NTSC：1/60 ～ 1/100,000s
Brightness Auto
Sharpness Auto
DNR NO
S/N Ratio 48dB(min)(AGC closed)
WHITE BALANCE Auto
DAY&NIGHT Auto / Color / Night / Ext
Zoom NO
MIRROR/FLIP NO
MOTION NO
PRIVACY NO
OSD language NO OSD
Video Output 1.0Vp-p CVBS,75Ω
Power Source DC12V±10%
Operating .-20degrees ~ +50degrees (Humidity : 0%RH ~ 80%RH)
Storage .-20degrees ~ +60degrees (Humidity : 0%RH ~ 90%RH)
Виж още Аналогови и хибридни Vgsion
Виж всички Аналогови и хибридни в категорията
Технически характеристики
| Вид: | Насочени /Булет/ камери |
|---|---|
| Резолюция: | 800 - 999TVL |
| Безжична: | Не |
| Външен монтаж: | Да |
| IR Осветление: | Да |
