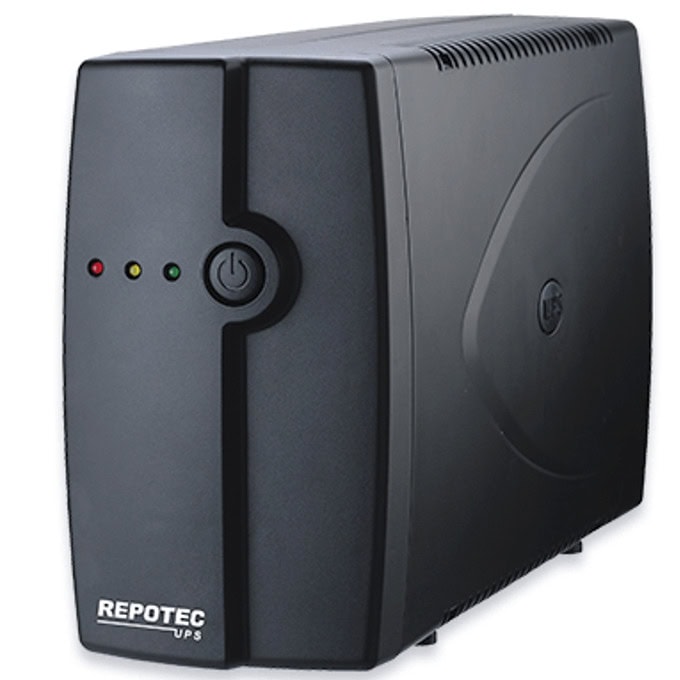

UPS Repotec 1003DU 1000VA/600W (Разопакован продукт), AVR, USB, Line Interactive

REPOTEC RPT-1003DU Line Interactive UPS

- Model RPT-1003DU

- Capacity 1KVA/600W

- Input
Voltage 110/115/120VAC or 220/230/240VAC
Voltage Range -30%+25%
Frequency 50Hz or 60Hz (Auto Sensing)

- Output
Voltage Regulation (Batt. Mode) 110/115/120VAC or 220/230/240VAC +/-10%
Frequency 50Hz or 60Hz +/- 1Hz
Waveform Simulated Sine wave
Transfer Time < 6ms (Typical)

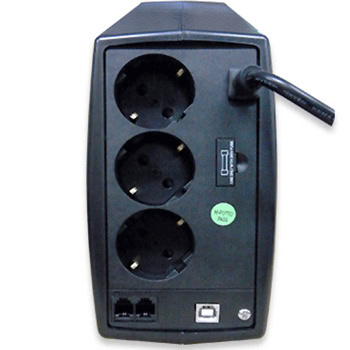

Outlet Universal/German 2/3

- Battery
Voltage 24VDC
Recharge Time 5hr to 90% after complete discharge
Safety Protection Over Charge & Discharge Protection
Advanced Battery Management Yes
Battery Back-up Time up 40 Minutes

- Display
LED status indicator Normal (Green), Battery (Yellow), UPS cut off (Red)
LCD status display I/P & O/P Voltage & Frequency, Load %, Battery %

- Audible Alarm
Battery Mode Beeping twice every 8 second
Low Battery Beeping five times every second
Overload Beeping continuously
Fault Beeping continuously

- Function
AVR (Auto. Voltage Regulation) 2 Boost + 1 Buck
DC Start Function Yes
Auto. Restart UPS Yes
Over/Under voltage protection Yes
No load Cut-off (Green mode) Yes
Slience the Audible Alarm Yes
Off Mode Charging Yes
Short Circuit Protection AC fuse and Electronics circuit(Line mode) ;
Electronics circuit(Back-up Mode)
Lightning/ Surge Protection 99 Joules(110/115/120VAC) / 175 Joules (220/230/240VAC)
Modem/Phone protection (Optional) RJ-11
Communication port USB or RS232 port
Software OPTIONAL
- Environment
Operating Temperature 0° C - 40° C (32?~104?)
Humidity 0-95% (No condensing)
Audible Noise <40 dB at 1M

- Regulation
Safety Standard CE (EN62040-1-1, EN50091-1)
EMC Standard FCC Part 15 Class B, CE(EN50091-2, EN61000-3-2, EN61000-3-3)

- Physical
Dimension(D*W*H) 385*98*170mm
