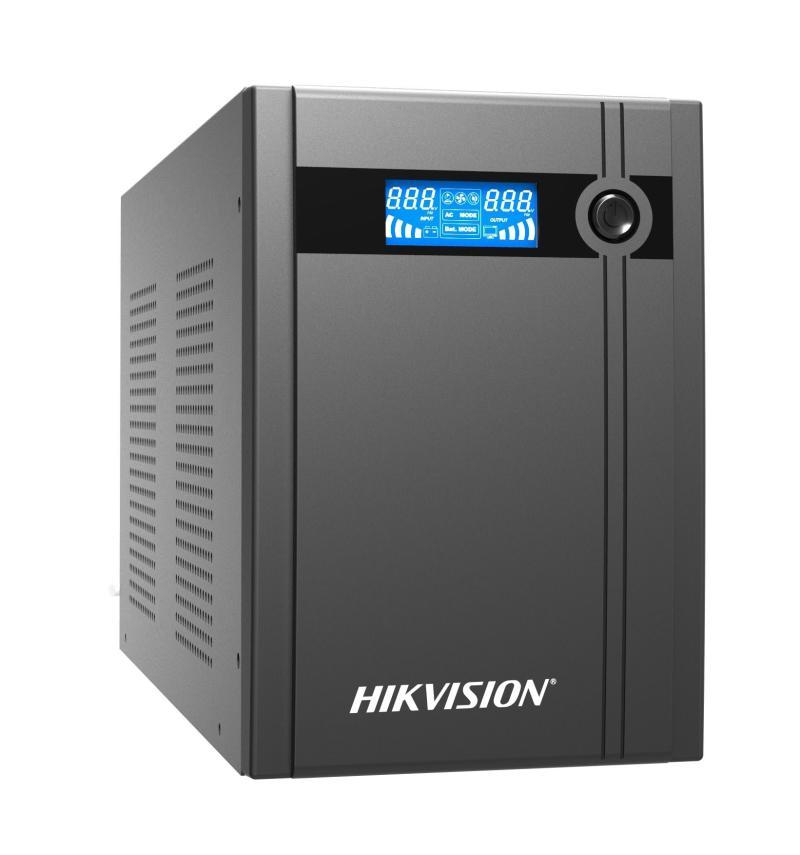

UPS Hikvision DS-UPS3000, 3000VA/1800W, Off-line, LCD дисплей, Tower

Oversea UPS

• Built-in AVR
• Super fast charging
• Wide input voltage range
• Overload protection
• Short circuit protection
• Surge protection
• USB port for remote control
• LCD display

Specifications:

Power

• UPS Capacity 3000 VA / 1800 W

Input

• Input Voltage Range 140 VAC to 290 VAC
• Input Frequency50/60 Hz self-adaptive
• Plug Typ eAU TYPE I;TYPE H;Type B (NEMA 5-15);TYPE L (10A);UK TYPE G;Schuko

Output

• Output Voltage Range210 VAC to 235 VAC
• Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
• Transfer Time≤ 10 ms
• Waveform PWM
• Outlet Type AU TYPE I;TYPE H;Type B (NEMA 5-15);Universal;TYPE L (10/16A)
• Outlet Number6;4

Battery

• Battery Type 12 V/9 Ah *4 pcs, lead-acid battery
• Recharge Time 6-8 hours recover to 90% capacity

• Typical Backup Time

  Run time at 100w: 150 min

  Run time at 600w: 15 min

  Run time at 900w: 6 min

Interface

• Communicate PortsUSB

Protection

• Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection

Indicator

• Display

  LCD Screen

  Input Voltage, Output Voltage, Battery capacity, load level

• Alarm

  Charging Mode (DC mode): Sounding every 8 seconds

  Low Battery: Sounding every second

  Overloading Mode: Sounding every 0.5 seconds

  Fault: Continuously sounding

General

• Operating Temperature0 °C to 40 °C (32 °F to 104 °F）
• Operating Humidity30% to 90% (non-condensing)
• Dimension412 mm × 145 mm × 210 mm (16.22" × 5.71" × 8.27")
• WeightApprox. 18.5 kg (40.8 lb)
