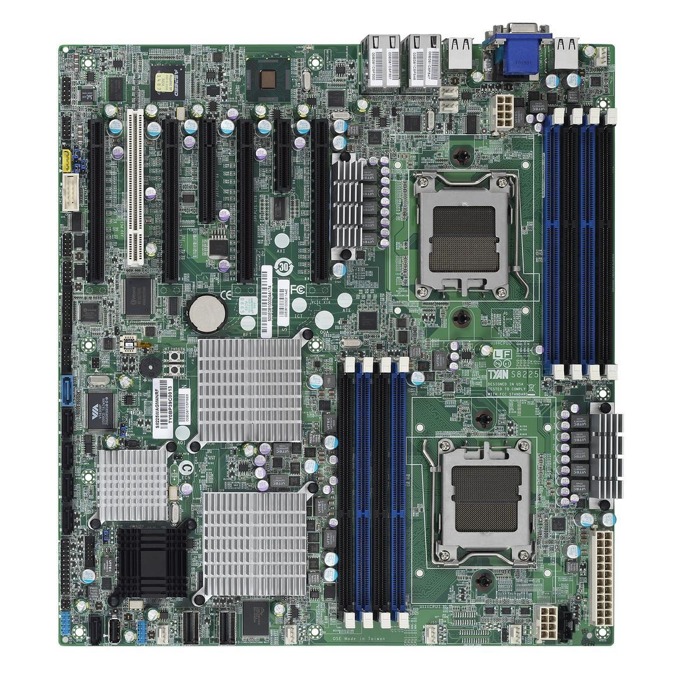

Tyan S8225WAGM4NRF
Processor
Socket Type / Q'ty C32 / (2)
Supported CPU Series
AMD 45nm 4-Core/6-Core Opteron 4100 Series Processors (Lisbon) / AMD 32nm 4-Core/6-Core/8-Core Opteron 4200 Series Processors (Valencia) / AMD 32nm 4-Core/6-Core Opteron 4300 Series Processors (Seoul)
System Bus
Up to 6.4 GT/s Hyper-Transport link support
Average CPU Power (ACP) wattage
Up to 75W
Chipset
Super I/O Winbond W83627
Chipset AMD (2)SR5690 + SP5100
Memory
Supported DIMM Qty (4)+(4) DIMM slots
DIMM Type / Speed
U/RDDR3 & LV RDDR3, 800/1066/1333 MHz
Capacity
Up to 64GB RDIMM/ 32GB UDIMM
Memory channel
2 Channels per CPU
Memory voltage 1.5V or 1.35V
Expansion Slots
PCI-E (4) PCI-E Gen.2 x16 slots / (1) PCI-E Gen.2 x8 slot (w/ x4 link) / (1) PCI-E Gen.2 x4 slot
LAN Port Q'ty (4)
Controller Intel 82574L / Intel 82576EB
Storage SAS Connector (2) Mini-SAS connectors (totally support 8 ports)
Controller LSI SAS2008
Speed 6.0 Gb/s
RAID RAID 0/1/1E/10 (LSI Integrated RAID)
SATA Connector (6) SATA
Controller AMD SP5100
Speed 3.0 Gb/s
RAID RAID 0/1/10/5 (Promise Integrated Software RAID)
Graphic
Connector type D-Sub 15-pin
Resolution Up to 1600x1200@60Hz
Chipset Aspeed AST2050
Audio
Chipset Realtek ALC262
Feature High Definition Audio
Input /Output
USB (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A onboard)
COM (2) ports (1 at rear, 1 via cable)
VGA (1) D-Sub 15-pin VGA port
Firewire (2) 2x5-pin headers
RJ-45 (4) GbE ports
Audio (1) 2x5-pin front panel audio header / (1) 2x6-pin rear audio jack header
Front Panel (1) 2x12-pin SSI front panel header
SAS (2) Mini-SAS (4-in-1) connectors
SATA (6) SATA-II connectors
Power ATX12V / Universal 24-pin + 8-pin + 8-pin power connectors
System Monitoring
Chipset Winbond W83793G
Fan Total (7) 4-pin headers
Temperature
Monitors temperature for CPU & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / USB 2.0 virtual hub / BIOS update
AST2050 iKVM Feature 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces
BIOS
Brand / ROM size AMI / 4MB
Feature Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / Hardware Monitor
Physical Dimension
Form Factor EATX
Board Dimension 12"x13" (305x330mm)
Regulation
FCC (DoC) Class B
CE (DoC) Yes
Operating Environment
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System
OS supported list Coming soon
Package Contains
Motherboard (1) S8225 Motherboard
Manual (1) Web User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Cable SATA (6) SATA signal cables
SAS (2) Mini-SAS cables
