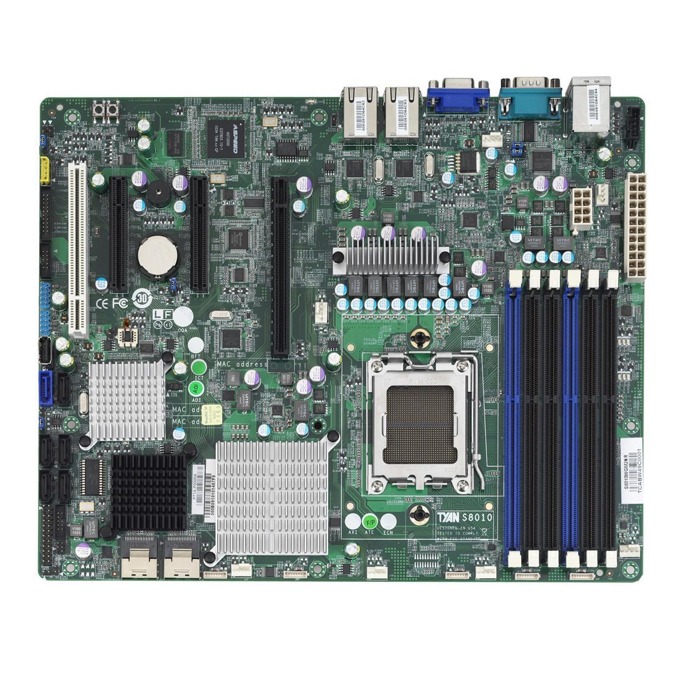

Tyan S8010GM2NR
Processor
Socket Type / Q'ty C32 / (1)
Supported CPU Series
AMD 45nm 4-Core/6-Core Opteron 4100 Series Processors (Lisbon) / AMD 32nm 4-Core/6-Core/8-Core Opteron 4200 Series Processors (Valencia) / AMD 32nm 4-Core/6-Core Opteron 4300 Series Processors (Seoul)
System Bus
Up to 5.2 GT/s Hyper-Transport link support
Average CPU Power (ACP) wattage
Up to 75W
Chipset
Super I/O Winbond W83627
Chipset AMD SR5670 + SP5100
Memory
Supported DIMM Qty (6) DIMM slots
DIMM Type / Speed U/RDDR3 & LV RDDR3, 800/1066/1333 MHz
Capacity Up to 64GB DDR3 667 RDIMM/ 16GB DDR3 1066 UDIMM
Memory channel 2 Channels per CPU
Memory voltage 1.5V or 1.35V
Expansion Slots
PCI-E (2) PCI-E Gen2 x8 slots / (1) PCI-E Gen.2 x16 slot (w/ x8 link)
PCI (1) PCI 32-bit slot
LAN Port Q'ty Total (3) ports, (1) dedicated for IPMI
Controller Intel 82574L
PHY Broadcom BCM5221 PHY (dedicated for IPMI connection)
Storage SATA
Connector (6) SATA
Controller AMD SP5100
Speed 3.0 Gb/s
RAID RAID 0/1/10/5 (Promise Integrated Software RAID)
Graphic
Connector type D-Sub 15-pin
Resolution Up to 1600x1200@60Hz
Chipset Aspeed AST2050
Input /Output
USB (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A onboard)
COM (1) port (rear)
VGA (1) D-Sub 15-pin VGA port
Front Panel (1) 2x12-pin SSI front panel header
SATA (6) SATA-II connectors
Power
Universal 24-pin + 8-pin power connectors / ATX12V
PSMI (1) 1x5-pin header
System Monitoring
Chipset Winbond W83795G
Fan Total (7) 4-pin headers
Temperature
Monitors temperature for CPU & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / USB 2.0 virtual hub / BIOS update
AST2050 iKVM Feature 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces
BIOS
Brand / ROM size AMI / 4MB
Feature Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / Hardware Monitor
Physical Dimension
Form Factor ATX
Board Dimension
12"x9.6" (305x243.8mm)
Regulation
FCC (DoC) Class A
CE (DoC) Yes
Operating Environment
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System
OS supported list Coming soon
Package Contains
Motherboard (1) S8010 Motherboard
Manual (1) Web User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Cable SATA (6) SATA signal cables
