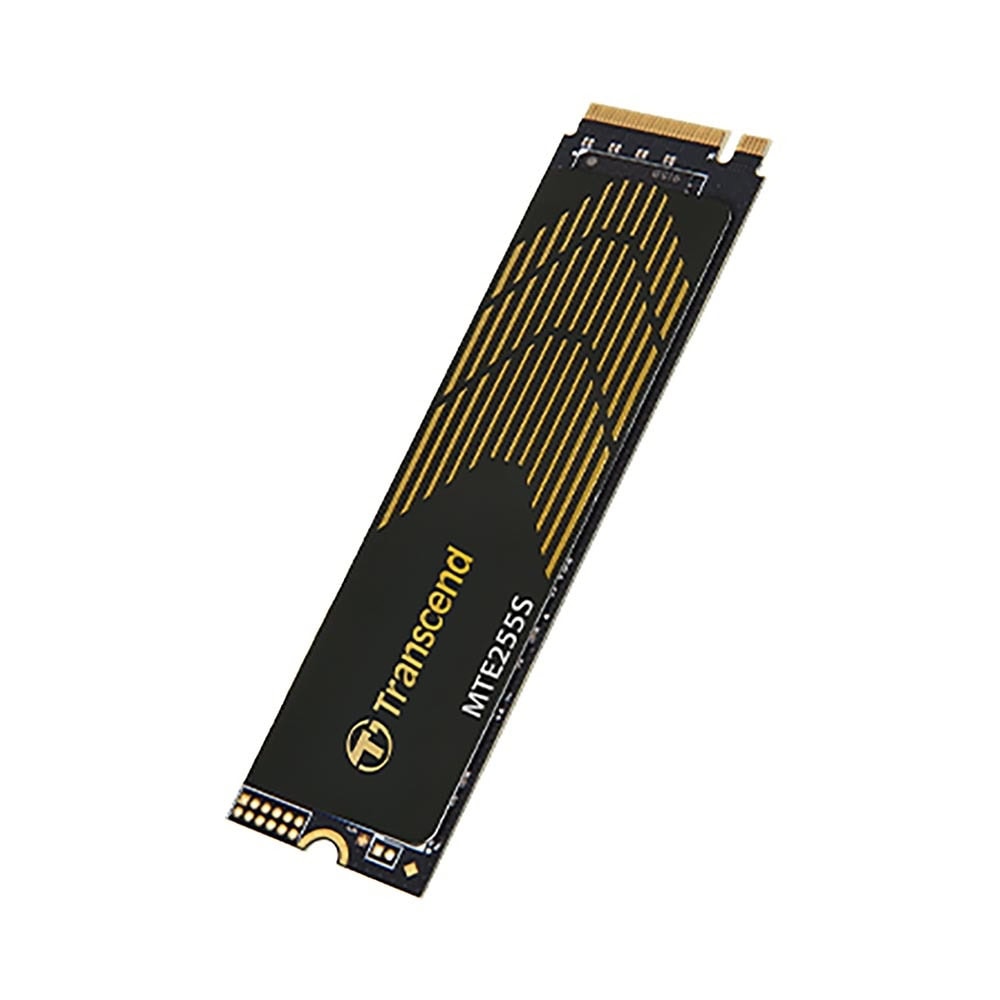

Transcend MTE255S
Superior Performance That Meets Your Needs Transcend's PCIe SSD 255S complies with the latest NVMe 1.4 standard, supporting the PCIe™ Gen4 x4 interface. Its multi-channel controller delivers sequential R/W speeds of up to 7,400/6,500 MB/s, and IOPS up to 700K, delivering captivating performance and response times for desktops and laptops like you've never seen before!
Note: Performance is based on the CrystalDiskMark v8.0.4. | ![]() |
![]() | As Cool As Always Transcend's PCIe SSD 255S has an integrated ultra-thin graphene heatsink to improve heat dissipation. The high conductivity of graphene cools the system down quickly, ensuring stable device performance and reliability. |
Low Power Consumption Transcend's PCIe SSD 255S comes in an M.2 2280 form factor. Its single-sided design is perfect for desktops, laptops, and ultrabooks! The low-power design makes PCIe performance possible with the best power efficiency. | ![]() |
![]() | Better Endurance, Higher Reliability Transcend's PCIe SSD 255S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to help keep data secure. Engineered with a dynamic thermal throttling mechanism, Transcend's PCIe SSD 255S delivers superior endurance and stability for high-end applications. |
Specifications
Appearance
Type
M.2 2280
Dimensions
Single-sided 80 mm x 22 mm x 2.42 mm (3.15" x 0.87" x 0.1")
Weight
9 g (0.32 oz)
Heatsink Type
Graphene heatsink
Interface
Bus Interface
NVMe PCIe Gen4 x4
Storage
Flash Type
3D NAND flash
Capacity
1 TB
Operating Environment
Operating Temperature
0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)
Up to 7,400/5,200 MB/s
4K Random Read/Write (IOmeter)
Up to 660,000/500,000 IOPS
Terabytes Written (TBW)
600 TBW
Mean Time Between Failures (MTBF)
2,000,000 hour(s)
Drive Writes Per Day (DWPD)
0.33 (5 yrs)
System Requirement
Operating System
Microsoft Windows 7 or later
Linux Kernel 2.6.31 or later
Technology
S.M.A.R.T.
Yes
Advanced Garbage Collection
Yes
RAID Engine
No
LDPC Coding
Yes
DRAM Cache
No
Notes
- Speed may vary due to host hardware, software, usage, and storage capacity.
- The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
- Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
- Please make sure that your computer has a M.2 slot.
