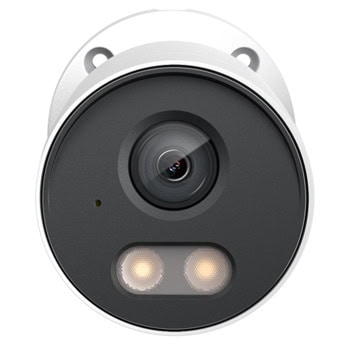

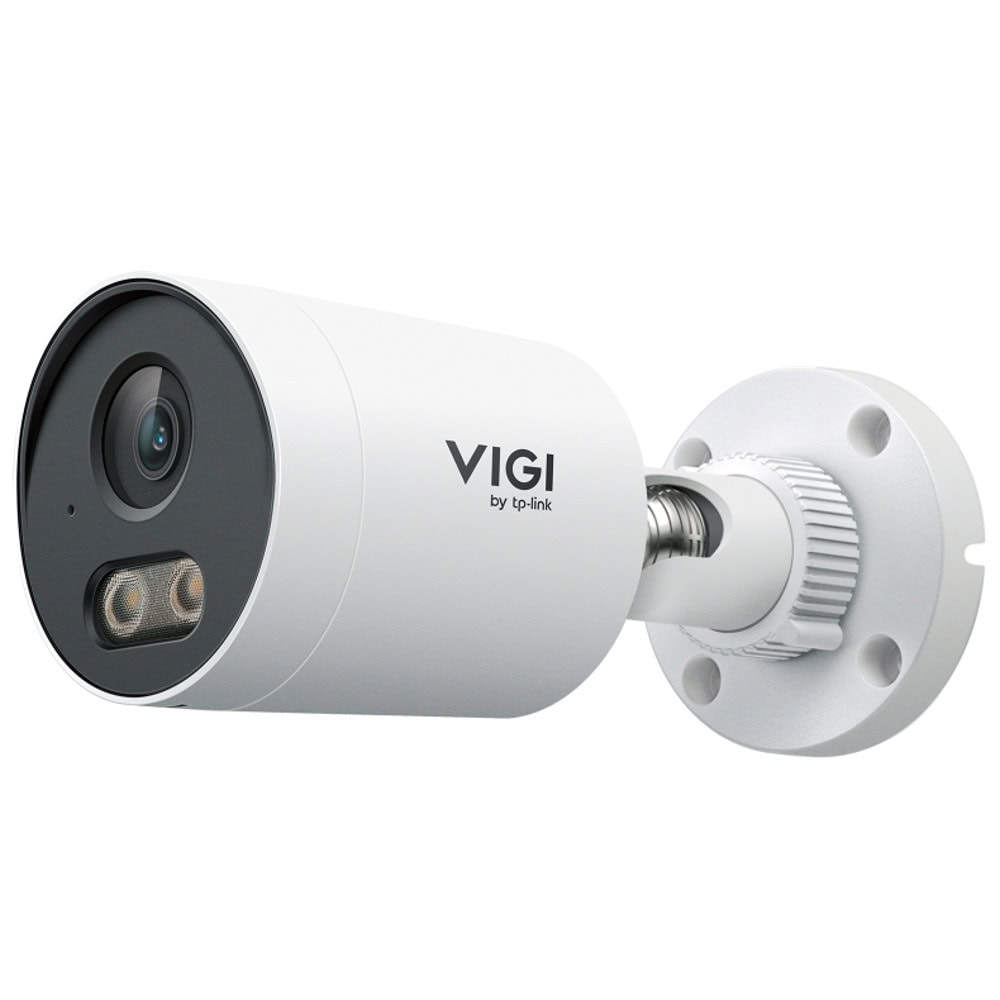

Name: IP камера TP-Link VIGI InSight S325(6mm), насочена bullet камера, 2Mpix(1920x1080@30fps), 6mm обектив, H.265+/H.265/H.264+/H.264, IR осветеност (до 30m), външна IP67/IK10, PoE, микрофон
Brand: TP-Link
SKU: SCMDGTPLINKINSIGHTS3256MM
Price: 139.93 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

InSight S325

VIGI 2MP Outdoor Full-Color Bullet Network Camera

2MP High Definition and 24h Full-Color
LightPro Night Vision

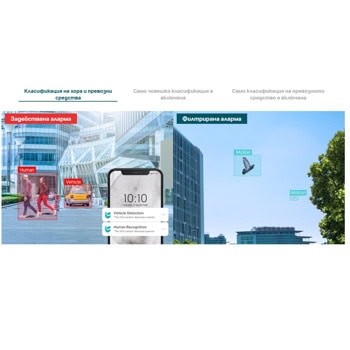

Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Built-in Microphone
IP67 Weatherproof and IK10 Vandal Proof
H.265+ Compression Technology

LightPro Night Vision Technology

The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.

Параметър	Стойност
Модел	VIGI InSight S325
Светлочувствителен сензор	1/3” Progressive Scan CMOS
Shutter Speed	1/3 до 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux с IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified / Scheduled / Auto
Тип	Fixed Focal Lens
Фокусно разстояние	6 mm
Апертура	F2.0
FOV (6 mm)	H: 49.8°, V: 27.6°, D: 57.7°
Lens Mount	M12 × P0.5
DORI (6 mm)	Detect 89 m, Observe 37 m, Recognize 18 m, Identify 9 m
Pan	0° до 360°
Tilt	0° до 90°
Rotation	0° до 360°
Управление	Auto / Scheduled / Always On / Always Off
IR/White LED	2 бр.
IR обхват	30 m
White LED обхват	30 m
IR дължина на вълната	850 nm
Максимална резолюция	1920 × 1080
Main Stream FPS	1 / 5 / 10 / 15 / 20 / 25 fps (50Hz), до 30 fps (60Hz)
Main Stream резолюции	1920×1080, 1280×960, 1280×720
Sub Stream FPS	1 / 5 / 10 / 15 / 20 / 25 fps (50Hz), до 30 fps (60Hz)
Sub Stream резолюции	848×480, 704×576, 640×480, 640×360, 352×288, 320×240
Bit Rate Control	CBR, VBR
Видео компресия	Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264
H.264 Type	High Profile
H.264+	Supported (Main Stream)
H.265 Type	Main Profile
H.265+	Supported (Main Stream)
Main Stream Bit Rate	256 Kbps – 4 Mbps
Sub Stream Bit Rate	64 Kbps – 512 Kbps
Настройки	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC
Подобрения	BLC, 3D DNR, HLC, SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	До 4 маски
ROI	1 Region
OSD	Yes
Аудио комуникация	N/A
Аудио вход	Вграден микрофон
Аудио изход	N/A
Audio Compression	Yes
Audio Sampling Rate	8 kHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps (G.711 alaw)
Протоколи	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1X, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T)
Simultaneous Live View	3 Main Streams + 3 Sub Streams
Клиенти	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Поддържани браузъри	Chrome 57+, Firefox 52+, Safari 11+, Edge 91+
Cloud	Yes
Защита	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Smart Event	Intrusion Detection, Line Crossing, Region Entering/Exiting, People Detection, Vehicle Detection
Basic Event	Motion Detection, Video Tampering Detection, Illegal Login
Alarm Linkage	Email, Alarm Server, FTP Upload, Message Push
People & Vehicle Analytics	N/A
Мрежов интерфейс	1 × RJ45 10/100M Ethernet Port, PoE
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
On-board Storage	N/A
Built-in Microphone	Yes, до 5 m радиус
Built-in Speaker	N/A
Audio	N/A
Работна температура	-30°C до 60°C
Температура на съхранение	-40°C до 60°C
Работна влажност	≤95% (без конденз)
Влажност при съхранение	≤95% (без конденз)
Материал	Метал
Нетно тегло	0.353 kg
Захранване	12V DC ±5%, Max. 7.4W; PoE 802.3af/at Class 0, Max. 8W
Защита	IP67
Размери (Д × Ш × В)	169.8 × 74 × 74 mm
Съдържание на пакета	VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
Human & Vehicle Classification	Yes
LightPro Night Vision	Yes
Режими	Auto Infrared, Auto Color, Human & Vehicle Triggered Full-Color, Infrared Always On, White LED Always On, Off
Smart IR	Yes
3D DNR	Yes
White Balance	Yes
Smart Video Coding	H.265+
Спестяване спрямо H.264	До 57.5%
Спестяване спрямо H.265	До 15%

Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията

Технически характеристики

Вид:	Насочени ("bullet") камери
Резолюция:	FullHD
Управляема:	Неуправляема
Аудио:	Микрофон
Безжична:	Не
Външен монтаж:	Да
IR Осветление:	Да
Термокамера:	Не
