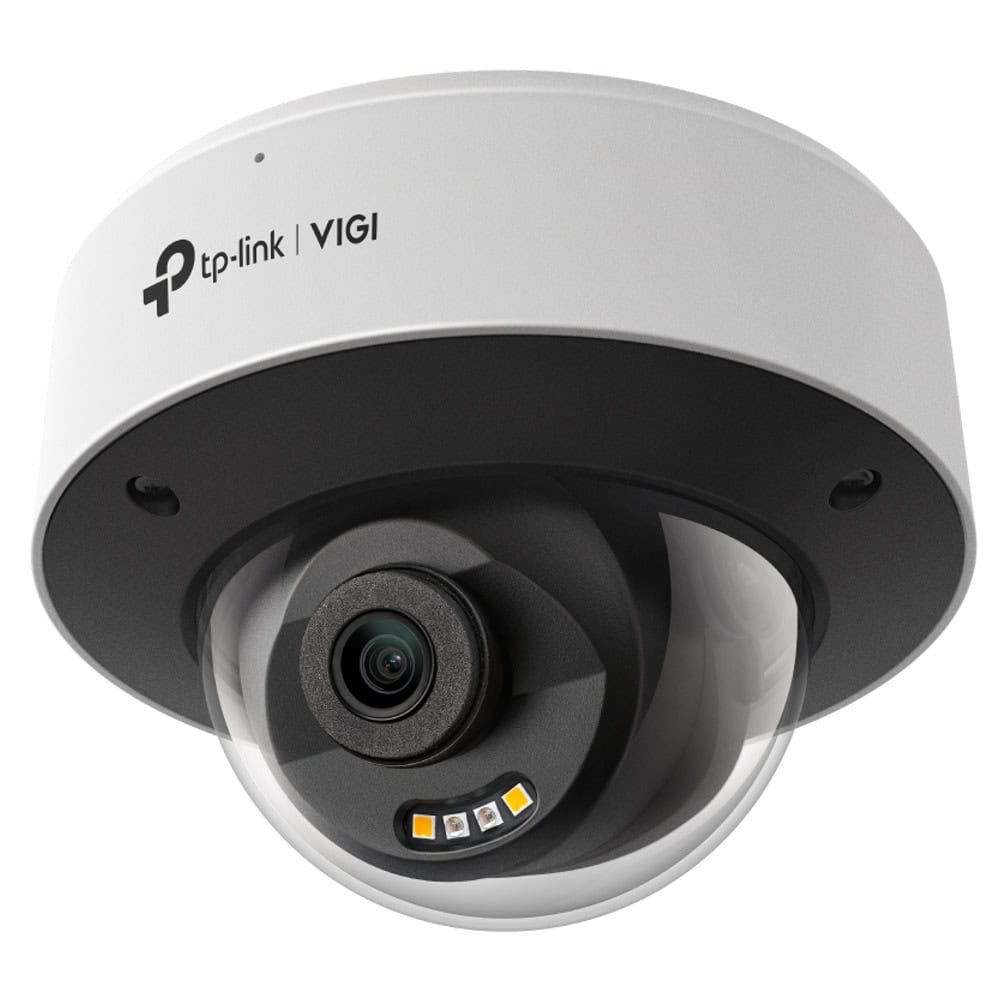

InSight S285

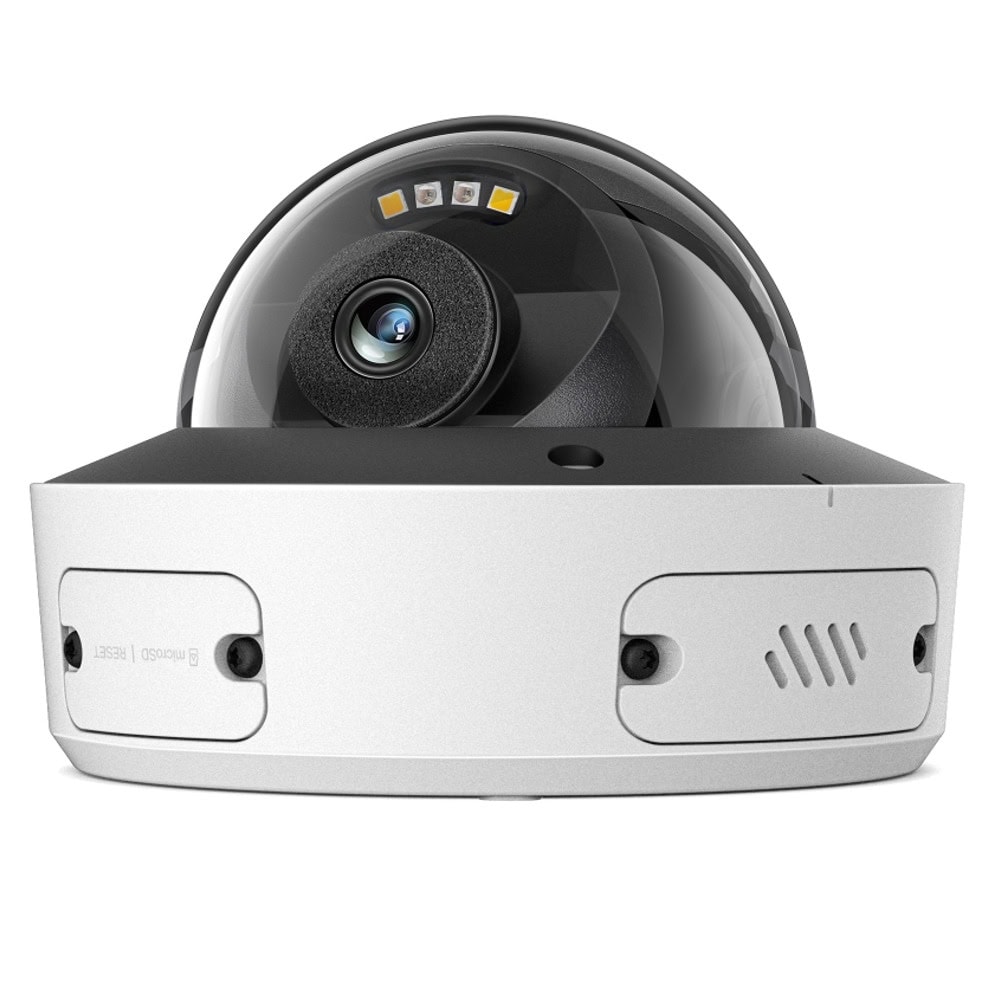

VIGI 8MP Full-Color Dome Network Camera
- 8MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics§
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof and IK10 Vandal Proof
- H.265+ Compression Technology
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

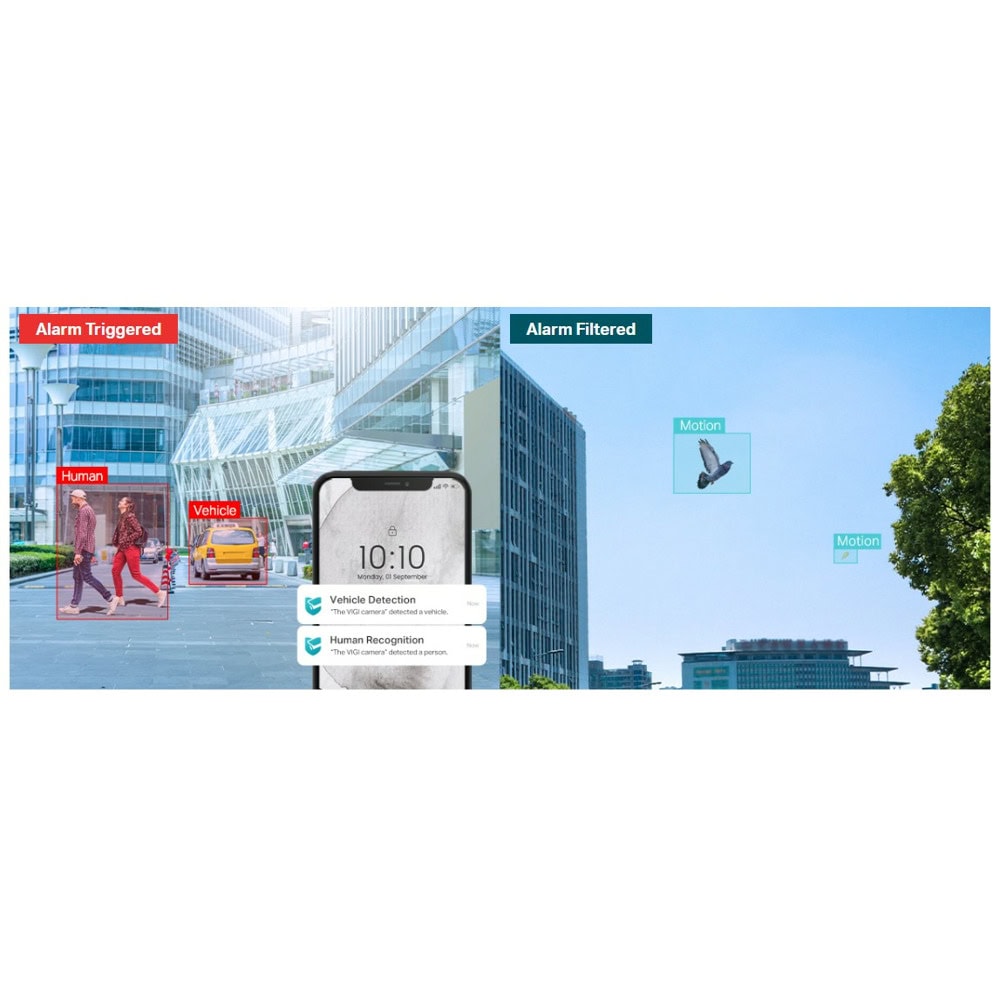

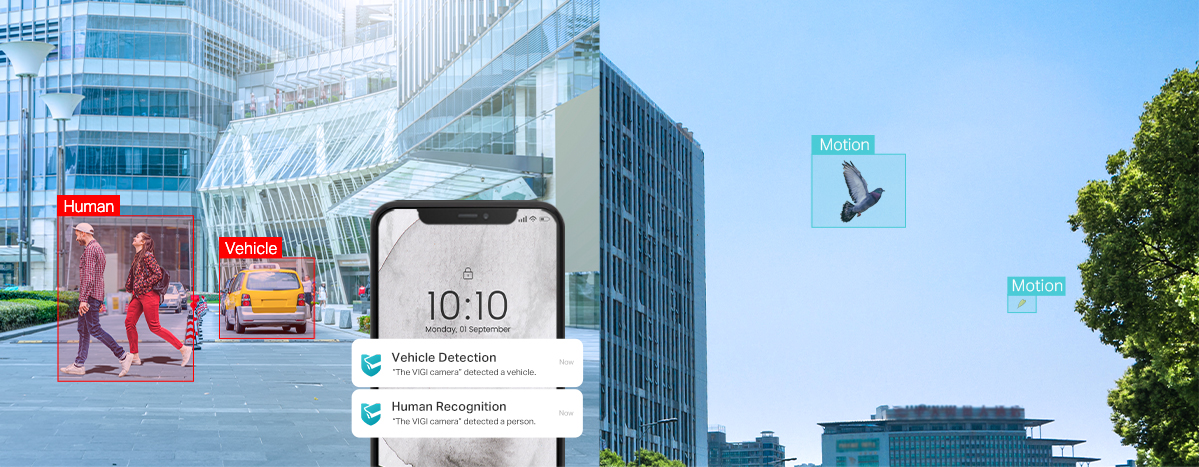

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
| Category | Specification |
|---|---|
| CAMERA | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft) |
| Angle Adjustment | Pan: 0–346°, Tilt: 0–75°, Rotation: 0–355° |
| ILLUMINATOR | |
| IR LED | 2 pcs, 30 m range, 850 nm |
| White LED | 2 pcs, 30 m range |
| Illuminator Control | Auto / Scheduled / Always on / Always off |
| VIDEO | |
| Max. Resolution | 3840 x 2160 |
| Main Stream Frame Rates | 1–25 fps (50Hz), 1–25 fps (60Hz); up to 20 fps if rotated or HDR enabled |
| Main Stream Resolutions | 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 |
| Sub-Stream Frame Rates | Same as main stream |
| Sub-Stream Resolutions | 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ / H.265+ | Supported (Main Stream) |
| Video Bit Rate | Main: 256 Kbps – 8 Mbps; Sub: 64 Kbps – 512 Kbps |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Overexposure, HLC |
| Image Enhancement | BLC, 3D DNR, HLC, Smart IR |
| Wide Dynamic Range | 120 dB (DWDR only if analytics enabled) |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 masks |
| ROI | 1 region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input/Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Live View | 3 Main Streams + 3 Sub-Streams |
| Clients | VIGI App, Web UI, VIGI VMS, Utility |
| Browser Support | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud Support | Yes |
| Security | Password, HTTPS, IP Filter, Digest Auth |
| ALARM & EVENTS | |
| Smart Events | Intrusion, Line-Crossing, Region Enter/Exit, Abandoned/Removed Object, Loitering, People, Vehicle, Abnormal Sound, Scene Change |
| Basic Events | Motion Detection (Enhanced), Tampering, Exception |
| Alarm Linkage | SD Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
| Deep Learning | People & Vehicle Analytics |

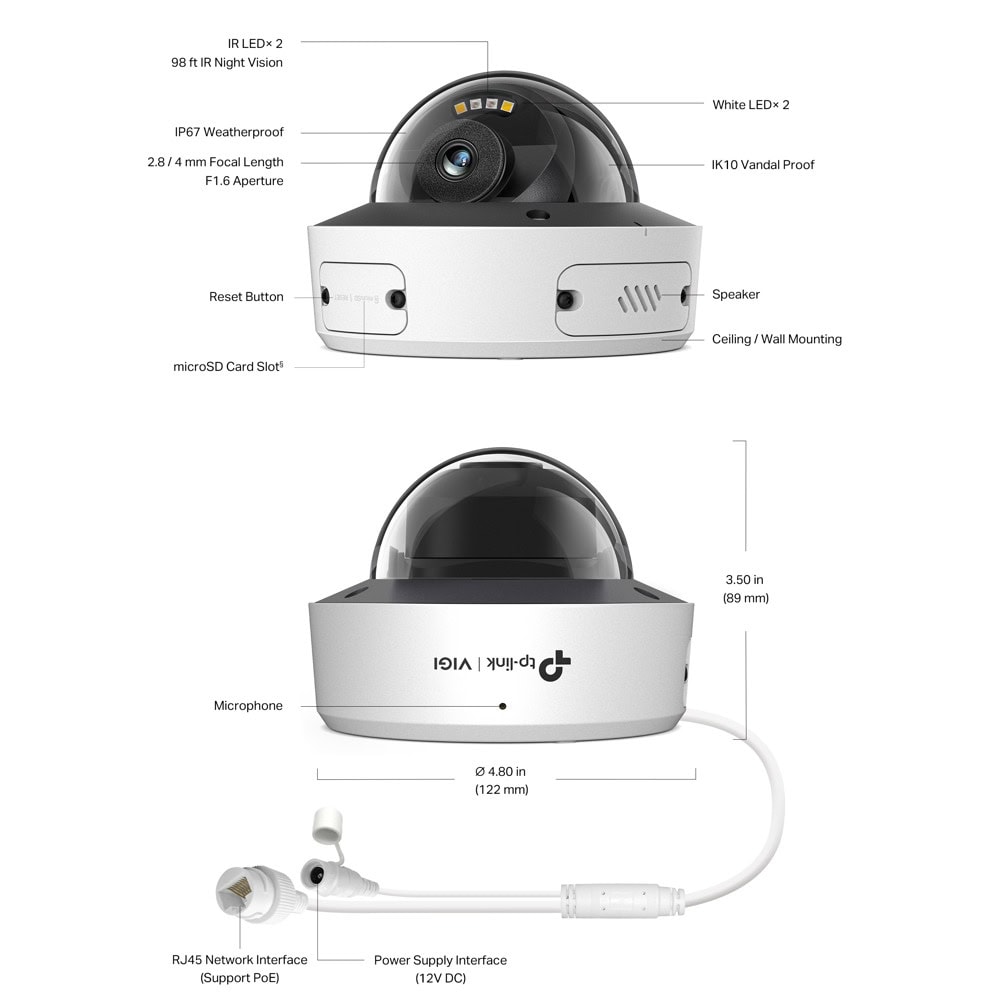

| INTERFACES | |
| Network | 1× RJ45 10/100M Ethernet, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power Port | DC Input |
| On-board Storage | MicroSD (up to 512 GB) |
| Microphone | Built-in, 5 m range |
| Speaker | Built-in |
| Audio Terminal | N/A |
| GENERAL | |
| Operating Temp | -30 to 60 °C |
| Storage Temp | -40 to 60 °C |
| Humidity (Op/Storage) | ≤ 95% (non-condensing) |
| Package Contents | Camera, Quick Start Guide, Waterproof Cable, Mounting Kit |
| Material | Metal |
| Net Weight | 0.62 kg |
| Power Supply | 12V DC ±5% (11 W), PoE (12.3 W, 802.3af/at, class 0) |
| Protection | IP67, IK10 |
| Dimensions | 122 × 122 × 89 mm (4.80 × 4.80 × 3.50 in) |
Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията
Технически характеристики
| Вид: | Куполни камери |
|---|---|
| Резолюция: | 4K |
| Управляема: | Неуправляема |
| Аудио: | Двупосочно |
| Безжична: | Не |
| Външен монтаж: | Да |
| IR Осветление: | Да |
| Термокамера: | Не |
