InSight S285

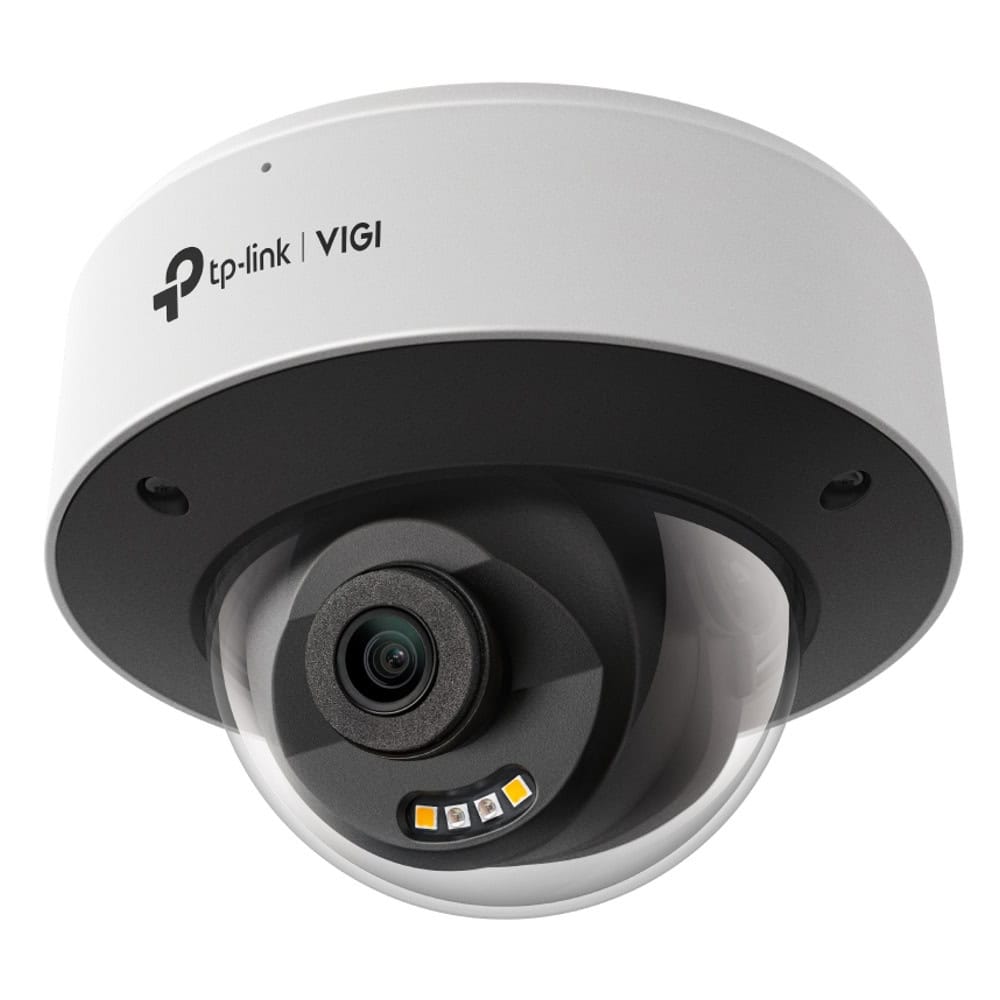

VIGI 8MP Full-Color Dome Network Camera
- 8MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics§
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof and IK10 Vandal Proof
- H.265+ Compression Technology

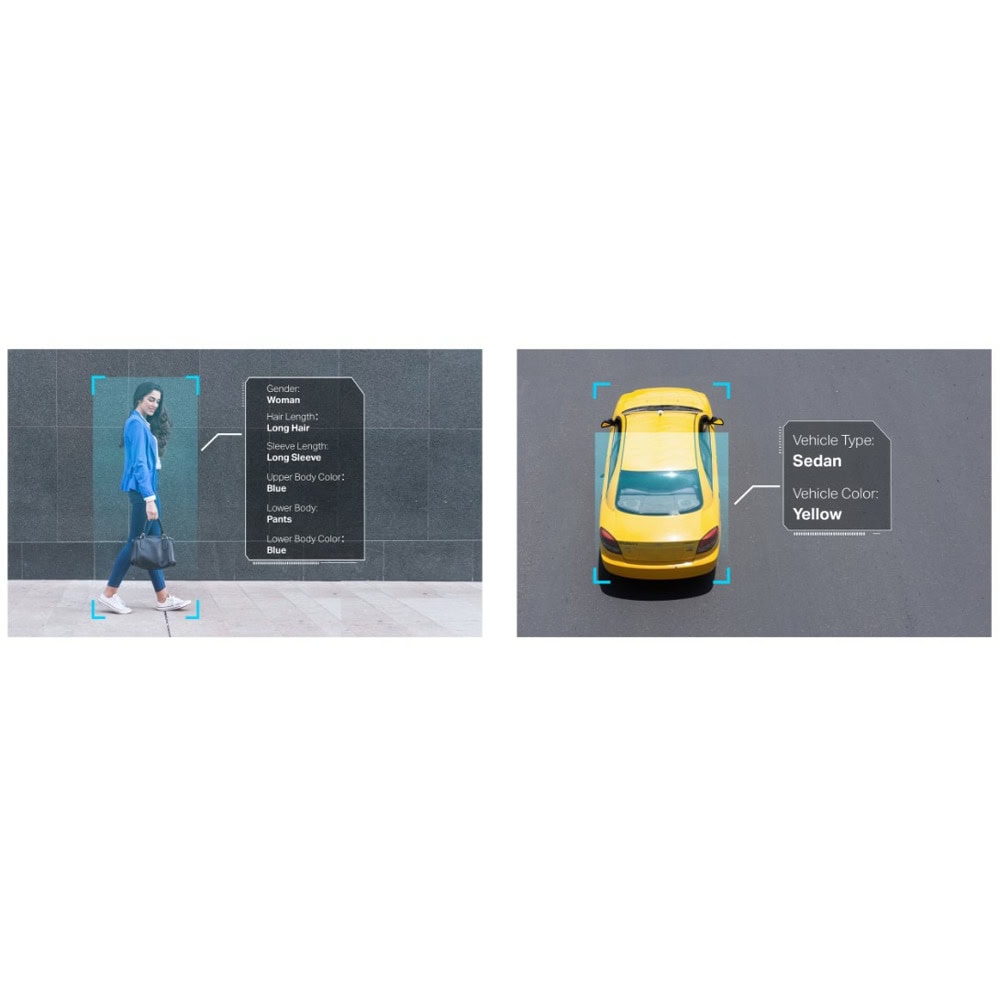

People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

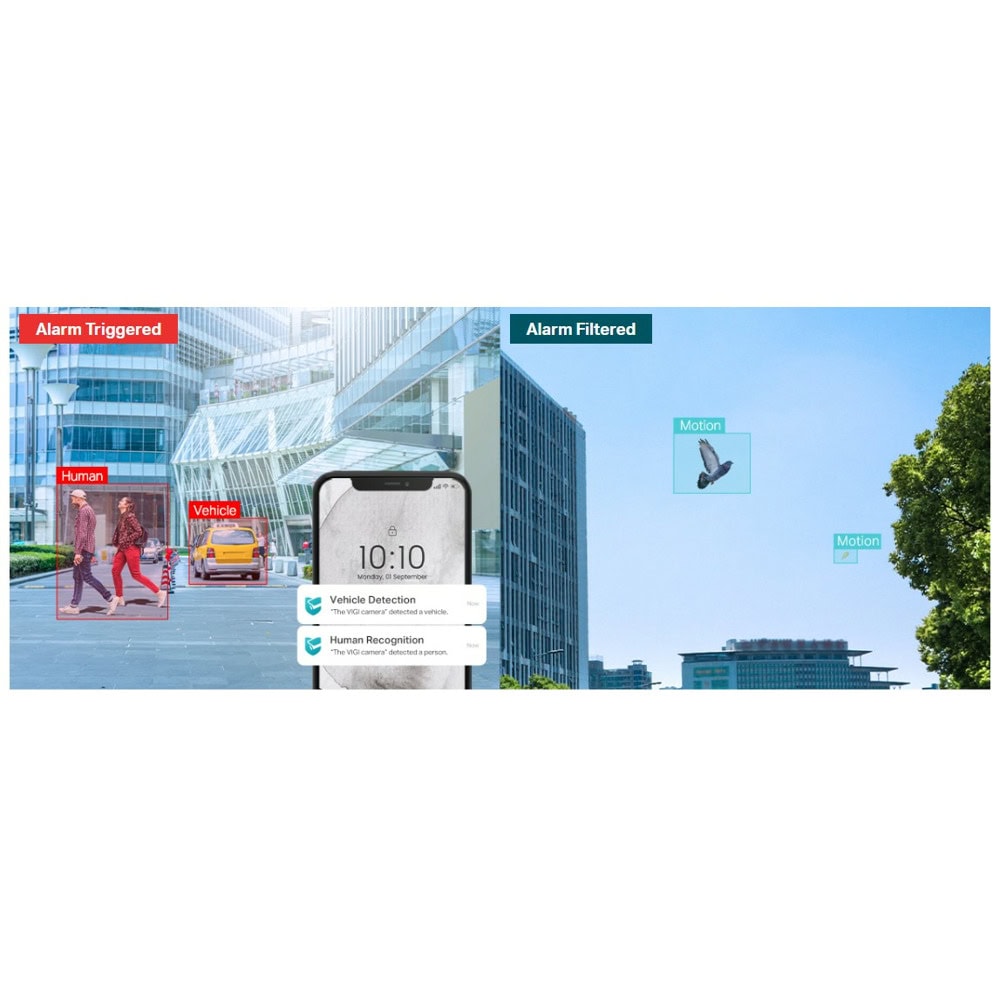

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Category | Specification |
---|---|
CAMERA | |
Image Sensor | 1/2.7” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified / Scheduled / Auto |
LENS | |
Type | Fixed Focal Lens |
Focal Length | 2.8 mm |
Aperture | F1.6 |
FOV (2.8 mm) | H: 110°, V: 58.1°, D: 133.5° |
Lens Mount | M12*P 0.5 |
DORI Distance (2.8 mm) | Detect: 85 m, Observe: 35 m, Recognize: 17 m, Identify: 8 m |
Angle Adjustment | Pan: 0–346°, Tilt: 0–75°, Rotation: 0–355° |
ILLUMINATOR | |
IR LED | 2 pcs, 30 m range, 850 nm |
White LED | 2 pcs, 30 m range |
Illuminator Control | Auto / Scheduled / Always on / Always off |
VIDEO | |
Max. Resolution | 3840 x 2160 |
Main Stream Frame Rates | 1–25 fps (50Hz), 1–25 fps (60Hz); up to 20 fps if rotated or HDR enabled |
Main Stream Resolutions | 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 |
Sub-Stream Frame Rates | Same as main stream |
Sub-Stream Resolutions | 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
Bit Rate Control | CBR, VBR |
Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264 |
H.264 Type | High Profile |
H.264+ / H.265+ | Supported (Main Stream) |
Video Bit Rate | Main: 256 Kbps – 8 Mbps; Sub: 64 Kbps – 512 Kbps |
IMAGE | |
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Overexposure, HLC |
Image Enhancement | BLC, 3D DNR, HLC, Smart IR |
Wide Dynamic Range | 120 dB (DWDR only if analytics enabled) |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 masks |
ROI | 1 region |
OSD Setting | Yes |
AUDIO | |
Audio Communication | Two-Way Audio |
Audio Input/Output | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8 KHz |
Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps (G.711 alaw) |
NETWORK | |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARP |
ONVIF | Yes |
API | ONVIF Profile S/T/G |
Live View | 3 Main Streams + 3 Sub-Streams |
Clients | VIGI App, Web UI, VIGI VMS, Utility |
Browser Support | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
Cloud Support | Yes |
Security | Password, HTTPS, IP Filter, Digest Auth |
ALARM & EVENTS | |
Smart Events | Intrusion, Line-Crossing, Region Enter/Exit, Abandoned/Removed Object, Loitering, People, Vehicle, Abnormal Sound, Scene Change |
Basic Events | Motion Detection (Enhanced), Tampering, Exception |
Alarm Linkage | SD Recording, Message Push, Audible Warning, White Light Flashing |
Output Notification | Message Push |
Deep Learning | People & Vehicle Analytics |
INTERFACES | |
Network | 1× RJ45 10/100M Ethernet, PoE |
Alarm | N/A |
Reset Button | Yes |
Power Port | DC Input |
On-board Storage | MicroSD (up to 512 GB) |
Microphone | Built-in, 5 m range |
Speaker | Built-in |
Audio Terminal | N/A |
GENERAL | |
Operating Temp | -30 to 60 °C |
Storage Temp | -40 to 60 °C |
Humidity (Op/Storage) | ≤ 95% (non-condensing) |
Package Contents | Camera, Quick Start Guide, Waterproof Cable, Mounting Kit |
Material | Metal |
Net Weight | 0.62 kg |
Power Supply | 12V DC ±5% (11 W), PoE (12.3 W, 802.3af/at, class 0) |
Protection | IP67, IK10 |

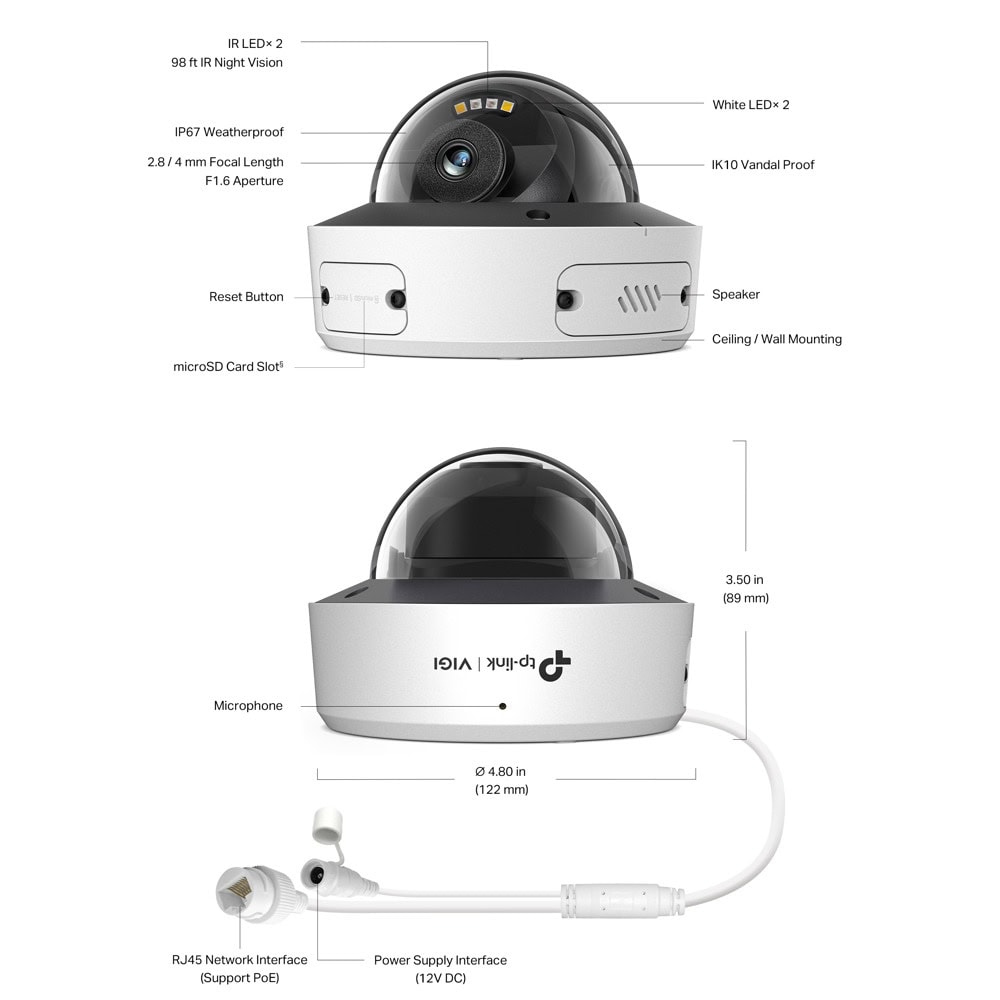

Dimensions | 122 × 122 × 89 mm (4.80 × 4.80 × 3.50 in) |
