Name: Суич TP-Link Omada SG5428X, 1000 Mbps, 28 порта, 24x 10/100/1000Mbps RJ-45, 4x SFP+, 1x USB-A
Brand: TP-Link
SKU: NTLHTPLINKSG5428X
Price: 891.65 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

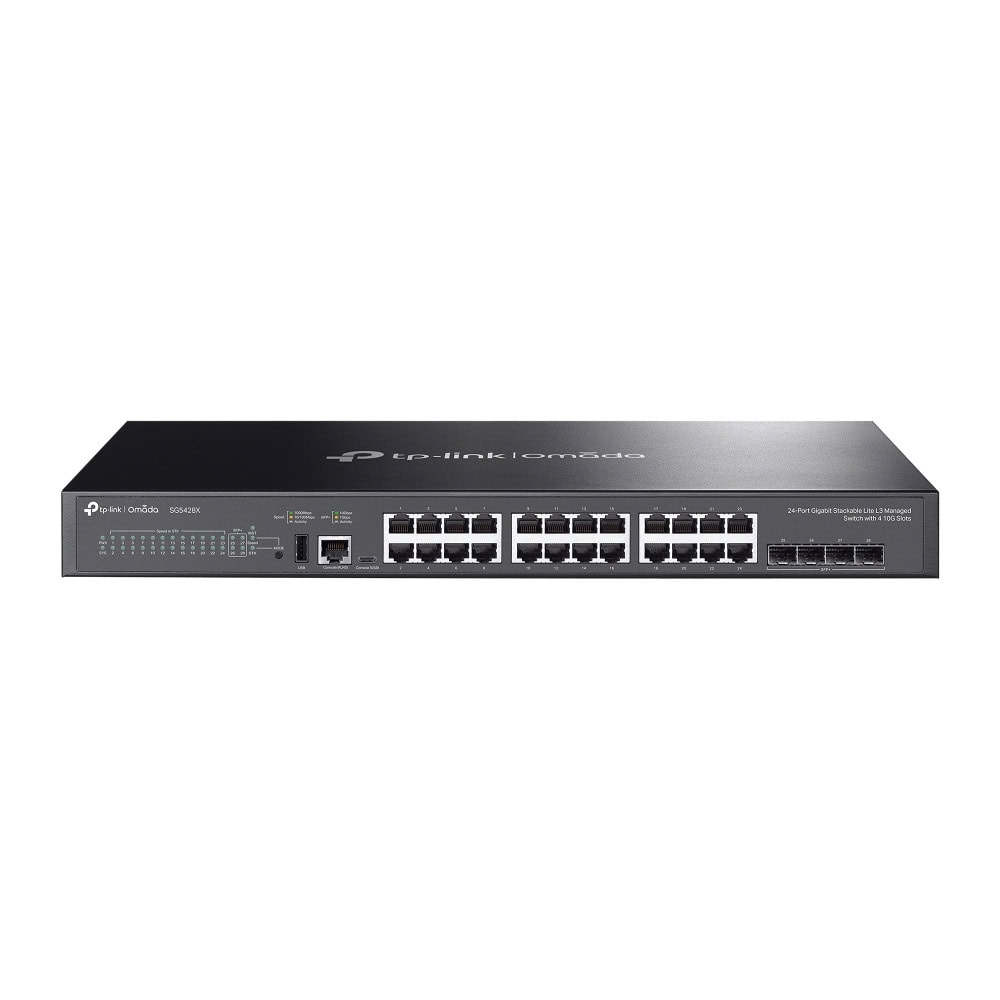

TP-Link Omada SG5428X

Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots

24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
128 Gbps switching capacity per unit
Physical Stacking up to 4 units for built-in redundancy and performance
L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
Security Strategies: ACL, Port Security, DoS Defend, 802.1X
ERPS supports rapid protection and recovery in a ring topology
Centralized cloud management via the Omada SDN controller
Standalone management via web, CLI, SNMP, and RMON

What This Product Does

Omada SG5428X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 24× Gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428X offers a reliable networking solution for SMEs, and ISPs.

High-speed Connectivity and Powerful Stacking

24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.

Highly Available

ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.

Category	Specification
HARDWARE FEATURES	Interface: 24× 10/100/1000 Mbps RJ45 Ports; 4× 1/10 Gbps SFP+ Slots; 1× USB 2.0 Port; 1× RJ45 Console Port; 1× USB Type-C Console PortFan Quantity: FanlessPower Supply: 100-240 V~50/60 HzDimensions (W×D×H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)Mounting: RackmountableMax. Power Consumption: 19.90 W (110 V/60 Hz)Max Heat Dissipation: 67.86 BTU/hr (110 V/60 Hz)
PERFORMANCE	Switching Capacity: 128 Gbps per UnitStacking: Number: 4; Port: 10G SFP+ Slot (all uplink ports usable as stacking ports); Bandwidth: Up to 40 Gbps (4 stacking ports)Packet Forwarding Rate: 95.23 MppsMAC Address Table: 16 KPacket Buffer Memory: 12 MbitJumbo Frame: 9 KB
SOFTWARE FEATURES	Quality of Service:- Class of Service: 8 Queues of Priority, Port Priority, IEEE 802.1p Priority, DSCP Priority, Queue Min-Bandwidth, Schedule Mode (SP, WRR, SP+WRR)- Bandwidth Control: Rate Limit, Storm Control- Voice VLAN, User-Defined OUI, Smoother Performance- Action for Flows: QoS remark (802.1P, DSCP)
	L3 Features:- IP Interfaces: IPv4 max 128, IPv6 max 128- Static Routing: IPv4 max 512, IPv6 max 128- Host Route Table max 1,024 entries- RIP v1/v2 max 1,796- OSPF v2/v3; v2 max 1,796, v3 max 450- Static ARP: 512 entries; Dynamic ARP: 3,600 entries- Proxy ARP- DHCP Server: Max 64 IP Pools, 1,000 Manual Bindings- DHCP Relay: Relayed Interface, Relayed VLAN
	L2 and L2+ Features:- Link Aggregation, Spanning Tree Protocol, Loopback Detection (port- and VLAN-based), 802.3x Flow Control, ERPS, Mirroring, RSPAN, MAC Address Table- Multicast: IGMP/MLD Snooping, L2 Multicast Table max 2,000, Fast Leave, Multicast VLAN Registration, Static Multicast Groups, Multicast Filtering
	Advanced Features:- Automatic Device Discovery†, Batch Configuration†, Batch Firmware Upgrading†, Intelligent Network Monitoring†, Abnormal Event Warnings†, Unified Configuration†, Reboot Schedule†
	ISP Features:- 802.3ah Ethernet Link OAM, L2PT, Device Link Detect Protocol (DLDP), DDM, sFlow
	VLAN:- Max 4K VLAN Group (802.1q), 802.1Q Tagged VLAN, MAC VLAN Entries 60, Multicast VLAN, Management VLAN, VLAN VPN (QinQ) max 256 entries, GVRP, Protocol VLAN (Template 16, VLAN 12 entries), Voice VLAN, Private VLAN
	Security:- Port Isolation, CPU-Defend, ARP Inspection (Dynamic ARP Inspection), DoS Defend, IP-MAC-Port Binding (1,024 Entries), DHCP Snooping, ARP Inspection, IPv4 Source Guard- IPv6-MAC Port Binding (1,024 Entries), DHCPv6 Snooping, ND Detection/Snooping, IPv6 Source Guard- DHCP Filter, Static/Dynamic Port Security (up to 64 MAC per port)- Broadcast/Multicast/Unknown-unicast Storm Control (kbps/ratio mode)- 802.1X (Port, MAC base authentication, VLAN Assignment, MAB, Guest VLAN, RADIUS auth/accountability)- AAA (incl. TACACS+)- Secure web management (HTTPS with SSLv3/TLS 1.2)- Secure CLI management (SSHv2)- IP/Port/MAC-based access control
Management Features	Omada App: Yes, requires Omada Hardware/Cloud-Based/Software ControllerCentralized Management: Omada Cloud-Based, Hardware, Software ControllersCloud Access: Yes, requires Omada ControllerZero-Touch Provisioning: Yes, requires Omada Cloud-Based ControllerManagement Features: Web GUI, CLI (console, telnet), SNMP v1/v2c/v3 (Trap/Inform, RMON groups 1,2,3,9), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP Auto Install, Dual Image/Configuration, CPU Monitoring, Cable Diagnostics, Password Recovery, SNTP, System Log, IEEE 802.3az Energy Efficient Ethernet (EEE)
