Name: Суич TP-Link Omada ES220GP, 1000 Mbps, 20 порта, 18x 10/100/1000Mbps RJ45 (16x PoE+), 2x SFP
Brand: TP-Link
SKU: NTLHTPLINKES220GP
Price: 245.72 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

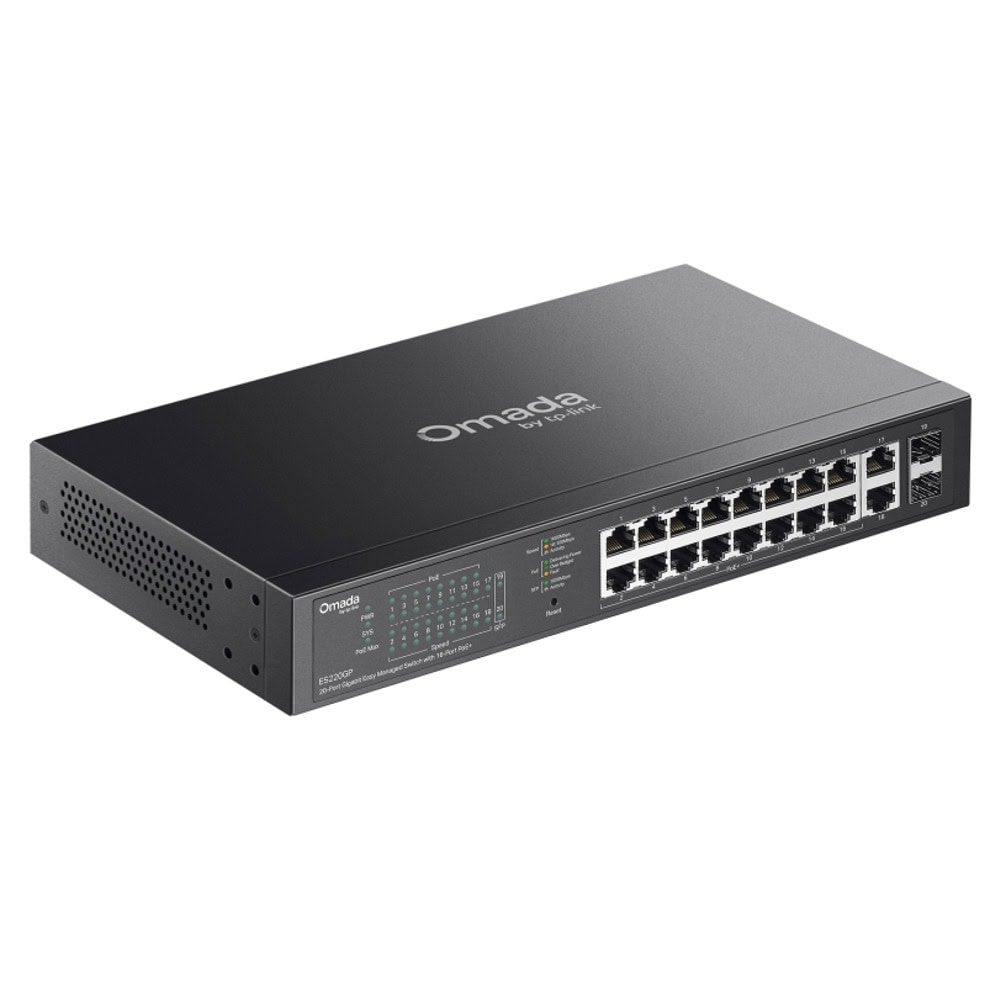

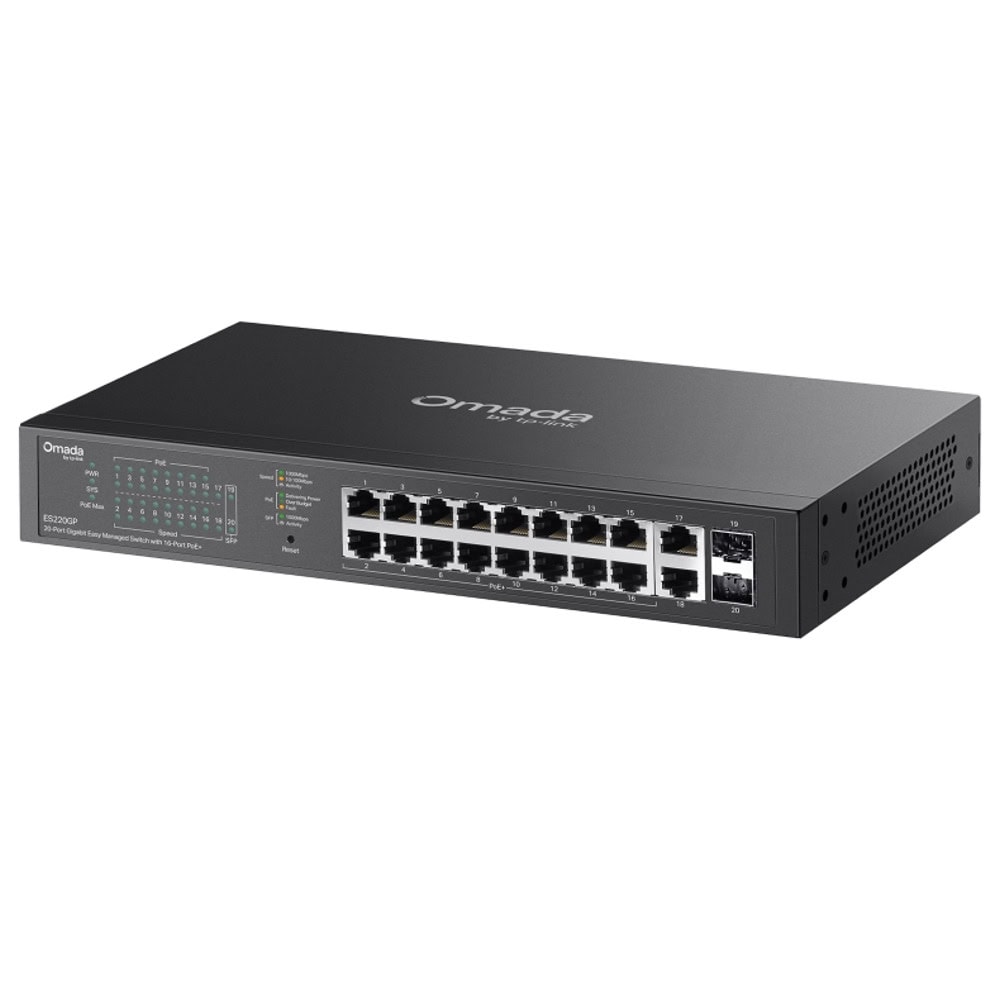

TP-Link Omada ES220GP

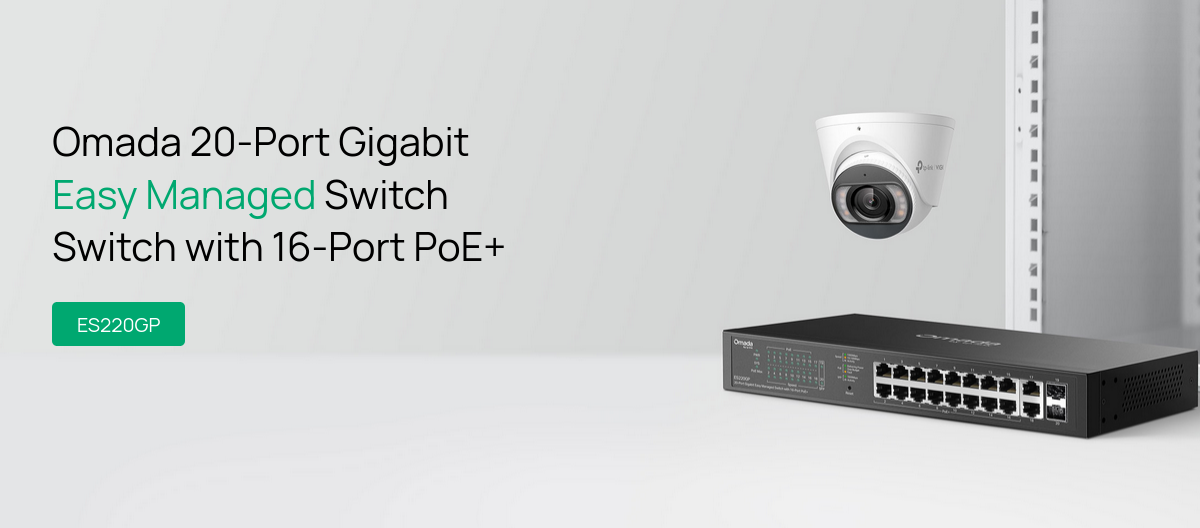

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

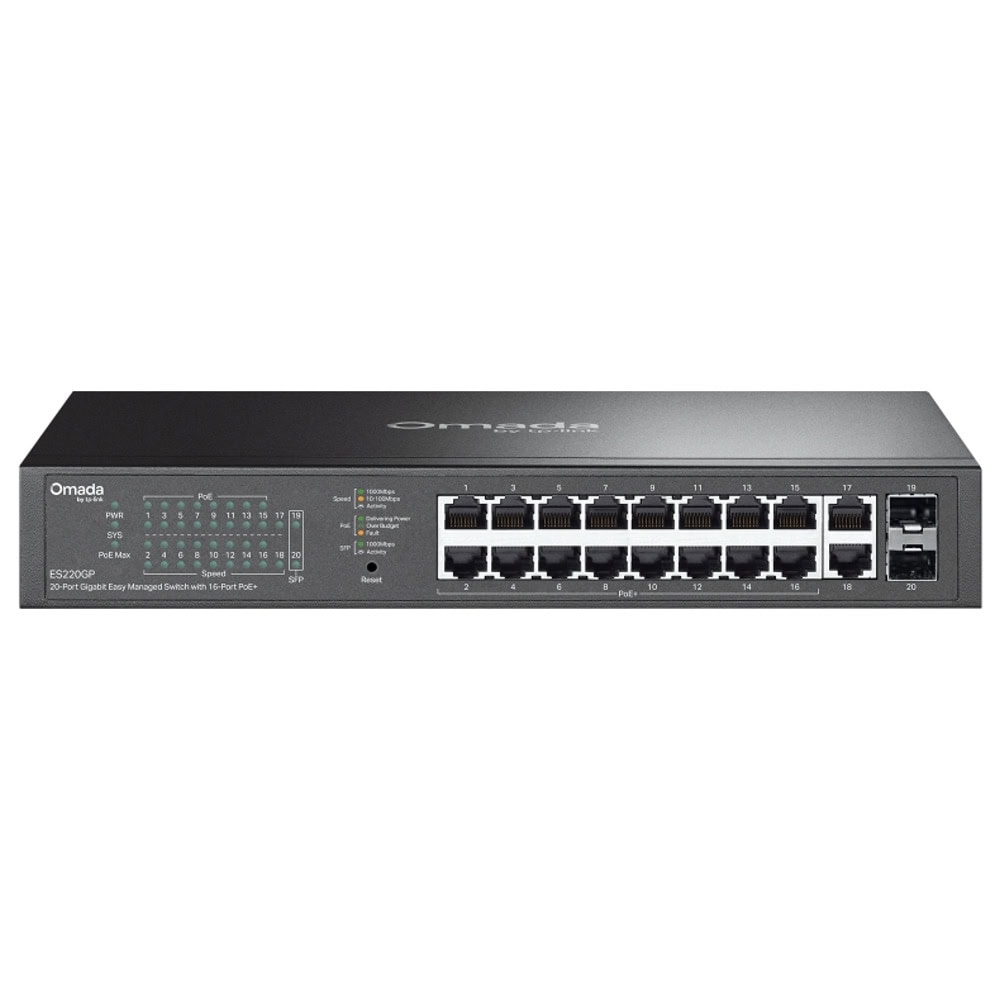

18× 10/100/1000Mbps RJ45 ports (16× 802.3af/at-compliant PoE+)
2× Gigabit SFP Slots
150W PoE Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features

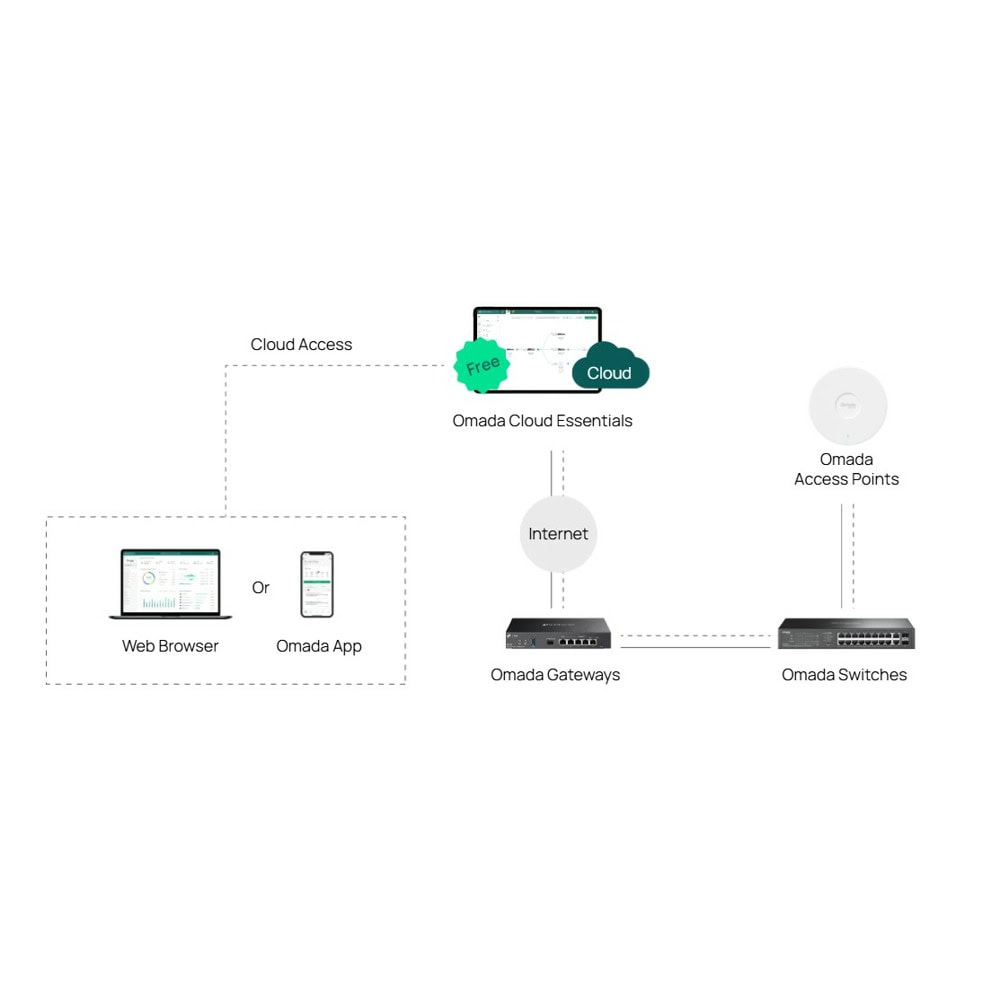

Centralized Cloud Management via the web or the Omada app†

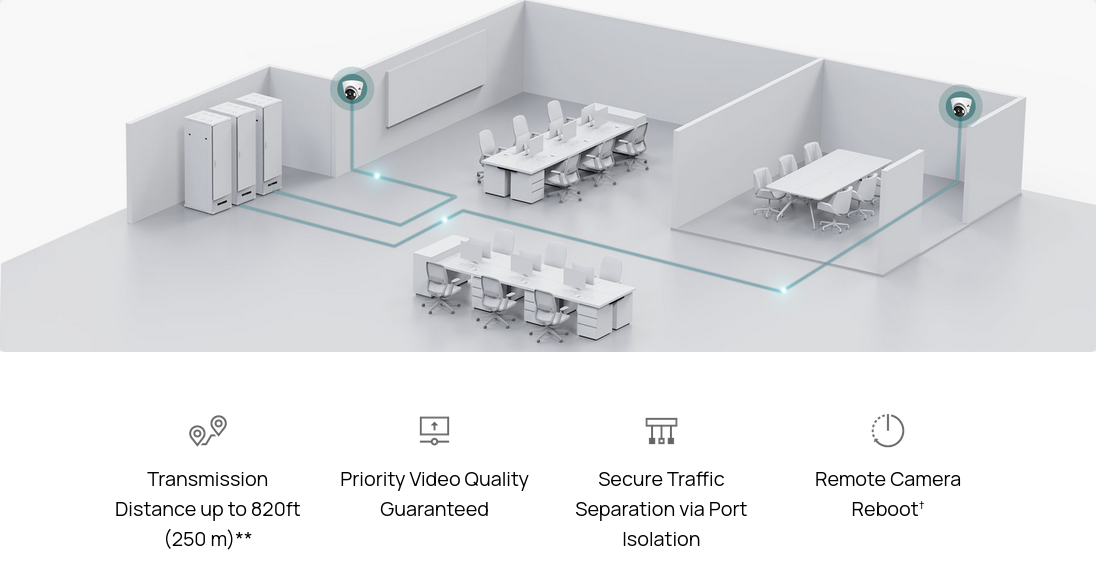

Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and rack mounting design

Abundant Functions for Reliable Surveillance Networking

Specification	Details
Interface	18× 10/100/1000 Mbps PoE+ RJ45 ports (16× 802.3af/at-compliant PoE+), 2× Gigabit SFP slots, Auto-Negotiation / Auto MDI / MDIX
Fan Quantity	Fanless
Installation	Desktop / Rackmount
Physical Security Lock	Yes

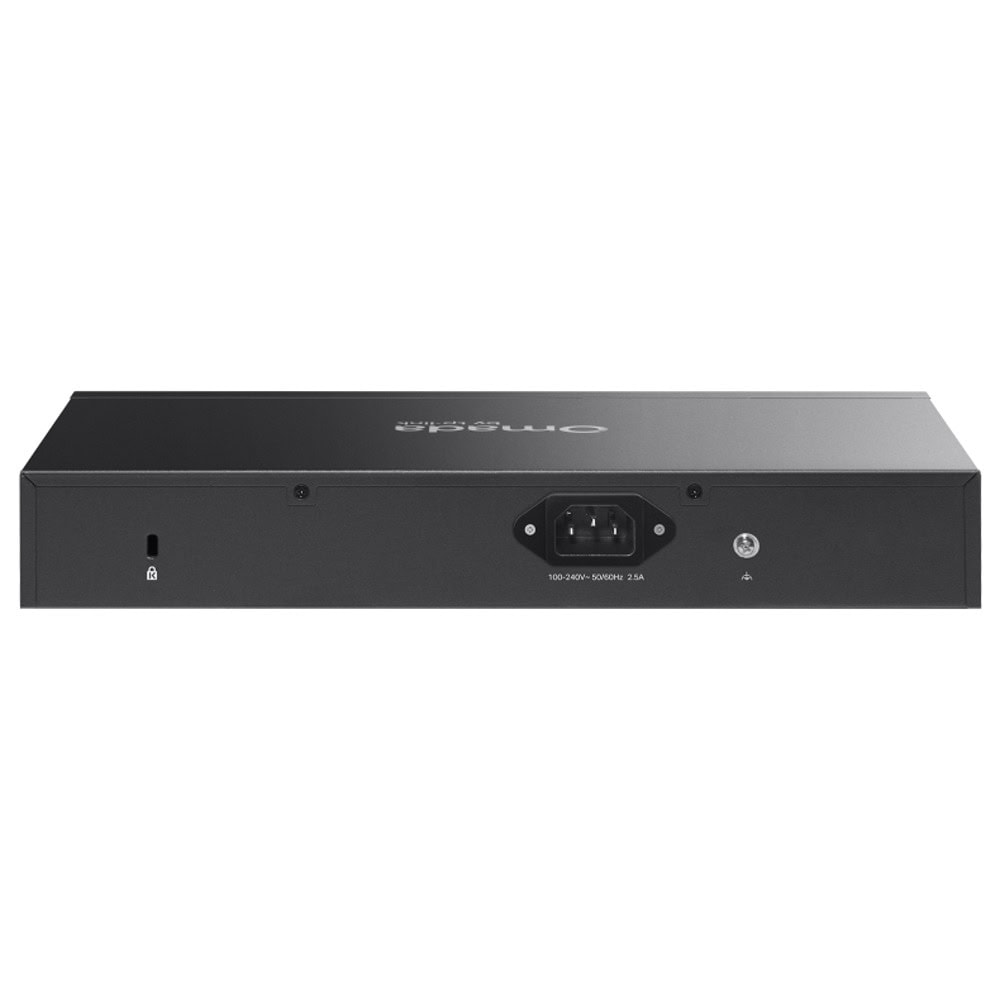

Power Supply	100–240V AC, 50/60Hz, 2.5A
PoE Standards	802.3af PoE and 802.3at PoE+ compliant
PoE Ports	16 PoE ports
PoE Budget	150W total for all PoE+ ports, up to 30W per port
PoE Features	Fast PoE, Perpetual PoE, PoE Auto Recovery, up to 250 m PoE transmission distance
Dimensions (W × D × H)	11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Surge Protection	±6 kV
Switching Capacity	40 Gbps
Packet Forwarding Rate	29.76 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
Transmission Method	Store-and-Forward
Quality of Service (QoS)	Port-based QoS, 802.1p, DSCP, 8 priority queues, WRR scheduling, queue weight configuration, bandwidth control (port-based rate limit), storm control (kbps/pps, broadcast/multicast/unknown-unicast)
L2 Link Features	Static link aggregation, loop prevention / loopback detection
Flow Control	IEEE 802.3x Flow Control
Port Mirroring	One-to-One, Many-to-One, ingress / egress / both
Port Statistics	Port mirror status, traffic statistics
LLDP	IEEE 802.1ab LLDP
L2 Multicast	IGMP Snooping (v1/v2/v3), Fast Leave
VLAN Support	MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN, up to 32 VLAN groups, 4K VID
Omada App Support	Yes (requires Omada Hardware Controller, Cloud-Based Controller, or Software Controller)
Centralized Management	Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
Cloud Access	Yes (requires Omada controller)
Zero-Touch Provisioning	Yes (requires Omada Cloud-Based Controller)
Management Functions	Web-based GUI, DHCP client, cable diagnostics, automatic device discovery, batch configuration, batch firmware upgrade, unified configuration
