O9 5GHz 11ac 23dBi Gigabit Outdoor CPE

What it does
O9 5GHz 11ac 23dBi gigabit outdoor CPE is designed to PtP and PtMP solutions for privated ISP wireless connectivity, CCTV surveillance and data transmission. It features with 23dBi directional dual polarization antenna to provide an efficient way to pick up and maintain a stable long-distance connectivity up to 25km. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup.

Main Features
• 5GHz 11ac 867Mbps
• One Gigabit ethernet port
• 23dbi dual polarization antenna
• IP65 weatherproof enclosure
• 6000V Lightning Protection
• AP,Station,WISP operating mode supported
• Up to 60 meters of flexible deployment with included PoE adapter

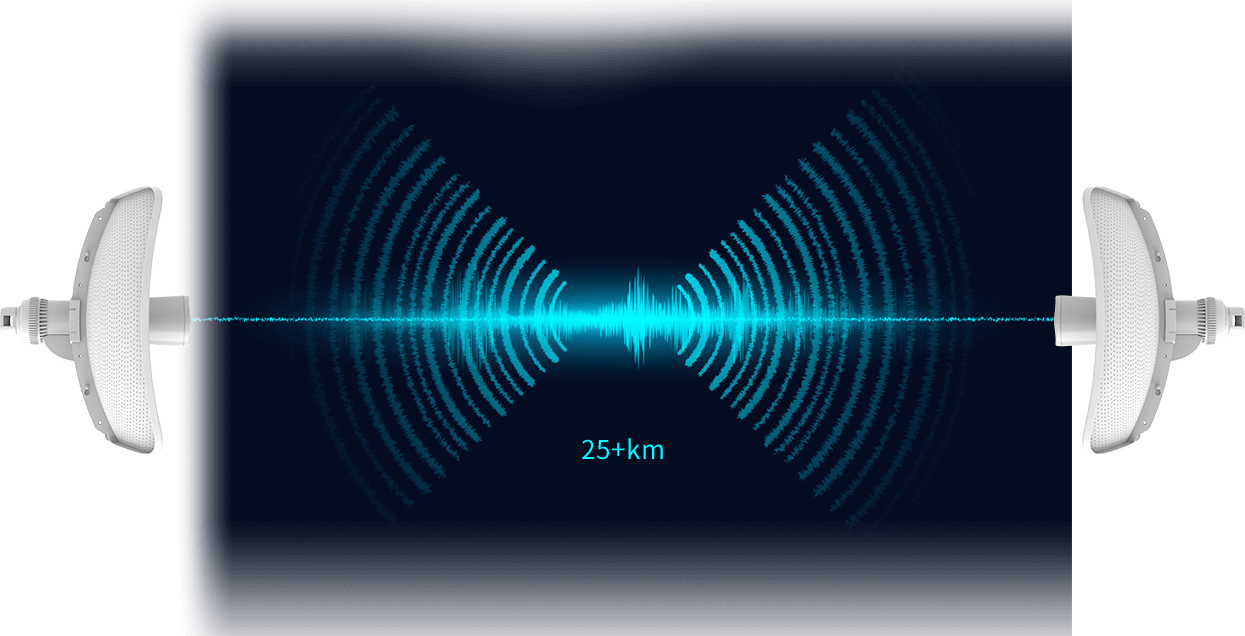

25+km transmission Range
O9 adopts of independent power amplifier and 23dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 25km.

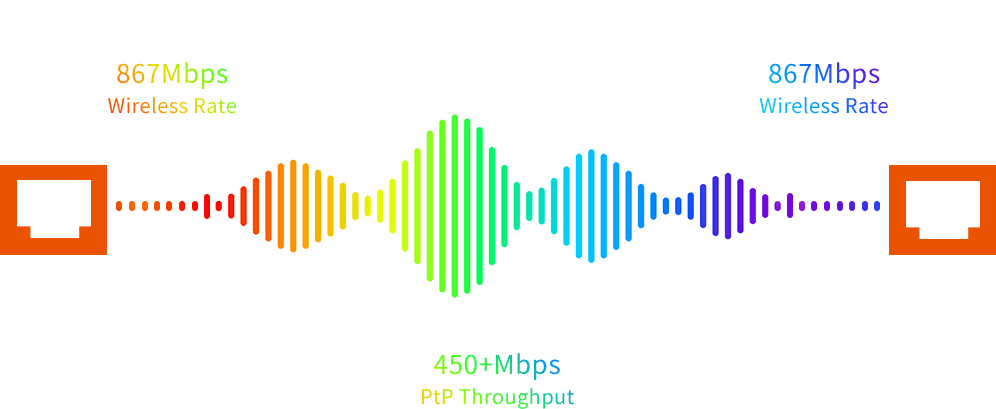

450+Mbps Wireless Throughput
O9 adopt of 11AC wave2 technology, it delivers 867Mbps speed rate at 5GHz radio. Come with Gigabit ethernet LAN port , the maximum throughput test for PtP connection can be up to 450Mbps.

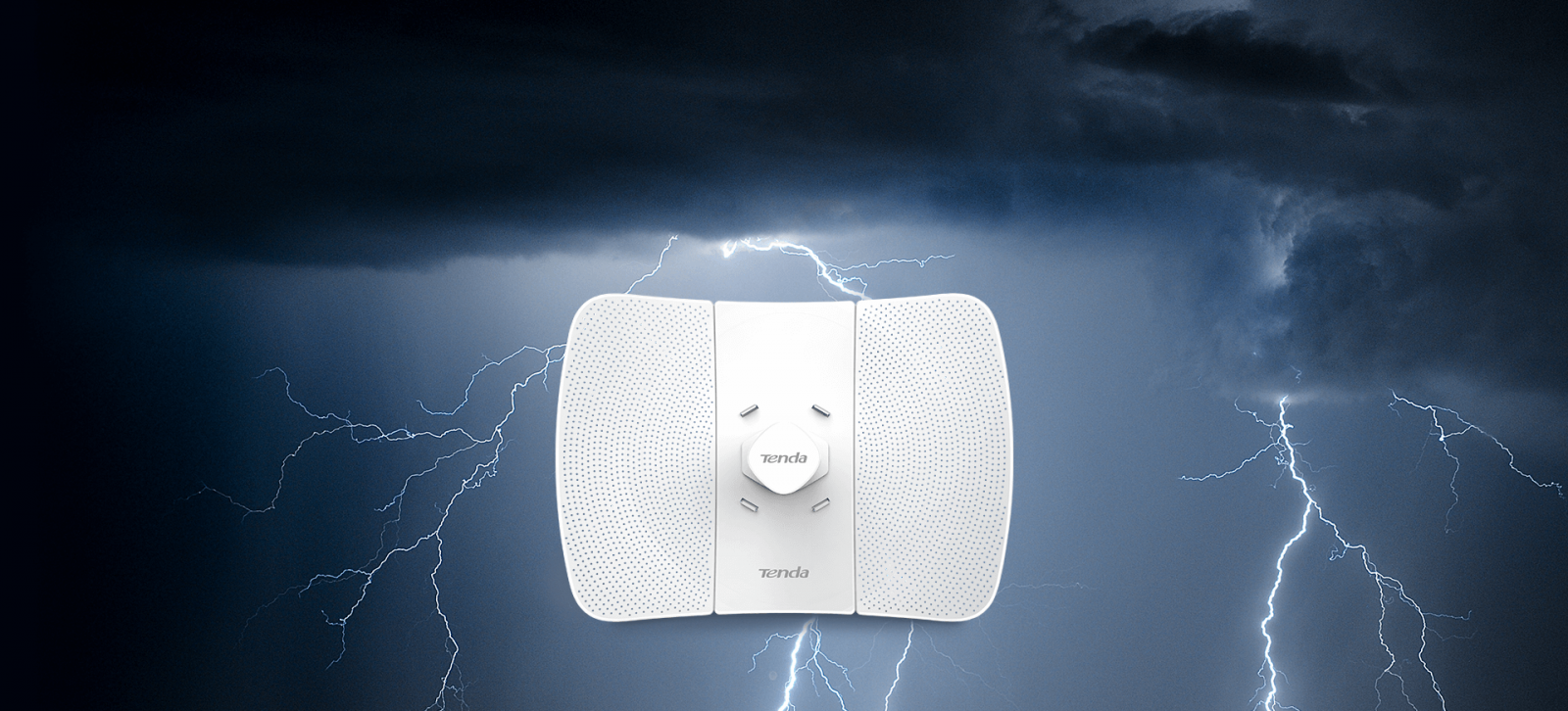

6000V Surge Protection Design
O9 adopts of 6000V ethernet port Surge protection design, It can be more robust in the thunder season.

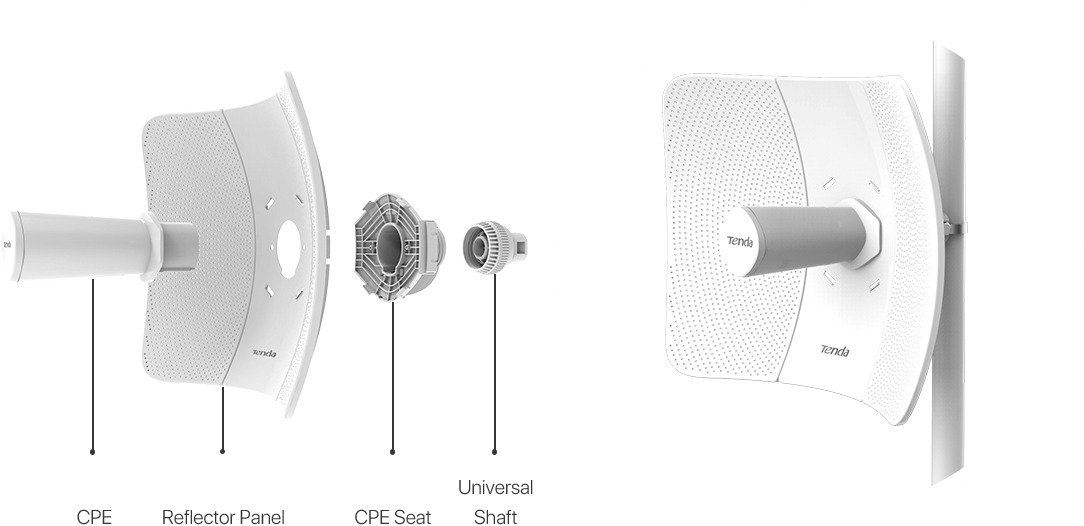

Easy to Assemble and Install
O9 adopts of three-axis alignment, it is easy to assemble in seconds – no tools needed. Only a single screw driver is required for pole-mounting.

Product Information
Model: O9
Dimension: 391.5*280*223mm
Deployment: Pole Mount
Application Scenarios: PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance

Hardware
Frequency Range: 5GHz
Compliant Standards: IEEE 802.11a/n/ac
Maximum Wireless Rate: 867Mbps
Interfaces: 1*10/100/1000Mbps Ethernet Port
Antenna Polarization: Dual Polarization
Antennas Gain: 23dBi
Antenna Beamwidth: Horizontal: 10° Vertical: 10°
GND: /
Reset Button: 1*Reset Button
Power Consumption: 7.5W
Waterproof Level: IP65
LED Indicator: PoE/LAN,LED1,LED2,LED3
Power Method: 24V0.5A Passive PoE
Lightning Protection: 6000V
Passive PoE: Passive power over ethenet via PoE/LAN (+4,5pins-7,8pins )
Voltage range: 21-25V DC
Reception Sensitivity
11a 6Mbps -96dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -65dBm±1.5dBm

Software
TDMA: Support
Operating mode: AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio: Support
SSID Hidden: Support
Wireless Client isolation: Support
SSID Isolation: Support
Channel Bandwidth: 20/40/80MHz
Channel Shift: Support
Wireless Access Control: Support
Weak Signal Client Limitation: Support
Transmission Power: Adjustable power by 1dBm
WMM Capable: Support
APSD Capable: Support
Wireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge: Support
VLAN Tagging for SSID: Support
DHCP Server: Support
VPN Pass-Through: PPTP,L2TP
Remote Web access: Support
Schedule Reboot: Support
Page Timeout: Support
Ping Watchdog: Support
Dyndns: noip, dyndns.org
Network Diagnoses: Ping, Traceroute, Signal Scan
Time: Support
Firmware upgrade: Support
Backup/Restore Configuration: Support
Username Managerment: Support
System Logs: Support
Managed By Controller: PC Software CPE Assistant
