Точка за достъп Tenda i29, 2.4GHz (574 Mbps)/ 5GHz (2402Mbps), Wireless AX, 2x 10/100/1000 Mbps RJ-45, 4x вътрешни антени

Tenda i29

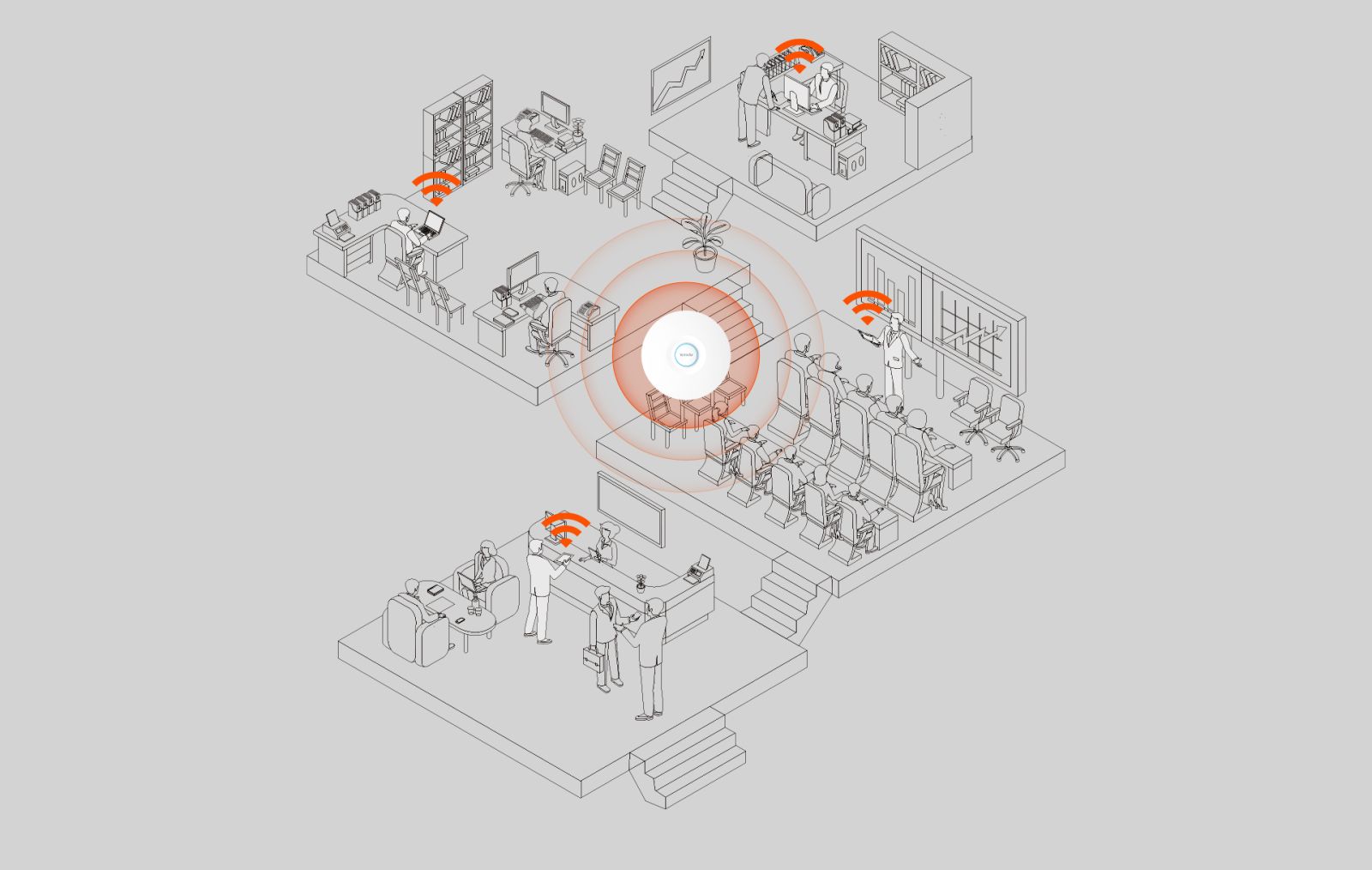

Strong Signal, Large Coverage

One AP for whole office building





4 High-Performance Signal Amplifiers
Coverage up to 500㎡

4 independent high-performance FEM provide wider coverage, stronger penetration, 500㎡ high-speed network coverage.

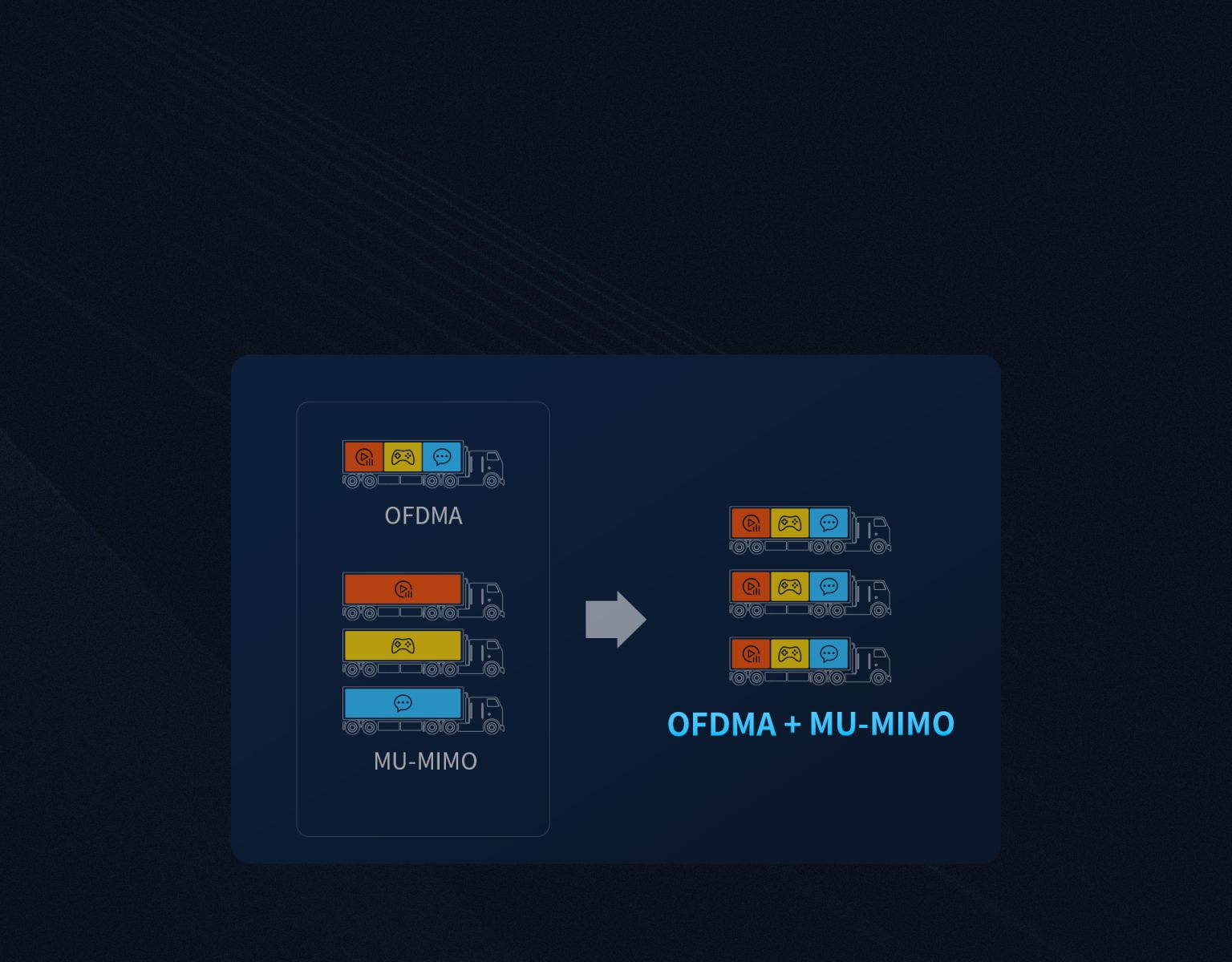

OFDMA and MU-MIMO technology
Smooth access for 150 devices

OFDMA and MU-MIMO technologies greatly enhance the channel capacity, allowing for more efficient data transmission, reducing lag and providing access for 150 devices at the same time.





802.11k/v/r seamless roaming,
Strong Wifi on the go

When moving within the coverage area, device automatically connects to the AP node with best signal.

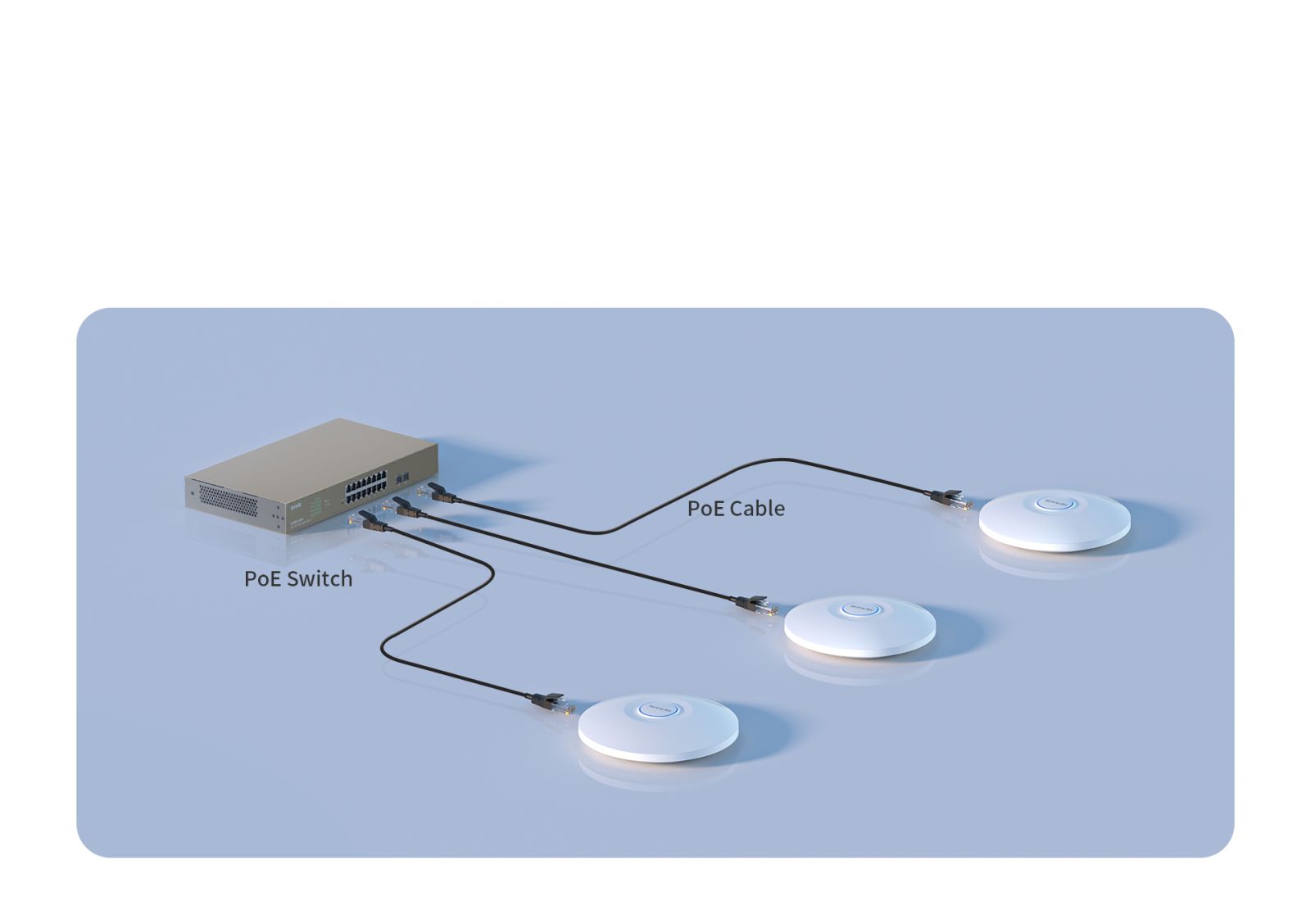

IEEE 802.3af/at Supported
Easy installation and deployment

Two 10/100/1000Mbps Gigabit ports support for 802.3at standard PoE, making installation and deployment easier.





Specifications:

Dimension	Φ250.6*55 mm
Ethernet Interface	One 10/100/1000 Mbps Ethernet Port One 10/100/1000 Mbps Ethernet Port (PoE)
Antenna	4*4 dBi
Button	1*Reset
LED Indicator	RGB
Maximum Power Consumption	15.74 W
Power supply standard	IEEE 802.3at PoE
Frequency Band	2.4 GHz, 5 GHz
Data Rate	2.4 GHz data rate:1-574 Mbps 5 GHz data rate:6-2402 Mbps
Wireless Standard	IEEE 802.11a/b/g/n/ac/ax
Channel width	20 MHz/40 MHz/80 MHz/160 MHz
Max Transmit Power	2.4 GHz Max. output power:29+/-1.5 dBm 5 GHz Max. output power:29+/-1.5 dBm
Sensitivity	802.11b RX sensitivity:-97 dBm 2.4 GHz 802.11n (MCS7) RX sensitivity:-75 dBm 5 GHz 802.11a RX sensitivity:-95 dBm 5 GHz 802.11n (MCS7) RX sensitivity:-75 dBm
MU-MIMO	2X2 MU-MIMO
Operating Mode	AP
Hide SSID	Supported
Max. No. of SSID	2.4 GHz: 7 5 GHz: 4
Max. connected clients	254
WEP	Supported
802.11 k/v	Supported
Fast roaming	Supported
TWT	Supported
Beamforming	Supported
OFDMA	Supported
WPA-PSK	AES/TKIP
WPA2-PSK	AES/TKIP
WPA3-ASE	AES
WPA	Supported
WPA2	Supported
Access control	MAC address-based
Adjustable power transmit	Supported
AP isolation	Supported
Frequency analysis	Supported
Connected clients control	Supported
RSSI Threshold	Supported
VLAN tagging for SSID	Supported
LED control	Supported
Diagnostics	Ping, Traceroute
Schedule Reboot	Supported
Reboot at specified interval	Supported
Centralized Management	Supported
System Logs	Supported
Firmware upgrade	Supported
Reboot	Supported
Backup configuration	Supported
Restore configuration	Supported
Default login IP	192.168.0.254
Default Login Username	admin
Default Login Password	admin
Operation Temperature	-10℃ - 45℃
Operating humidity	(10% - 90%) RH, non-condensing
Storage temperature	-30℃ - 70℃
Storage humidity	(10% - 90%) RH, non-condensing
